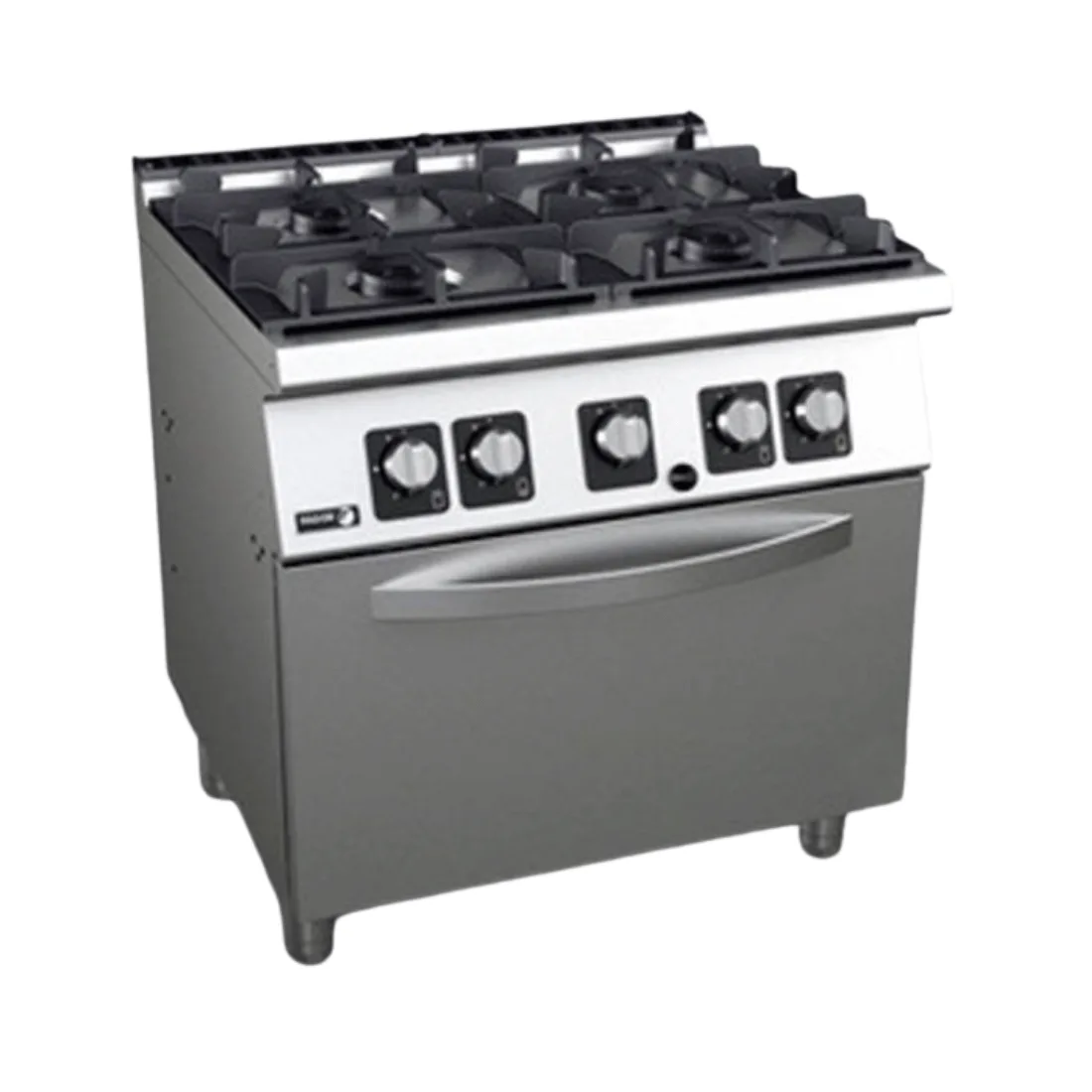

Fagor C-G741H Kore 700 Series Four-Burner Gas Range with Gas Oven
The Fagor C-G741H belongs to the Kore 700 series and brings together a four-burner gas worktop and a full-size static gas oven within an 800 mm wide footprint, purpose-built for the rigours of professional kitchen service. The worktop is fabricated from deep-drawn AISI-304 stainless steel sheet at 1.5 mm gauge, assembled using laser-cut joinery and fully automated welding, with all fasteners concealed beneath the surface for a clean, hygienic finish.
Each of the four burners produces 8.0 kW through double-crown nickel-plated cast iron burner heads and matching diffusers, delivering uniform heat across cookware of any size. The GN 2/1 static gas oven below features a fully stainless steel cooking chamber, a cast iron floor, three rail height positions, and thermostatic control from 125 to 310 °C, making the C-G741H a highly capable centrepiece for commercial cooking operations.
Key Benefits
- Double-crown nickel-plated cast iron burners and diffusers eliminate hotspots and maximise energy transfer, providing consistent, even heat to pots and pans of all sizes.
- Generously sized double grates spanning 397 x 580 mm in total, with each individual grate measuring 397 x 290 mm, safely cradle cookware across the full worktop width, while the 75 mm spacing between central bars keeps pots as small as 8 cm in diameter stable and secure.
- Front-access design combined with flexible stainless steel internal gas pipes makes routine servicing straightforward, helping to minimise kitchen downtime.
- The control panel sits on a dedicated support base that incorporates a water infiltration prevention system, protecting internal components from moisture and extending the operational life of the unit.
- A GN 2/1 static oven with thermostatic control between 125 and 310 °C and three adjustable rail height levels gives chefs precise temperature management and flexible tray positioning for baking, roasting, and reheating.
- Oven rails incorporate a locking mechanism that holds trays firmly in place during loading and unloading, reducing the risk of spills and improving safety during busy service periods.
- A fibreglass door seal improves heat retention, supporting stable oven temperatures and helping to lower gas consumption over time.
- The removable oven door and entirely stainless steel cooking chamber allow thorough, efficient cleaning, supporting food hygiene compliance in commercial kitchens.
- Adjustable-height stainless steel feet enable accurate levelling on uneven floor surfaces.
Key Features
- Worktop surface fabricated from deep-drawn AISI-304 stainless steel at 1.5 mm thickness, assembled with laser-cut joinery and fully automated welding.
- All fasteners are concealed throughout, delivering a professional appearance and simplifying surface cleaning.
- Full-width double grates with an overall footprint of 397 x 580 mm (397 x 290 mm per burner pair) accommodate large cookware across the entire worktop.
- Central grate bar spacing of 75 mm supports pots with a base diameter as small as 8 cm without instability.
- Grates produced from RAAF-enamelled cast iron, formulated to withstand caustic and acidic cleaning agents, open flame, and sustained high operating temperatures.
- Four double-crown burners, each rated at 8.0 kW with a 120 mm diameter, constructed from nickel-plated cast iron with matched diffusers for uniform heat distribution.
- Low-consumption pilot light and thermocouple are integrated within the burner body for enhanced protection.
- Burners are designed for easy repositioning and removal.
- Flexible stainless steel internal gas pipework for accessible, uncomplicated maintenance and repairs.
- Control assembly mounted on a protective base incorporating a water infiltration prevention system.
- High-temperature enamelled cast iron flue protector sits level with the grates, extending the usable cooking surface, accommodating larger vessels, and improving pan manoeuvrability.
- Front-access layout for all internal components.
- GN 2/1 capacity static gas oven with controls located on the upper panel for ergonomic use.
- Oven cooking chamber constructed entirely from stainless steel for hygienic, easy-clean performance.
- Trays are inserted from the side into the oven, improving manoeuvrability in confined kitchen spaces.
- Tubular stainless steel oven burner fitted with a pilot light, thermocouple, and piezoelectric spark ignition.
- Oven heating output of 8.60 kW governed by a thermostatic valve.
- Three rail height positions inside the oven for flexible tray placement.
- Oven rails feature a retention mechanism that holds trays securely and prevents them from tipping when being loaded or removed, with a cast iron oven floor beneath for consistent heat distribution.
- Deep-drawn oven frame and inner door construction for structural rigidity and improved thermal efficiency.
- Fibreglass oven door seal for enhanced heat retention and reduced gas consumption.
- Detachable oven door for thorough and convenient cleaning.
- Adjustable-height stainless steel feet for accurate levelling on uneven floors.
Specifications
- Width (mm): 800
- Depth (mm): 730
- Height (mm): 850
- Weight (kg): 125
- Packed Width (mm): 840
- Packed Depth (mm): 822
- Packed Height (mm): 1255
- Shipping Weight: 107
- Power Delivery: 141mj/h; 40.6 kW
- Power (kW): 141
- Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
