Gasmax GBS4TS 4 Burner With Oven Flame Failure

Gasmax GBS4TS 4 Burner Gas Range With Oven and Flame Failure

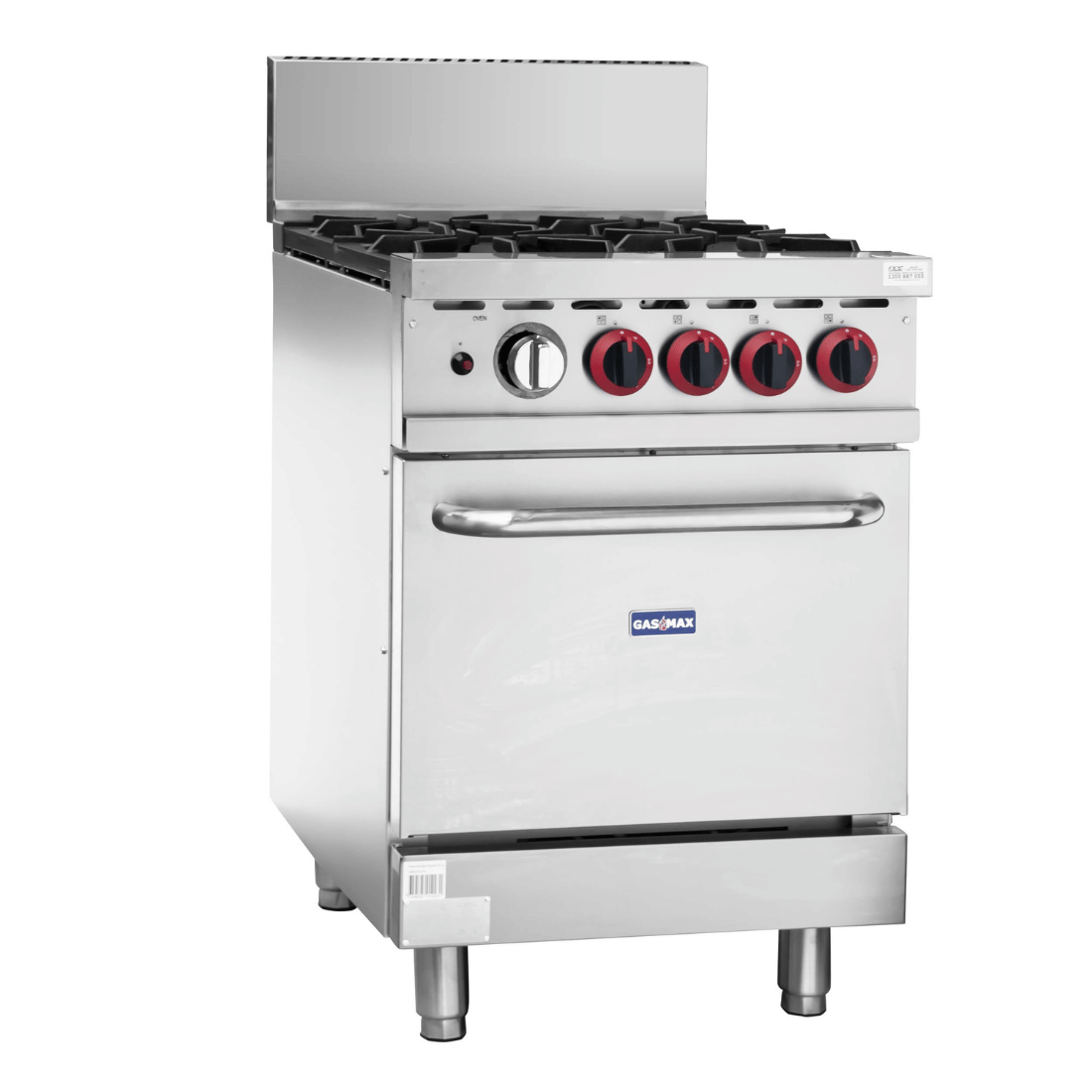

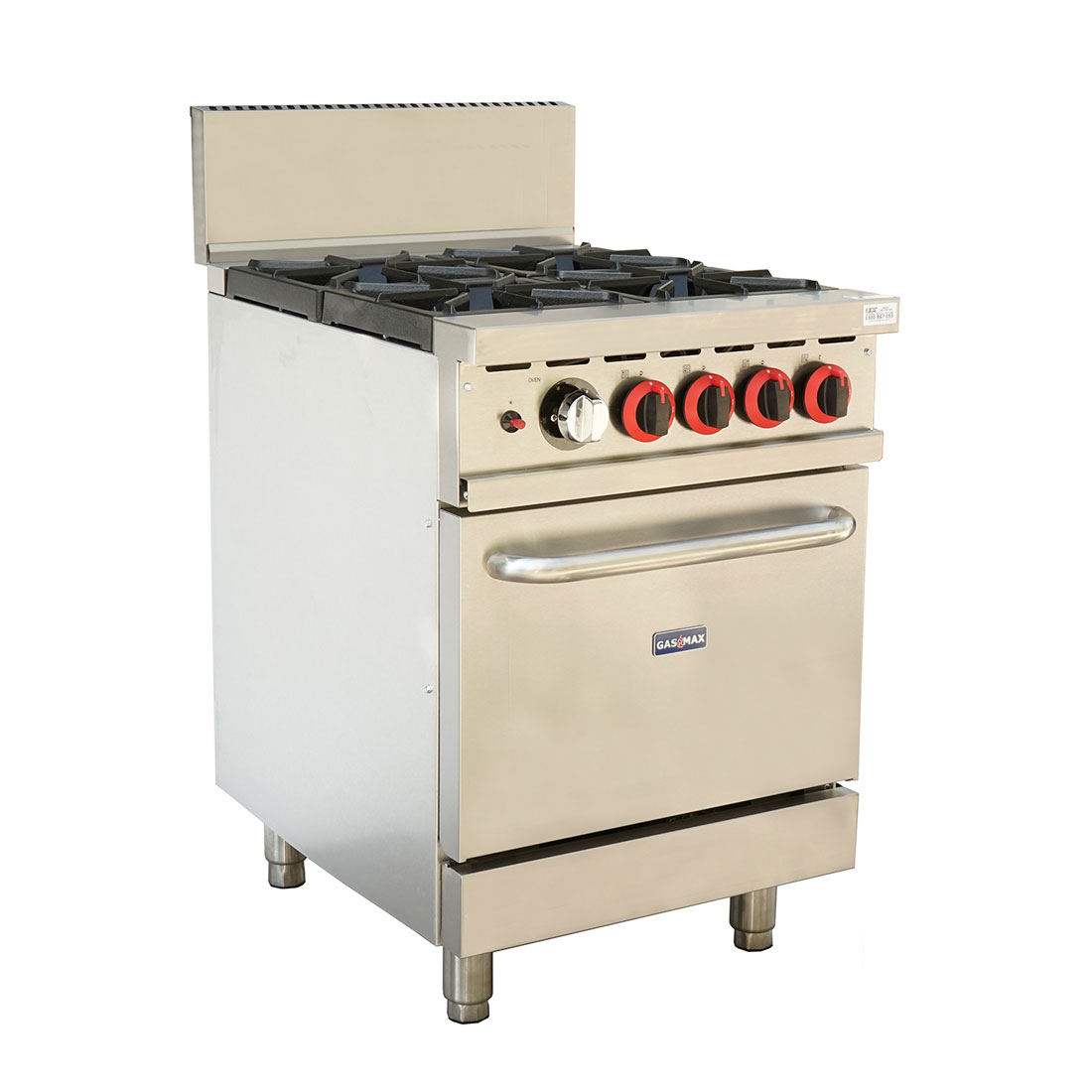

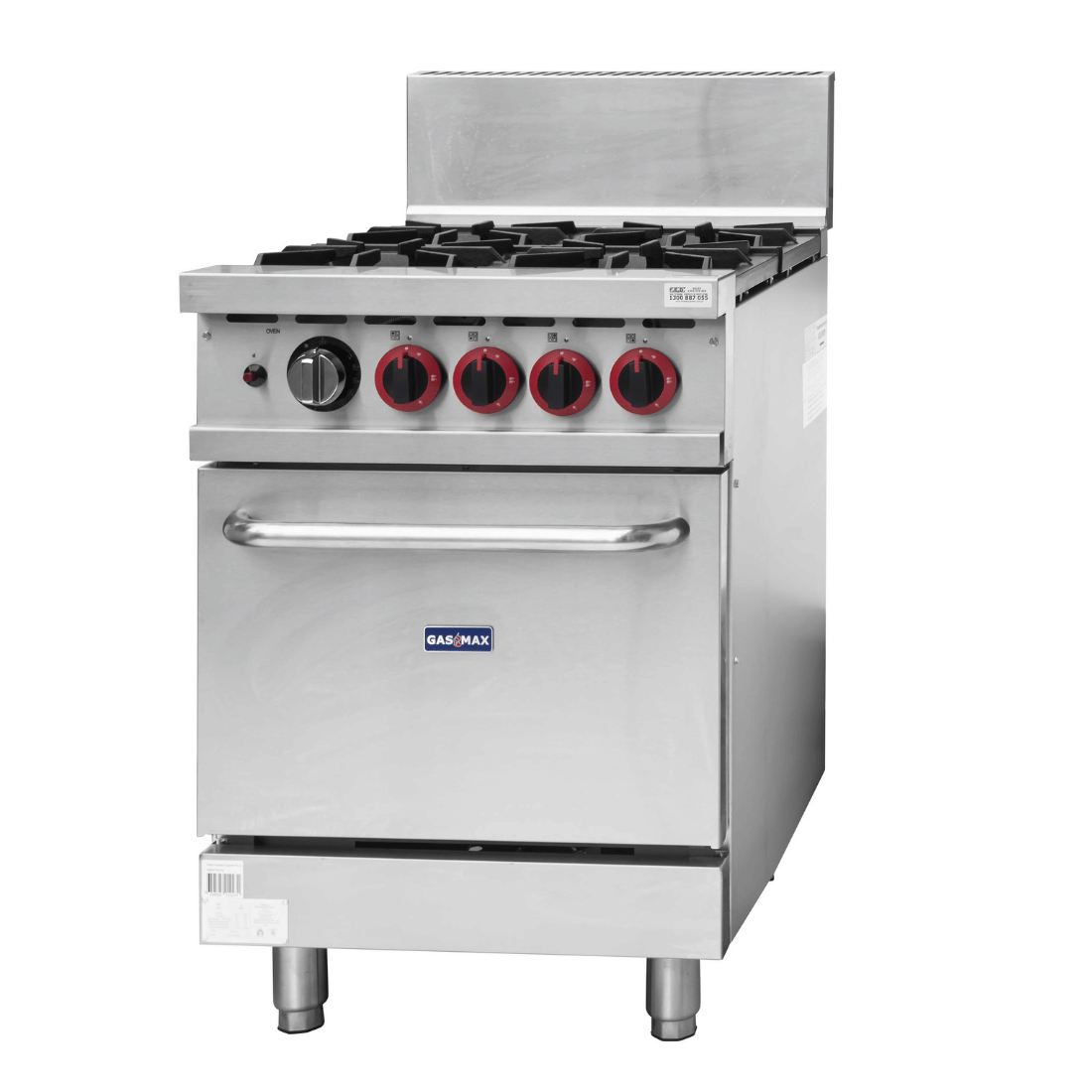

The Gasmax GBS4TS is a compact 610mm wide commercial gas range combining four powerful open burners with a full-sized thermostat-controlled gas oven, all featuring flame failure protection for safe, compliant operation in busy commercial kitchens. Its welded frame construction, stainless steel front and cast iron components are built to withstand the rigours of daily service in cafes, restaurants, pubs and catering operations.

Designed with the working cook in mind, the GBS4TS delivers 38MJ per burner for a total output of 182MJ/h, while thoughtful details such as a pull-out crumb tray, anti-clogging pilot covers, easily dismantled burners and a kick plate for servicing access make routine maintenance quick and straightforward. Backed by a four-year warranty when registered within 14 days of invoice, this unit offers reliable all-in-one cooking performance without the footprint of a 900mm range.

Key Benefits

• Flame failure protection on both the cooktop burners and oven provides a critical safety layer and supports compliance with commercial kitchen requirements.
• Four 38MJ cast iron open burners deliver high, responsive heat ideal for rapid cooking during peak service periods.
• The thermostat-controlled oven (100°C to 300°C) gives precise, consistent temperatures for reliable baking, roasting and holding.
• Compact 610mm footprint allows the unit to fit into smaller kitchen layouts or tight cooking lines where a larger range is not practical.
• Burners are designed to resist food waste blockages and can be fully dismantled for thorough cleaning, reducing downtime between services.
• A pull-out crumb tray with an angled front handle simplifies daily clean-up and helps maintain hygiene standards beneath the cooktop.
• Adjustable heavy-duty legs allow the unit to be levelled on uneven floors, and the bottom kick plate provides easy access for servicing.
• The welded frame structure and cast iron grates provide a stable, long-lasting platform that handles heavy cookware and sustained commercial use.
• A four-year warranty (two years parts and labour plus two years parts only, with registration within 14 days of invoice) supports long-term ownership confidence.

Key Features

• Stainless steel front panel with galvanised sides for durability and easy cleaning
• Natural gas operation with 3/4 inch rear gas connection
• Four cast iron open burners, each rated at 38MJ, totalling 182MJ/h
• Burner design resists blockage from food waste and allows full disassembly for cleaning
• Flame failure control valve on cooktop burners for safety compliance
• Continuous pilot ignition system
• Anti-clogging pilot cover located beneath each grate

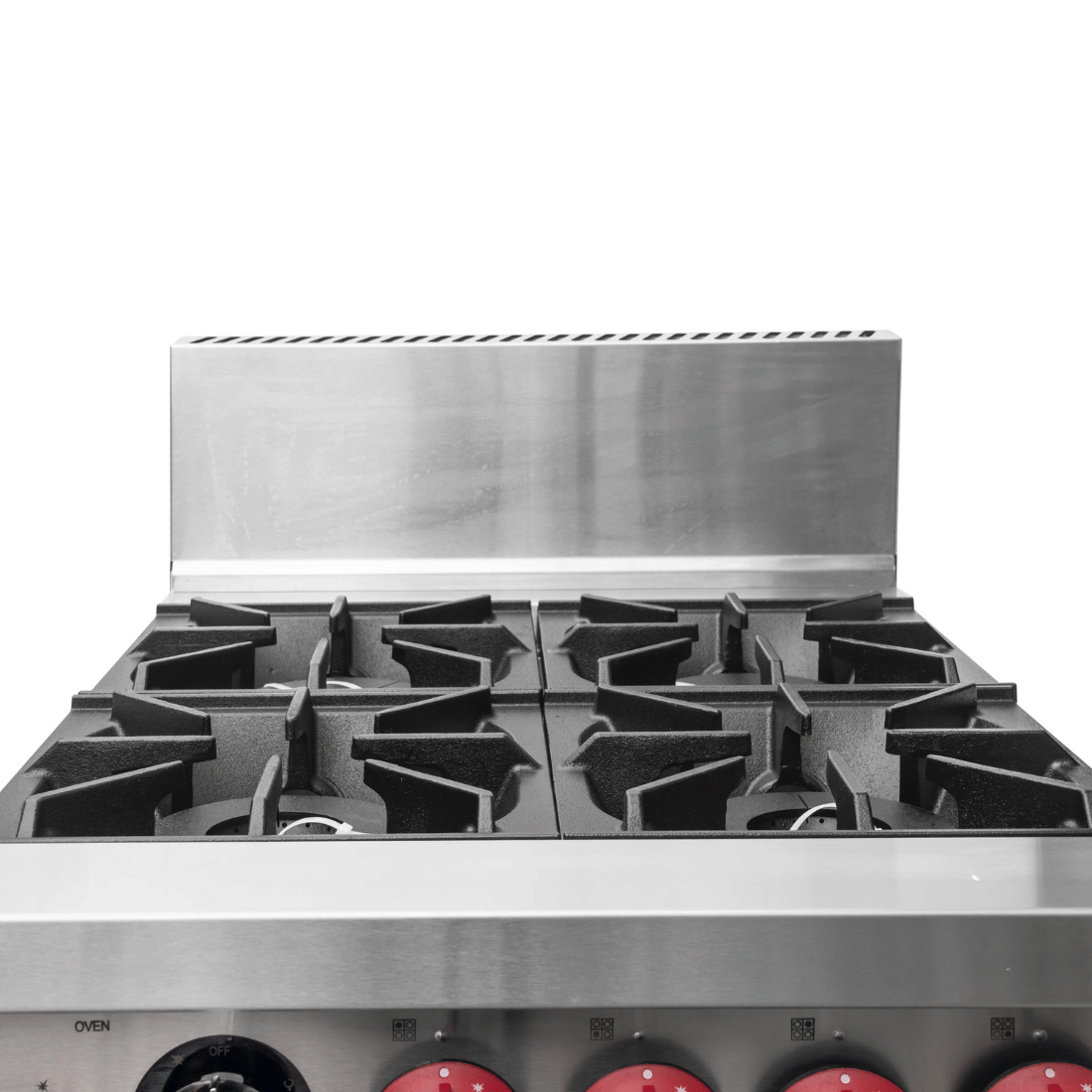

• 12 inch x 12 inch (30 x 30 cm) cast iron grates providing stable support and heat retention
• Welded frame structure for maximum rigidity and stability
• Adjustable heavy-duty legs to level the unit on uneven surfaces

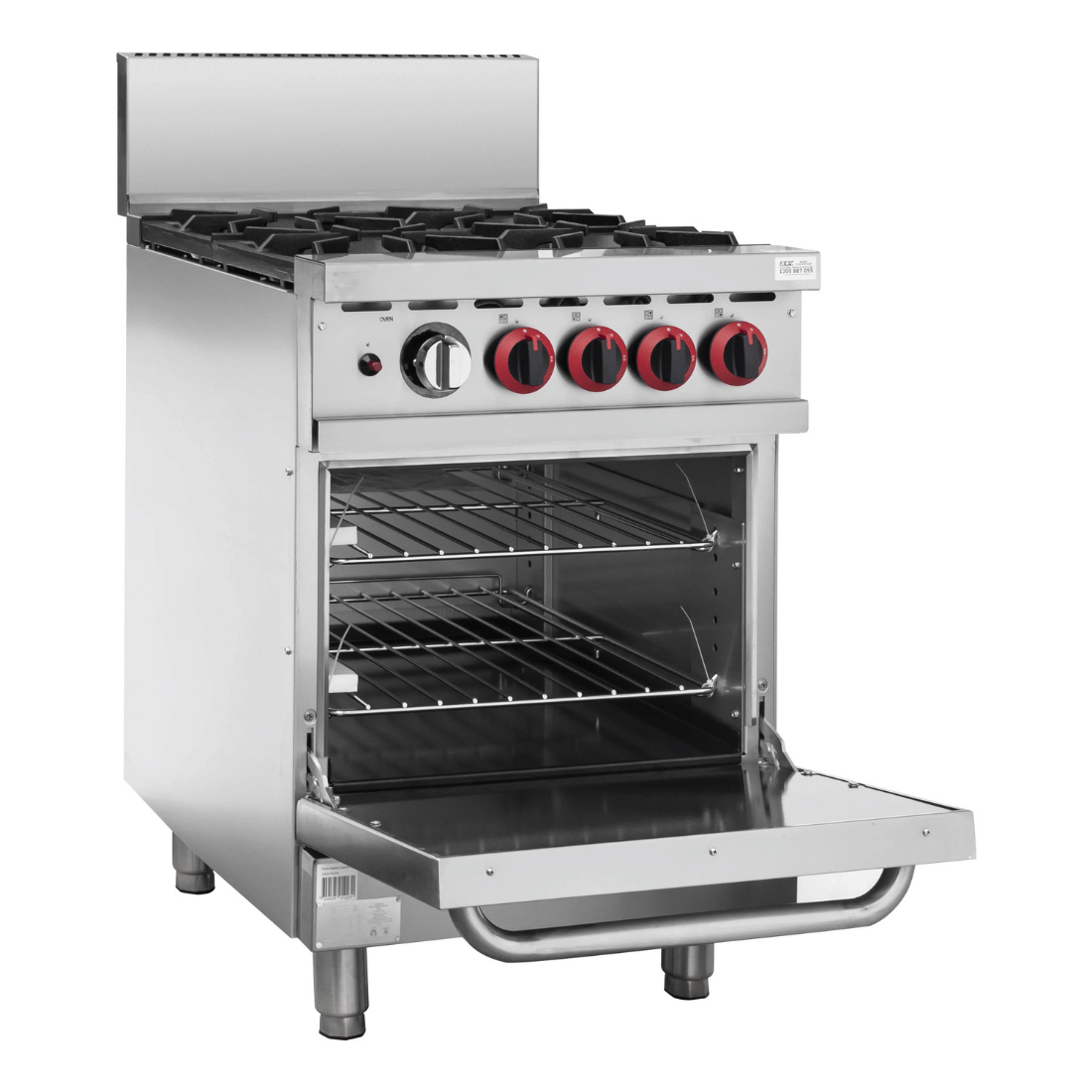

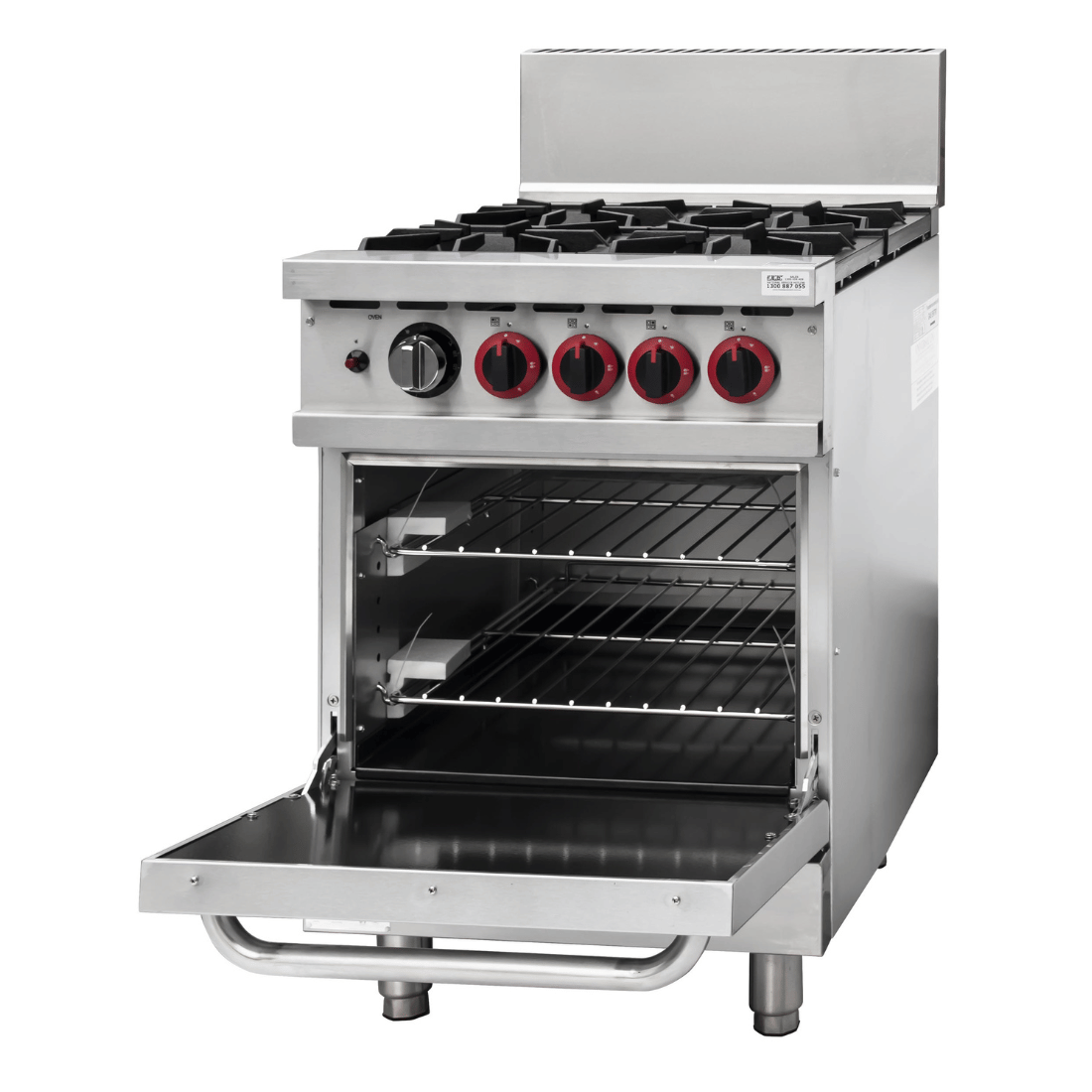

• Thermostat-controlled gas oven with temperature range of 100°C to 300°C
• U-shaped oven burner for even heat distribution throughout the oven cavity
• Thermal coupling safety valve on the oven for additional protection
• Stainless steel oven door with insulation to retain heat and reduce energy loss
• Stainless steel oven door handle
• 0.35mm thick thermocouple rated to withstand temperatures up to 1400°C
• Pull-out crumb tray with angled front handle for easy access and clean-up
• Kick plate at the base of the unit for straightforward servicing access
• Integrated splashback to help keep the cooking line cleaner
• 2 Years Parts and Labour plus 2 Years Parts Only warranty for products registered within 14 days of invoice

Specifications

• Width (mm): 610
• Depth (mm): 855
• Height (mm): 1128
• Weight (kg): 171
• Packed Width (mm): 730
• Packed Depth (mm): 1030
• Packed Height (mm): 890
• Shipping Weight: 132
• Power Delivery: 182MJ/h
• Power (kW): 182
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
