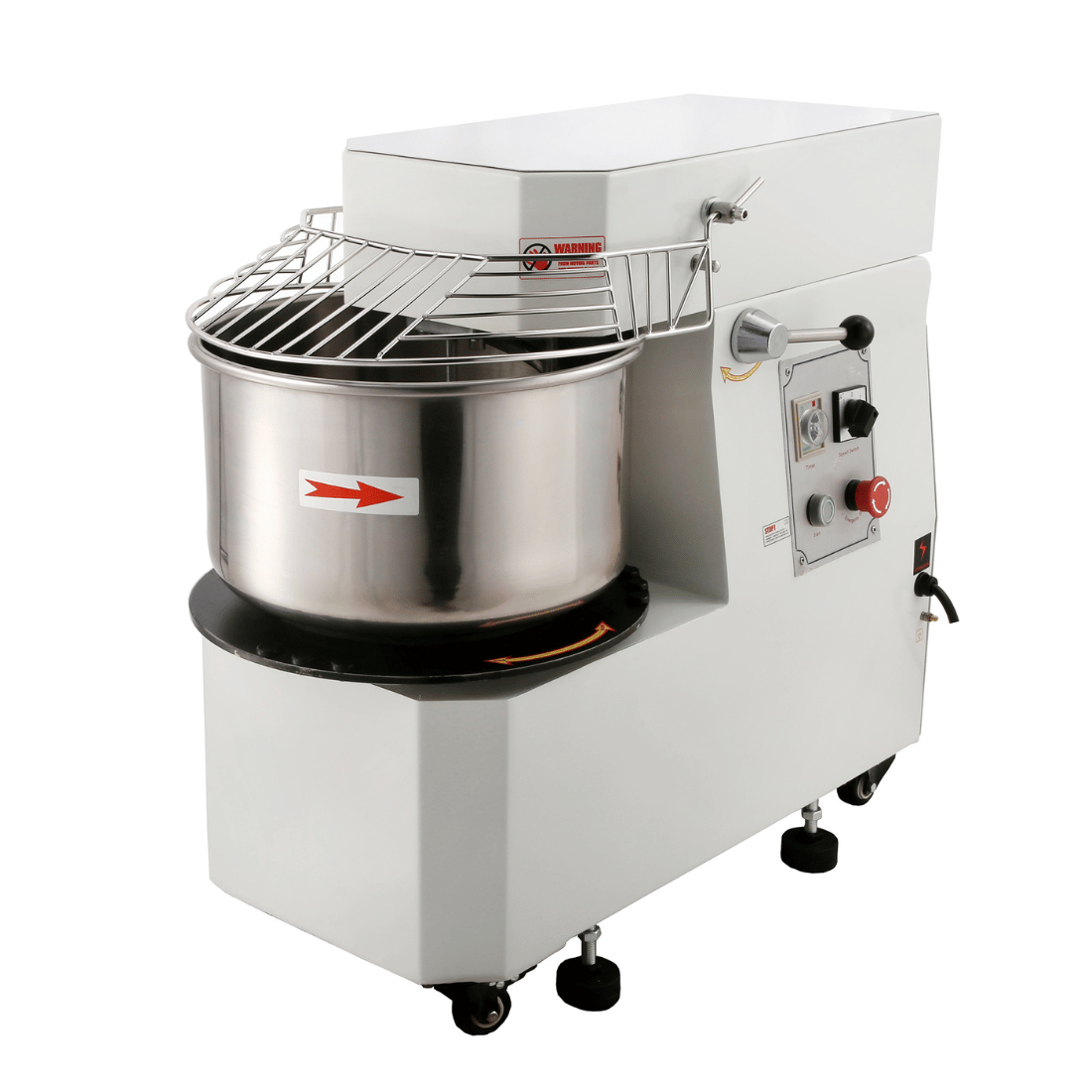

Yasaki HTD-20L Tilting Head Removable Bowl 20L Spiral Mixer

Yasaki HTD-20L Tilting Head Removable Bowl 20L Spiral Mixer

The Yasaki HTD-20L is a 20-litre commercial spiral mixer engineered for consistent, high-quality dough production in small to medium bakeries, cafés, pizza shops and restaurants. Powered by a 1.5kW heavy-duty motor with a chain and gear-driven transmission, it delivers reliable kneading performance with low noise levels, making it well suited to busy professional kitchen environments.

The tilt-head and removable bowl design simplifies dough removal and cleaning, while 24V low-voltage controls and a micro-switch protected safety guard ensure safe daily operation. Supplied ready to roll with castors (two with brakes) and supporting feet, the HTD-20L is a practical, space-efficient unit backed by a 2-year parts and labour warranty.

Key Benefits

• Handles up to 12 kg of dough per batch, making it ideal for consistent production runs in small to medium operations.
• Chain and gear-driven transmission provides thorough, even kneading with optimal gluten development for superior dough texture.
• Tilt-head mechanism with removable bowl makes dough extraction and cleaning quick and effortless between batches.
• Low-noise operation keeps the kitchen environment comfortable during extended mixing sessions.
• 0 to 30-minute built-in timer allows unattended mixing and frees up staff for other tasks.
• 24V low-voltage controls and micro-switch protected safety guard reduce operator risk during daily use.
• Supplied with two-brake castors and supporting feet for flexible placement and stable operation on any surface.
• All food-contact components are stainless steel, supporting strict hygiene standards and long-term durability.

Key Features

• 20-litre bowl capacity suitable for batches up to 12 kg of dough.
• Heavy-duty motor rated at 1.5kW, 240V, 10A single phase.
• Chain and gear-driven transmission for reliable, consistent power transfer.
• Single-speed operation: bowl rotation speed of 16 RPM and spiral hook speed of 156 RPM.

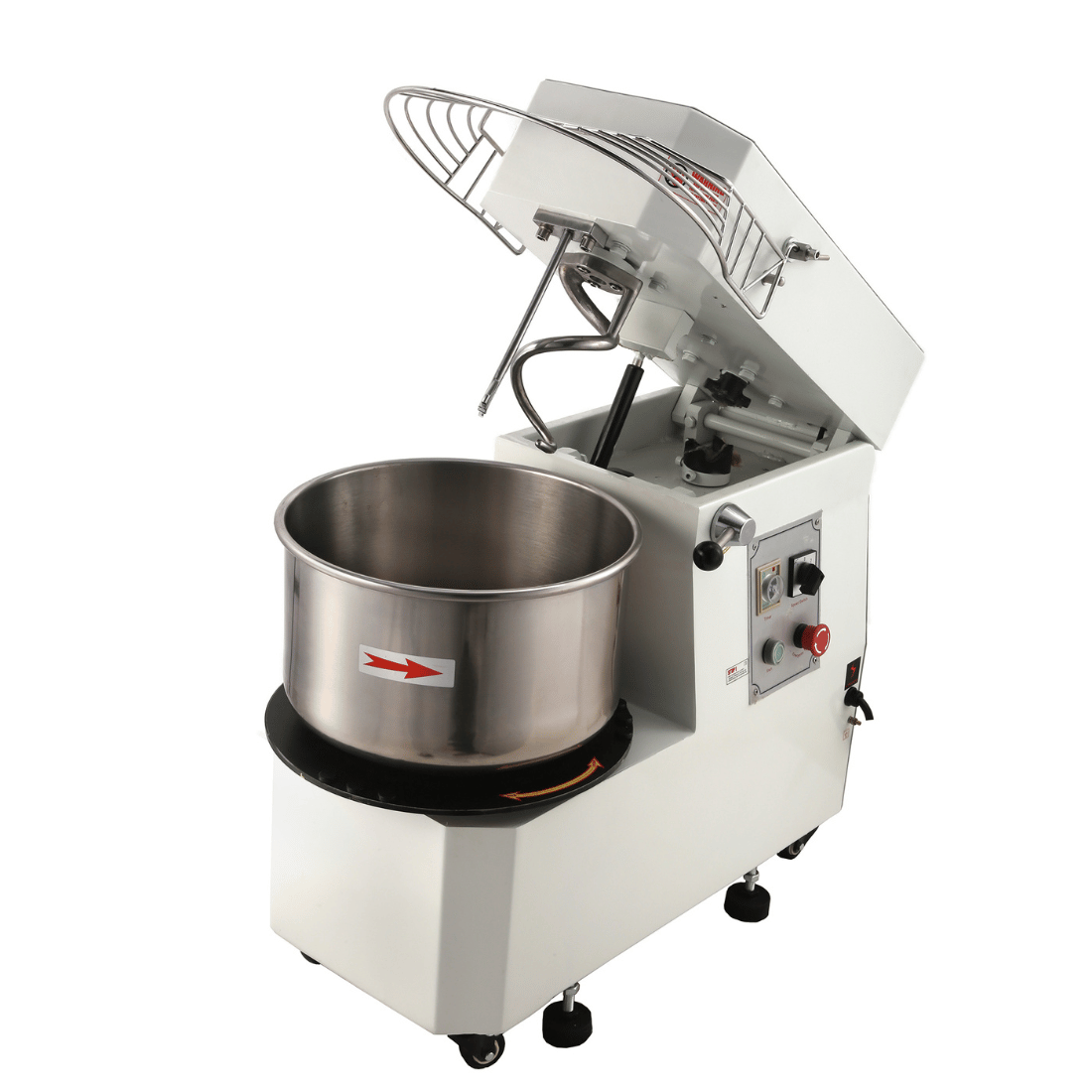

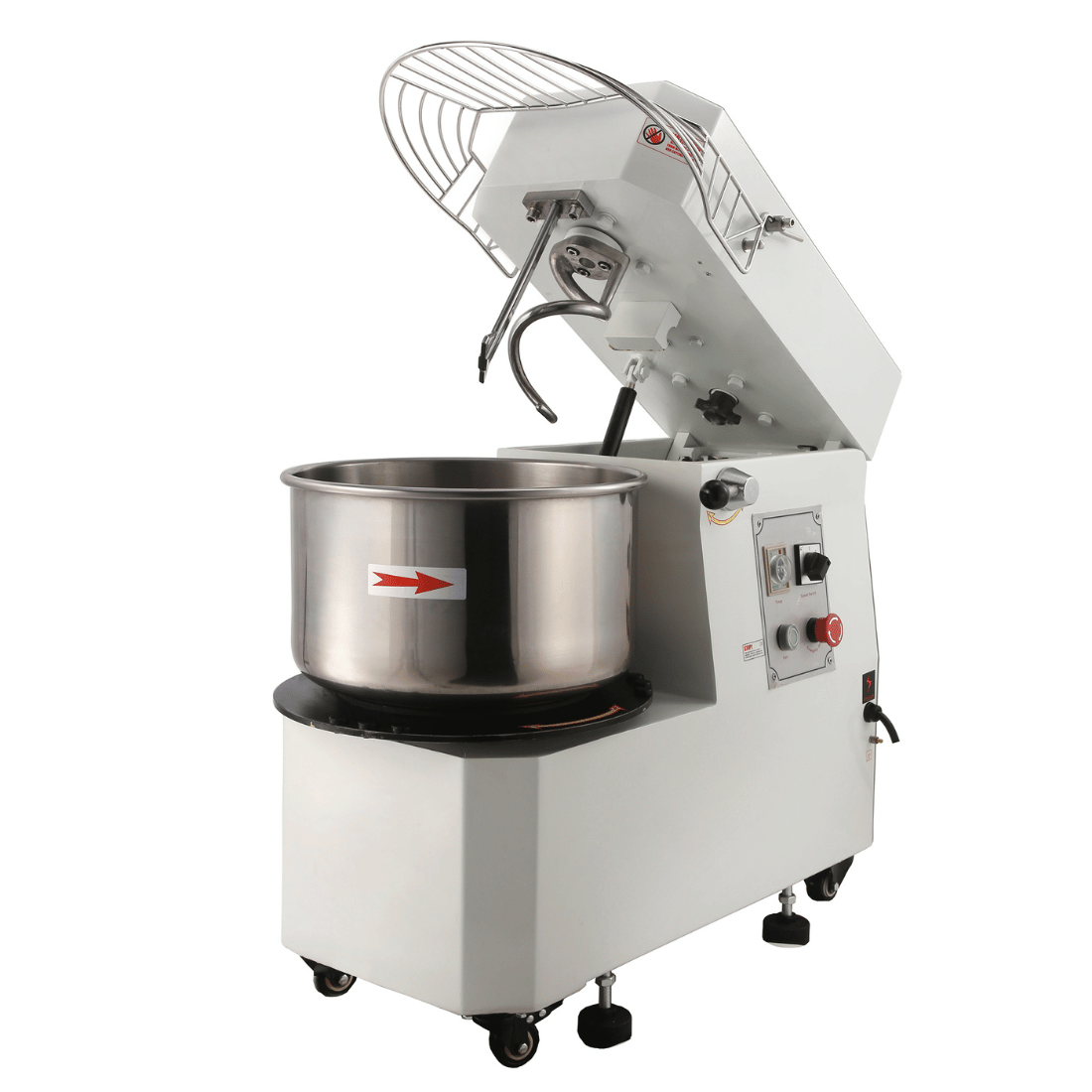

• Tilt-head design allows the head to be raised clear of the bowl for easy access.
• Removable stainless steel bowl for effortless dough removal and cleaning.
• All food-contact parts constructed from stainless steel for hygiene and longevity.
• 24V low-voltage control system for enhanced operator safety.
• Micro-switch protected safety guard that prevents operation when the guard is open.
• Integrated 0 to 30-minute countdown timer for hands-free, automated mixing cycles.
• Designed for a water-to-flour ratio of 45% to 50%.
• Supplied with castors (two with brakes) and adjustable supporting feet for stable positioning.
• Compact footprint of 750mm (W) x 400mm (D) x 730mm (H).
• 2-year parts and labour warranty.

Specifications

• Width (mm): 750
• Depth (mm): 400
• Height (mm): 730
• Weight (kg): 150
• Packed Width (mm): 500
• Packed Depth (mm): 850
• Packed Height (mm): 970
• Shipping Cubic: 0.088800000m3
• Power Delivery: 240V 1.5kW 10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour Warranty
• Capacity (Litres): 20
