Yasaki FS100M Heavy Duty Professional Spiral Mixers 100L

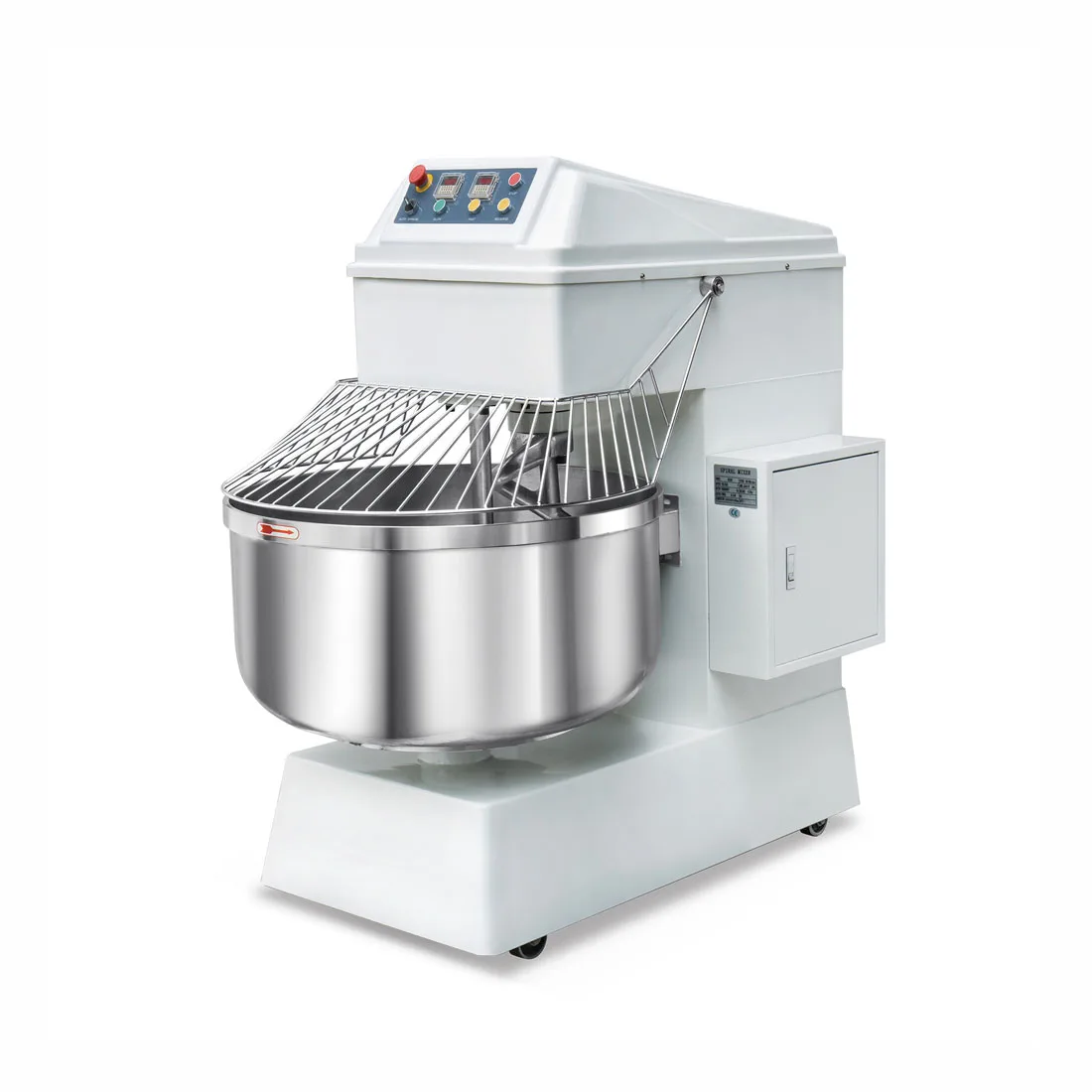

Yasaki FS100M Heavy Duty Professional Spiral Mixer 100L

The Yasaki FS100M is a 100-litre heavy-duty spiral mixer engineered for high-volume bakery and commercial kitchen environments. Built around a patented fixed-head design with two independent motors — one dedicated to rotating the bowl and one driving the hook — it delivers thorough, consistent dough development across a single-phase two-speed operation at 150 RPM and 200 RPM, handling up to 40 kg of dry flour per batch.

Constructed with a stainless steel bowl, hooks, shaft and cover, the FS100M is designed for both durability and straightforward cleaning. A Schneider contactor, digital display, overheat protector, pulse push-button reverse function and two timers provide precise, user-friendly control, while heavy-duty castors allow the unit to be repositioned around the kitchen with ease. CE certified and backed by a 2-year parts and labour warranty, it is a reliable workhorse for serious production demands.

Key Benefits

• Two independent motors — one for the bowl and one for the hook — ensure even dough development and reduce mechanical strain during extended production runs.
• Dual-speed operation at 150 RPM and 200 RPM allows operators to select the ideal kneading speed for different dough types and hydration levels.
• A 100-litre bowl capacity with a 40 kg dry flour maximum supports large batch production, reducing the number of mixing cycles needed during a service.
• The pulse push-button reverse function helps clear dough build-up on the hook and improves ingredient incorporation without manual intervention.
• Two timers enable precise, repeatable mixing cycles so operators can maintain consistent dough quality across every batch.
• Heavy-duty castors make it straightforward to move the mixer for cleaning or to reconfigure the kitchen layout without additional equipment.
• Stainless steel bowl, hooks, shaft and cover are hygienic, corrosion-resistant and quick to wipe down between batches.
• The built-in overheat protector automatically safeguards the motors during prolonged or demanding mixing sessions, helping to extend the service life of the machine.
• CE certification and a 2-year parts and labour warranty provide confidence in both safety compliance and long-term after-sales support.

Key Features

• 100-litre stainless steel bowl capacity
• Maximum dry flour capacity: 40 kg (based on dry bread flour with a minimum 55% water content; overloading or using incorrect speed can cause damage and will void the warranty)
• Two independent motors: one dedicated to bowl rotation, one to hook drive
• Single-phase two-speed operation: 150 RPM and 200 RPM
• Fixed head design
• Patented mixer design
• Schneider contactor for electrical control
• Digital display
• Manual control panel
• Two timers for precise cycle control
• Pulse push-button reverse function
• Stainless steel bowl, hooks and shaft
• Stainless steel cover with safety guard
• Overheat protector
• Heavy-duty castors for mobility
• Easy-clean construction
• CE certified
• Power supply: 415V, 5 kW, 3-phase (3~N)
• Dimensions: 650 mm (W) x 1080 mm (D) x 1380 mm (H)
• Weight: 360 kg
• 2-year parts and labour warranty

Specifications

• Width (mm): 650
• Depth (mm): 1080
• Height (mm): 1380
• Weight (kg): 360
• Packed Width (mm): 730
• Packed Depth (mm): 1150
• Packed Height (mm): 1108
• Shipping Weight: 360
• Power Delivery: 415V; 5kW; 3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
