Thermaster OC-1830B Supermarket Open Beverage Display

Thermaster OC-1830B Supermarket Open Beverage Display

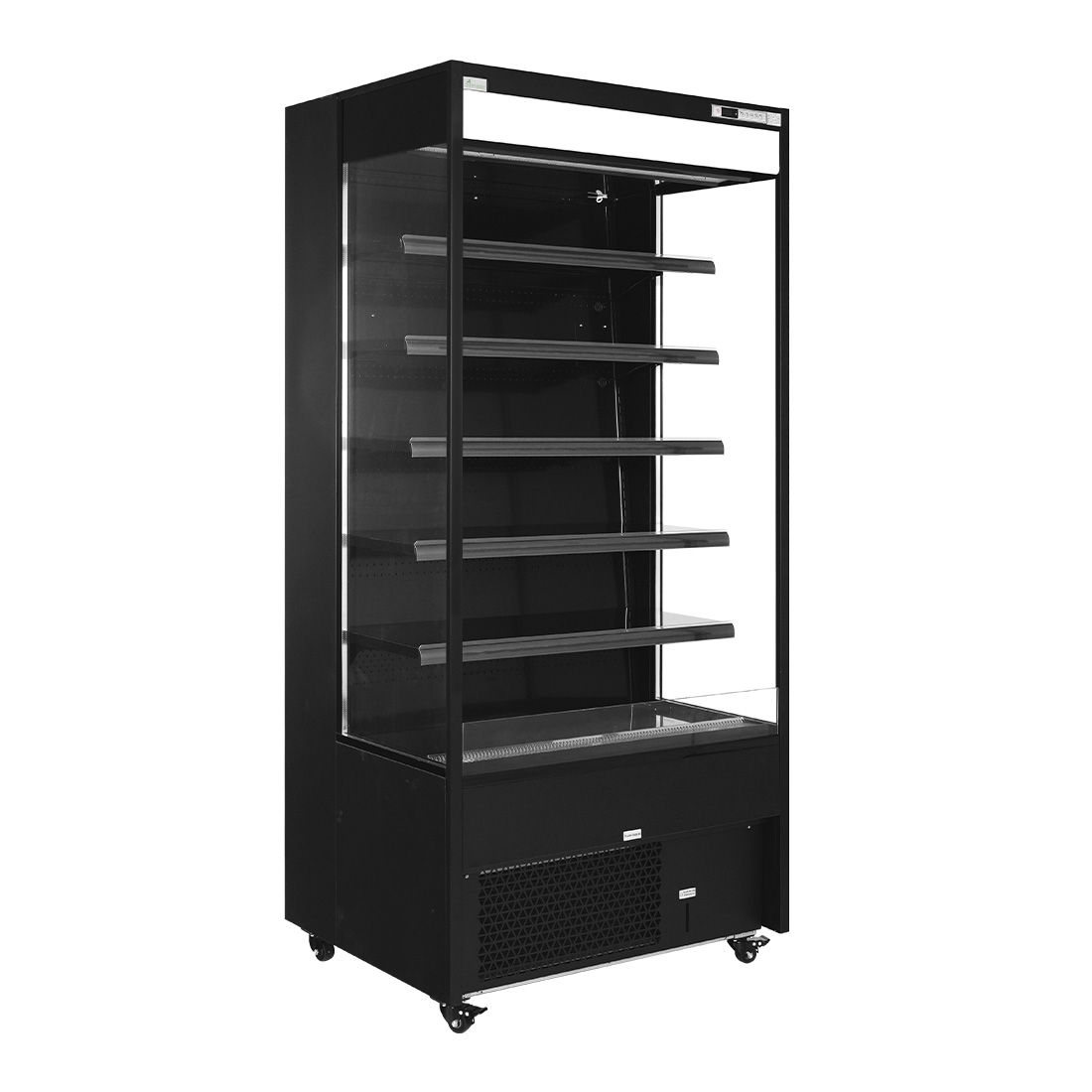

The Thermaster OC-1830B is a supermarket-style open beverage display designed for medium to large retail, café, and hospitality environments. With an 810-litre net capacity, a 3.11 m² display area, and a temperature range of +1°C to +7°C, it keeps chilled beverages at optimal serving temperature while presenting them in an open, easy-access format that actively encourages impulse purchases.

Built with a Colorbond body and powered by a Secop compressor using R290 natural refrigerant, the OC-1830B balances environmental responsibility with reliable, fan-forced performance. Its multiplexable design allows multiple units to be joined in a line-up without a mullion, making it a highly scalable solution for larger retail fit-outs and supermarket-style installations.

Key Benefits

• Open-front access lets customers quickly grab beverages without opening doors, reducing friction at the point of purchase and helping drive sales volume.
• Illuminated top canopy creates a prominent advertising and branding space, drawing shopper attention and highlighting featured products from a distance.
• Double-layer night blinds reduce energy consumption during closed or low-traffic periods, lowering operating costs over time.
• Multiplexable configuration allows units to be assembled side by side without a mullion, enabling seamless multi-bay installations that suit supermarket and large-format retail layouts.

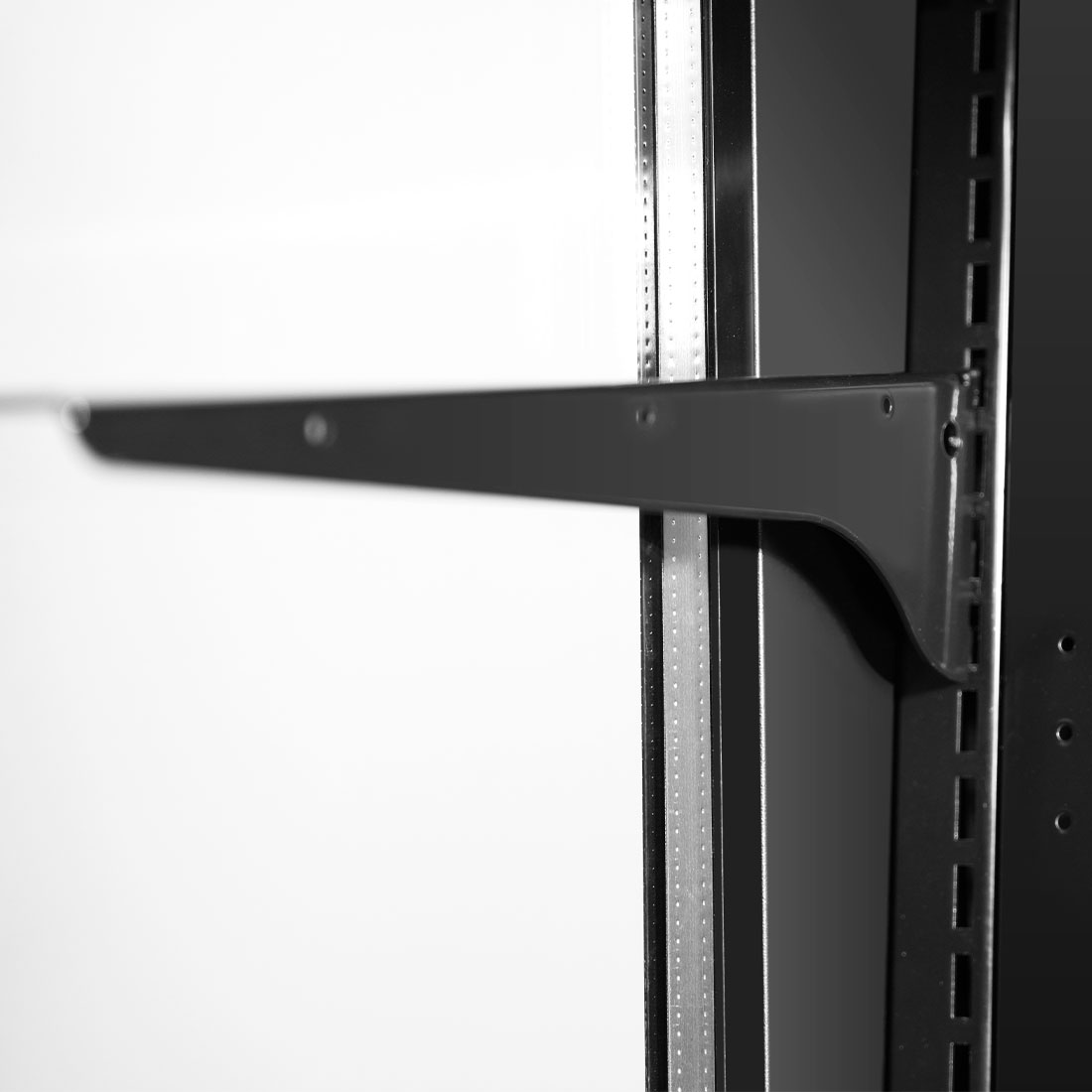

• Adjustable glass shelf with selectable angles (0°, 7°, and 14°) lets operators tailor product presentation and improve visibility of stock at different heights.
• R290 natural refrigerant paired with a Secop compressor delivers efficient, environmentally conscious cooling with lower global warming potential.
• Smaller base footprint relative to the unit's display volume makes efficient use of valuable floor space in busy retail and hospitality environments.

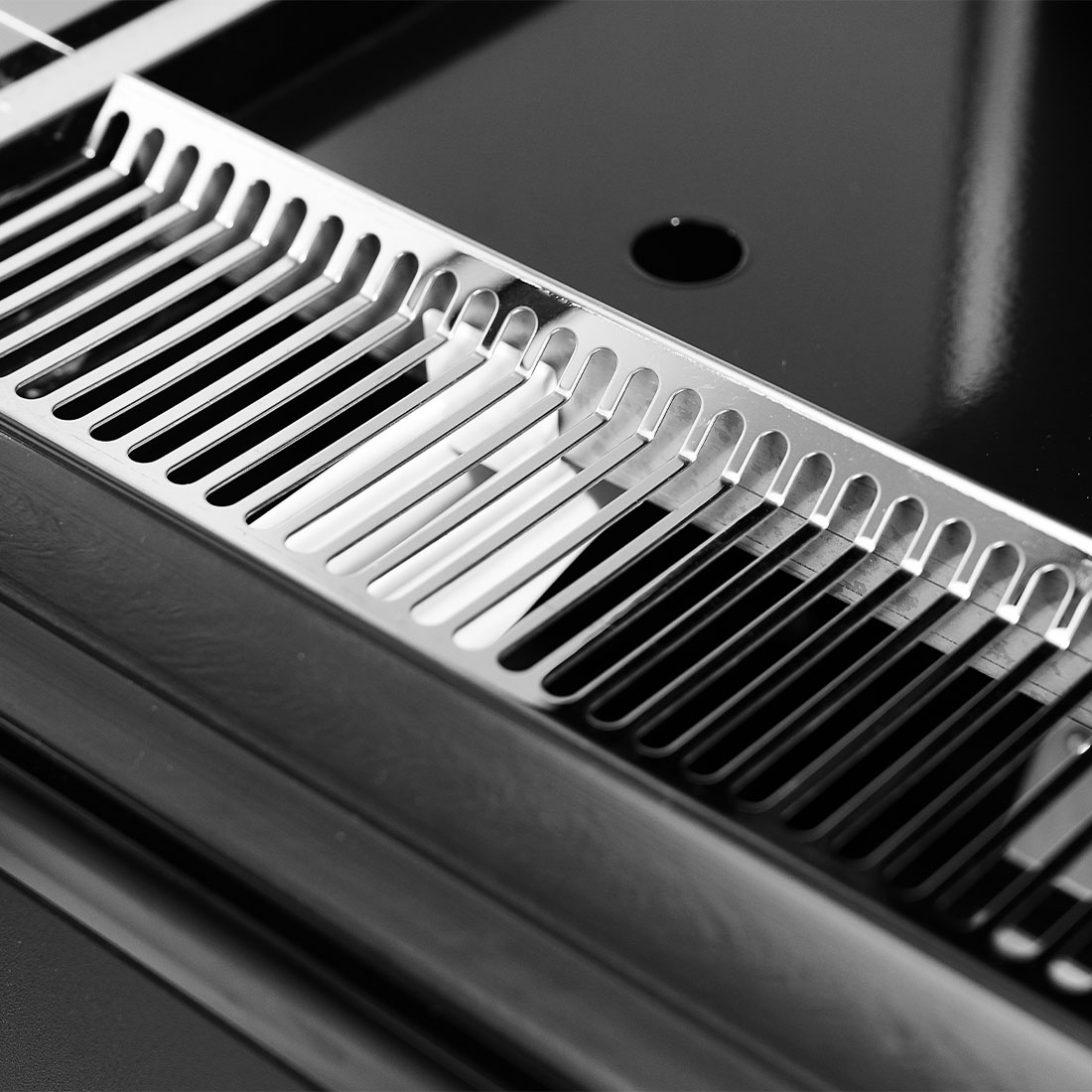

• Fan-forced cooling circulates air evenly throughout the cabinet, maintaining consistent temperatures across all shelf levels and reducing hot spots.

Key Features

• Net internal volume: 810 litres
• Total display area: 3.11 m²
• Temperature range: +1°C to +7°C
• Temperature class: M2
• Maximum ambient operating conditions: 25°C at 60% relative humidity
• Fan-forced cooling system for even air distribution

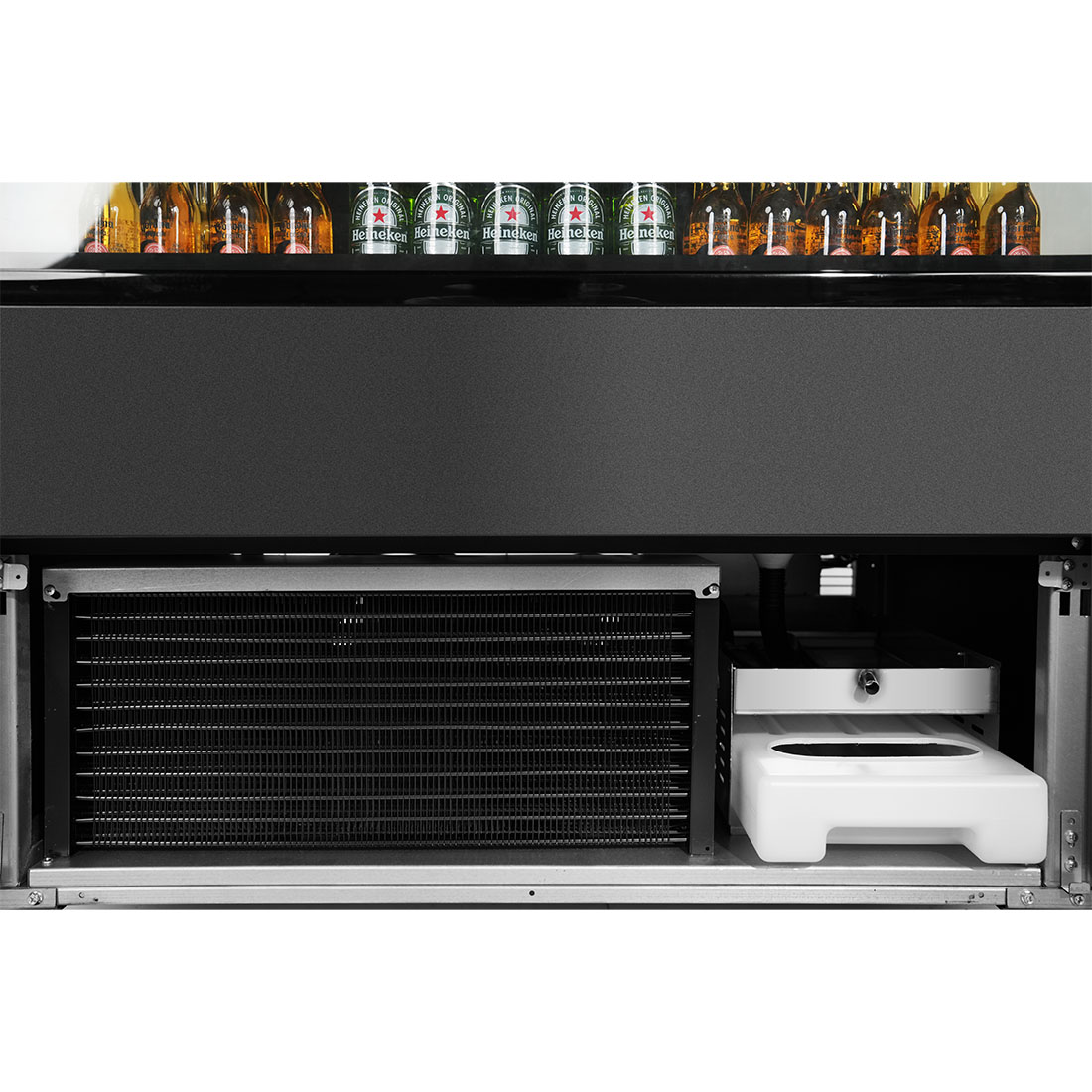

• Secop compressor for reliable, efficient refrigeration
• R290 natural refrigerant with low global warming potential
• Illuminated top canopy for product advertising and brand visibility
• LED lighting on top canopy
• Two double-layer night blinds included for energy saving during off-peak hours
• Adjustable glass shelf with selectable tilt angles: 0°, 7°, and 14°
• Multiplexable design -- units can be joined in a line-up without a mullion
• Smaller base profile to minimise floor footprint
• Colorbond body construction
• Fixed installation with leg supports
• Power supply: 240V / 1800W / 15A
• Dimensions: 1890 mm (W) x 770 mm (D) x 2067 mm (H)
• Weight: 348 kg
• Packed dimensions: 1963 mm (W) x 770 mm (D) x 2110 mm (H)
• Warranty: 2 years parts and labour plus 2 years parts only, for products registered within 14 days of invoice

Specifications

• Width (mm): 1890
• Depth (mm): 770
• Height (mm): 2067
• Weight (kg): 348
• Packed Width (mm): 1963
• Packed Depth (mm): 770
• Packed Height (mm): 2110
• Shipping Weight: 330
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Cooling Type: Fan Forced
• Power Delivery: 240V; 1800W; 15A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
