Thermaster DC-187B Supermarket Panorama 3 Door Chiller Display

Thermaster DC-187B Supermarket Panorama 3 Door Chiller Display

The Thermaster DC-187B is a large-format, three-door upright chiller display engineered for supermarkets, grocery retailers, and high-volume hospitality venues. With a gross volume of 1939L and a net capacity of 1147L, this panoramic unit keeps chilled beverages, dairy, fresh produce, and packaged goods at a consistent -1 to +5°C, while its frameless Low-E glass doors and transparent end walls expose product from the front and both sides for maximum shelf impact.

Constructed on a compact base with castors for easy repositioning, the DC-187B uses an R290 natural refrigerant system paired with EC fan-forced cooling and anti-reflex glass doors to deliver an 8-star GEMS energy rating. Five levels of angle-adjustable shelving, LED lighting on every shelf, integrated pricing strips, and a slide-out condensing unit round out a unit built as much for practical day-to-day operation as it is for driving sales on the retail floor.

Key Benefits

• Panoramic three-sided visibility draws shoppers to chilled stock from multiple angles, actively supporting impulse purchasing and sales uplift.
• EC fan motor technology combined with anti-reflex Low-E glass and self-closing doors reduces energy draw, contributing to the unit's 8-star GEMS rating and lower running costs.
• R290 natural refrigerant delivers effective, environmentally responsible cooling with a low global warming potential.
• Five-level shelving with three adjustable tilt angles (0°, 7°, and 14°) allows quick reconfiguration to suit different product heights and merchandising strategies.
• The slide-out condensing unit makes routine cleaning and after-sales servicing straightforward without requiring the unit to be moved or dismantled.
• A compact base footprint relative to the large net capacity makes the DC-187B well suited to retail floors where space is at a premium.
• Units are multiplexable and can be assembled side by side without a mullion, allowing retailers to create a seamless, extended display run as the business grows.
• Castors provide easy repositioning across the store floor for seasonal resets or store refits without additional equipment.
• Digital temperature display gives staff an at-a-glance check of cabinet conditions, supporting food safety compliance during busy service periods.

Key Features

• Gross volume 1939L; net volume 1147L
• Temperature range: -1 to +5°C
• Rated ambient operating conditions: 25°C, 60% RH
• 980W power consumption, 10A supply
• 8-star GEMS energy efficiency rating
• R290 natural refrigerant
• Fan-forced cooling system with EC fans for reduced energy consumption
• Three frameless, self-closing hinged glass doors; door size 611 x 1653mm, 20mm thickness
• Low-E, anti-reflex, anti-glare glass on each door
• Transparent end walls for three-sided product visibility

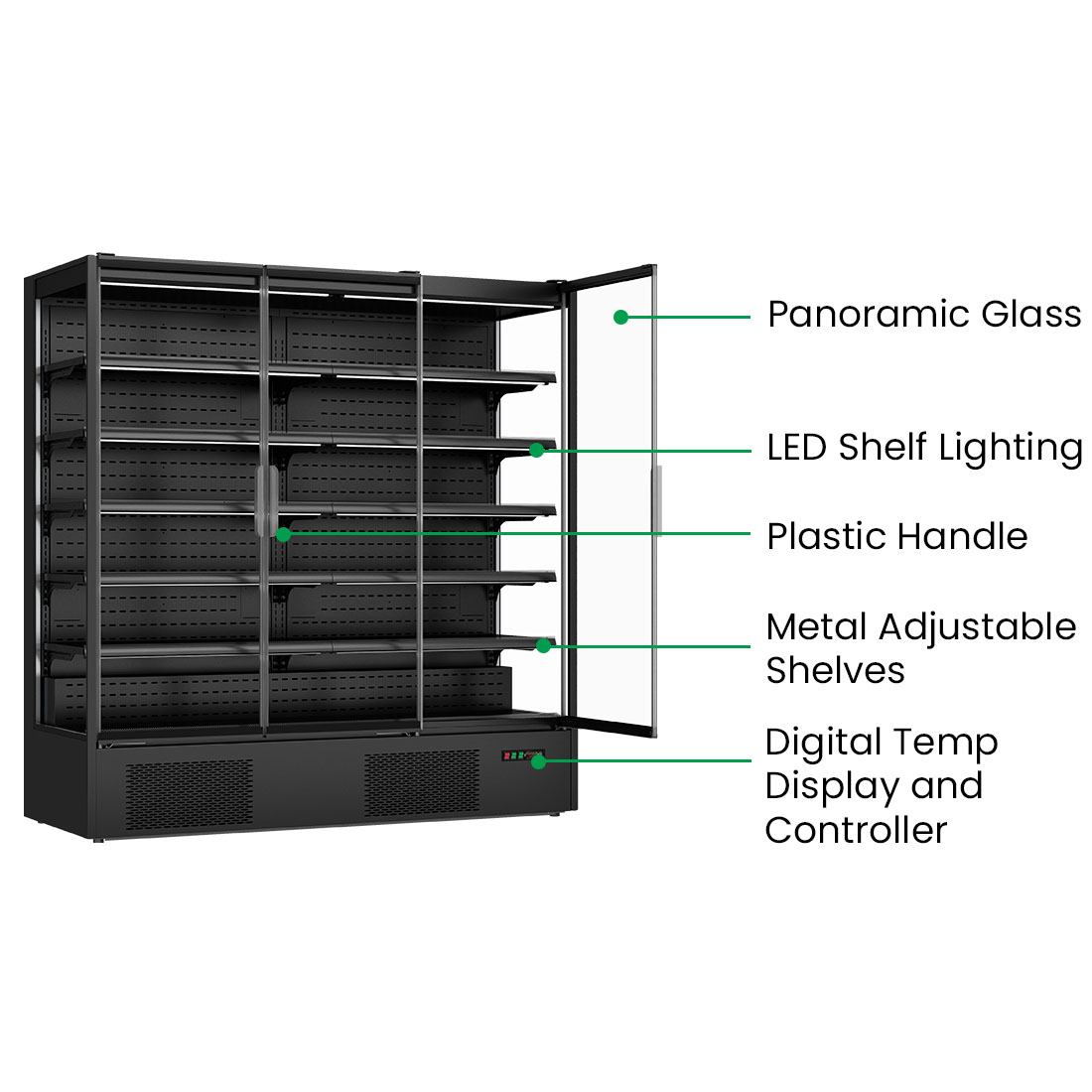

• LED shelf lighting on every level for bright, even product illumination
• Five-level display shelving, each shelf 450mm deep
• Adjustable shelf angle: 0°, 7°, or 14°
• Digital temperature display on the unit
• Slide-out condensing unit for easy access during servicing and cleaning
• Multiplexable design: units can be joined in a line without a mullion
• Stainless steel inner bottom
• Small-footprint base design to minimise floor space usage
• Mounted on castors for straightforward repositioning
• Pricing/ticket strips included as standard
• Colorbond exterior body construction
• Display area: 4.13m²
• 2 Years Parts and Labour warranty plus a further 2 Years Parts Only warranty when the product is registered within 14 days of invoice

Specifications

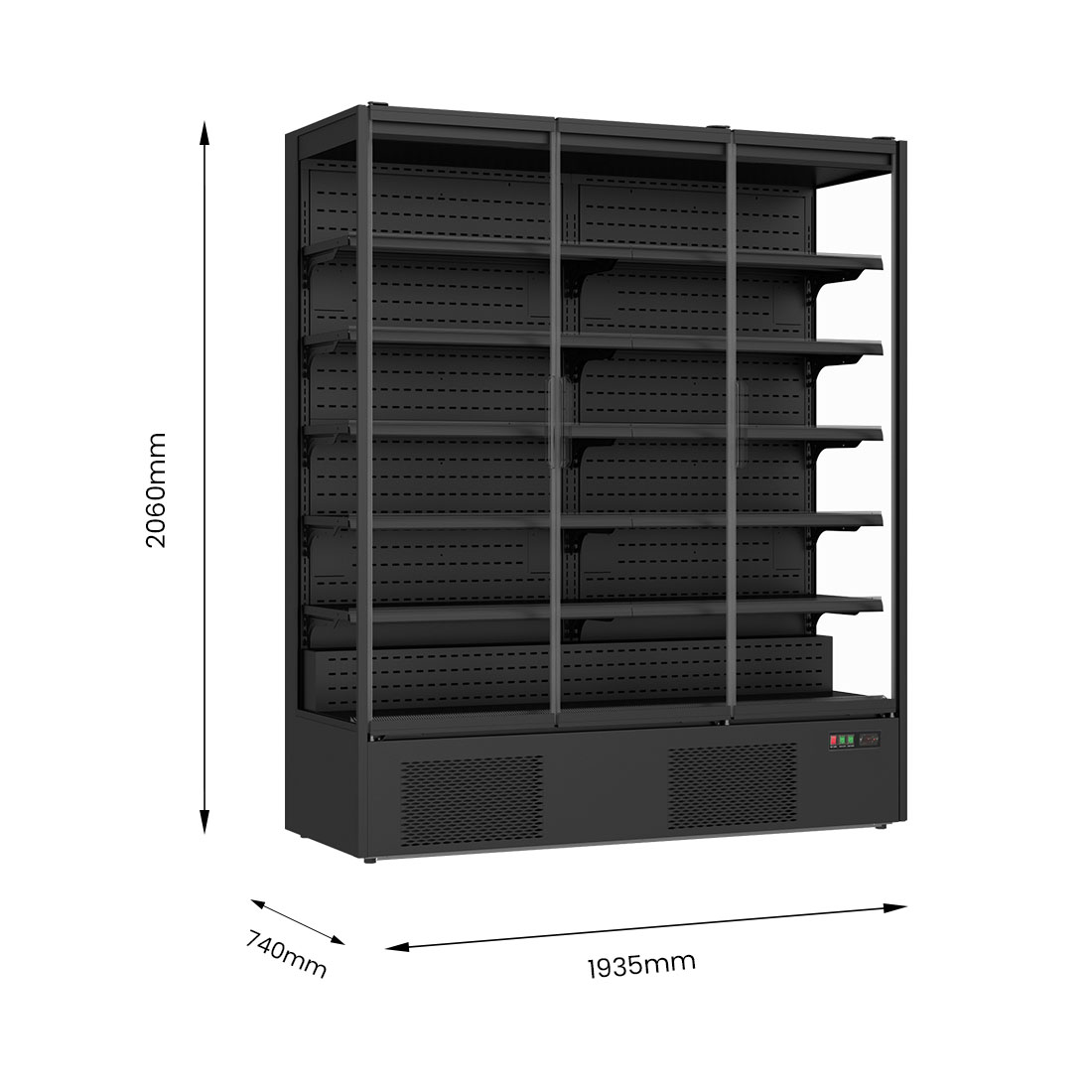

• Width (mm): 1935
• Depth (mm): 740
• Height (mm): 2060
• Weight (kg): 420
• Packed Width (mm): 1975
• Packed Depth (mm): 767
• Packed Height (mm): 2240
• No. of Doors: 3
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Energy Rating: 8
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
• Power Delivery: 980W / 10A
• Power (kW): 550
