Tecnodom TDVB80-CA-250 Vulcano Supermarket 4 Door Open Display

Tecnodom TDVB80-CA-250 Vulcano Supermarket 4 Door Open Display Fridge

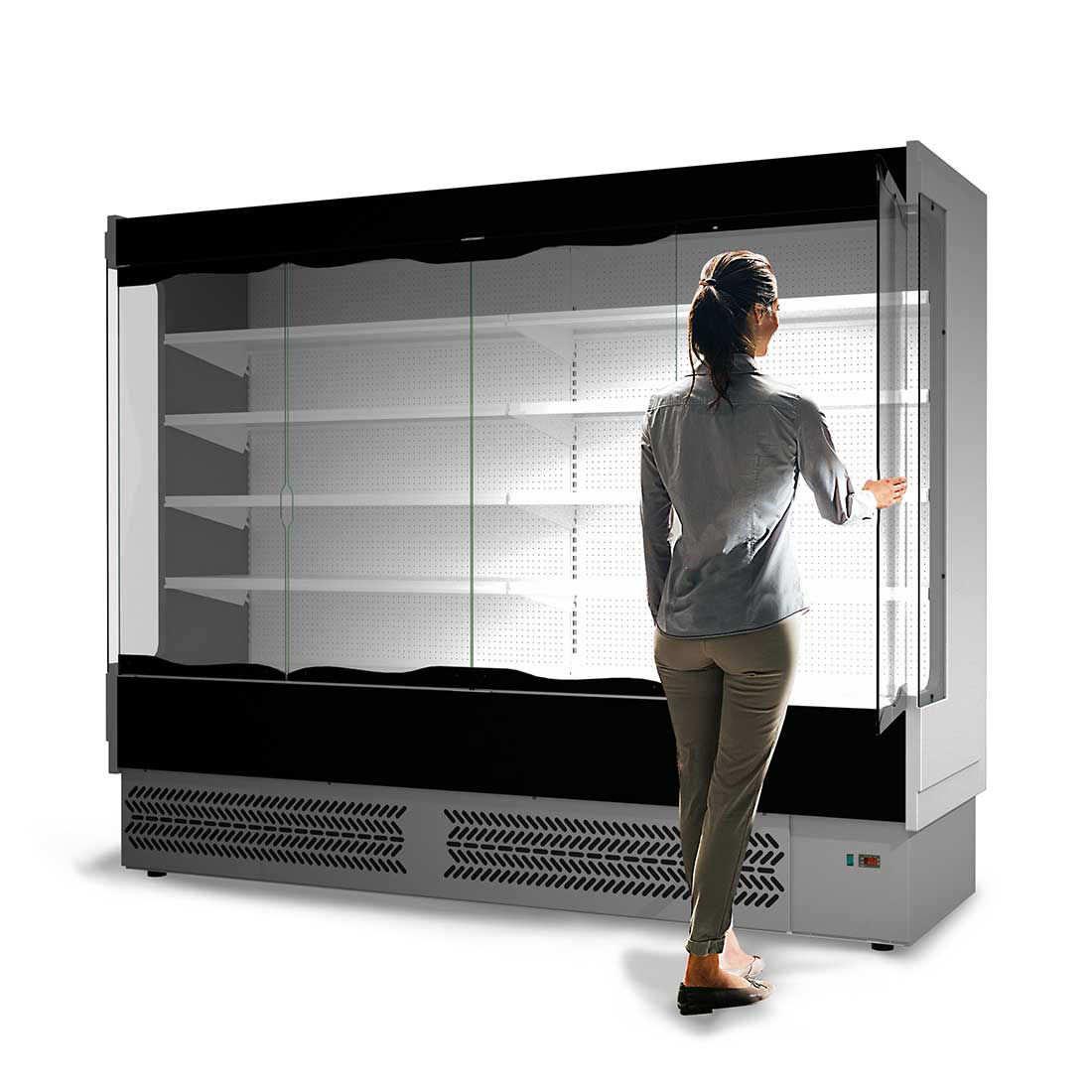

The Tecnodom TDVB80-CA-250 Vulcano is a large-format supermarket refrigerated display cabinet built for high-volume retail and hospitality environments. Spanning 2580 mm wide with four 620 mm hinged glass doors, it provides easy customer access across a generous 5.06 m² of display surface, making it well suited to supermarkets, convenience stores, grocery outlets, and large food retail operations.

Designed for straightforward installation and low ongoing maintenance, the Vulcano features a built-in condensing unit with a ventilated cooling system that delivers consistent temperatures between 0°C and +4°C throughout every shelf. A Climate Class 4 rating means it performs reliably in ambient conditions up to 30°C with 55% relative humidity, while the automatic water evaporation system with stainless steel serpentine eliminates the need for manual condensate disposal, keeping day-to-day upkeep to a minimum.

Key Benefits

• Wide four-door open-front layout maximises product visibility and encourages impulse purchases in high-traffic retail settings
• Ventilated cooling system circulates air evenly across all shelves, maintaining consistent product freshness from top to bottom
• Climate Class 4 rating ensures reliable performance in warm, humid environments typical of busy supermarkets and food halls
• Automatic water evaporation system with stainless steel serpentine removes the need for manual condensate drain maintenance
• Top ceiling LED lighting illuminates displayed products brightly, enhancing presentation and boosting sales appeal
• Built-in condensing unit simplifies installation by reducing external plant requirements and associated labour costs
• Castors allow the unit to be repositioned on the shop floor quickly and easily during store reconfigurations
• Separate 1000 W tropical tundish circuit on its own 10 Amp supply prevents overloading and keeps the tundish functioning independently
• Two-year parts and labour warranty provides commercial operators with confidence and minimises unplanned repair costs

Key Features

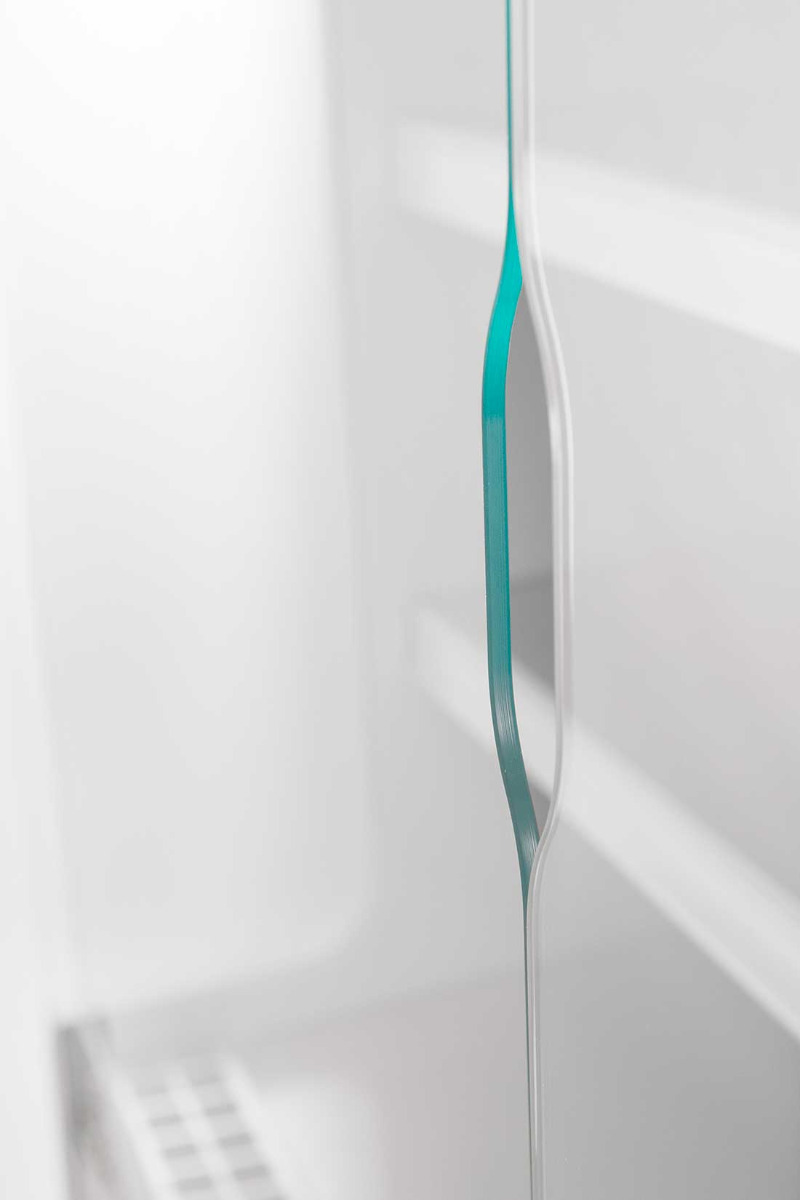

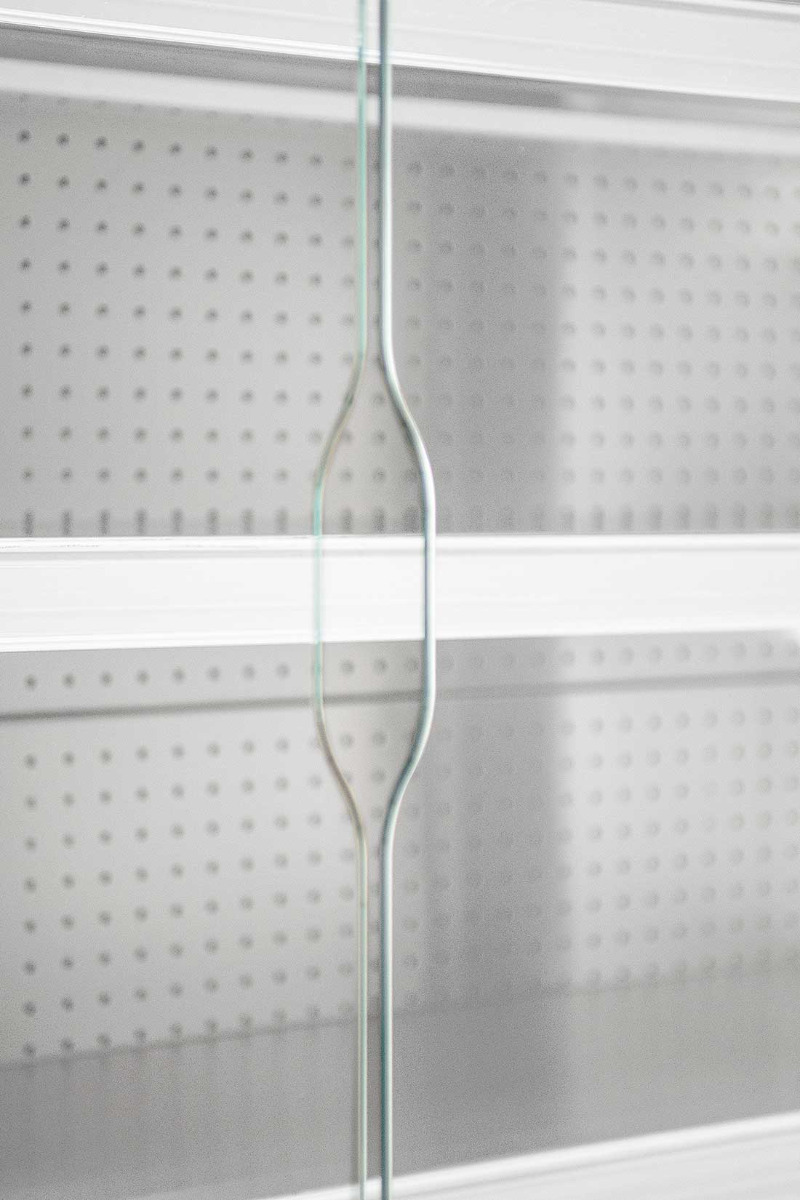

• Four 620 mm wide hinged glass doors providing full-height product access
• Total display surface area of 5.06 m²
• Ventilated refrigeration system with built-in condensing unit
• Operating temperature range: 0°C to +4°C
• Climate Class 4 rated: designed for ambient conditions of 30°C and 55% relative humidity
• Automatic water evaporation system fitted with stainless steel serpentine (CG) for hands-free condensate management
• Separate tropical tundish circuit running a dedicated 1000 W element on its own 10 Amp supply
• Dual power delivery: 4330 W (1 x 20 Amp) plus 1000 W (1 x 10 Amp) on separate circuits
• Top ceiling LED lighting for bright, energy-efficient product illumination
• Shelf depth of 380 mm
• Colorbond body construction
• Mounted on castors for floor-level mobility and easy repositioning
• Tundish drain connection required on installation
• 2 years parts and labour warranty
• Overall dimensions: 2580 mm wide x 765 mm deep x 2130 mm high
• Unit weight: 2616 kg
• Packed dimensions: 2690 mm wide x 880 mm deep x 2210 mm high

Specifications

• Width (mm): 2580
• Depth (mm): 765
• Height (mm): 2130
• Weight (kg): 2616
• Packed Width (mm): 880
• Packed Depth (mm): 2690
• Packed Height (mm): 2210
• No. of Doors: 4
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Power Delivery: 4330W + 1000W (1 x 20Amp + 1 x 10Amp)
• Power (kW): 4330
• Warranty (months): 2 Years Parts and Labour
• Temperature Range: +2°C to +8°C (approx.)
