Tecnodom TDVB80-CA-125 Vulcano Supermarket 2 Door Display

Tecnodom TDVB80-CA-125 Vulcano Supermarket 2 Door Refrigerated Display Cabinet

The Tecnodom TDVB80-CA-125 Vulcano is an upright supermarket refrigerated display cabinet built for high-traffic retail and hospitality environments. Featuring two 620mm wide hinged glass doors, a built-in condensing unit, and a ventilated cooling system, it maintains a consistent temperature range of 0°C to +4°C across a generous 2.54 m² of display surface, keeping chilled products safe, visible, and appealing throughout the trading day.

Rated Climate Class 4 for operation in ambient conditions up to 30°C at 55% relative humidity, the Vulcano is engineered for warm and busy trading floors. The unit ships with two power plugs, with the second dedicated to a separate 1000W tropical tundish circuit, making installation straightforward and electrical management clear. A tundish drain connection is required on site, and the cabinet rides on castors for flexible floor placement.

Key Benefits

• Large glass door frontage maximises product visibility and encourages impulse purchases without customers needing to open the cabinet.
• Ventilated cooling delivers even temperature distribution from top to bottom, reducing hot spots and keeping all stocked product within safe serving temperatures.
• Built-in condensing unit simplifies installation by eliminating the need for a remote refrigeration system, lowering setup time and ongoing maintenance costs.
• Automatic water evaporation system with a stainless steel serpentine removes condensate without manual intervention, reducing daily maintenance demands.
• Dedicated 1000W tundish circuit on a separate 10-amp supply prevents electrical overload and allows the tropical drain heater to run independently of the main refrigeration load.
• Climate Class 4 rating ensures reliable performance in warm retail environments up to 30°C ambient, suitable for Australian supermarket and convenience store conditions.
• Top ceiling LED lighting highlights merchandise attractively and supports energy-efficient operation compared to fluorescent alternatives.
• Castors provide easy repositioning on the shop floor for cleaning, seasonal resets, or layout changes.
• Adjustable shelving with a 380mm depth accommodates a wide range of product formats, from dairy and beverages to packaged foods and deli items.

Key Features

• Built-in self-contained condensing unit for standalone installation
• Ventilated cooling system for uniform temperature distribution throughout the cabinet
• Temperature range: 0°C to +4°C
• Climate Class 4 rated: designed for 30°C ambient at 55% relative humidity

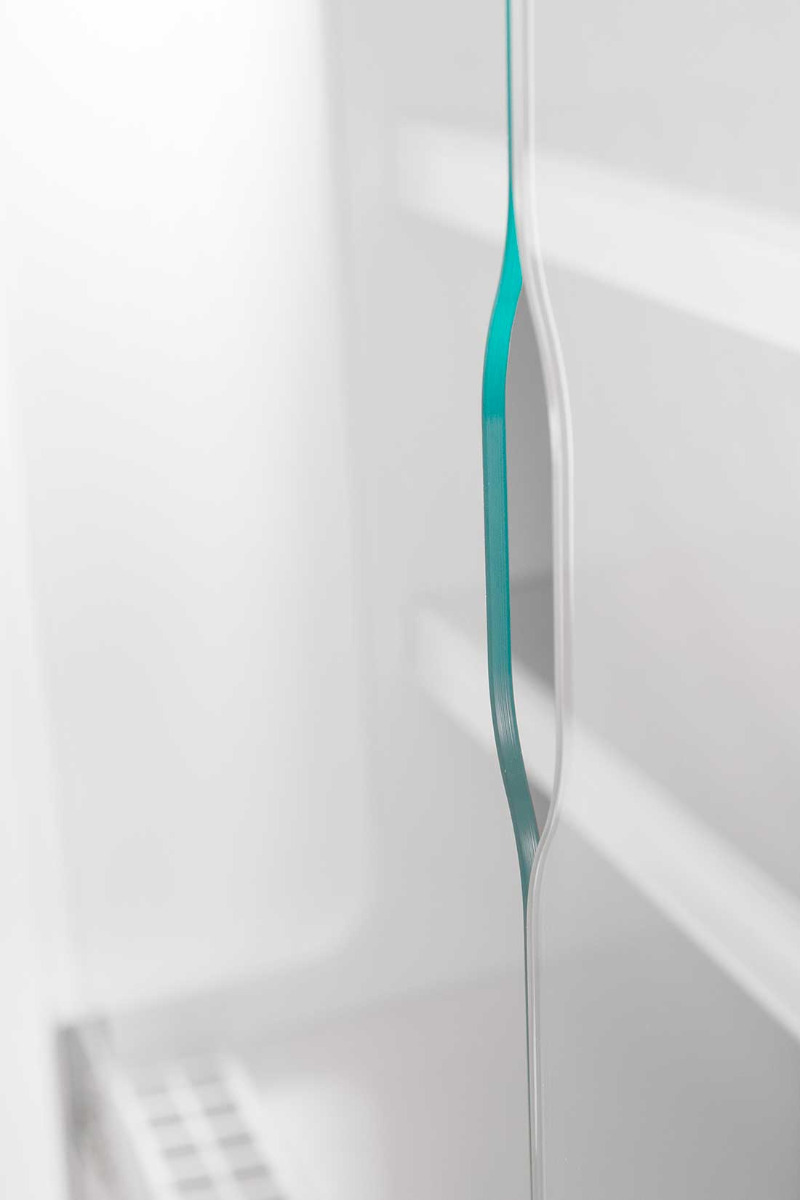

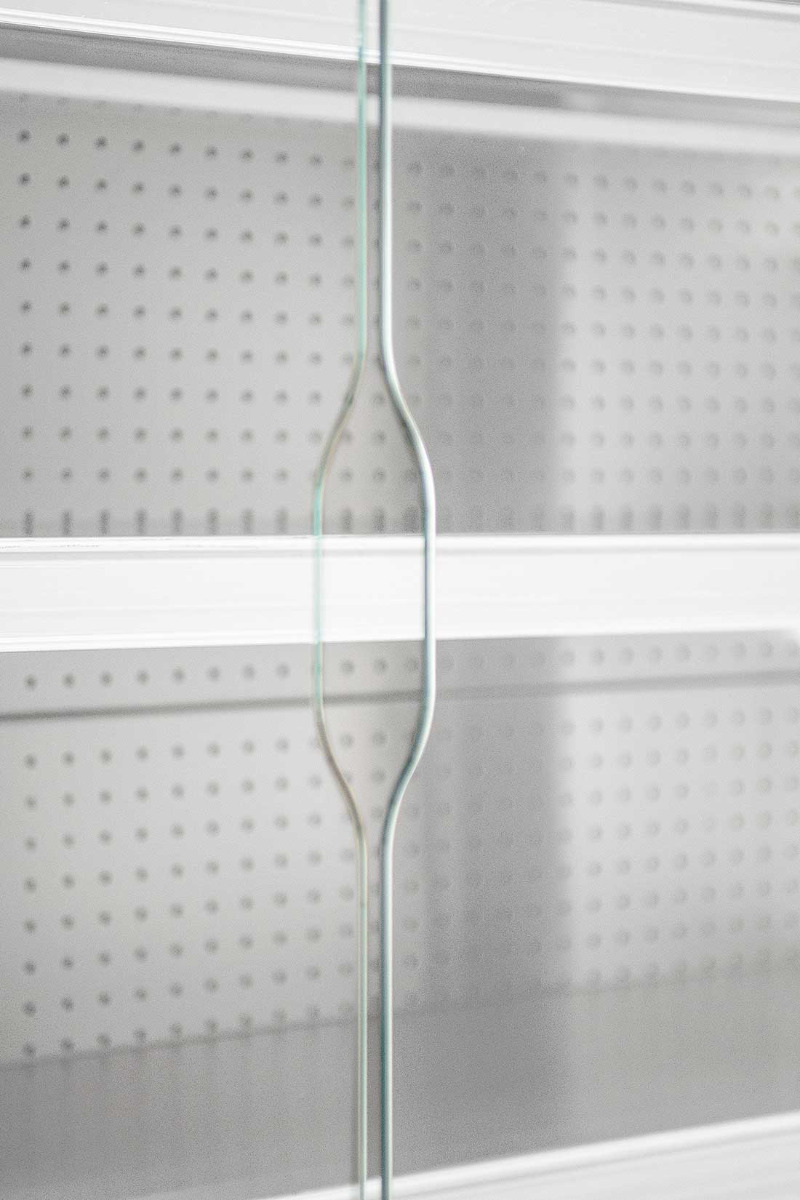

• Two 620mm wide hinged double-glass insulated doors
• Total display surface area: 2.54 m²
• Shelf depth: 380mm; adjustable shelving configuration
• Top ceiling LED lighting for bright, even product illumination
• Automatic water evaporation system fitted with a stainless steel serpentine (CG)
• Two power plugs: primary circuit plus a separate dedicated circuit for the tropical tundish element
• Separate 1000W tundish heating element on its own 10-amp circuit
• Total power delivery: 1830W + 1000W (2 x 10-amp supplies)
• Tundish drain connection required on installation
• Colorbond body construction
• Castors/wheels for floor mobility
• Overall dimensions: 1330mm (W) x 765mm (D) x 2130mm (H)
• Weight: 700.25 kg
• Packed dimensions: 880mm (W) x 1440mm (D) x 2210mm (H)
• 2-year parts and labour warranty

Specifications

• Width (mm): 1330
• Depth (mm): 765
• Height (mm): 2130
• Weight (kg): 700.25
• Packed Width (mm): 880
• Packed Depth (mm): 1440
• Packed Height (mm): 2210
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Power Delivery: 1830W + 1000W (2 x 10Amp)
• Power (kW): 1830
• Warranty (months): 2 Years Parts and Labour
• Temperature Range: +2°C to +8°C (approx.)
