Skope RF8.CBR.2.D4 ReFlex ChefBase

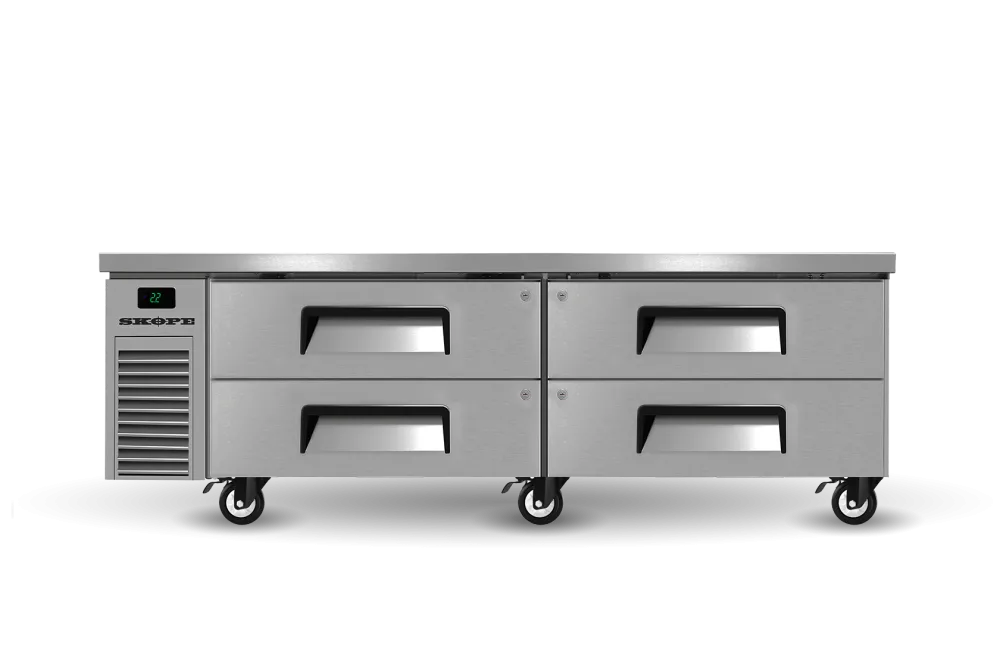

Skope RF8.CBR.2.D4 ReFlex ChefBase 4-Drawer Refrigerated Chef Base GN 2/1

The Skope RF8.CBR.2.D4 ReFlex ChefBase is a self-contained refrigerated chef base designed to sit directly beneath your cookline, placing cold ingredient storage exactly where it is needed most. Built entirely from food-grade 304 AISI stainless steel inside and out, the unit houses four fully extendable, individually lockable drawers sized for GN 2/1 pans up to 100 mm deep, all within a 371-litre gross capacity occupying a floor footprint of just 1.50 m². The reinforced stainless steel benchtop features a welded no-drip marine edge and supports up to 400 kg of cooking equipment, while a 45 mm thick fibro-cement heat shield — integrated within the 304 AISI stainless steel structure — insulates the refrigerated interior from the heat generated above.

Refrigeration is delivered by a side-mounted, front-breathing condensing unit using R290 natural refrigerant (100 g charge), keeping environmental impact and running costs to a minimum at a GEMS-rated $482 per annum. The unit is controlled via the SCS Connect controller, which is fully compatible with the SKOPE-connect Bluetooth app. SKOPE-connect provides real-time food safety alerts and automated temperature logging, along with one-touch temperature presets spanning seven storage categories: general food safety, fresh seafood, live seafood, chocolate, drinks, dairy, and desserts. Rated for ambient temperatures up to 40°C, the ReFlex ChefBase suits restaurants, cafes, pubs, clubs, quick service restaurants, food production facilities, accommodation venues, schools, and aged care kitchens.

Key Benefits

• Positions refrigerated ingredient storage directly under the cookline, cutting unnecessary movement and speeding up service.
• 400 kg load-bearing benchtop with a welded no-drip edge safely accommodates grills, griddles, fryers, and other heavy cooking equipment.
• SKOPE-connect Bluetooth app delivers real-time food safety alerts and automated temperature records, reducing manual monitoring tasks and compliance paperwork.
• One-touch temperature presets across seven food categories allow staff to switch between storage modes instantly without manual adjustments.
• R290 natural refrigerant with a 100 g charge produces a minimal carbon footprint and contributes to low annual energy costs of $482 at standard tariffs.
• Front-breathing refrigeration unit with easy condenser access suits tight back-of-house spaces and simplifies routine cleaning and servicing.
• Easy-to-service refrigeration cartridge system reduces downtime during maintenance.
• Individual key locks on each drawer protect ingredients and support HACCP food safety protocols in shared kitchen environments.
• Full 304 AISI stainless steel construction throughout resists corrosion, withstands heavy daily use, and meets food-safe hygiene standards.

Key Features

• Four fully extendable, individually key-lockable refrigerated drawers in 304 AISI stainless steel, accommodating GN 2/1 pans up to 100 mm deep.
• Reinforced stainless steel benchtop with a welded marine no-drip edge profile, rated to support up to 400 kg of cooking equipment.
• 45 mm thick insulated wall construction: 304 AISI stainless steel cladding throughout with an integrated fibro-cement heat shield to protect the refrigerated interior from cookline heat.
• Interior and exterior: 304 AISI stainless steel throughout.
• Gross volume: 371 litres; total floor footprint: 1.50 m².
• Self-contained refrigeration system with an integral, side-mounted condensing unit and front-breathing airflow.
• R290 natural refrigerant, 100 g charge.
• Operating temperature range: 1°C to 4°C; adjustable through the SKOPE-connect app across a 0°C to 10°C span.
• Maximum ambient operating temperature: 40°C.
• GEMS Class 5M1; energy consumption 4.40 kWh/24 h; annual running cost $482 p.a. at $0.30/kWh.
• Power: 0.43 kW; current draw: 1.8 A; electrical safety climate class 5.
• Power supply: 220–240 V AC, 50 Hz, single-phase; supplied with a 10 A, 3-pin plug and lead.
• SCS Connect controller, compatible with the SKOPE-connect Bluetooth app.
• SKOPE-connect one-touch presets covering seven categories: general food safety, fresh seafood, live seafood, chocolate, drinks, dairy, and desserts.
• SKOPE-connect app features: real-time food safety alerts and fully automated temperature logging.

Specifications

• Weight (kg): 160
• Shipping Weight: 170
• Packed Width (mm): 1900.0
• Packed Height (mm): 700.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.197000000m3
• Material: 304 AISI stainless steel interior and exterior
• Refrigeration Type: Self-Contained
• Temperature Range: 1°C to 4°C
• GEMS Annual Running Cost: $482 p.a. (@ $0.30/kWh)
