Skope RF8.CBR.1.D2 ReFlex ChefBase

Skope RF8.CBR.1.D2 ReFlex ChefBase 2-Drawer Refrigerated Chef Base

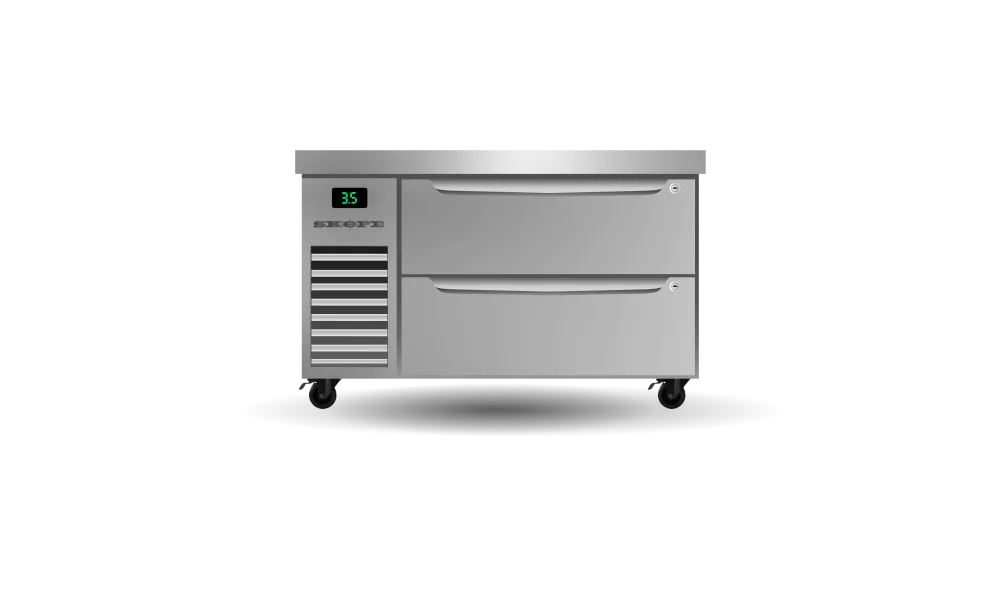

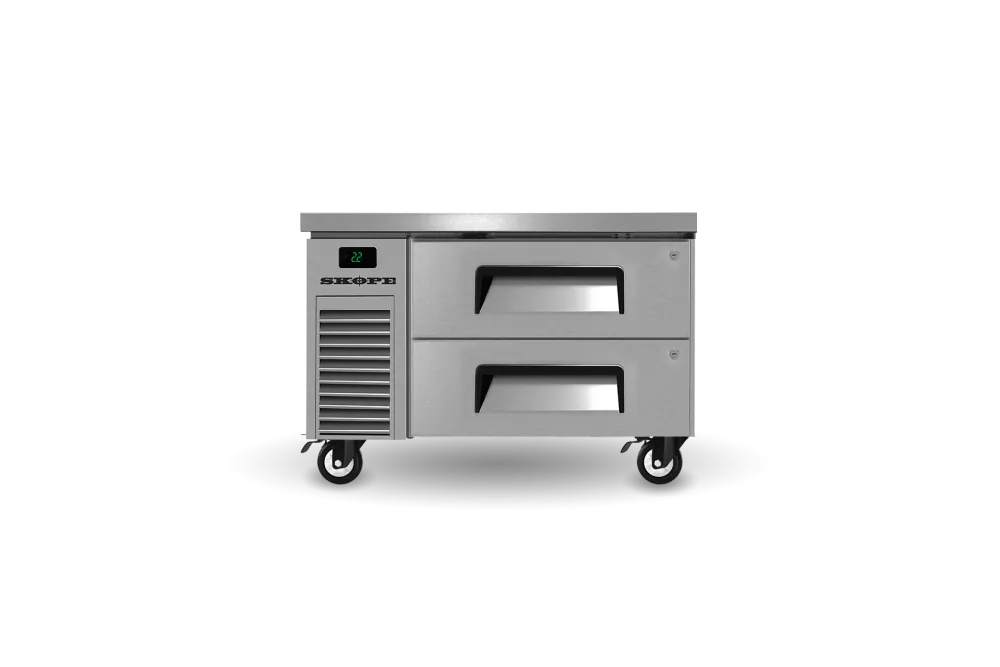

The Skope RF8.CBR.1.D2 ReFlex ChefBase is a self-contained refrigerated chef base engineered to sit directly beneath cookline equipment, merging cold ingredient storage with a heavy-duty worktop in a single 600mm-high unit. Built entirely from food-grade 304 AISI stainless steel inside and out, the unit features a reinforced top surface with a welded marine no-drip edge and a 200kg load-bearing capacity, making it equally suited to grills, griddles, cooktops and other heavy equipment. The 45mm-thick construction incorporates a fibro-cement insulating heat shield that protects the refrigerated interior from the heat generated above.

Two fully extendable, individually lockable stainless steel drawers accommodate GN 1/1 and GN 1/6 pans up to 100mm deep across a 147-litre gross volume. The front-breathing, side-mounted condensing unit suits confined kitchen layouts and allows straightforward condenser cleaning without relocating the unit. An easy-service refrigeration cartridge system, R290 natural refrigerant with a 75g charge, and an SCS Connect controller with Bluetooth wireless technology and SKOPE-connect compatibility make this unit an ideal solution for demanding back-of-house environments across restaurants, cafes, clubs, hotels, aged-care facilities and educational institutions.

Key Benefits

• Positions refrigerated ingredient storage directly under the cookline, reducing the distance between cold prep and the cooking surface to near zero.
• A 200kg-rated reinforced top with a welded marine no-drip edge holds grills, griddles and cooktops securely in place while preventing spills from reaching the interior.
• The SKOPE-connect app provides one-touch switching between pre-set temperature profiles covering general food safety, fresh seafood, live seafood, dairy, chocolate, drinks and desserts, streamlining compliance across a range of menu types.
• Automated temperature recording and food safety alerts via the free SKOPE-connect app reduce manual monitoring workload and support HACCP documentation.
• R290 natural refrigerant with a 75g charge delivers extremely low global warming potential, helping reduce the kitchen's carbon footprint while keeping power consumption at just 2.54 kWh per 24 hours.
• Individual key locks on each drawer protect high-value or allergen-sensitive ingredients and restrict unauthorised access.
• Front-breathing refrigeration allows the unit to be installed flush against walls or adjacent equipment, maximising the use of limited kitchen floor space.
• GEMS Class 5M1 rating and an estimated annual running cost of $278 (at $0.30/kWh) confirm outstanding energy efficiency over the unit's service life.
• GN 1/1 and GN 1/6 pan compatibility up to 100mm deep integrates directly with standard commercial kitchen gastronorm systems, reducing the need for separate containers or adaptors.

Key Features

• Two fully extendable refrigerated stainless steel drawers, each with an individual key lock.
• Accommodates GN 1/1 and GN 1/6 pans up to 100mm deep.
• 304 AISI stainless steel interior and exterior throughout.
• Reinforced stainless steel top surface with welded marine no-drip edge; 200kg load-bearing capacity.
• 45mm-thick construction with food-safe 304 stainless steel and a fibro-cement insulating heat shield.
• Self-contained refrigeration with a side-mounted condensing unit and front-breathing airflow design for installation in confined spaces with easy condenser access.
• Easy-service refrigeration cartridge system simplifies maintenance.
• R290 natural refrigerant, 75g charge.
• Temperature range 1°C to 4°C standard; adjustable 0°C to 10°C via SKOPE-connect.
• Maximum ambient operating temperature: 40°C.
• Electrical safety climate class 5.
• SCS Connect controller, SKOPE-connect compatible.
• Bluetooth wireless connectivity for remote monitoring and control.
• SKOPE-connect pre-set temperature profiles: general food safe, fresh seafood, live seafood, chocolate, drinks, dairy and desserts.
• Food safety alerts and automated temperature logging via the free SKOPE-connect app.
• 147-litre gross volume.
• GEMS Class 5M1 energy rating; estimated annual running cost of $278 at $0.30/kWh; 2.54 kWh per 24-hour consumption.
• 600mm unit height for standard undercounter cookline installation.

Specifications

• Weight (kg): 93
• Shipping Weight: 95
• Packed Width (mm): 1000
• Packed Height (mm): 700.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 0.630000000m3
• Material: 304 AISI stainless steel interior and exterior
• Refrigeration Type: Self-Contained
• Temperature Range: 1°C to 4°C
• GEMS Annual Running Cost: $278 p.a. (@ $0.30/kWh)
