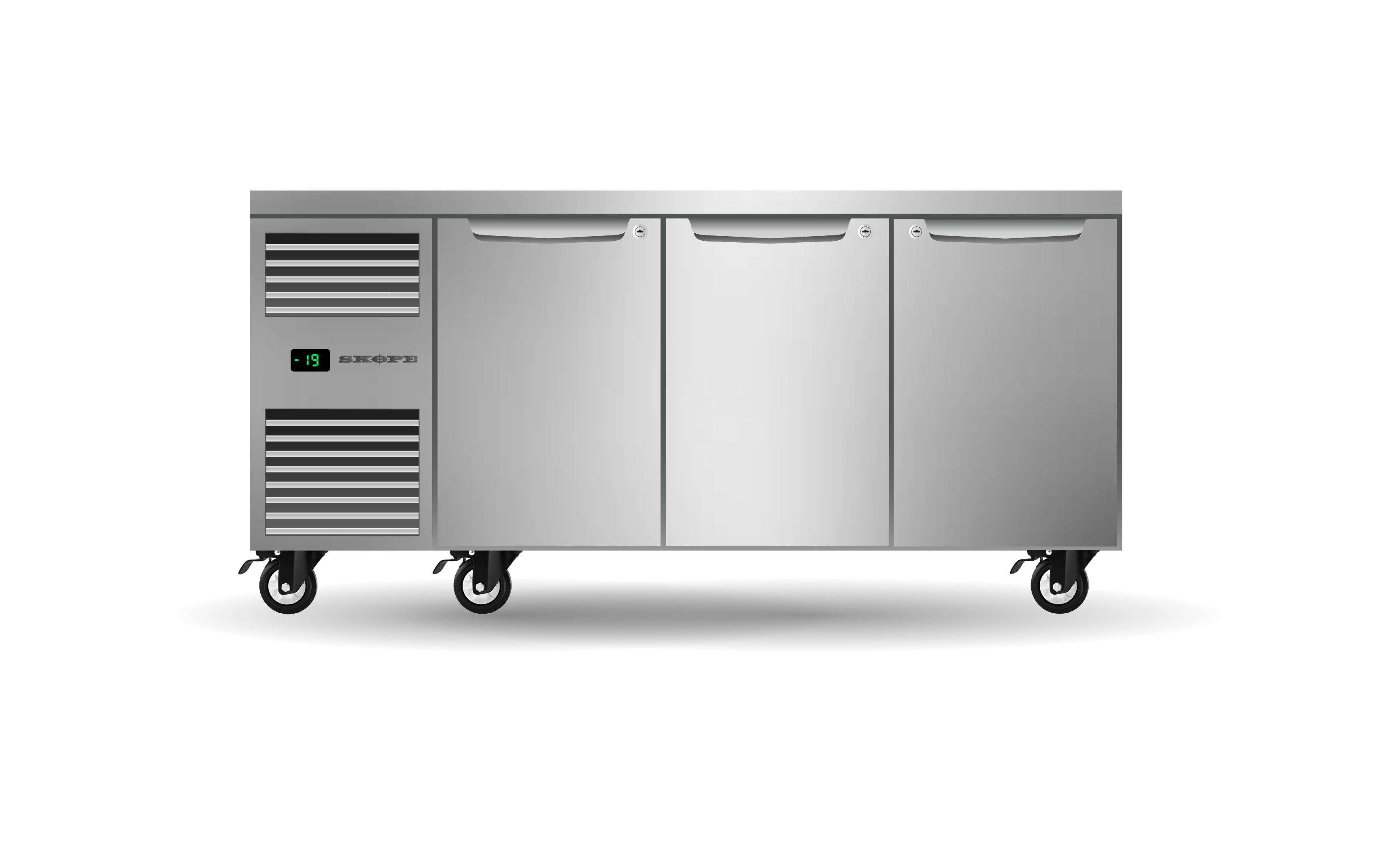

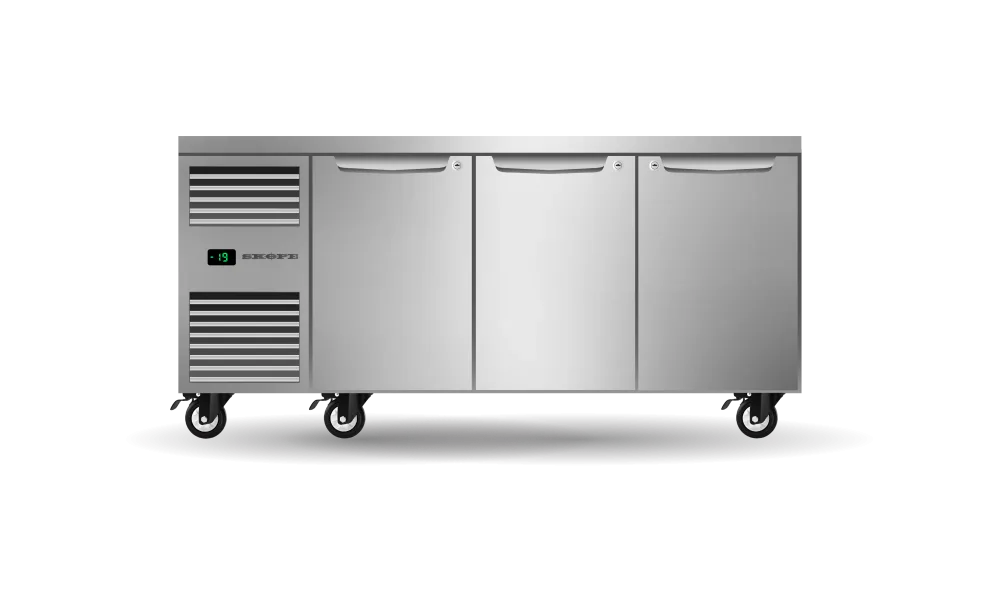

Skope PG11.UBF.3.SD Three Solid Door Underbench GN1/1 Freezer

Skope PG11.UBF.3.SD Three Solid Door Underbench GN1/1 Freezer

The Skope PG11.UBF.3.SD is a three solid door underbench freezer from the ProSpec series, purpose-built for commercial kitchens that demand reliable frozen storage within a compact, bench-height footprint. Constructed from 304 AISI stainless steel inside and out, this 447-litre self-contained unit accepts full 1/1 GN pans directly on its six wire shelves, streamlining prep workflow and maximising usable capacity across three independently accessed bays.

Engineered in New Zealand and rated Climate Class 4 for tropical ambient conditions up to 40°C, the ProSpec delivers consistent performance through the busiest service periods. It runs on the natural R290 refrigerant, features automatic defrost and fan-assisted cooling, and integrates with Skope's SKOPE-connect™ platform for real-time food safety monitoring. The modular ProSpec range supports mix-and-match door and drawer configurations with left or right hand services, allowing the unit to be tailored precisely to your kitchen layout.

Key Benefits

• 447-litre capacity spread across three bays provides generous bulk frozen storage without occupying vertical space, fitting neatly beneath preparation benches.
• Full GN 1/1 compatibility across all shelves eliminates the need to transfer product between containers, saving time during prep and service.
• Climate Class 4 (Tropical) rating ensures dependable temperature maintenance in hot, high-humidity kitchen environments up to 40°C ambient.
• SKOPE-connect™ compatible SCS Connect controller enables remote temperature monitoring and automated food safety data logging, reducing manual record-keeping.
• R290 natural refrigerant has a low global warming potential, supporting sustainability goals while meeting current regulatory expectations.
• Automatic defrost and fan-assisted cooling maintain even temperature distribution throughout the cabinet, protecting product quality during continuous use.
• Door-activated LED lighting illuminates the interior only when needed, contributing to the unit's GEMS Class 5L1 energy rating of 6.72 kWh per 24 hours.
• Six removable 304 stainless steel wire shelves and a fully stainless interior simplify cleaning and support compliance with food safety hygiene standards.
• Modular ProSpec design supports left or right hand services and mix-and-match door or drawer configurations, adapting to diverse kitchen layouts.

Key Features

• Three solid doors providing independent access to each bay, reducing temperature loss during service
• 447-litre total internal capacity
• Six 304 stainless steel wire shelves (330 mm W x 550 mm D each)
• Full GN 1/1 pan compatibility on all shelf positions
• 304 AISI stainless steel body construction, interior and exterior
• Self-contained refrigeration system
• Fan-assisted cooling for uniform temperature distribution
• Temperature range: -21°C to -18°C standard, adjustable from -26°C to -12°C
• R290 natural refrigerant, 97 g charge
• Automatic defrost
• Climate Class 4 (Tropical), rated for ambient temperatures up to 40°C
• SCS Connect controller with SKOPE-connect™ compatibility for remote monitoring and food safety data collection
• 2 x 400 mm, 4 W door-activated LED interior lights
• GEMS Class 5L1 certified; energy consumption 6.72 kWh per 24 hours
• Estimated annual running cost of $736 (calculated at $0.30/kWh)
• 220-240 V AC, 50 Hz, single phase power supply drawing 3.6 A at 0.86 kW
• 2 m power cord with 3-pin, 10 amp plug
• Available with left or right hand services
• Modular ProSpec platform: mix-and-match bays, doors and drawers to suit kitchen requirements
• Manufactured in New Zealand
• Dimensions: 1750 mm W x 700 mm D x 850 mm H; weight 135 kg

Specifications

• Width (mm): 1750
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 135
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 447
• No. of Doors: 3
• Door Type: Solid
• Shelf Configuration: Six 304 stainless steel wire shelves 6 × shelf (330W × 550D)
• Body Material: 304 AISI stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 304
• Power (kW): 86
• Amps (A): 3.6
• Power Cord: 2 m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40
• Temperature Range: -21 to -18 (adjustable* from -26 to -12)
• Refrigerant: R290/97 g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 5L1
• GEMS Energy Consumption: 6.72 kWh/24 h
• GEMS Annual Running Cost: $736 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 2 × 400 mm, 4W LED lights (door-activated)
• Control Type: SCS Connect (SKOPE-connect™ compatible)
