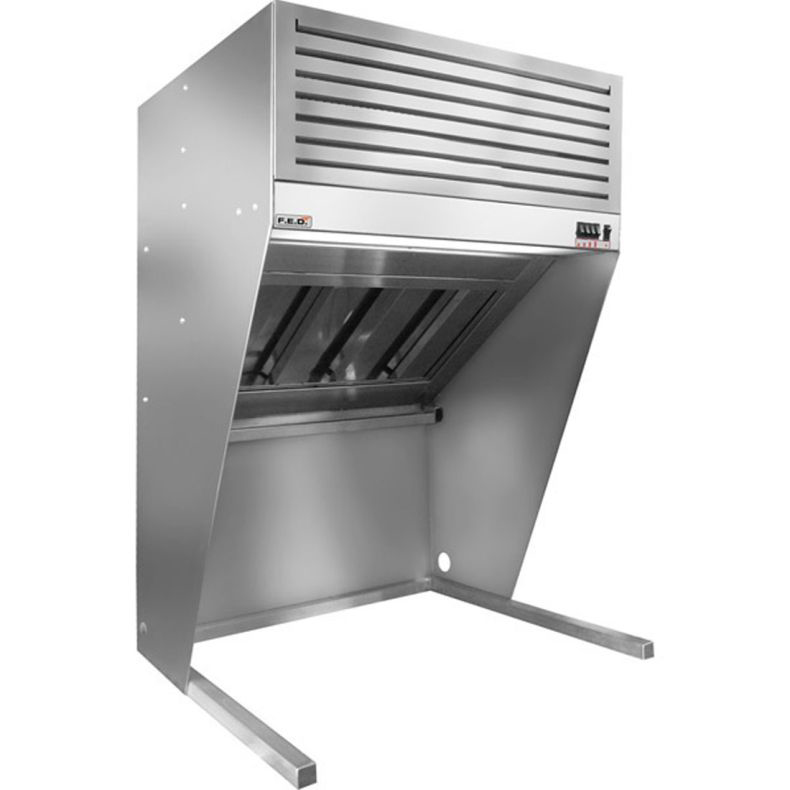

Modular Systems HOOD1500A Modular System Bench Top Filtered Hood

Modular Systems HOOD1500A Bench Top Filtered Hood 1500mm

The Modular Systems HOOD1500A is a 1500mm wide, all-stainless-steel bench top filtered hood designed for commercial kitchens where ducting is not available or practical. Powered by two high-speed, 4-speed German motors and running on a standard 240V supply at 800W, it mounts directly to a benchtop and provides effective, ductless extraction for countertop cooking equipment rated up to 8.0kW electric or 29MJ gas.

At the heart of this unit is a 3-stage filtration system that captures grease and eliminates cooking odours without requiring any external exhaust ducting. A built-in fluorescent light illuminates the work area beneath the hood, making it a practical, self-contained ventilation solution for restaurants, cafes, catering facilities and other high-volume food service environments. Backed by a 1-year parts and labour warranty.

Key Benefits

• Eliminates the cost and complexity of duct installation, making it suitable for kitchens where fixed ducting is impractical or prohibited.
• Three-stage filtration removes both grease and odours, maintaining a cleaner, more comfortable kitchen environment.
• Four-speed German motors allow staff to match extraction power to the intensity of cooking activity, improving energy efficiency.
• Stainless steel vertical baffles drain collected grease into a removable gutter, making routine cleaning fast and straightforward.
• Washable polyester filter reduces ongoing consumable costs compared to disposable filter systems.
• Integrated fluorescent lighting improves visibility over the work surface, supporting precision and food safety during service.
• Benchtop mounting means the unit can be repositioned or relocated without structural modifications to the kitchen.
• Compatible with electric fryers (with prior local council consultation), extending its usefulness across a wider range of cooking equipment.
• All-stainless-steel construction resists corrosion and withstands the rigorous cleaning regimes required in commercial kitchens.

Key Features

• 1500mm wide benchtop-mounted filtered hood in all-stainless-steel construction.
• No ducting required; fully self-contained ductless extraction system.
• Two high-speed motors with 4-speed control, manufactured in Germany.
• Operates on 240V power supply at 800W.
• 3-stage filter system: stainless steel vertical baffles (Stage 1), washable polyester filter (Stage 2), activated carbon odour filter (Stage 3).
• Stage 1 stainless steel vertical baffles collect the majority of airborne grease and channel it into an easily removable, easy-to-clean drip gutter.
• Stage 2 washable polyester filter captures residual grease and is reusable after cleaning.
• Stage 3 activated carbon filter adsorbs cooking odours.
• Integrated fluorescent light positioned over the work area for improved task visibility.
• Hood mounts directly and easily to a benchtop surface.
• Generally suitable for countertop electric cooking equipment up to 8.0kW where AS1668.2 does not stipulate exhaust, including electric fryers with prior local council consultation.
• Generally suitable for gas equipment up to 29MJ; local council requirements should be verified.
• Dimensions: 1500mm wide x 700mm deep x 1150mm high; weight 82.75kg.
• 1-year parts and labour warranty.

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 1150
• Weight (kg): 482.75
• Packed Width (mm): 750
• Packed Depth (mm): 1560
• Packed Height (mm): 1650
• Shipping Weight: 85
• Power Delivery: 240V; 800W
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
• Mounting Type: Benchtop
