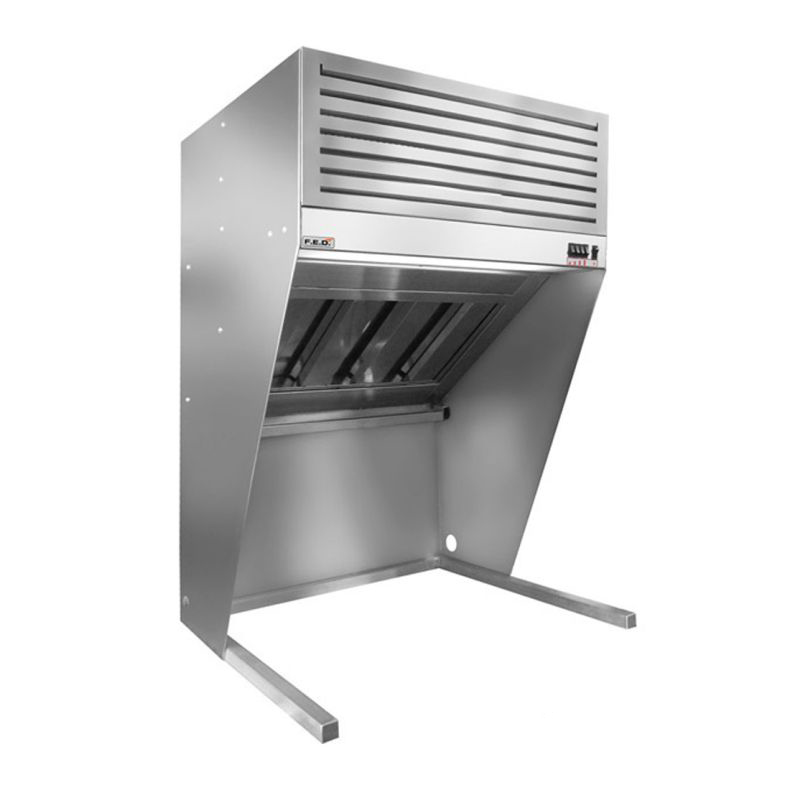

Modular Systems HOOD1000A Modular System Bench Top Filtered Hood

Modular Systems HOOD1000A Bench Top Filtered Hood 1000mm

The Modular Systems HOOD1000A is a 1000mm wide benchtop filtered hood constructed entirely from stainless steel, purpose-built for commercial kitchens where ducting installation is not practical or possible. Powered by two high-speed, 4-speed German motors running on 240V/800W, this unit mounts directly to the benchtop and provides effective capture and filtration of grease, steam and cooking odours without requiring any external ducting.

A comprehensive 3-stage filter system handles grease collection, fine particulate capture and odour removal in sequence, making this hood generally suitable for countertop electric equipment up to 8.0kW and gas equipment up to 29MJ, subject to local council requirements. A built-in fluorescent light illuminates the work area beneath the hood, and the unit is backed by a 1-year parts and labour warranty.

Key Benefits

• No ducting required, significantly simplifying installation and reducing fitout costs compared to traditional canopy hood systems.
• Three-stage filtration tackles grease, residual particles and odours in sequence, maintaining a cleaner, more comfortable kitchen environment.
• Four motor speed settings allow operators to match extraction power to the intensity of cooking, balancing performance with noise and energy use.
• Activated carbon filter stage neutralises cooking odours at the source, reducing smell transfer to front-of-house and surrounding areas.
• Stainless steel vertical baffles drain captured grease into a removable gutter, making routine cleaning quick and straightforward.
• Washable polyester filter is reusable and easy to clean, reducing ongoing consumable costs.
• Built-in fluorescent light provides focused illumination over the cooking surface, improving visibility and food presentation during preparation.
• Benchtop mounting design suits restaurants, cafes, catering facilities and pop-up kitchens where ceiling-mounted exhaust systems are not viable.
• Full stainless steel construction delivers hygienic, corrosion-resistant durability suited to the demands of high-volume commercial food service.

Key Features

• 1000mm wide benchtop-mount filtered hood in all-stainless steel construction.
• Two high-speed German motors with 4-speed control for variable extraction performance.
• 240V power supply, 800W rated power consumption.
• No ducting required for installation.
• 3-stage filter system comprising stainless steel vertical baffles, washable polyester filter and activated carbon filter.
• Stainless steel vertical filter baffles capture the majority of airborne grease and channel it into an easily removable, easy-to-clean collection gutter.
• Washable polyester filter captures residual grease particles and is fully reusable.
• Activated carbon filter stage removes cooking odours from extracted air.
• Fluorescent light integrated into the hood to illuminate the work area below.
• Mounts directly to the benchtop for straightforward installation.
• Generally suitable for countertop electric equipment up to 8.0kW where AS1668.2 does not stipulate exhaust, including electric fryers with prior local council consultation.
• Generally suitable for gas equipment up to 29MJ; local council requirements should be confirmed prior to installation.
• 1-year parts and labour warranty.
• Dimensions: 1000mm wide x 700mm deep x 1150mm high.
• Weight: 258.75kg.

Specifications

• Width (mm): 1000
• Depth (mm): 700
• Height (mm): 1150
• Weight (kg): 258.75
• Packed Width (mm): 760
• Packed Depth (mm): 1040
• Packed Height (mm): 1310
• Shipping Weight: 65
• Power Delivery: 240V; 800W
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
• Mounting Type: Benchtop
