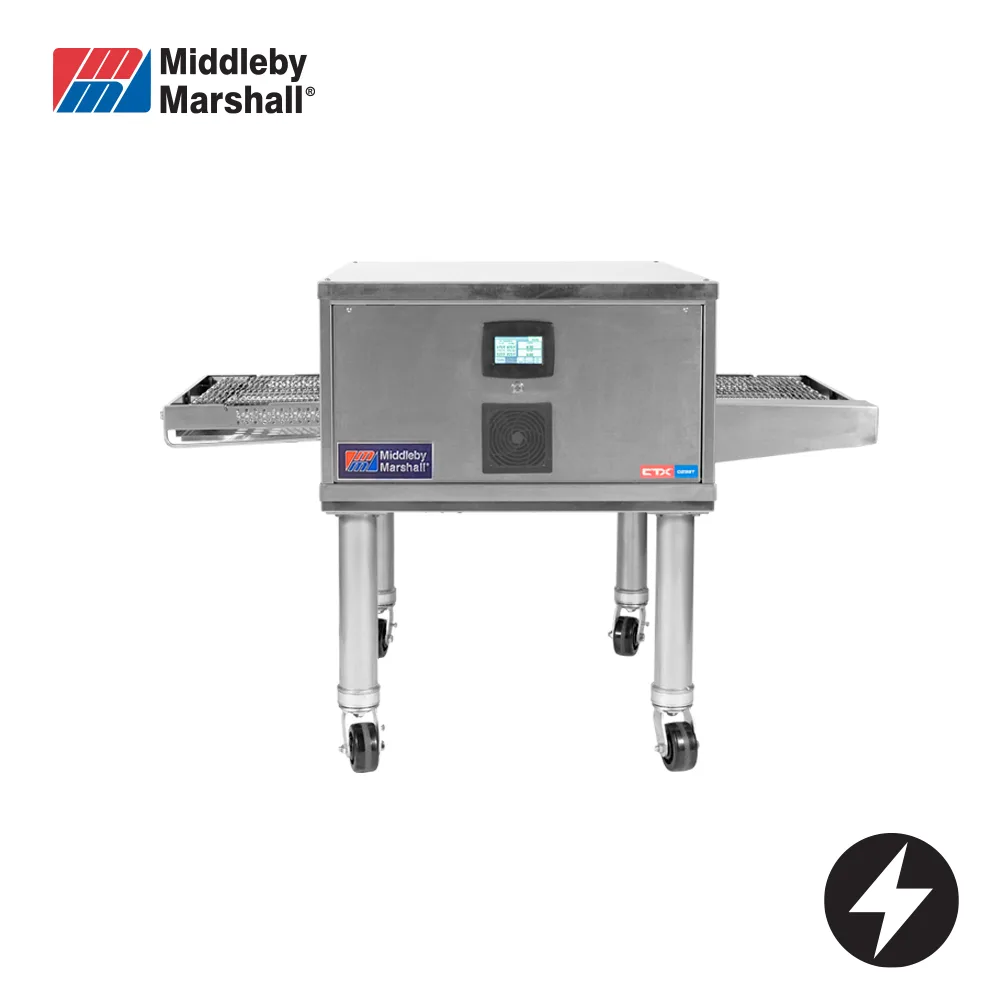

Middleby Marshall DZ33T CTX Infrared Conveyor Oven

Middleby Marshall DZ33T CTX Infrared Conveyor Oven

The Middleby Marshall DZ33T CTX is an electric infrared conveyor oven engineered as an automated cooking platform for high-volume commercial kitchens. With top and bottom infrared emitters and a Menu Select system that stores up to 15 preset time and temperature combinations, it delivers consistent, repeatable results across a wide range of menu items including pizzas, proteins, vegetables, baked goods, and more — all at the push of a button.

Built with an 18-gauge stainless steel exterior, full insulation on all sides, and a 'Cool Skin' safety feature that keeps the outer surface below 50°C, the DZ33T CTX is designed for both performance and operator safety. Its stackable design accommodates up to three units high, making it a practical solution where kitchen space is limited, while its independently controlled microprocessor with standby mode and self-cleaning cycle helps reduce both labour demands and operating costs.

Key Benefits

• Automates cooking across multiple food categories — pizzas, proteins, vegetables, baked goods, broiling, searing, steaming, and sous vide — reducing the need for multiple specialised appliances.
• Up to 15 preset time and temperature combinations enable one-touch consistency across the entire menu, minimising remakes and meal comps.
• Bake times up to 60% faster than traditional equipment for certain menu items, increasing throughput during peak service periods.
• Customers have reported saving up to 3,300 kitchen labour hours annually, directly lowering staffing costs.
• Stackable up to three units high, allowing production capacity to scale vertically without expanding the kitchen footprint.
• 'Cool Skin' safety feature maintains the external oven surface below 50°C, reducing burn risk for kitchen staff working in close quarters.
• Self-cleaning cycle and easy-clean stainless steel exterior reduce the time and effort required for routine maintenance.
• Quiet operation and standby mode contribute to a more comfortable kitchen environment and lower energy consumption during idle periods.
• Freestanding, fully insulated construction with a stand included supports straightforward installation under a ventilation hood.

Key Features

• Electric infrared conveyor oven with top and bottom infrared emitters — two on top and two on bottom — for even, all-round heat distribution
• 18" (457 mm) wide conveyor belt accommodates a broad range of food items and cookware
• 31" (793 mm) long cooking chamber providing ample capacity for continuous high-volume output
• 56.2" (1,429 mm) total conveyor length
• Menu Select function: up to 15 independently preset time and temperature combinations stored and recalled at the push of a button
• Temperature range: 93°C to 482°C
• Time range: 1 to 60 minutes
• Independently controlled microprocessor with time and date clock, standby mode, and self-cleaning cycle
• 18-gauge stainless steel exterior for durability, corrosion resistance, and easy cleaning
• Fully insulated on all sides for consistent internal temperatures and reduced heat loss
• 'Cool Skin' safety feature keeps the external oven surface under 50°C during operation
• Stackable design supports up to three units high for scalable production in compact spaces
• Quiet operation suitable for open-plan or front-of-house adjacent kitchen environments
• Designed for installation under a ventilation hood
• Stand included
• Freestanding, freestanding mounting
• Power supply: 415 V, 3-phase; 18 A current draw per phase; 25 A breakers required (5-wire connection)
• Power input: 6.7 kW
• Dimensions: W 1,499 mm x D 991 mm x H 1,002 mm
• Weight: 491 kg
• Country of origin: USA

Specifications

• Width (mm): 1499
• Depth (mm): 991
• Height (mm): 1002
• Weight (kg): 491
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Power / Gas Input: 6.7 kW
• Power Supply: 3ph
• Power Rating: 3 phase|6.7kW
• Power (kW): 415
• Material: Stainless Steel
• Country of Origin: USA
• Warranty (months): 24
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Fuel Type: Electric
