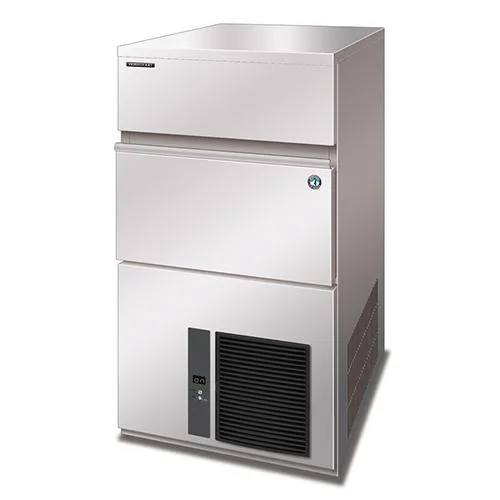

Hoshizaki IM-130NE-21 Ice Maker Cuber

Hoshizaki IM-130NE-21 Self-Contained Half Cube Ice Maker 95kg/24hr with 50kg Storage Bin

The Hoshizaki IM-130NE-21 is a self-contained commercial cube ice maker producing approximately 95kg of crystal-clear half cube ice per 24 hours at standard conditions (21°C air, 15°C water), with a 50kg integrated storage bin. Designed with hygiene as a core priority, each ice cycle draws fresh water through a unique closed-cell water circuit, producing exceptionally hard, slow-melting cubes measuring 21mm x 21mm x 14mm that are ideal for premium beverages, cocktails, food presentation, and healthcare applications. The unit is rated for operation in ambient temperatures up to 40°C, making it well suited to demanding Australian commercial environments.

Built with a durable stainless steel exterior and an air-cooled condensing unit featuring front-panel airflow for built-in installation, the IM-130NE-21 is engineered for reliability and ease of maintenance in bars, restaurants, hotels, catering operations, and healthcare facilities. A microcomputer controller and intelligent electronic control circuit continuously optimise ice-making performance, while built-in safety protections, automatic rinse and flush cycles, and an easily accessible front air filter reduce operational downtime and maintenance costs. Units include adjustable legs (70–110mm) and can be stacked to multiply ice production capacity.

Key Benefits

• Consistent supply of up to 95kg of ice per day at standard conditions ensures busy service periods are never interrupted by ice shortages.
• Crystal-clear, hard half cubes melt slowly, preserving the flavour and integrity of premium beverages and cocktails without rapid dilution.
• Fresh water used in every ice cycle, combined with a closed-cell water circuit, minimises impurities and contamination for superior food-safe hygiene.
• Microcomputer-controlled operation automatically adapts the ice-making process to changing ambient conditions, maintaining peak output year-round including in tropical climates up to 40°C.
• Intelligent control circuit reduces both energy and water consumption during each cycle, lowering ongoing operating costs.
• Built-in safety features including a freeze cycle back-up timer, defrost back-up, and low-voltage and high-amp protection guard the unit against damage and unplanned downtime.
• Front-access washable air filter is quick to remove and clean, reducing the need for costly service callouts.
• Automatic rinse and flush cycle maintains internal hygiene with minimal operator intervention.
• Stackable design allows additional ice maker heads to be added above the storage bin, multiplying production capacity as demand grows.

Key Features

• Self-contained unit with integrated 50kg ice storage bin
• Produces approximately 95kg of ice per 24 hours at 21°C air temperature and 15°C water temperature
• Reduced output of approximately 82kg per 24 hours at 32°C air temperature and 21°C water temperature
• Half cube ice dimensions: 21mm x 21mm x 14mm
• Freeze cycle duration: approximately 14 minutes
• Production per cycle: approximately 1.15kg or 190 cubes
• Unique closed-cell water circuit eliminates cross-contamination between cycles
• Fresh water feed used for every individual ice cycle
• Exceptionally hard, crystal-clear cubes with slow melt rate
• Microcomputer controller manages the ice-making process for consistent performance in any conditions
• New intelligent electronic control circuit dedicated to reducing power and water consumption
• 7-segment operational display panel for straightforward monitoring and diagnostics
• Built-in safety protections: freeze cycle back-up timer, defrost back-up, low-voltage protector, and high-amp protector
• Automatic rinse and flush cycle maintains hygiene between production runs
• Air-cooled condensing unit with front-panel air intake and exhaust, suitable for built-in installation
• Durable stainless steel exterior construction
• Easily removable and washable front condenser air filter
• Rated for operation in ambient temperatures up to 40°C (tropical conditions)
• Refrigerant: R134A
• Single phase power supply, 10 Amp connection; energy consumption 4.5 Amps
• Adjustable legs included, height range 70–110mm
• Stackable design allows additional ice maker heads to be added to increase production capacity
• Dimensions: 704mm (W) x 506mm (D) x 1270mm (H) including legs
• Unit weight: 85kg
• 3-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil
• Suitable for bars, restaurants, hotels, healthcare facilities, catering operations, and hospitality venues

Specifications

• Width (mm): 704
• Depth (mm): 1270
• Height (mm): 506
• Weight (kg): 350
• Shipping Weight: 84
• Packed Width (mm): 704.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 506.0
• Shipping Cubic: 0.427469000m3
• Ice Type: Cube Ice
• Ice Size: 21
• Ice Storage: 50
• Ice Production: 95
• Energy Consumption (kWh/24h): 4.5 Amps
• Country of Origin: AU
