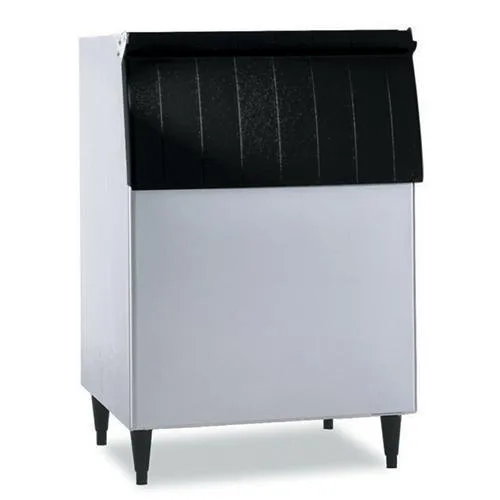

Hoshizaki B-501SA Bin Ice 217KG

Hoshizaki B-501SA Ice Storage Bin 217kg

The Hoshizaki B-501SA is a large-capacity commercial ice storage bin holding up to 217kg of ice, purpose-built to pair with Hoshizaki modular ice machine heads. Suitable for busy bars, restaurants, hotels, healthcare facilities, and large-scale hospitality operations, it provides a scalable foundation for meeting both steady daily demand and high peak-service volumes.

Construction centres on a stainless steel exterior and a seamless polyethylene bin liner that resists corrosion and supports hygienic, easy-clean storage. Foamed-in-place polyurethane insulation fills all bin walls and the base to minimise ice melt, while a pouch-style insulated door with a sealed gasket and view windows keeps temperatures stable, reduces condensation, and allows instant visual inspection without fully opening the unit.

Key Benefits

• 217kg storage capacity ensures a ready ice supply throughout high-volume service periods without constant refilling.
• Seamless polyethylene liner eliminates crevices where bacteria can harbour, supporting food-safe hygiene standards.
• Foamed-in-place polyurethane insulation across all walls and the base slows ice melt, reducing waste and running costs.
• Sealed door gasket limits exposure to airborne bacteria, protecting ice quality between uses.
• Pouch-style insulated door minimises condensation and ice spillage while still providing maximum hand access.
• View windows allow staff to check ice levels at a glance without opening the bin, preserving internal temperature.
• Compatible with multiple Hoshizaki modular ice machine heads, enabling scalable ice production systems tailored to site requirements.
• Smooth stainless steel exterior is straightforward to clean and maintains a professional appearance over years of service.

Key Features

• 217kg ice storage capacity
• Designed to accept Hoshizaki modular ice machine heads
• Stainless steel exterior construction
• Seamless polyethylene bin liner for sanitary, corrosion-resistant ice contact surfaces
• Foamed-in-place polyurethane insulation in all bin walls and the base for maximum ice preservation
• Pouch-style insulated door prevents condensation while allowing maximum access with minimal ice spillage
• Sealed door gasket reduces the risk of airborne bacteria entering the bin
• View windows provide instant ice-level inspection and act as a thermal break
• Easy-clean smooth surfaces throughout for long-lasting, hygienic operation
• Legs included (152mm) contributing to overall installed height

Specifications

• Width (mm): 781
• Depth (mm): 820
• Height (mm): 1168
• Weight (kg): 209
• Packed Depth (mm): 900
• Packed Height (mm): 1000
• Packed Width (mm): 1300
• Shipping Weight: 57
• Shipping Cubic: 0.634837000m3
• Ice Type: BIN FOR MODULAR ICE HEAD
• Ice Storage: 217
• No. of Doors: 5711
• Mobility: 5809
