Hoshizaki FM-150KE-N Nugget Machine

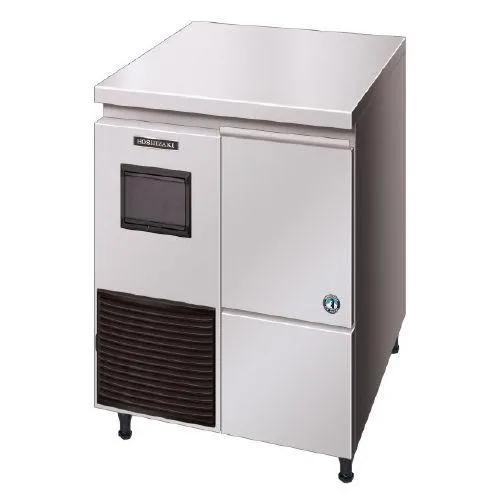

Hoshizaki FM-150KE-N Self-Contained Nugget Ice Machine

The Hoshizaki FM-150KE-N is a self-contained commercial nugget ice machine producing approximately 120 kg of soft, chewable nugget ice per 24 hours under standard conditions, with a 32 kg integrated storage bin. Nugget ice is prized across hospitality, healthcare, and food retail applications for its gentle texture, flavour-absorbing qualities, and suitability for produce display, fresh fish presentation, bottled beverage chilling, and medical use where freeze burn is a genuine concern.

Engineered around Hoshizaki's proven auger system, the FM-150KE-N achieves highly efficient ice production by matching water consumption precisely to ice output, minimising waste without sacrificing consistency. Carbon auger bearings extend service life beyond conventional roller bearing designs, while a one-piece bin moulding with rounded corners, an automatic flush function, and an integrated door handle make daily hygiene and cleaning straightforward in demanding commercial environments.

Key Benefits

• Produces up to 120 kg of nugget ice per 24 hours at 21°C air and 15°C water temperatures, delivering a reliable supply for busy service periods.
• Soft, chewable nugget ice absorbs flavours readily, improving the quality of cold beverages and enhancing customer experience in cafes, bars, and restaurants.
• Eliminates freeze burn risk when displaying fresh fish, seafood, or produce, making the unit equally valuable for food retail and market settings.
• Auger-driven production system matches water consumption to ice output, reducing water usage and ongoing operating costs.
• Carbon auger bearings outlast traditional roller bearings, lowering maintenance frequency and long-term servicing costs.
• Automatic flush function keeps the internal ice-making circuit clean with minimal operator intervention, supporting food safety compliance.
• Onboard controller with Operational Status display simplifies troubleshooting, helping staff identify issues quickly and reduce downtime.
• Self-contained design with integrated storage bin keeps the installation footprint compact at 640 mm wide, suited to kitchens, bars, and clinical environments where space is limited.
• Backed by a 2-year parts and labour warranty on the entire unit and a 5-year parts-only warranty on the compressor and air-cooled condenser coil, providing long-term peace of mind.

Key Features

• Self-contained nugget ice machine with integrated 32 kg storage bin, no separate bin required.
• Approximate production capacity of 120 kg per 24 hours at 21°C air temperature and 15°C water inlet, or approximately 100 kg per 24 hours at 32°C air temperature and 21°C water inlet.
• Hoshizaki auger system ensures water consumption is equal to ice production, maximising efficiency and minimising waste.
• Carbon auger bearings provide longer service life and reduced maintenance costs compared to roller bearing alternatives.
• Refrigerant: R134A.
• Air-cooled condenser.
• Gravity drain only.
• One-piece bin moulding with rounded internal corners for improved hygiene and ease of cleaning.
• Automatic flush function helps maintain cleanliness of the ice-making system.
• Integrated door handle designed for hygienic, easy access.
• Controller board with Operational Status display for straightforward fault diagnosis and troubleshooting.
• Can be converted to produce a different ice form by changing the extruding head and cutter (conversion parts available at additional cost).
• Durable stainless steel exterior construction suited to continuous commercial operation.
• Power supply: 220–240 V / 50 Hz.
• Energy consumption: 5.1 kWh per 24 hours.
• Unit weight: 82 kg.
• Dimensions (including legs): 640 mm (W) x 600 mm (D) x 800–803 mm (H); legs adjustable approximately 70–110 mm.
• 2-year parts and labour warranty on the entire unit; 5-year parts-only warranty on the compressor and air-cooled condenser coil.
• Suitable for hospitality, healthcare, food retail, fresh produce display, and medical applications.

Specifications

• Width (mm): 640
• Depth (mm): 800
• Height (mm): 600
• Weight (kg): 82
• Shipping Weight: 82
• Packed Width (mm): 640.0
• Packed Height (mm): 800.0
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.307200000m3
• Ice Type: NUGGET
• Ice Size: NUGGET
• Ice Storage: 32
• Ice Production: 120
• Energy Consumption (kWh/24h): 5.1 Amps
• Country of Origin: AU
