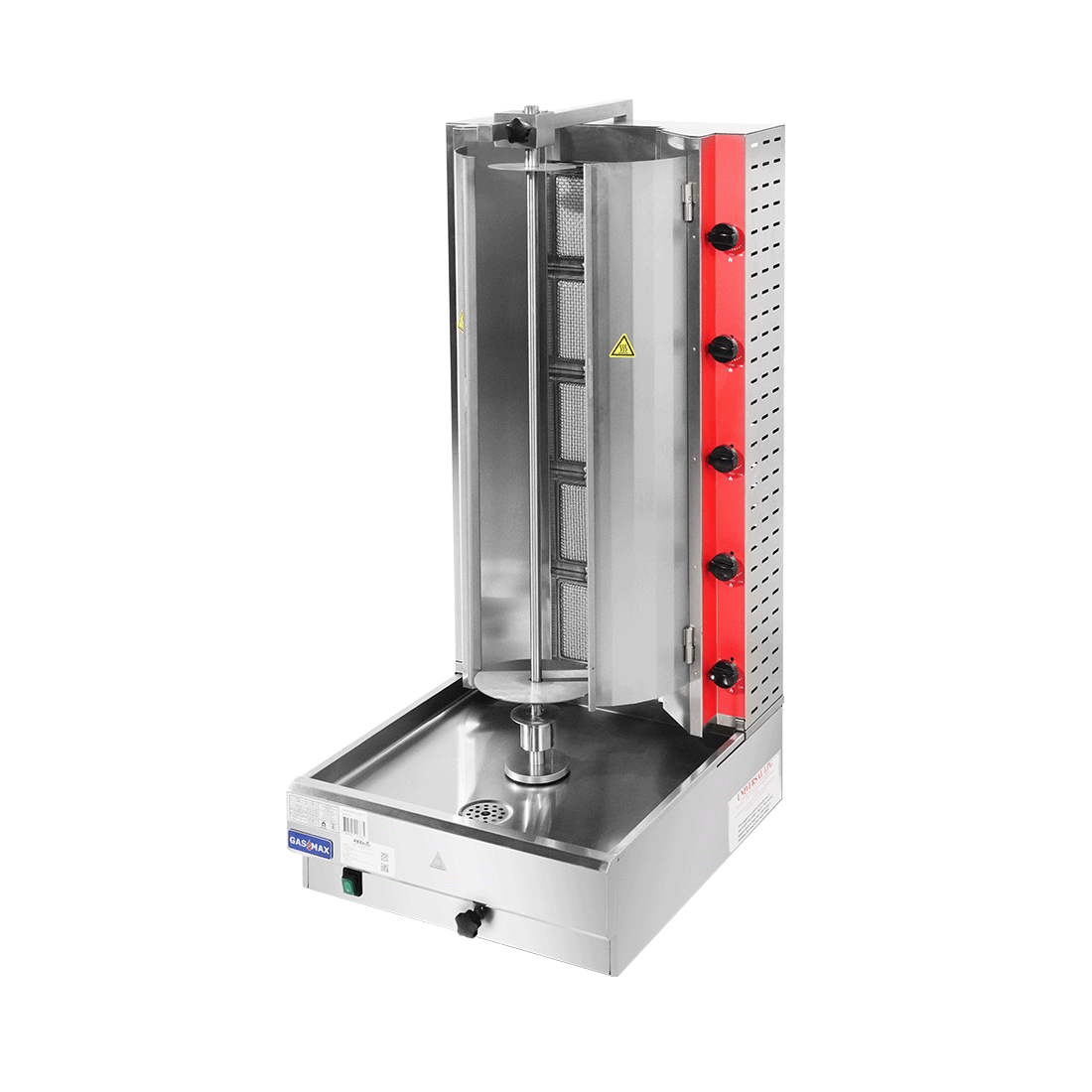

Gasmax KB-5 Semi-automatic 5 Burner NG Kebab Machine

Gasmax KB-5 Semi-Automatic 5 Burner Natural Gas Kebab Machine

The Gasmax KB-5 is a semi-automatic vertical broiler designed for high-volume commercial kitchens producing gyros, shawarmas, doner kebabs, and tacos al pastor. Powered by natural gas with a consumption rate of 65 MJ/h, its five infrared ceramic burners deliver intense, even heat that keeps meat succulent and tender on the inside while producing a delicately crisp exterior — the hallmark of authentically cooked rotating meats.

Built around a heavy-duty stainless steel structure, the KB-5 supports a generous 56 kg meat capacity and features an adjustable cooking spit so operators can fine-tune the distance between the meat and the burners for precise cooking control. A convenient rear 3/4" NPT gas connection with a built-in gas regulator, a main burner pilot for instant ignition, and robust motors engineered for continuous use make this machine a reliable centrepiece for any kebab or Middle Eastern cuisine operation.

Key Benefits

• Infrared ceramic burners distribute heat evenly and intensely across the full spit length, eliminating hot spots and producing consistently cooked results from top to bottom.
• A 56 kg meat capacity allows large batches to be cooked in a single load, supporting high-volume service periods without repeated reloading.
• Adjustable spit-to-burner distance gives operators control over cooking intensity, accommodating different meat densities and desired finishes.
• Stainless steel heat shields on both sides maintain consistent cooking temperatures and protect surrounding surfaces, improving both performance and safety.
• Instant ignition via the main burner pilot means the machine is ready to cook quickly, reducing warm-up time at the start of service.
• Heavy-duty motors are built for sustained continuous operation, reducing maintenance demands in busy commercial environments.
• The rear 3/4" NPT gas connection with a built-in regulator simplifies installation and ensures a stable, regulated gas supply.
• A 2-year parts and labour warranty, extendable to 2 additional years parts only when registered within 14 days of invoice, provides strong long-term protection for the investment.

Key Features

• Natural gas (NG) fuel type

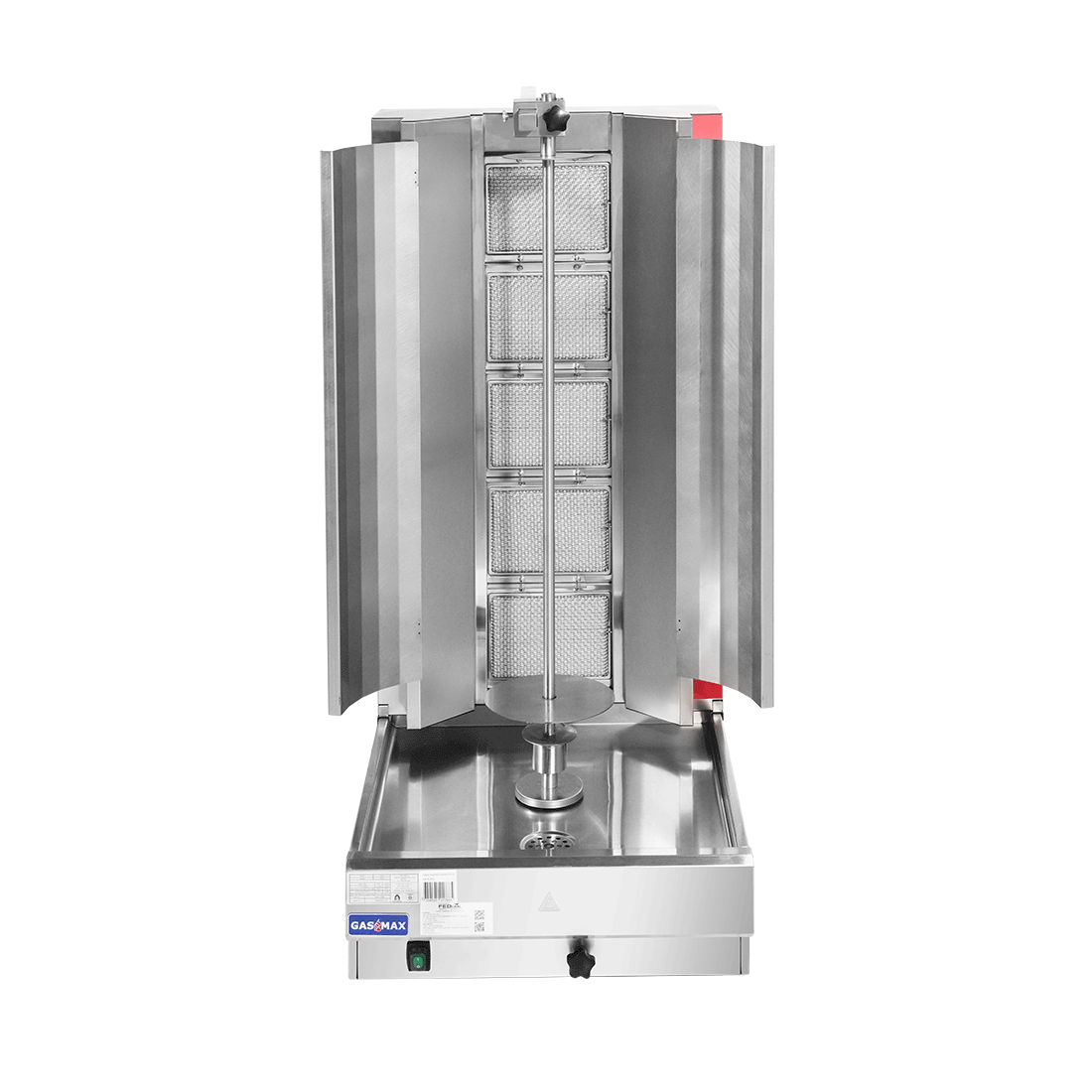

• Five infrared ceramic burners for even, intense heat distribution
• Semi-automatic operation with heavy-duty rotating motors
• 56 kg meat capacity
• Gas consumption: 65 MJ/h
• Adjustable cooking spit allowing variable distance between spit and burners
• Spit lengths: 5 burners 965 mm, 4 burners 711 mm, 3 burners 533 mm
• Stainless steel construction throughout
• Stainless steel heat shields on both sides for temperature consistency and surface protection
• Main burner pilot for instant ignition and quick start-up

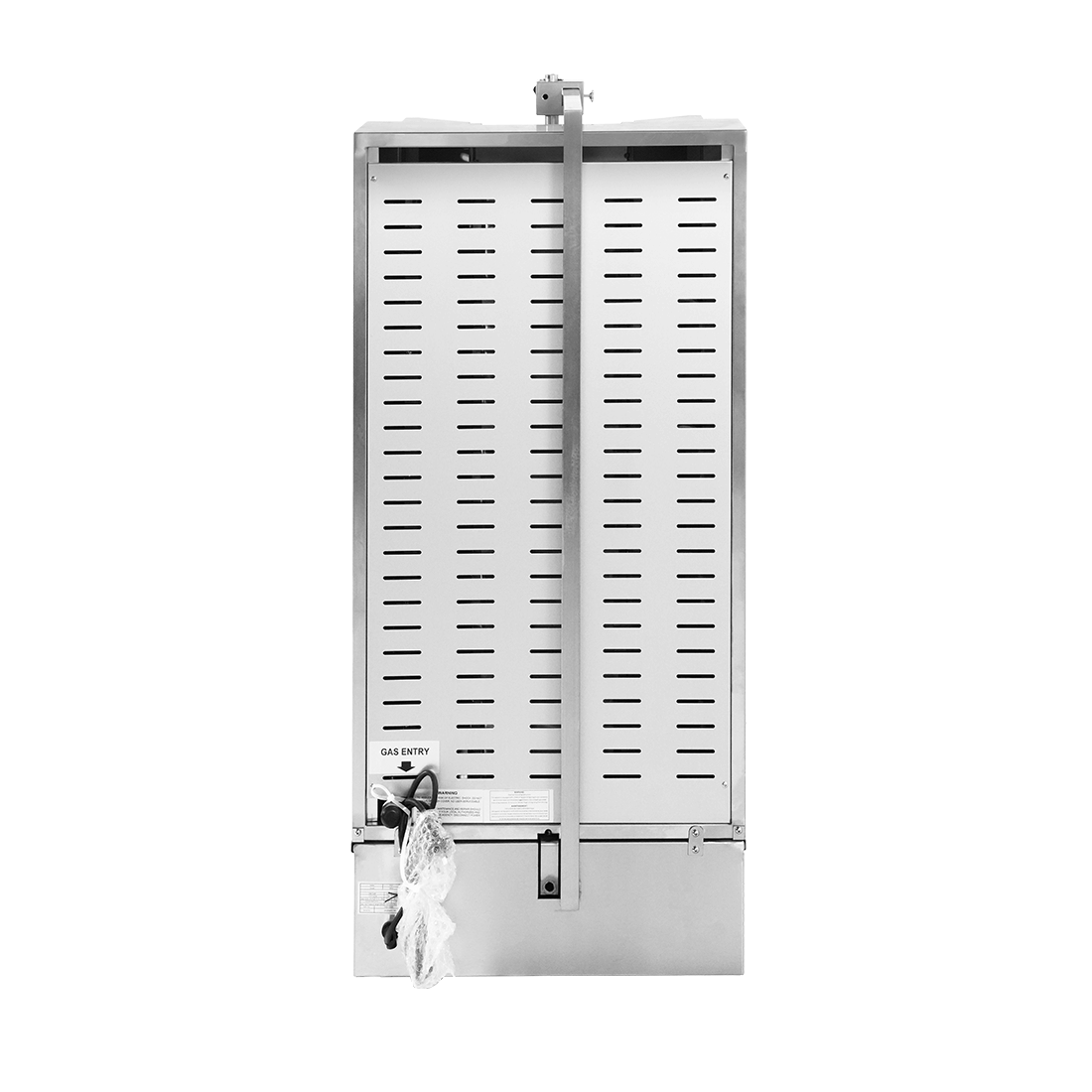

• Rear 3/4" NPT gas connection with built-in gas regulator
• 10 A power connection
• Dimensions: 537 mm (W) x 639 mm (D) x 1170 mm (H)
• Weight: 50 kg
• Packed dimensions: 650 mm (W) x 780 mm (D) x 1300 mm (H)
• 2-year parts and labour warranty plus 2-year parts only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 537
• Depth (mm): 639
• Height (mm): 1170
• Weight (kg): 50
• Packed Width (mm): 650
• Packed Depth (mm): 780
• Packed Height (mm): 1300
• Power Delivery: 10A plug
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
