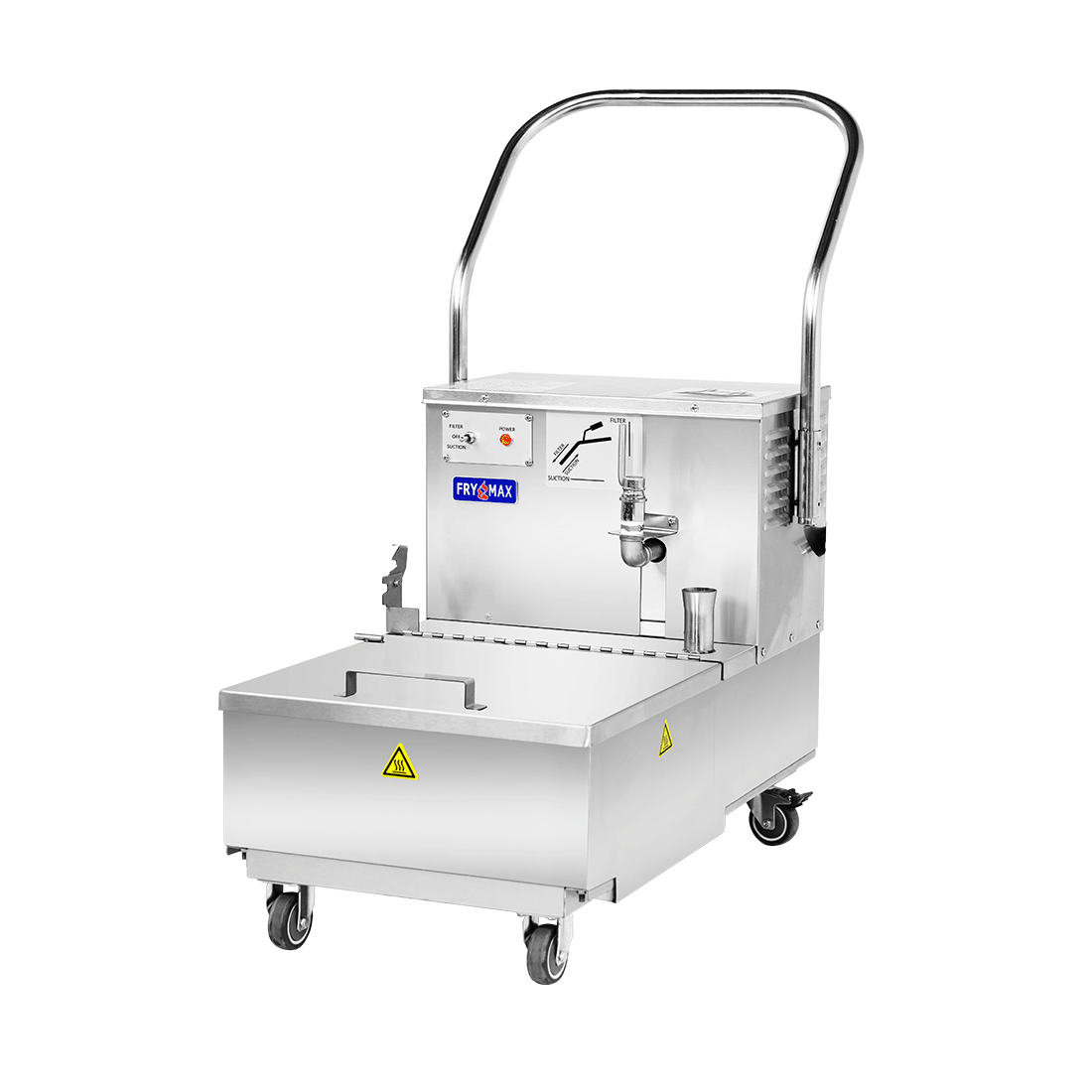

Frymax EOF-54 54L Electric Oil Filter Machine

Frymax EOF-54 54L Electric Oil Filter Machine

The Frymax EOF-54 is a 54-litre electric oil filter machine designed to extend the usable life of frying oil in commercial kitchen operations. Its two-stage filtration system draws oil from the fryer via a reverse pump, passing it first through a 300-micron pre-filter screen basket to remove large food particles, then through a finer 10-micron secondary filter to capture smaller contaminants, delivering cleaner oil back to service.

Built from stainless steel throughout for durability and straightforward cleaning, the EOF-54 runs on a standard 240V supply and delivers an average flow rate of 13 litres per minute via its 3.5 GPM pump. A quick-disconnect hose simplifies setup and breakdown between filtering cycles. Note that this machine is suitable for vegetable-based frying oils only and is not intended for use with animal fats.

Key Benefits

• Two-stage filtration removes both coarse and fine food particles, keeping oil cleaner for longer and reducing how often it needs to be replaced.
• 54-litre capacity suits high-volume commercial fryer operations, allowing efficient batch filtering without multiple cycles.

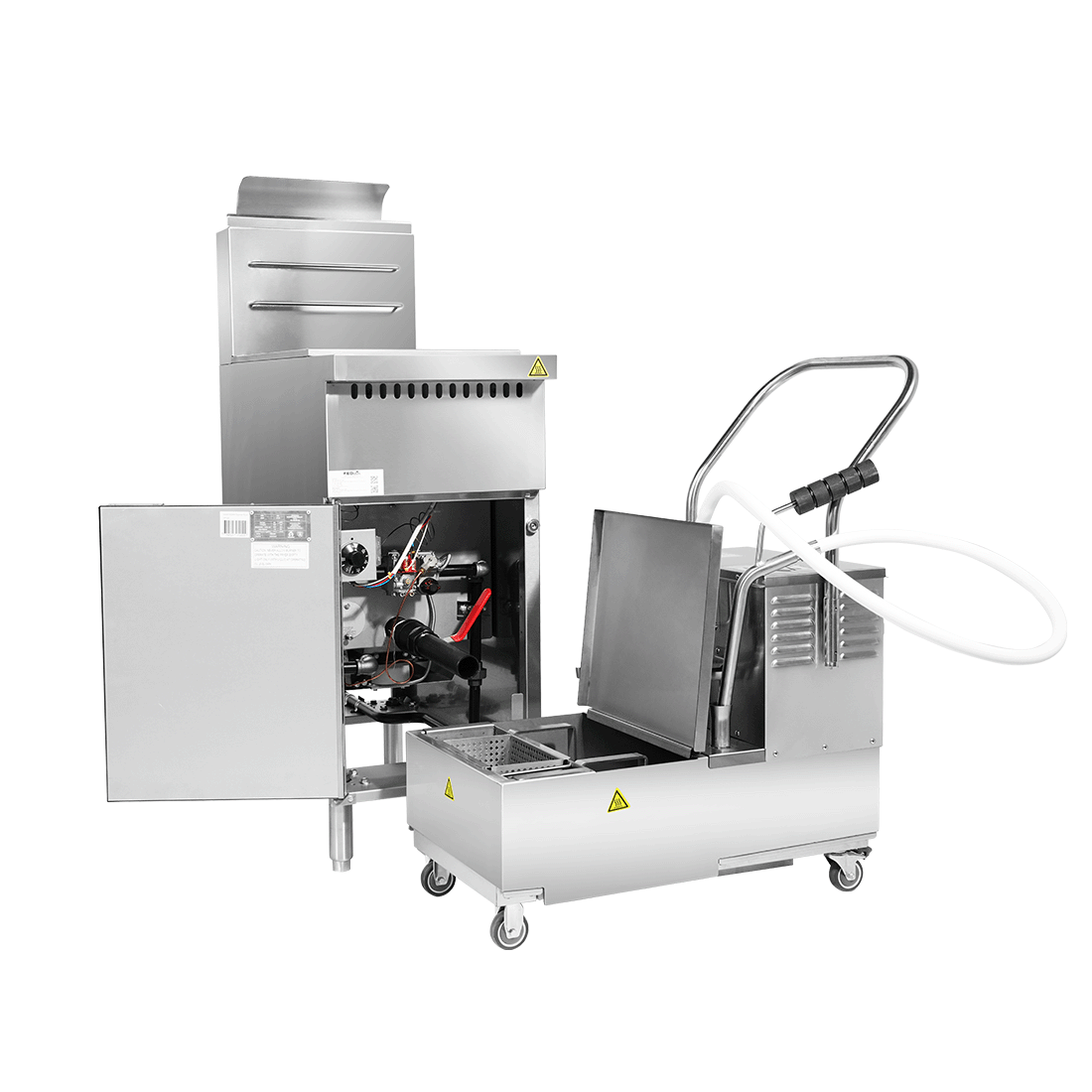

• Reverse pump functionality makes it straightforward to suction oil directly from the fryer, reducing manual handling and spill risk.
• A flow rate of 13 litres per minute keeps filtering time short during busy service periods.
• Quick-disconnect hose allows fast connection and removal, minimising downtime between filtering runs.
• Stainless steel construction resists corrosion from hot oil exposure and is easy to wipe down, supporting food safety compliance.
• Standard 240V, 10A power connection means no special electrical infrastructure is required for installation.
• Included 540 x 390mm filter paper size is easy to source and replace as part of routine maintenance.

Key Features

• 54-litre oil filter machine capacity
• Full stainless steel construction
• Reverse pump for direct suction of oil from the fryer

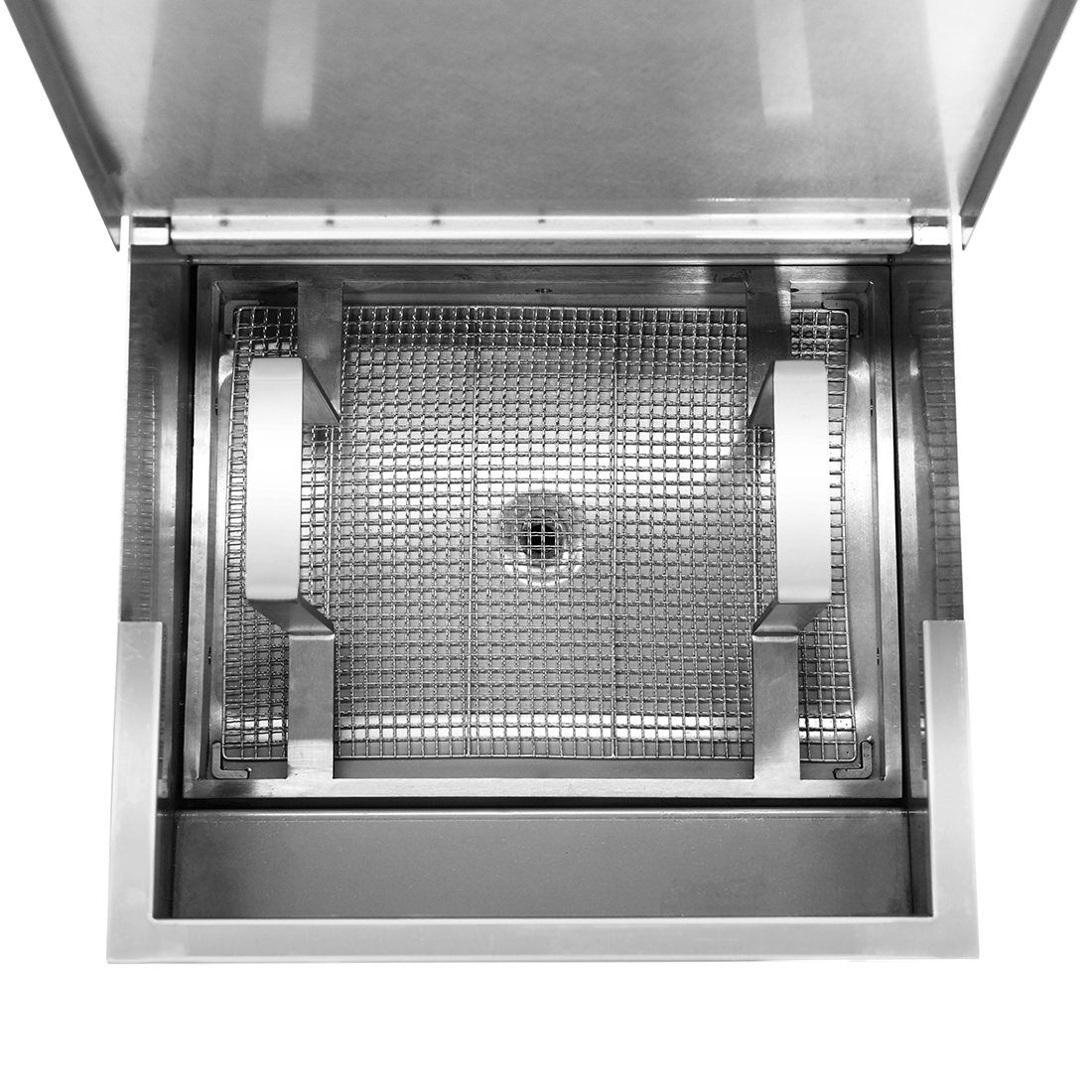

• 300-micron pre-filter screen basket for removal of coarse food debris
• 10-micron secondary filtration stage for finer particle removal
• 3.5 GPM pump delivering an average flow rate of 13 litres per minute
• Quick-disconnect filtering hose for rapid setup and breakdown
• Compatible with 540 x 390mm filter paper
• Operates on 240V, 240W, 10A power supply
• Not suitable for filtering animal fats
• 1 Year Parts and Labour Warranty

Specifications

• Width (mm): 505
• Depth (mm): 914
• Height (mm): 914
• Weight (kg): 70
• Packed Width (mm): 610
• Packed Depth (mm): 1010
• Packed Height (mm): 740
• Shipping Weight: 62
• Power Delivery: 240V, 240W/10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
