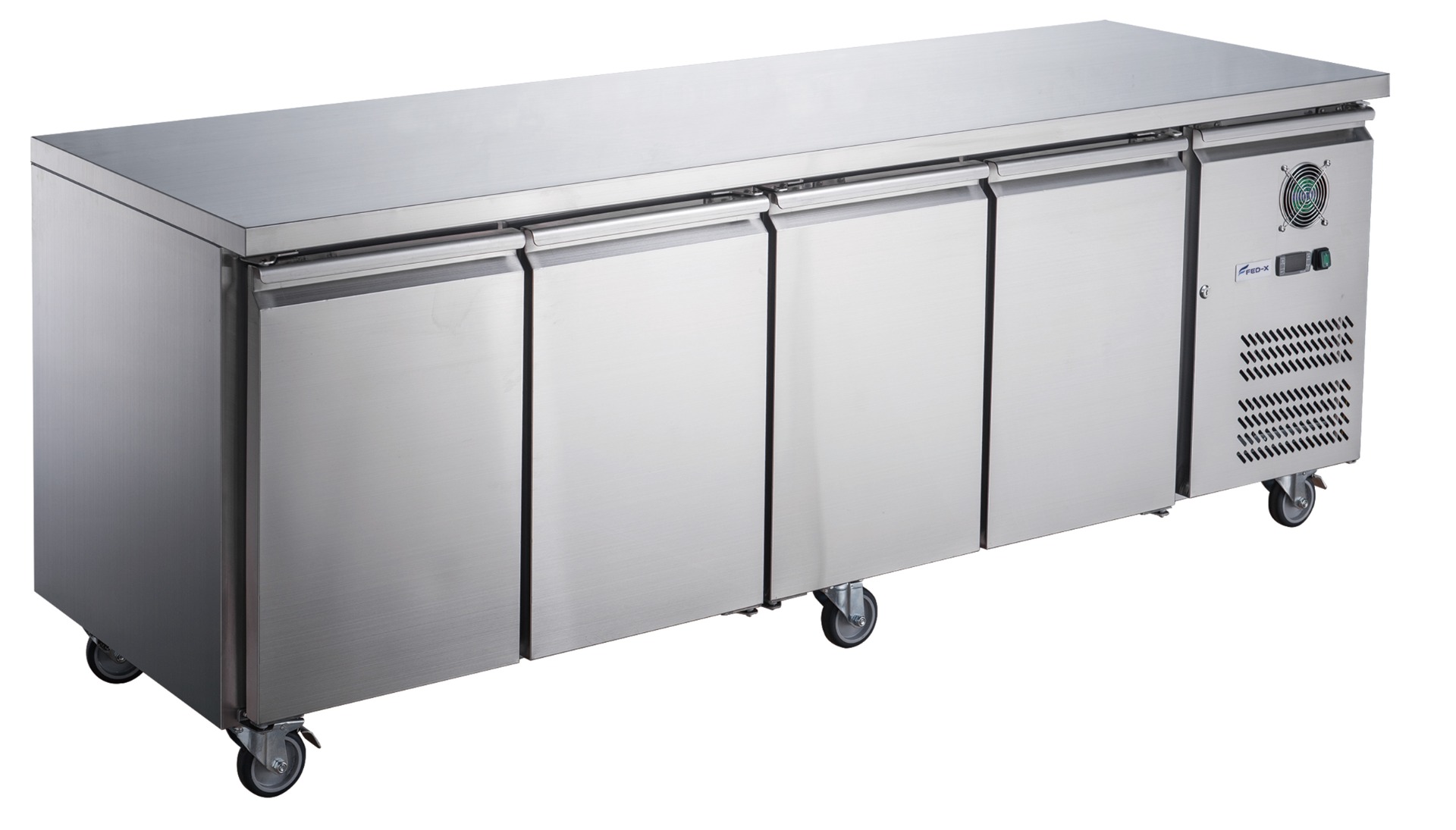

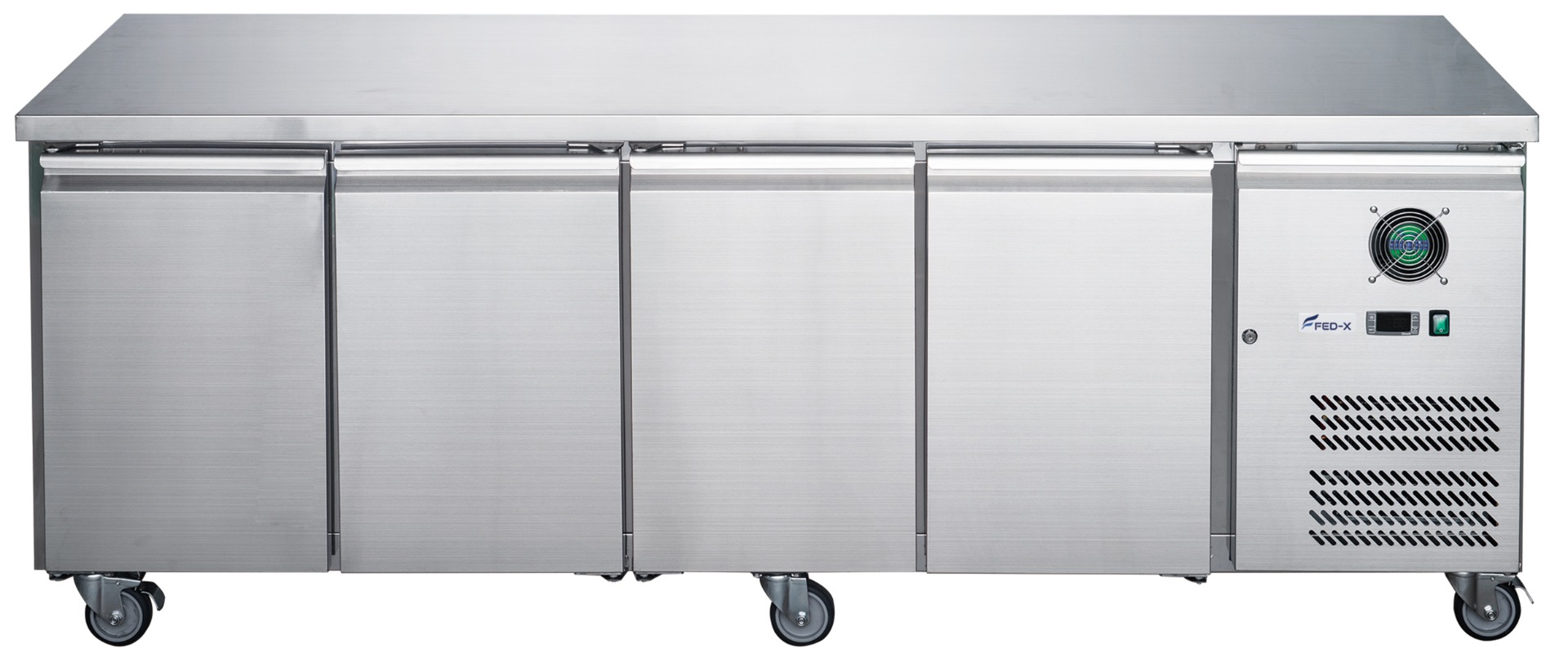

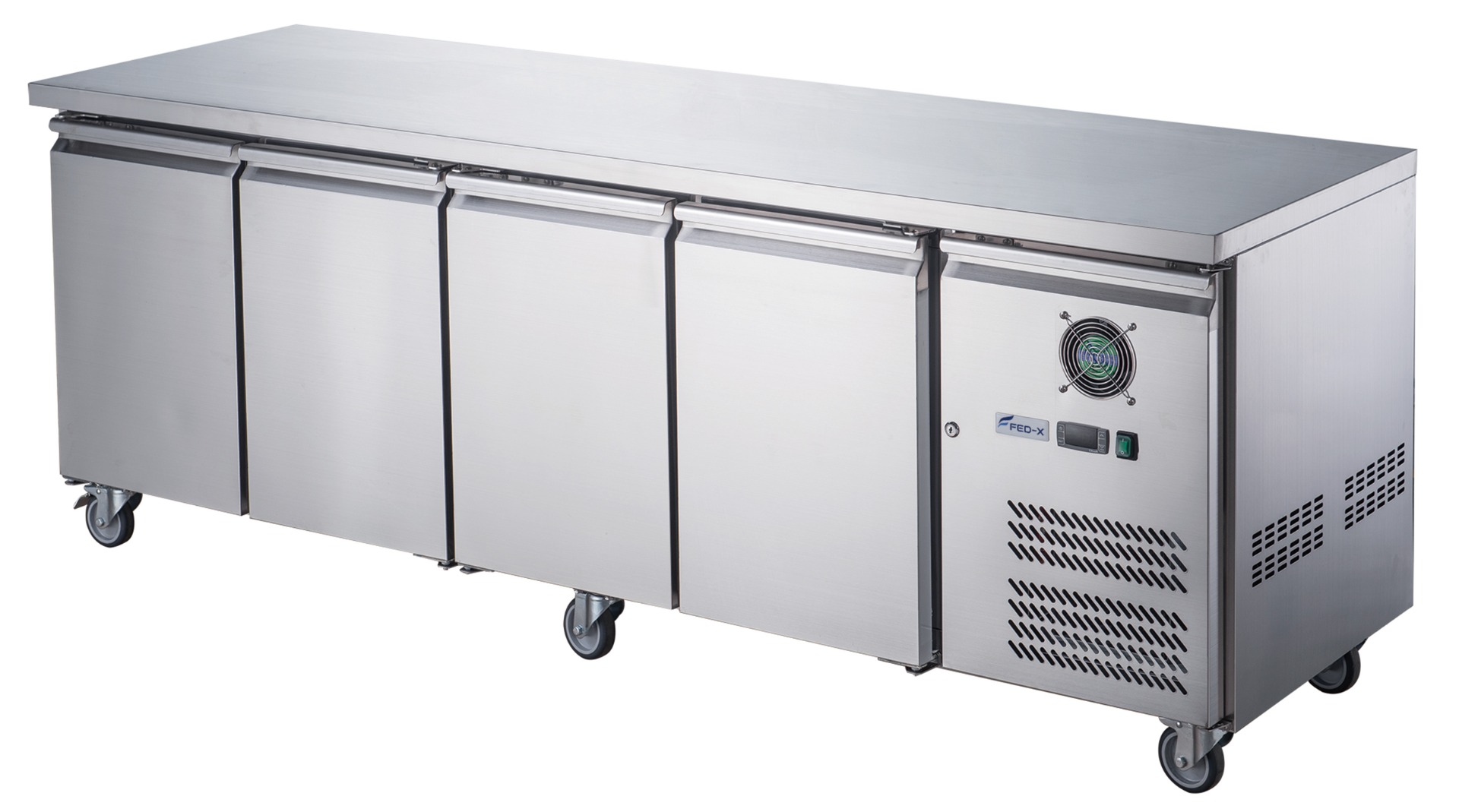

FED-X XUB7C22S4V S/S Four Door Bench Fridge

FED-X XUB7C22S4V Stainless Steel Four Door Bench Fridge 553L

The FED-X XUB7C22S4V is a large-capacity, four-door bench fridge built entirely from stainless steel inside and out, designed to serve as both a refrigerated storage unit and a full-length preparation surface in high-output commercial kitchens. With a 553L gross volume and a temperature range of -2°C to +8°C, it handles the demands of restaurants, hotels, catering operations, function centres and high-volume service environments with consistent, reliable performance. The unit is tropicalised for Australian conditions and rated to operate in ambient temperatures up to 43°C at 60% relative humidity.

Fan-forced cooling with EBM-PAPST evaporator and condenser fans delivers even cold air distribution throughout the cabinet, while a Dixell digital controller provides precise temperature management for food safety compliance. An Embraco or Secop compressor drives rapid temperature recovery after door openings, and the unit uses environmentally responsible R290 refrigerant with 60mm HFC- and CFC-free foam body insulation. Optional drawer configurations allow the unit to be customised to suit different kitchen workflows, and the front-wheel-braked heavy-duty castors make repositioning and cleaning straightforward.

Key Benefits

• Fan-forced cooling eliminates warm spots and maintains consistent temperatures throughout the cabinet, supporting food safety compliance during busy service periods.
• Doubles as a full-length stainless-steel preparation counter, reducing the need for separate prep bench space in tight kitchen layouts.
• Rapid temperature recovery after door openings keeps food within safe holding ranges even during high-frequency access.
• Tropicalised design and a 43°C ambient rating ensure stable operation in hot Australian kitchen environments without performance compromise.
• R290 refrigerant and CFC/HFC-free foam insulation reduce environmental impact while meeting modern refrigerant standards.
• Self-closing doors with heavy-duty magnetic seals minimise temperature fluctuation and energy loss without requiring staff intervention.
• Automatic defrost and self-evaporating drainage reduce maintenance workload, keeping the unit running efficiently with minimal downtime.
• Heavy-duty castors with front-wheel brakes allow the unit to be rolled out for thorough cleaning and locked securely in position during service.
• Configurable with optional 2- or 3-drawer units in place of doors to match specific kitchen workflow and storage requirements.

Key Features

• Gross volume 553L; net volume 415L.
• Temperature range: -2°C to +8°C.
• Maximum ambient operating temperature: 43°C at 60% relative humidity, tropicalised for Australian conditions.
• Fan-forced cooling system with EBM-PAPST evaporator and condenser fans for even air distribution.
• Embraco or Secop compressor with rapid temperature recovery rate.
• Dixell digital controller for precise, user-friendly temperature management.
• Stainless steel interior and exterior construction with rounded internal corners for fast, thorough cleaning.
• Four solid stainless-steel hinged doors; self-closing with heavy-duty magnetic door seals.

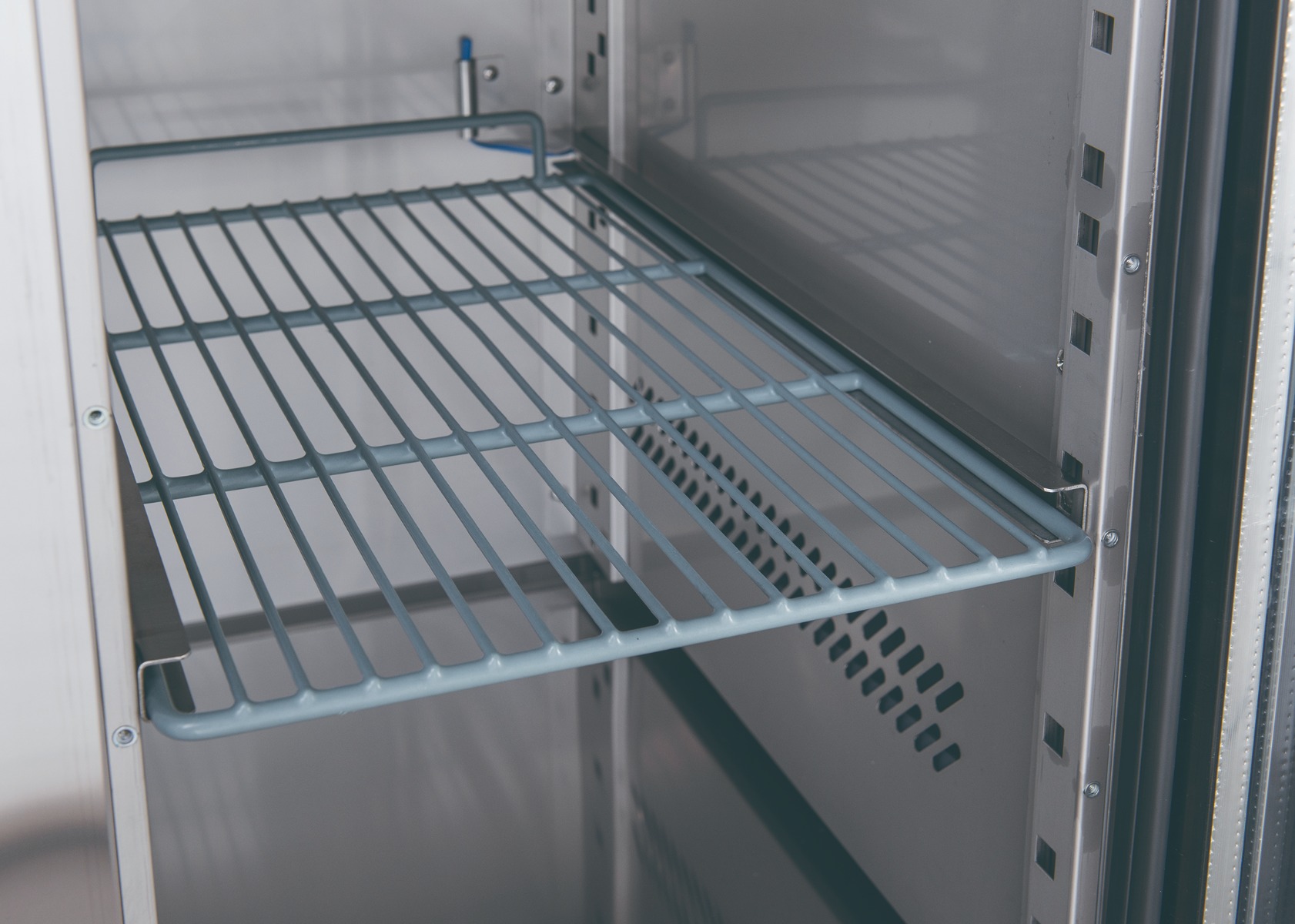

• One shelf per door section, each GN 1/1 pan compatible and rated to support up to 40kg per shelf.
• 60mm body insulation using HFC- and CFC-free foam.
• R290 natural refrigerant.
• Internal dimensions: 1669mm W x 580mm D x 564mm H.
• Automatic defrost system.
• Self-evaporating drainage eliminates the need for manual condensate removal.
• Heavy-duty castors with front-wheel brakes; unit can be positioned flush against a wall.
• Minimum 100mm ventilation clearance from walls recommended.
• Power supply: 240V, 345W, 2.0A.
• Optional 2- or 3-drawer units available as a replacement for door sections.
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice date.

Specifications

• Width (mm): 2230
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 340
• Packed Width (mm): 2260
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 150
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5714
• Cooling Type: Fan Forced
• Power Delivery: 240V; 345W/2.0A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 553
