FED-X XUB7C18S3V S/S Three Door Bench Fridge

FED-X XUB7C18S3V Stainless Steel Three Door Bench Fridge

The FED-X XUB7C18S3V is a commercial-grade three door bench fridge built for the demands of busy Australian kitchens. Featuring full stainless steel interior and exterior construction, fan-forced cooling and a Dixell digital controller, it maintains a consistent temperature range of -2°C to +8°C across a 417-litre gross capacity, keeping ingredients food-safe through even the most demanding service periods.

Tropicalised for Australian conditions and rated to operate in ambient temperatures up to 43°C at 60% relative humidity, this underbench fridge fits neatly against the wall to maximise floor space at prep stations and service lines. Eco-friendly R290 refrigerant, CFC and HFC-free foam insulation, and EBM-PAPST evaporator and condenser fans contribute to efficient, environmentally responsible operation, while optional drawer configurations offer added workflow flexibility.

Key Benefits

• Fan-forced cooling delivers uniform cold air throughout the cabinet, eliminating warm spots and protecting food safety during peak service.
• Rapid temperature recovery rate restores set point quickly after door openings, reducing energy waste and maintaining consistent refrigeration.
• Self-closing doors with heavy-duty magnetic seals minimise cold air loss, lowering running costs and supporting food safety compliance.
• Tropicalised design and 43°C ambient rating ensures reliable performance in hot Australian commercial kitchen environments.
• Auto defrost and self-evaporating drainage eliminate manual maintenance tasks, keeping the unit operational with minimal downtime.
• GN1/1 pan compatibility on every shelf streamlines prep and storage workflows, integrating directly with standard commercial kitchen equipment.
• Heavy-duty castors with front-wheel brakes allow safe repositioning for cleaning underneath the unit while keeping it stable during service.
• Optional 2 and 3-drawer configurations provide a flexible alternative to standard doors, adapting the unit to different kitchen layouts and workflows.
• A 40 kg per shelf weight loading rating accommodates heavy pans, cuts of protein and bulk ingredient storage with confidence.

Key Features

• Gross volume 417L; net volume 311L
• Temperature range: -2°C to +8°C
• Maximum ambient operating temperature: 43°C at 60% relative humidity

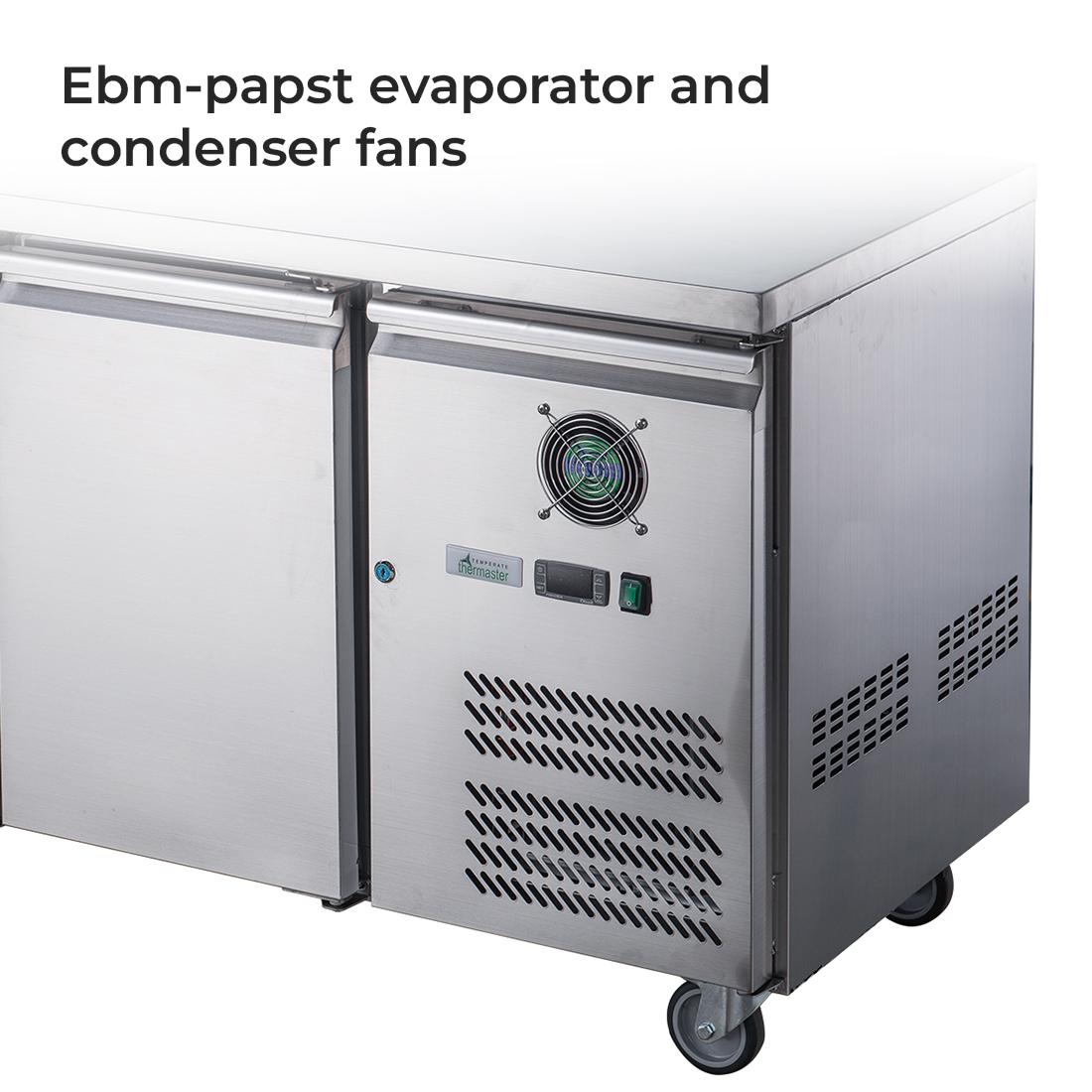

• Fan-forced cooling system with EBM-PAPST evaporator and condenser fans
• Embraco/Secop compressor for reliable, consistent refrigeration

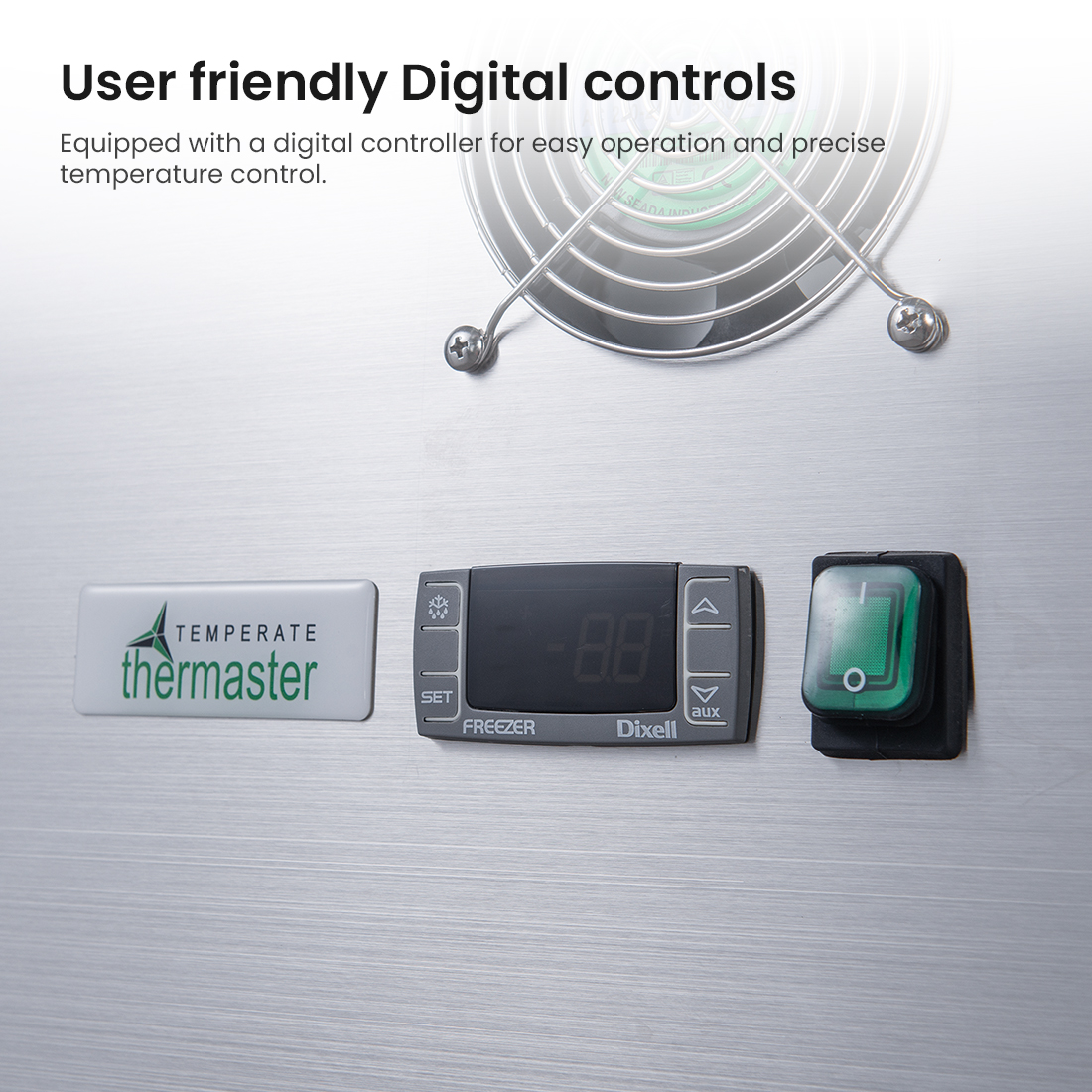

• Dixell digital controller with user-friendly digital display
• R290 refrigerant for environmentally responsible operation
• 60mm foam body insulation; HFC and CFC free

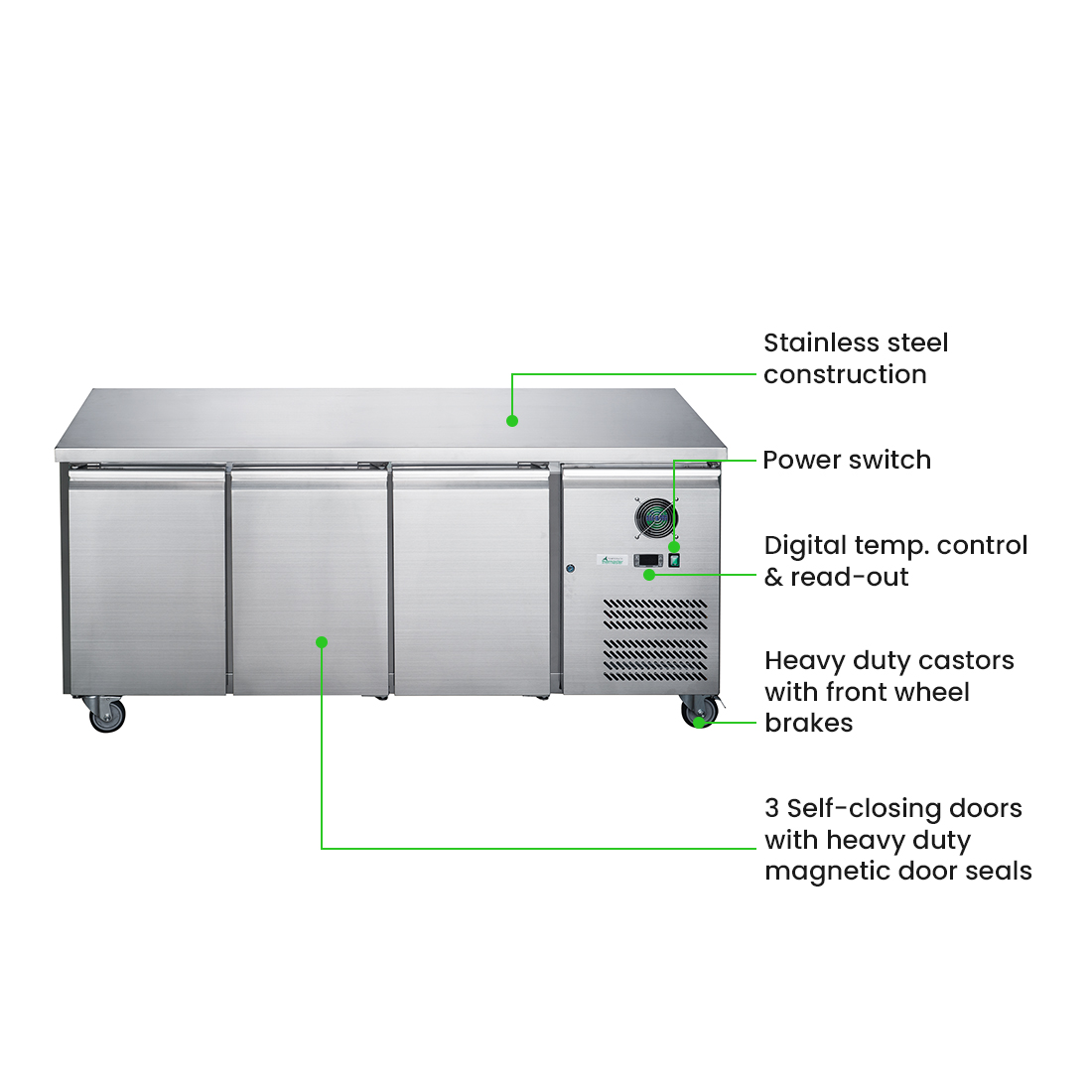

• Full stainless steel interior and exterior construction
• Rounded internal corners throughout for easier cleaning and improved hygiene

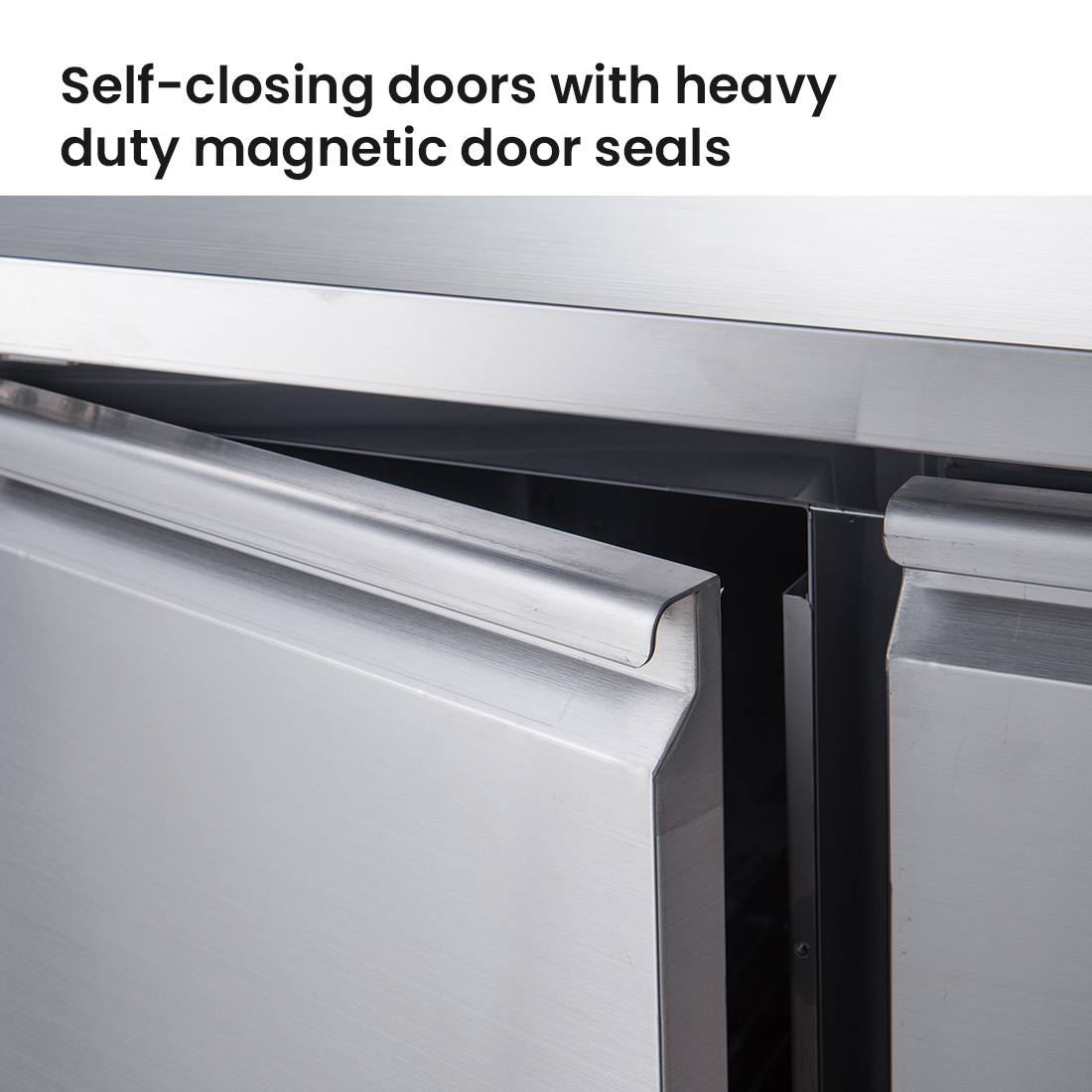

• Three solid stainless steel doors with self-closing hinges
• Heavy-duty magnetic door seals on all three doors
• One shelf per door section; GN1/1 pan compatible
• Weight loading per shelf: 40kg
• Internal dimensions: 1234mm W x 580mm D x 564mm H
• Tropicalised for Australian conditions
• Auto defrost with self-evaporating drainage; no manual emptying required
• Heavy-duty castors with front-wheel brakes for mobility and stability
• Unit can be positioned flush against the wall; minimum 100mm wall clearance required for ventilation
• Power supply: 240V, 230W/1.3A; requires a 10A outlet
• Optional 2-drawer and 3-drawer units available as an alternative to standard doors
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

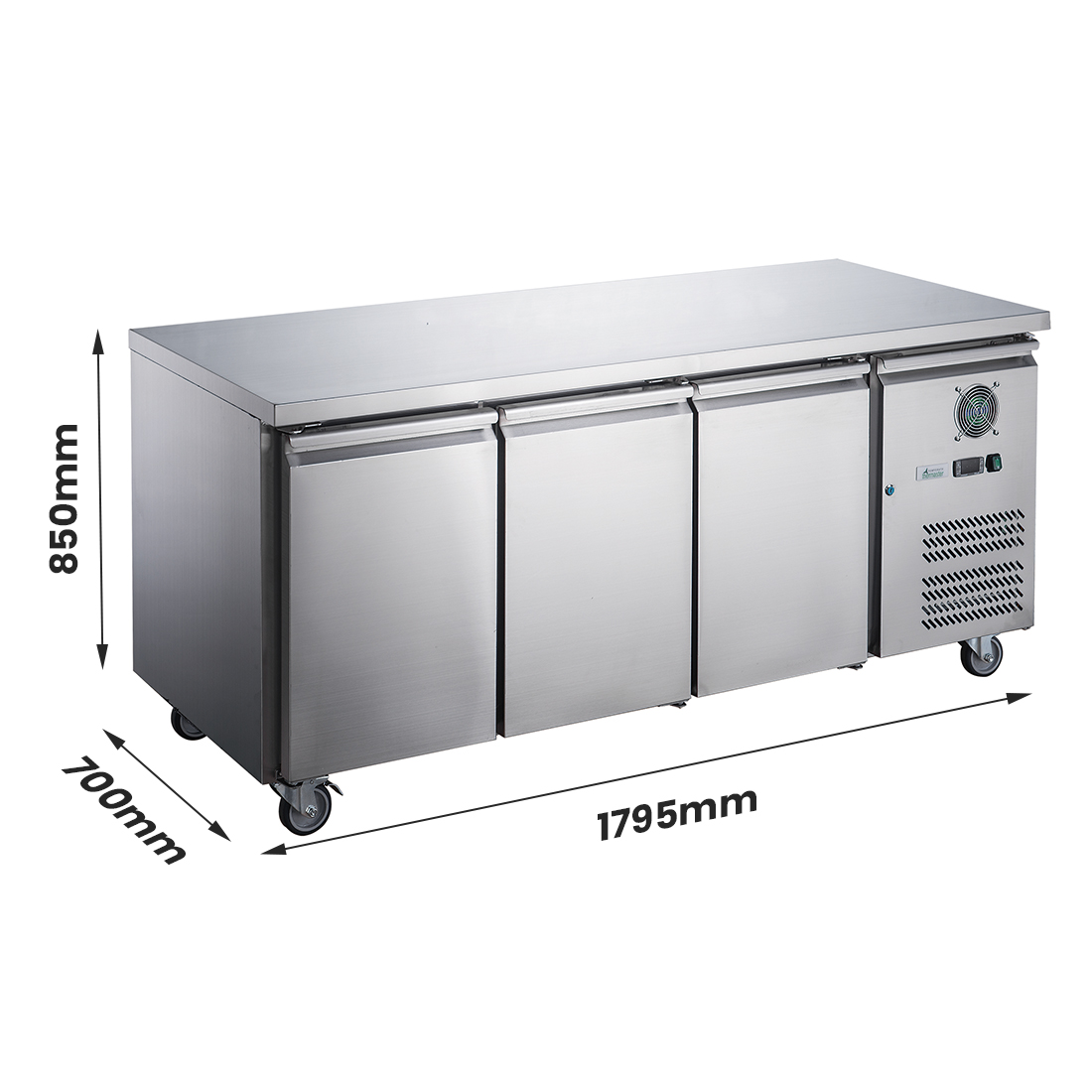

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 303
• Packed Width (mm): 1825
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 121
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5713
• Cooling Type: Fan Forced
• Temperature Range: Maintains between 2°C and 8°C
• Power Delivery: 240V; 230W/1.3A
• Power (kW): 240
• Power Supply: 240V, 240W, requires a 10A outlet
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 417
