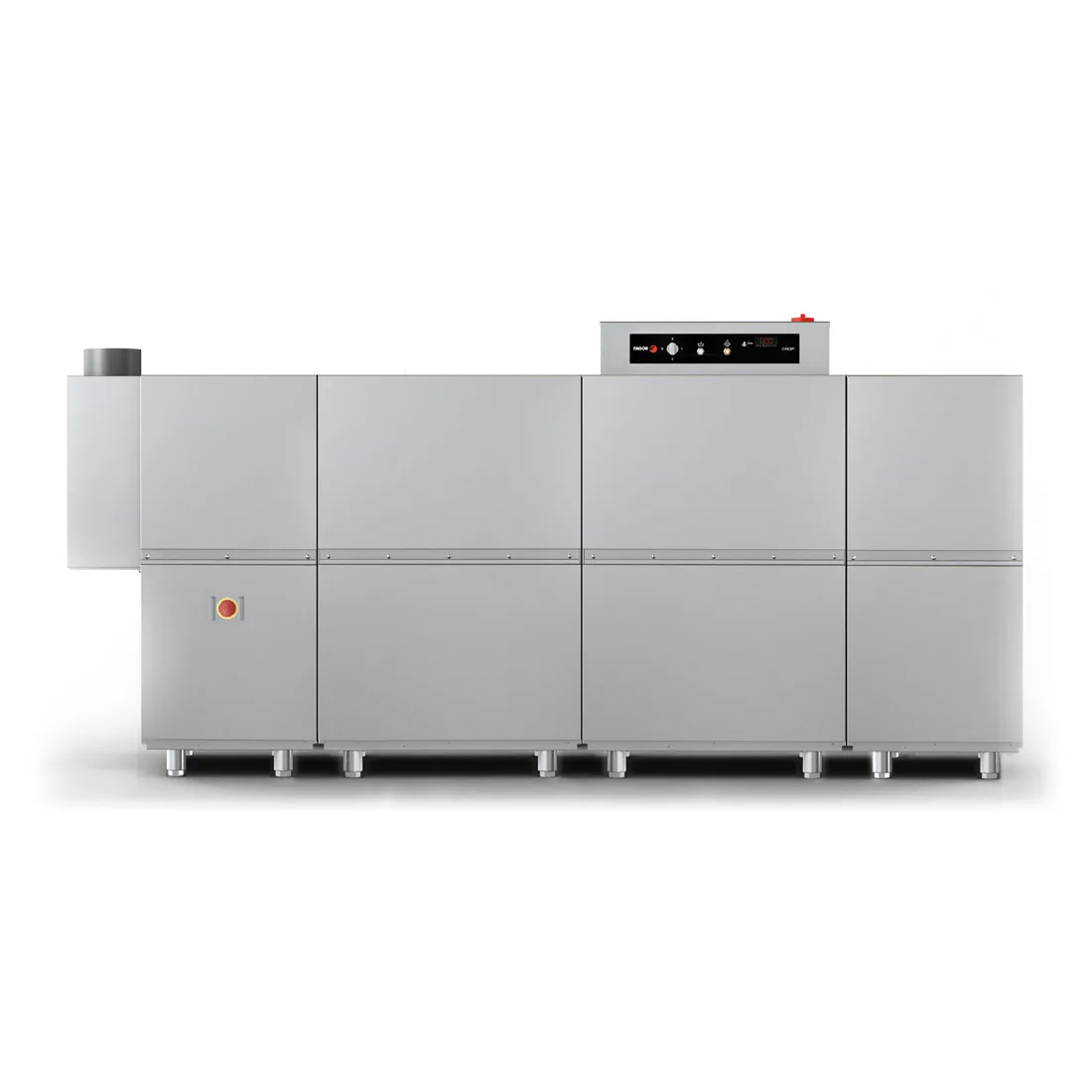

Fagor CCO-320DCW Concept Rack Conveyor Dishwasher Right Side Entrance

Fagor CCO-320DCW Concept Rack Conveyor Dishwasher Right Side Entrance

The Fagor CCO-320DCW is a high-capacity rack conveyor dishwasher designed for medium to large commercial kitchens, restaurants and cafes that demand a continuous, high-volume warewashing solution. Configured with a right-hand side entrance, it features a modular setup comprising a cold water prewash module, a hot water first wash stage, a main wash zone and a double effect rinse and pre-rinse system, all working together to deliver consistently hygienic results at pace.

Three selectable washing programs provide genuine operational flexibility, ranging from an intensive mode that meets the DIN 10534 hygiene standard at 127 baskets per hour, through to a high-capacity mode capable of processing 320 baskets per hour. The machine ships with a practical basket kit included and uses R290 natural refrigerant, making it a considered choice for busy operations focused on throughput and responsible equipment selection.

Key Benefits

• Three washing speed programs allow staff to match throughput to actual demand, conserving energy during quieter periods and maximising output at peak service.
• A top-rated high-capacity mode processes up to 320 baskets per hour, keeping clean ware flowing continuously in the most demanding environments.
• The intensive program meets DIN 10534 hygiene standards at 127 baskets per hour, providing documented assurance of wash efficacy for compliance purposes.
• Double effect rinse and pre-rinse ensures thorough soil removal and spotless finishing without requiring extra manual intervention between cycles.
• Separate cold water prewash module (PL3) removes heavy soiling before the main wash, extending wash water life and reducing detergent consumption.
• Five upper and five lower washing branches in the main wash zone deliver powerful, even coverage across the full basket width for consistent cleaning results.
• Right-hand side entrance configuration allows the machine to be integrated into kitchen layouts where workflow moves from left to right, improving ergonomics and reducing handling steps.
• Includes 2 base baskets, 2 plate baskets and 1 cutlery basket, so the machine is ready to put into service immediately without additional basket purchases.
• R290 natural refrigerant reflects a lower global warming potential compared to synthetic refrigerants, supporting environmentally responsible kitchen operations.

Key Features

• Right-hand side entrance rack conveyor configuration
• Modular system: AS-260 anti-splash guard supplement, PL3 cold water prewash module, L5 first wash with hot water, LP main wash, DA double effect rinse and pre-rinse
• Prewash module fitted with 3 upper and 3 lower washing branches
• Main wash zone fitted with 5 upper and 5 lower washing branches
• Three selectable washing programs: Position I - 127 baskets/hr (DIN 10534 compliant), Position II - 255 baskets/hr, Position III - 320 baskets/hr
• Double effect rinse and pre-rinse (DA module) for thorough soil and detergent removal
• Cold water prewash stage (PL3) for removal of heavy soiling prior to main wash
• R290 natural refrigerant
• Supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket
• 415V / 50Hz / 3-phase power supply; 56.3 kW total power
• 2-year parts and labour warranty

Specifications

• Width (mm): 3260
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 3055
• Packed Width (mm): 960
• Packed Depth (mm): 3350
• Packed Height (mm): 1900
• Power Delivery: 415V/50Hz ; 56.3kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
