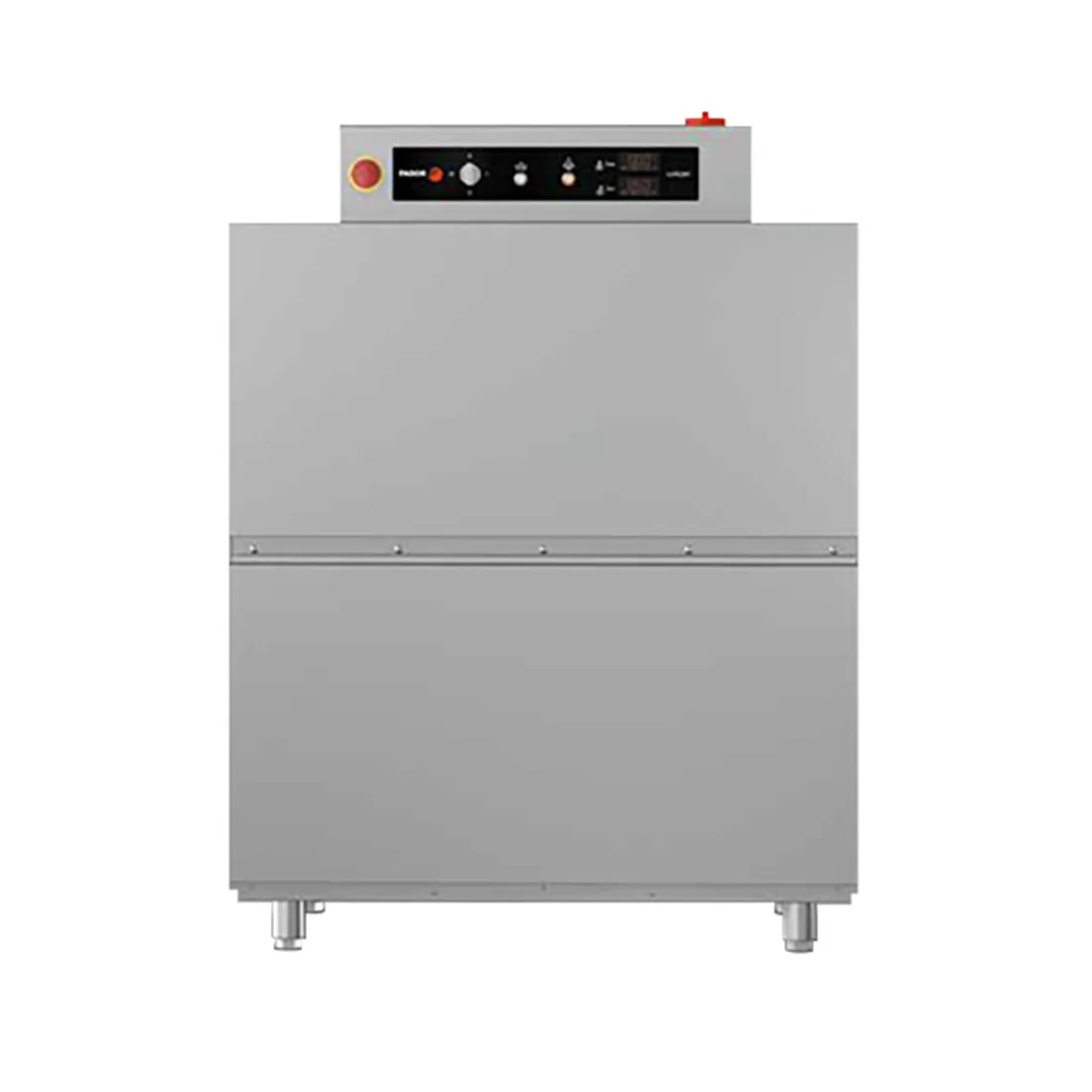

Fagor CCO-120DCW Electric conveyor dishwasher

Fagor CCO-120DCW Electric Conveyor Dishwasher

The Fagor CCO-120DCW is a compact rack conveyor dishwasher built entirely from AISI-304 stainless steel, designed to handle the continuous warewashing demands of busy commercial kitchens, cafes, and hospitality venues. Running on 415V three-phase power, it delivers a high-power washing system with eight washing branches in total, three selectable programs, and a double-effect rinse cycle to keep clean ware flowing efficiently throughout service.

Thoughtfully engineered for ease of use and maintenance, the CCO-120DCW features an upward-opening double panel door, tool-free removable washing arms and rinse jets, a heat-insulated rinsing boiler, and an electrical panel ready for direct connection of liquid or solid detergent and rinse aid dosers. Safety features include an emergency stop button, an open door blocking system, IPX4 water ingress protection, and an automatic conveyor blockage detection and reverse function. The unit is Watermark approved and backed by a two-year parts and labour warranty, arriving with a full set of baskets included.

Key Benefits

• Three washing programs (deep, medium, and high capacity) let operators match cycle intensity to load volume, reducing water and energy use during quieter periods.
• The automatic conveyor blockage detection and reverse function minimises downtime by resolving jams without manual intervention.
• Eight washing branches (four upper, four lower) deliver thorough, even coverage across every rack for consistently hygienic results.
• Washing arms and rinse jets are removable without tools, making end-of-service cleaning fast and straightforward for kitchen staff.
• The upward-opening double panel door and accessible pump suction safety filter simplify daily maintenance and internal inspection.
• An integrated heat-insulated rinsing boiler maintains rinse temperatures between 70 and 85°C, supporting effective sanitisation and faster drying.
• The electrical panel is pre-configured for simple connection of liquid or solid detergent dosers and rinse aid dosers, reducing installation complexity.
• Watermark approval confirms compliance with Australian plumbing standards, supporting smooth council and health inspections.
• Arrives with five baskets included (two base, two plate, one glass, and one cutlery), so the machine is ready to run from day one without additional basket purchases.

Key Features

• Compact rack conveyor configuration suited to high-volume commercial warewashing
• Full AISI-304 stainless steel construction throughout for durability and corrosion resistance
• Upward-opening double panel door for unobstructed rack loading and unloading
• Wash temperature range: 50 to 65°C
• Rinse temperature range: 70 to 85°C
• High-power washing system with 4 upper and 4 lower washing branches (8 total)
• Three selectable washing programs: deep, medium, and high capacity
• Double-effect rinse cycle for thorough detergent removal and improved hygiene
• Energy-saving systems to reduce operating costs
• Heat-insulated rinsing boiler for efficient temperature maintenance
• Washing arms removable as a complete set for cleaning without tools
• Rinse jets are individually dismountable and removable for cleaning
• Safety filter on pump suction to protect pump components
• Electrical panel pre-wired for connection of liquid and solid detergent dosers, rinse aid doser, and limit switches
• Emergency stop button incorporated into the control panel
• Open door blocking system prevents operation when door is open
• IPX4 rated protection against water splashing from any direction
• Automatic conveyor carriage blockage detection with reverse function
• Easy access design for both cleaning and installation
• Included accessories: 2 base baskets, 2 plate baskets, 1 glass basket, 1 cutlery basket
• Watermark approved to Australian plumbing standards
• 2-year parts and labour warranty
• Power supply: 415V / 50Hz, 28.45kW, 3-phase neutral
• Dimensions (W x D x H): 1180 x 790 x 1550 mm

Specifications

• Width (mm): 1180
• Depth (mm): 790
• Height (mm): 1550
• Weight (kg): 697.75
• Packed Width (mm): 960
• Packed Depth (mm): 1530
• Packed Height (mm): 1900
• Shipping Weight: 211
• Power Delivery: 415/50 V/Hz;28.45/3~N kW/A
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
