Fagor CCO-180ICW Concept Rack Conveyor Dishwasher Left Side Entrance

Fagor CCO-180ICW Concept Rack Conveyor Dishwasher Left Side Entrance

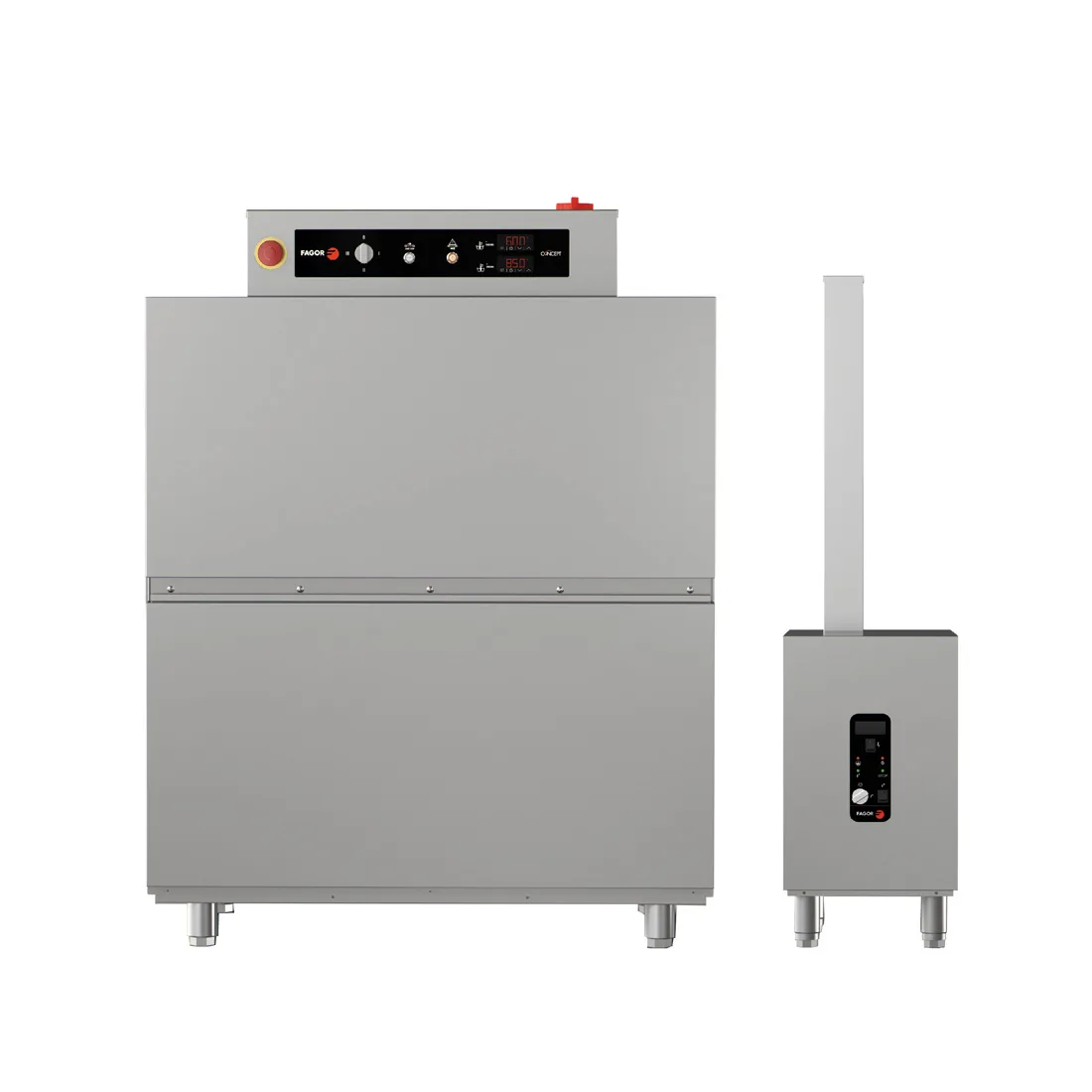

The Fagor CCO-180ICW is a high-capacity rack conveyor dishwasher designed for medium to large commercial kitchens, restaurants and cafes that demand consistent, high-volume warewashing. Configured with left side entrance, it features a dedicated cold water prewash module alongside a high-power main wash zone, delivering thorough cleaning across three selectable speed programs that top out at 180 baskets per hour.

The machine's modular configuration combines an anti-splash guard supplement (AS-260), main wash (LP), double effect rinse and pre-rinse (DA), cold water prewash (PL3) and a first hot water wash (L5) to ensure hygienic results at every throughput level. Meeting the DIN 10534 wash quality standard at its lowest speed setting, the CCO-180ICW ships with a full set of baskets and is backed by a two-year parts and labour warranty.

Key Benefits

• Three selectable wash programs allow operators to match machine speed to service demand, from a thorough intensive cycle at 90 baskets per hour up to 180 baskets per hour during peak periods.
• Double effect rinse and pre-rinse system ensures detergent residue is fully removed from every rack, supporting food-safe hygiene outcomes.
• Dedicated cold water prewash module removes heavy food soils before the main wash, protecting wash water quality and reducing chemical consumption.
• High-power washing system with 5 upper and 5 lower branches delivers uniform spray coverage across the full basket width, reducing rewash rates.
• Left side entrance configuration simplifies workflow integration into kitchens where space or layout dictates a specific loading direction.
• Complies with DIN 10534 wash quality standard at the lowest speed setting, providing confidence in hygiene performance for compliance-conscious operators.
• Includes 2 base baskets, 2 plate baskets and 1 cutlery basket out of the box, allowing immediate productive use without additional basket investment.
• R290 natural refrigerant used within the system supports environmentally responsible operation.
• Two-year parts and labour warranty provides budget certainty and minimises total cost of ownership for busy commercial operations.

Key Features

• Left side entrance rack conveyor configuration for straightforward kitchen workflow integration.
• Three wash speed programs: intensive (90 baskets/hr), medium (135 baskets/hr) and high capacity (180 baskets/hr).
• DIN 10534 wash quality standard met at the intensive (lowest) speed setting.
• Prewash module with 3 upper and 3 lower washing branches for effective soil removal prior to main wash.
• High-power main wash zone with 5 upper and 5 lower washing branches for thorough, consistent cleaning.
• Double effect rinse and pre-rinse (DA module) for complete detergent removal and hygienic final rinse.
• Cold water prewash module (PL3) as standard module in the configuration.
• First wash with hot water (L5 module) as part of the modular wash sequence.
• Anti-splash guard supplement (AS-260) included in the standard module configuration.
• R290 natural refrigerant.
• Supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket.
• 415V/50Hz three-phase power supply; 34.9 kW total power.
• Dimensions: 1750 mm wide x 790 mm deep x 1560 mm high.
• Weight: 861.25 kg.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1750
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 861.25
• Packed Width (mm): 955
• Packed Depth (mm): 1850
• Packed Height (mm): 1950
• Power Delivery: 415V/50Hz ; 34.9kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
