Bonvue CTA-146 Chilled Angled Counter-Top Food Display

Bonvue CTA-146 Chilled Angled Counter-Top Food Display

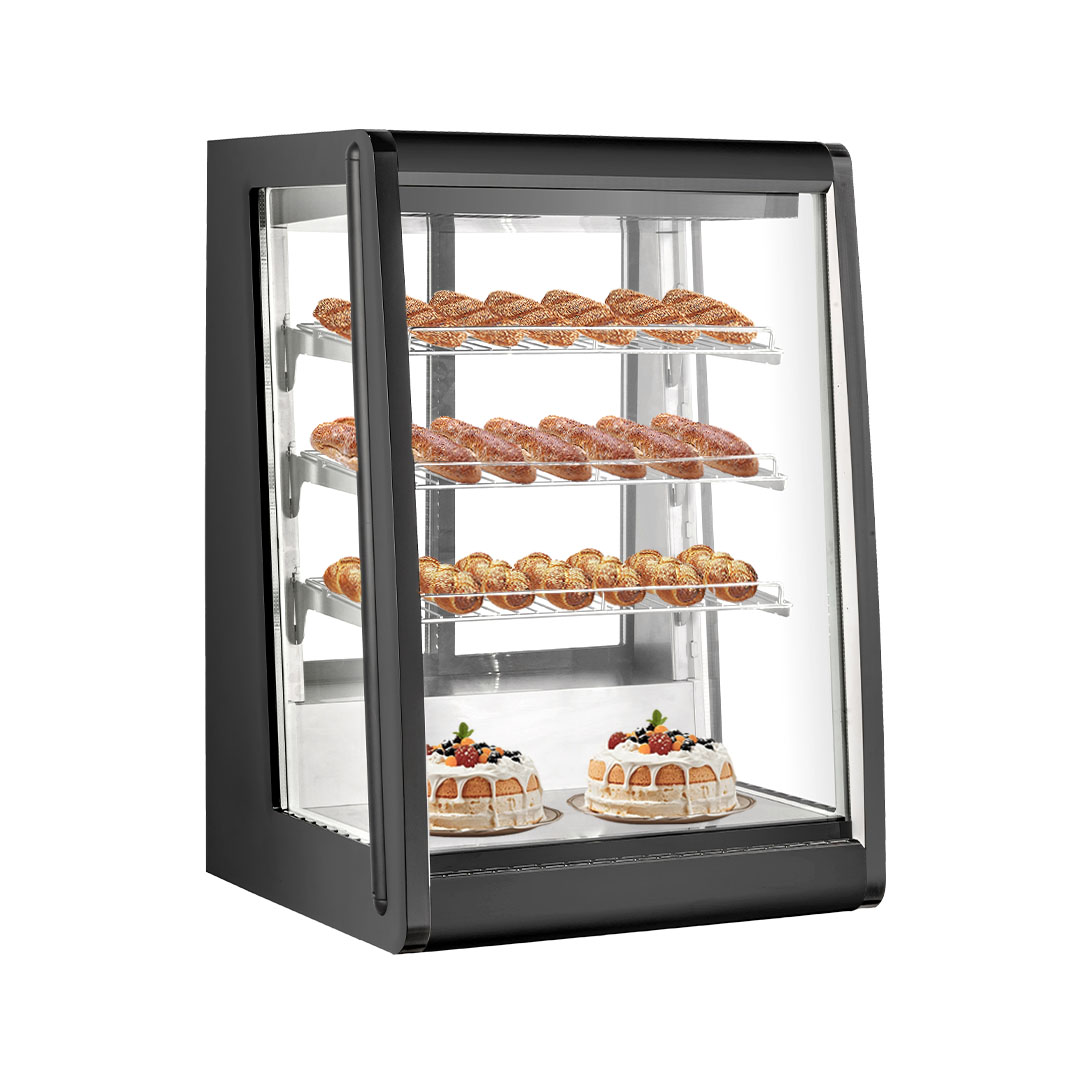

The Bonvue CTA-146 is a compact, countertop chilled food display unit designed for front-of-house use in cafes, bakeries, restaurants, dessert bars, and other commercial foodservice environments. At 615 mm wide, it offers a notably larger display area than comparable units on the market, with an angled curved glass front that maximises product visibility and customer appeal. Operating between +2°C and +8°C, it is well suited to showcasing cakes, pastries, sandwiches, and other chilled foods safely throughout busy service periods.

Built from high-grade stainless steel and encased entirely in double-tempered glass, the CTA-146 combines durability, hygiene, and visual presentation in one unit. It uses natural R290 refrigerant and carries a 9 or 10-star GEMS energy rating, making it one of the more environmentally efficient options in its category. Fan-assisted ventilating cooling, automatic defrost, three-side air ducts for condensation control, and dual-sided LED lighting all contribute to a unit that is as practical to operate as it is attractive on a service counter.

Key Benefits

• Larger-than-average display area with an extra shelf allows businesses to present a greater variety of products and increase sales opportunities
• Fan-assisted ventilating cooling distributes cold air evenly across all shelves, maintaining consistent temperatures throughout service
• Natural R290 refrigerant and a 9 or 10-star GEMS energy rating reduce running costs and environmental impact
• Dual-sided LED lighting illuminates products from multiple angles, enhancing presentation and attracting customer attention
• Automatic defrost prevents ice build-up and reduces the frequency and effort of routine maintenance
• Three-side air ducts effectively manage condensation, keeping the glass clear and products visible at all times
• Rear sliding doors allow quick, unobtrusive restocking and service without disrupting the customer-facing display
• Digital temperature controller enables precise, accurate adjustments to suit different product requirements and food safety standards
• Double-tempered glass on all sides provides both thermal insulation and a robust, safe enclosure for a high-traffic counter environment

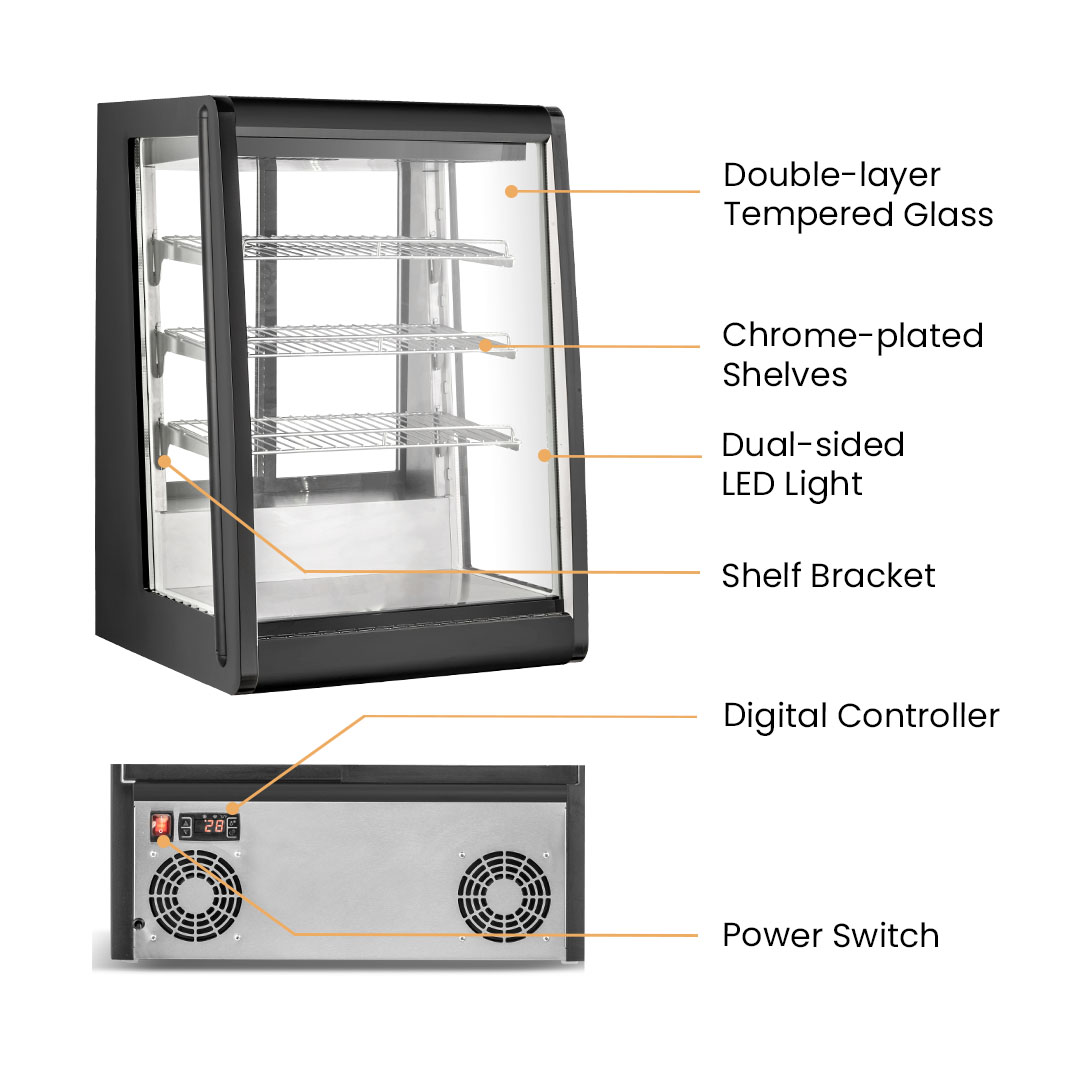

Key Features

• Angled curved glass front for maximum product visibility and customer-facing presentation
• Three adjustable chrome-plated shelves providing flexible display configuration
• Dual-sided LED lighting for bright, even illumination of displayed products
• Digital LED temperature controller for precise temperature management
• Fan-assisted ventilating cooling system for uniform cold air distribution across all shelves
• Operating temperature range: +2°C to +8°C
• Natural R290 refrigerant with a 9 or 10-star GEMS energy rating
• All-round double-tempered glass construction for thermal efficiency and safety
• Three-side air ducts to manage condensation and maintain clear glass panels
• Automatic defrost function to prevent ice build-up and simplify upkeep

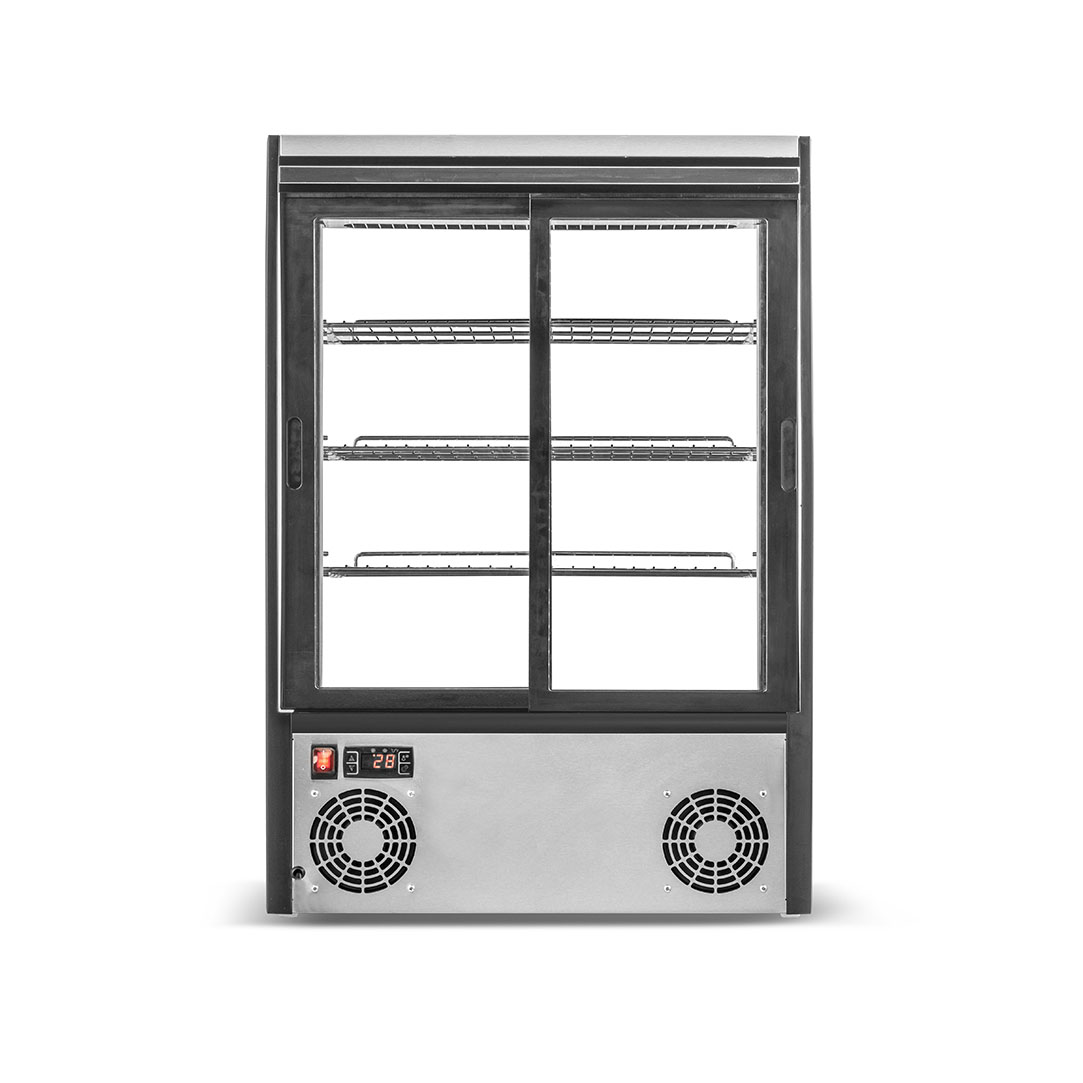

• Rear sliding doors for convenient restocking and staff access
• High-grade stainless steel body for durability, hygiene, and ease of cleaning
• Fixed installation with legs
• 240V power supply, 200W, 10A

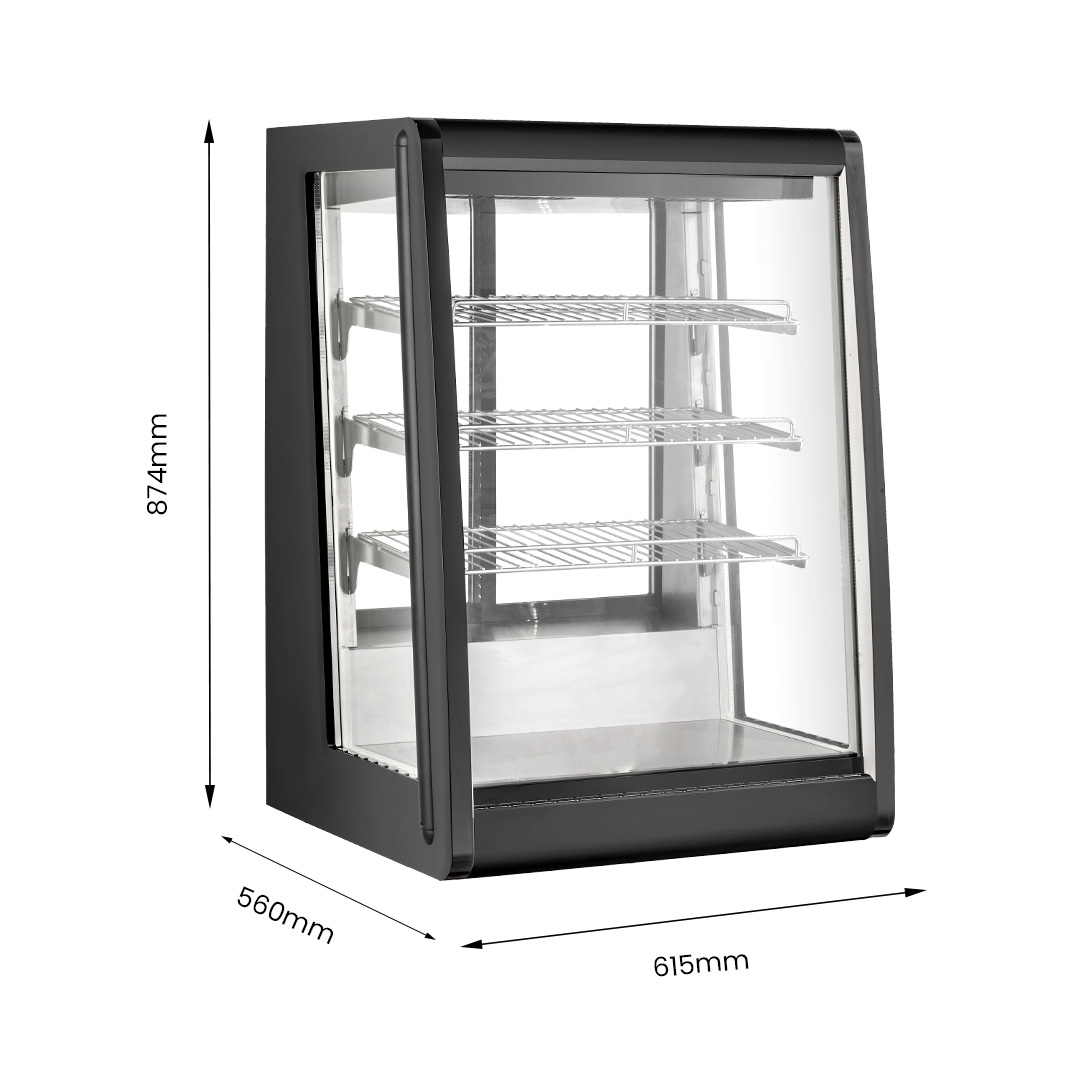

• Unit dimensions: 615 mm wide x 560 mm deep x 874 mm high
• Unit weight: 59 kg
• Packed dimensions: 630 mm wide x 665 mm deep x 950 mm high
• 1 year parts and labour warranty

Specifications

• Width (mm): 615
• Depth (mm): 560
• Height (mm): 874
• Weight (kg): 59
• Packed Width (mm): 630
• Packed Depth (mm): 665
• Packed Height (mm): 950
• No. of Doors: 2
• Door Type: Sliding Doors
• Body Material: Stainless Steel
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Energy Rating: 9
• Warranty (months): 1 Year Parts and Labour Warranty
• Power Delivery: 240V, 200W/10A
• Power (kW): 240
