Bonvue C1510-3S Complex Chilled Square Display

Bonvue C1510-3S Complex Chilled Square Display 698L

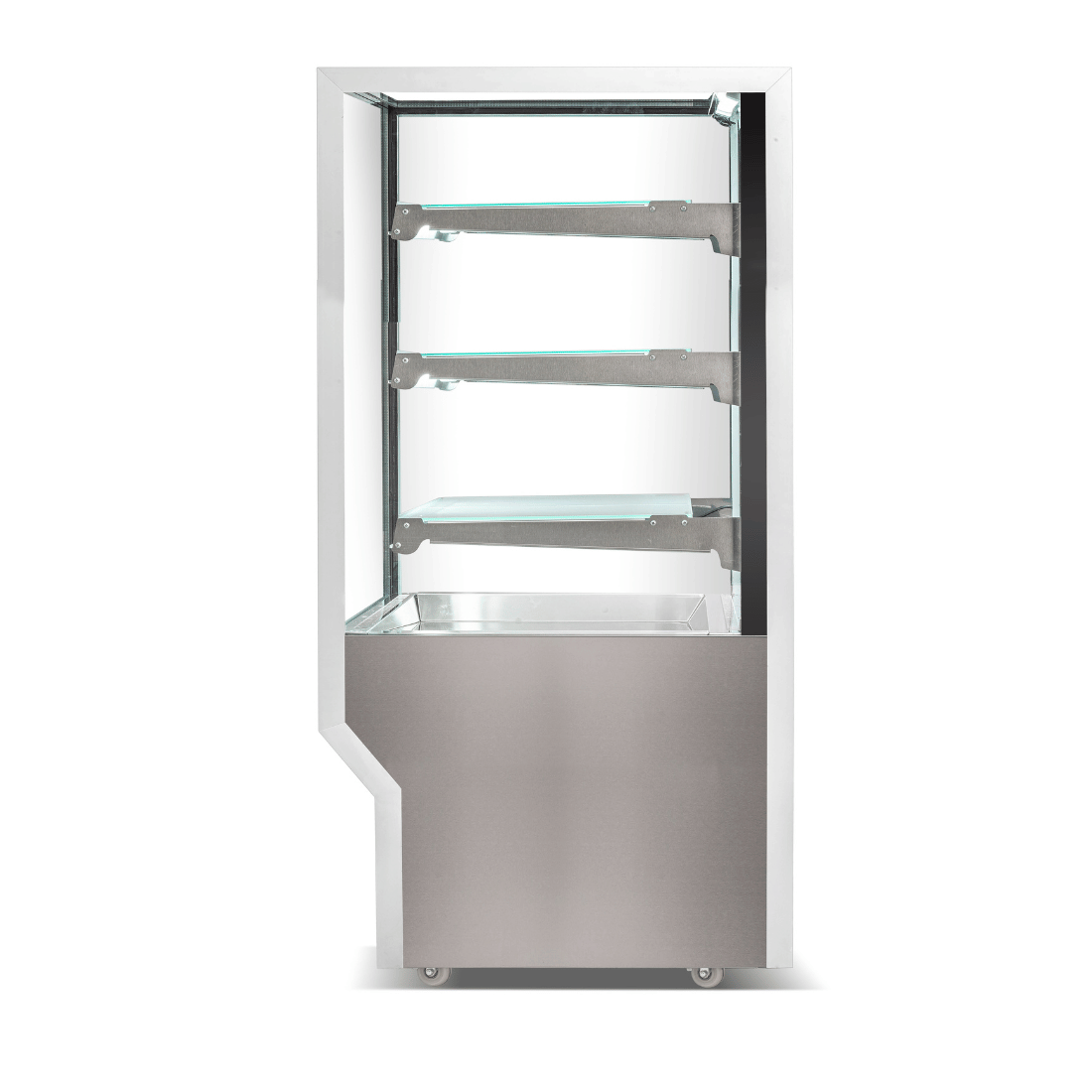

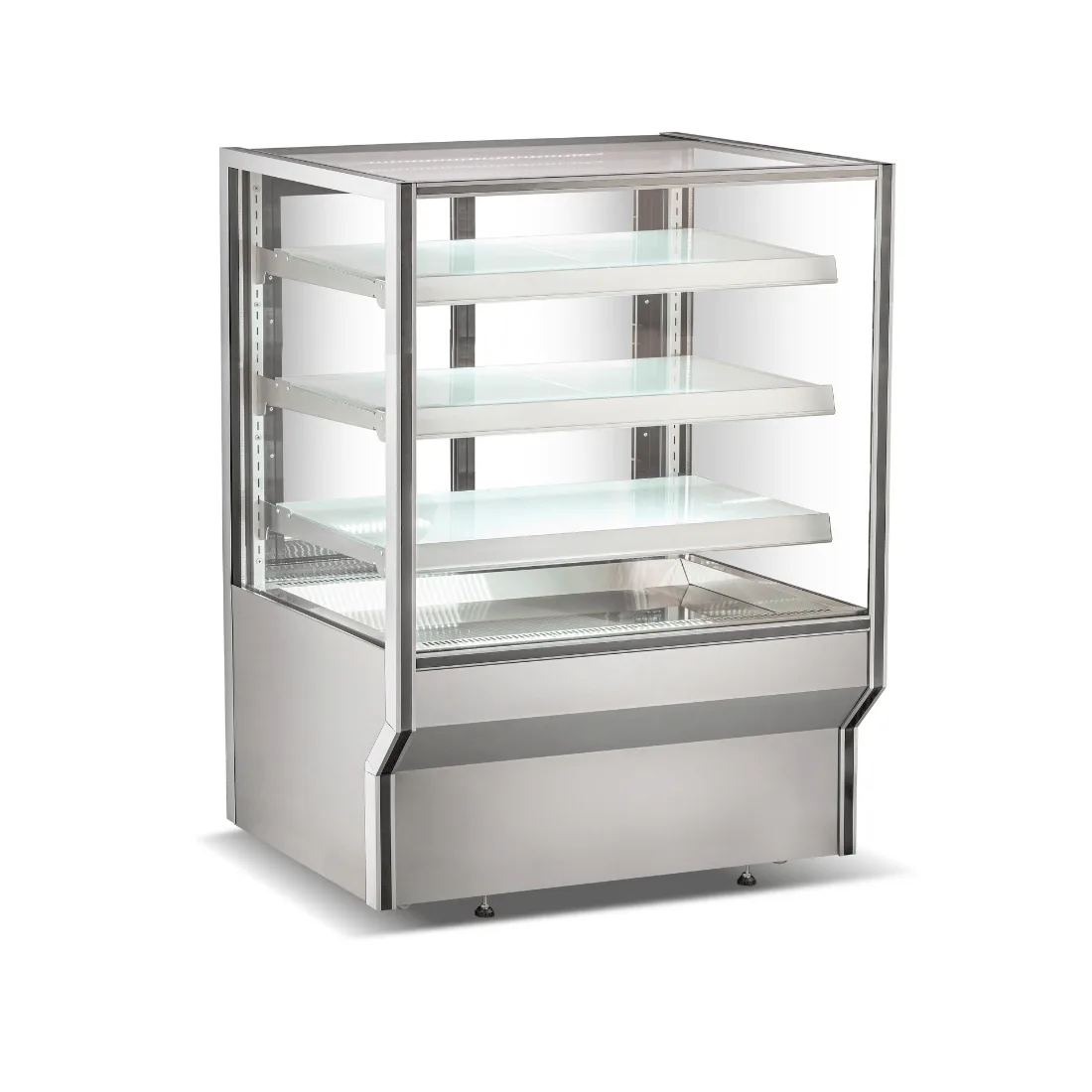

The Bonvue C1510-3S is a 698-litre commercial chilled square display cabinet designed for front-of-house presentation in cafés, bakeries, patisseries, restaurants, and hotels. Its four-sided double tempered glass construction provides full visibility from all angles, while LED lighting positioned on top and beneath each shelf draws attention to cakes, pastries, and chilled delicacies. The fan-forced ventilated cooling system maintains a consistent temperature range of +2°C to +8°C, keeping products fresh and safe throughout service.

Built for high-volume commercial use, the C1510-3S features three adjustable tempered glass shelves plus a base tier, giving operators four display levels and the flexibility to accommodate a wide variety of product sizes and presentation styles. Rear sliding glass doors allow quick, convenient access for restocking and service without disrupting the display. The unit runs on a standard 240V/10A connection, uses an eco-friendly natural R290 refrigerant, and is finished with a stainless steel base for durability and ease of cleaning.

Key Benefits

• Fan-forced ventilated cooling delivers even temperature distribution across all four display levels, reducing hot spots and protecting product quality.
• LED illumination on top and under each shelf highlights merchandise attractively, helping drive customer purchases in front-of-house settings.
• Four display levels including three adjustable shelves and a base tier provide generous, flexible space for varied product ranges and creative layouts.
• Four-sided double tempered glass offers 360-degree visibility, maximising product exposure from every customer angle.
• Automatic defrost minimises operator intervention and ongoing maintenance requirements during busy service periods.
• Rear sliding glass doors enable fast, easy restocking and service without disrupting the front display presentation.
• Natural R290 refrigerant is an environmentally responsible choice with a low global warming potential, supporting sustainable operation.
• Digital temperature controller and display give staff clear, accurate monitoring and straightforward adjustment of cabinet temperature.
• Plug-and-play 240V/10A connection means the unit is quick to install with no specialist electrical work required.

Key Features

• 698-litre capacity across four display levels (three adjustable shelves plus base tier)
• Four-sided double tempered glass construction for all-round product visibility
• Three adjustable tempered glass shelves to accommodate varying product heights
• LED lighting mounted on top and underneath each shelf for consistent, attractive illumination
• Fan-forced ventilated cooling system maintaining +2°C to +8°C operating range
• Digital temperature controller and display for precise, easy monitoring
• Automatic defrost system
• Natural R290 refrigerant
• Rear sliding glass doors for efficient service and restocking
• Stainless steel base construction
• Four castors including two with brakes for secure, mobile positioning
• 240V, 425W/10A power supply - standard plug-and-play installation
• Dimensions: 1510mm (W) x 678mm (D) x 1400mm (H)
• Weight: 254kg
• 1 Year Parts and Labour plus 1 Year Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1510
• Depth (mm): 678
• Height (mm): 1400
• Weight (kg): 254
• Packed Width (mm): 760
• Packed Depth (mm): 1610
• Packed Height (mm): 1520
• Capacity (Litres): 698
• No. of Doors: 2
• Door Type: Sliding Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Defrost Type: Auto
• Energy Rating: 9
• Warranty (months): 1 Year Parts & Labour Plus 1 Year Parts Only Warranty When Products Registered Within 14D Of Invoice
• Power Delivery: 240V, 425W/10A
• Power (kW): 240
