Asber GE-H500BDD Tech Line Pass-through Hood Type Dishwasher

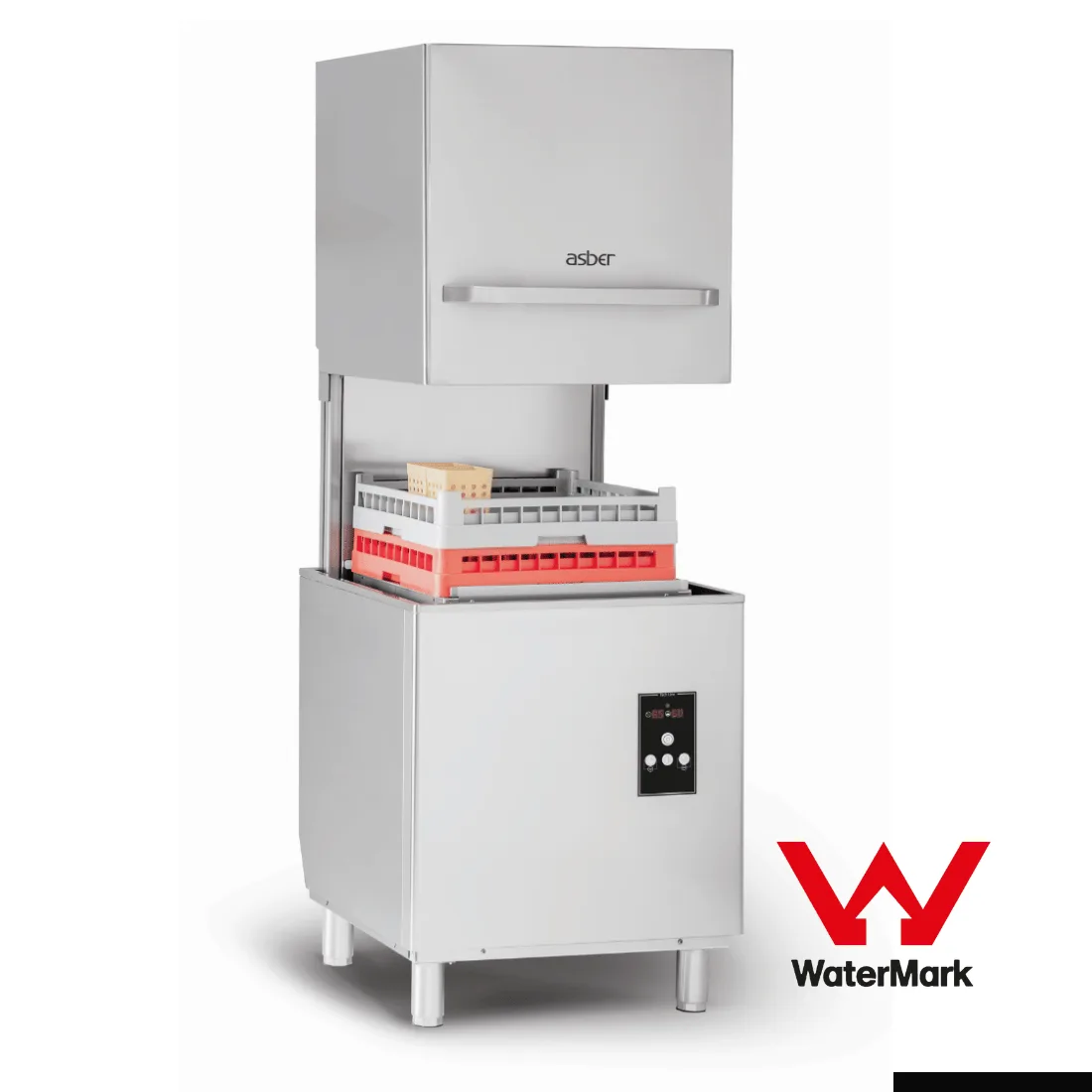

Asber GE-H500BDD Tech Line Pass-Through Hood Type Dishwasher

The Asber GE-H500BDD is a pass-through hood type dishwasher from the Tech Line range, designed for high-volume commercial kitchens in restaurants, hotels and catering operations. Built around a 500 x 500mm basket format, it processes up to 40 baskets per hour across three selectable wash cycles and runs a continuous cycle until manually stopped, making it well suited to sustained peak-period service.

Running on three-phase power at 415V and 11.1kW, the machine combines a 45-litre wash tank with a dedicated 7-litre boiler, upper and lower stainless steel wash and rinse arms, and an integrated drain pump for flexible installation where gravity drainage is not available. It ships with a basket, an additional basket and two cutlery baskets, and carries Watermark certification along with a two-year parts and labour warranty.

Key Benefits

• Throughput of up to 40 baskets per hour keeps pace with demanding service periods in high-volume dish areas.
• Continuous cycle mode runs uninterrupted until the operator manually stops the machine, reducing downtime during busy service.
• Three cycle lengths (90, 120 and 180 seconds) let staff match wash intensity to the soil level of each load, balancing speed with cleaning results.
• The built-in drain pump allows installation in locations without gravity drainage, giving greater flexibility in kitchen layout.
• Pass-through hood design streamlines the flow of soiled and clean ware through the dish area, improving staff ergonomics and workflow.
• Wash tank and boiler temperature displays give operators real-time confidence that the machine is operating within safe hygiene parameters.
• The Thermostop function holds the cycle until the correct rinse temperature is reached, ensuring consistent sanitisation on every wash.
• Integrated rinse aid and detergent dispensers simplify chemical management and support consistent dosing without manual intervention.
• Watermark certification confirms the unit meets Australian plumbing and water-connection standards, supporting compliance in commercial premises.

Key Features

• Electronic control panel for straightforward operation and cycle selection.
• Three wash cycle options: 90, 120 and 180 seconds.
• Capacity of up to 40 baskets per hour with a 500 x 500mm basket format.
• Continuous cycle operation until manual stop.
• Wash tank capacity of 45 litres with 4.5kW heating element.
• Boiler capacity of 7 litres with 6.0kW heating element.
• Wash pump rated at 0.6kW.
• Rinse water consumption of 2.7 litres per rinse cycle.
• Upper and lower stainless steel wash and rinse arms for thorough, even coverage.
• Thermostop function delays cycle completion until the correct rinse temperature is achieved.
• Wash tank and boiler temperature display for live monitoring.
• Temperature settings: wash at 60°C, rinse at 85°C.
• Safety thermostat fitted in both the wash tank and the boiler.
• Stainless steel filtering system for straightforward cleaning and maintenance.
• Built-in rinse aid dispenser and detergent dispenser.
• Anti-backflow valve fitted as standard.
• Drain pump fitted for installations without gravity drainage.
• Door clearance of 420mm.
• Supplied accessories include one dish basket, one additional dish basket, and two cutlery baskets.
• Watermark certified.
• Two-year parts and labour warranty.
• Three-phase power supply: 415V, 11.1kW, 3 phase plus neutral.

Specifications

• Width (mm): 675
• Depth (mm): 675
• Height (mm): 825
• Weight (kg): 118
• Packed Width (mm): 735
• Packed Depth (mm): 710
• Packed Height (mm): 1650
• Shipping Weight: 118
• Power Delivery: 415, 11.1kW/3~N
• Power (kW): 415
• Warranty (months): Two Year Parts and Labour Warranty
