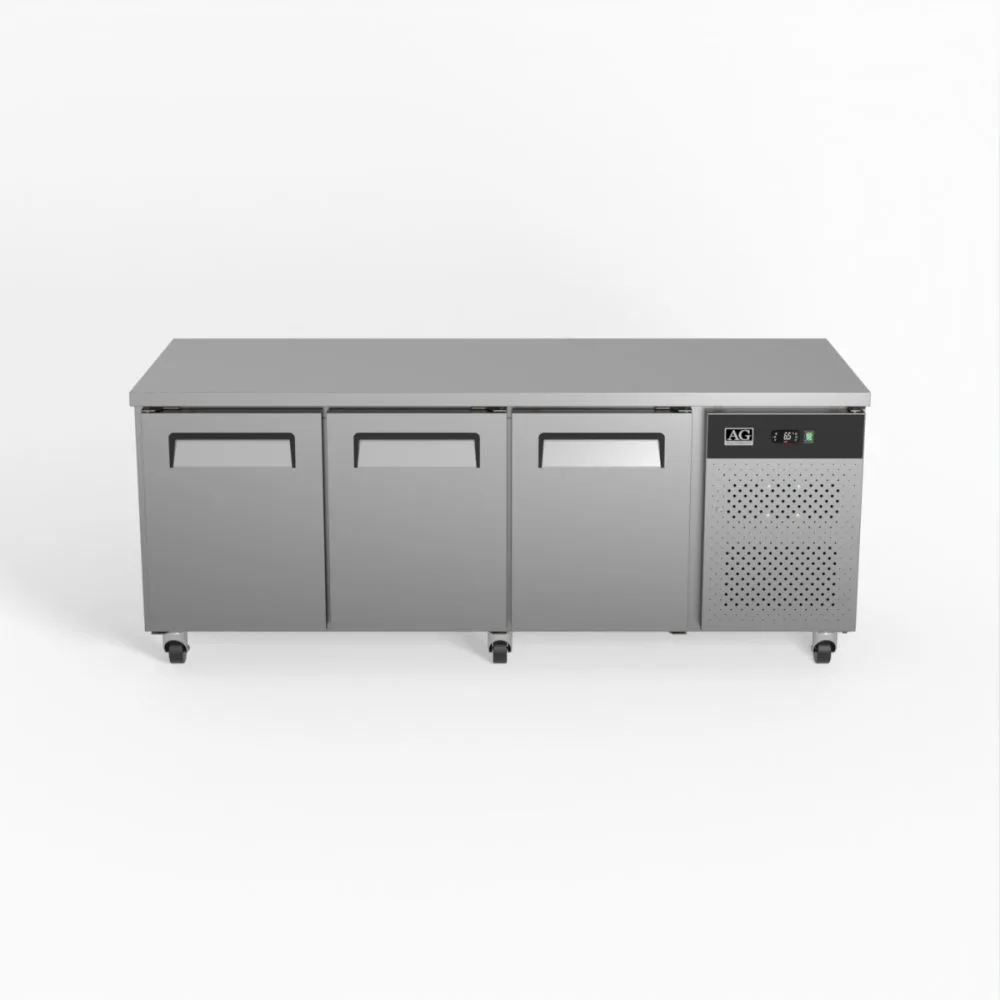

AG Equipment PAX3100TN AG Three Door Commercial Worktop / Under Bench Fridge 800mm Depth

AG Equipment PAX3100TN Three Door Commercial Worktop / Underbench Fridge 800mm Depth

The AG Equipment PAX3100TN is a three-door commercial worktop and underbench refrigerator with an 800mm depth, delivering 580L of usable cold storage across a heavy-duty stainless steel cabinet built for the demands of restaurants, cafes, pubs and busy food service operations. Each door provides two adjustable wire shelves capable of accommodating 600mm x 400mm patisserie trays or gastronorm pans, while a unique centre-shelf connector allows the full internal width to be utilised as a single continuous shelf when needed.

Cooling is handled by a Cubigel compressor paired with a fan-forced ventilated system rated for ambient temperatures up to 43°C, and temperature is managed via a Carel iJF digital controller with NFC and Bluetooth connectivity, including remote monitoring through the CONTROLLA mobile app on Android and iOS. The redesigned dual-fan layout positions fans at the front and side of the unit, freeing the rear wall space so the fridge can be placed flush against a back wall, requiring only 150mm of clearance at the compressor side and unobstructed airflow at the front.

Key Benefits

• Worktop-height design integrates cold storage directly into the preparation line, reducing steps and keeping ingredients within easy reach during service.
• 580L capacity spread across three independently accessed compartments lets staff retrieve items from one section without affecting temperature in the others.
• Flush-to-wall installation capability, thanks to the front-and-side dual-fan design, maximises usable floor space in tight kitchen layouts.
• Remote temperature monitoring and control via the CONTROLLA app on Android and Apple devices allows managers to check and adjust settings without being on-site.
• R290 refrigerant is non-toxic, ozone-friendly and recognised as one of the most energy-efficient refrigerants available, potentially reducing running costs by up to 28% compared to conventional refrigerants.
• Self-closing doors help maintain consistent internal temperatures during busy service periods, reducing energy waste and temperature fluctuations.
• Pre-installed castor wheels make repositioning and cleaning behind the unit straightforward without requiring additional tools or labour.
• Centre-shelf connectors allow shelves from adjacent compartments to join seamlessly, accommodating larger items or full-width trays across the entire 1445mm internal width.
• Carel iJF controller with NFC and Bluetooth communication simplifies setup, diagnostics and ongoing maintenance for kitchen technicians.

Key Features

• Three-door worktop and underbench refrigerator configuration with 800mm overall depth
• 580L total storage capacity
• Heavy-duty stainless steel body and door construction
• Recessed door handles for a streamlined profile and reduced snagging risk
• Self-closing doors on all three compartments
• Two adjustable wire shelves per door (six shelves total), each accommodating 600mm x 400mm patisserie trays or pans
• Unique centre-shelf connector system enabling full-width shelf configuration across compartments
• Pre-installed castor wheels for easy mobility and repositioning
• Cubigel NUM55CA compressor
• Fan-forced ventilated cooling system
• Dual-fan design located at the front and side, allowing flush rear-wall placement
• Minimum ventilation requirement: 150mm clearance at the compressor side and clear front
• Rated for ambient temperatures up to 43°C at 65% humidity
• Operating temperature range: +2°C to +8°C
• Carel iJF latest-generation digital temperature controller
• NFC and Bluetooth connectivity on the controller for wireless setup and diagnostics
• CONTROLLA mobile app compatibility for electronic and remote temperature control, available on Android and Apple App Stores
• R290 natural refrigerant, non-toxic and free of ozone-depleting properties
• Internal dimensions: 1445mm (W) x 680mm (D) x 560mm (H)
• Overall product dimensions: 2020mm (W) x 800mm (D) x 850mm (H)
• Packaged dimensions: 2050mm (W) x 830mm (D) x 910mm (H)
• Product weight: 185kg

Specifications

• Weight (kg): 582
