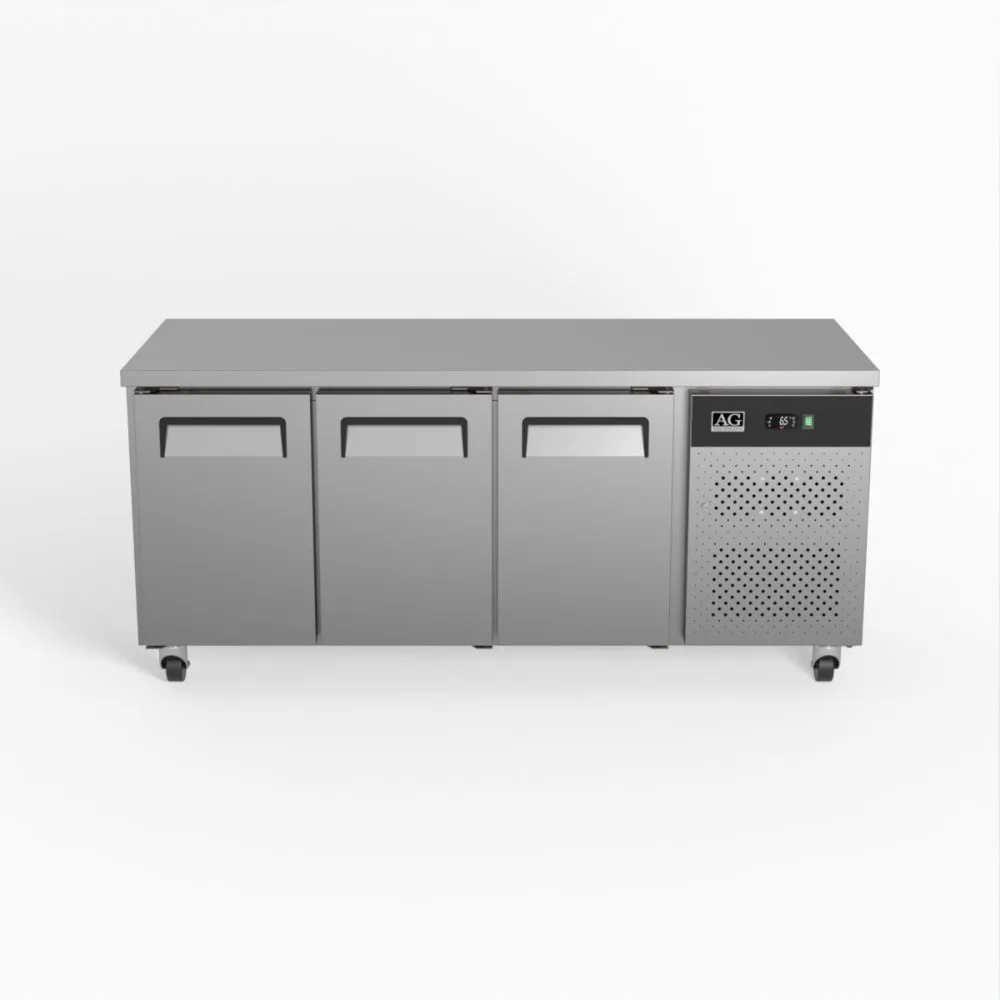

AG Equipment GNX3100TN AG Three Door Commercial Worktop / Under Bench Fridge 700mm Depth

AG Equipment GNX3100TN Three Door Commercial Worktop / Underbench Fridge 700mm Depth

The AG Equipment GNX3100TN is a heavy-duty stainless steel three door worktop and underbench fridge built for the demands of commercial kitchens, restaurants, bars, clubs and hospitality venues. With a 700mm depth and worktop-height design, it delivers cold storage directly on the line while fitting neatly under a bench to preserve valuable floor space. The unit operates in ambient temperatures up to 43°C and runs on R290 refrigerant, a natural, non-toxic, ozone-free refrigerant that can reduce energy costs by up to 28% compared to conventional alternatives.

Powered by a CUBIGEL NUM55CA compressor and controlled by the Carel iJF digital temperature controller with NFC and Bluetooth connectivity, the GNX3100TN combines reliable performance with smart monitoring capability via the Controlla mobile application. The redesigned X-series features dual fans positioned at the front and side, eliminating the need for rear clearance and allowing the unit to sit flush against a back wall. Only 150mm of clearance at the side and front is required for ventilation, maximising kitchen layout flexibility. Backed by a 24-month parts and labour warranty from AG Equipment.

Key Benefits

• Worktop-height design adds usable cold storage directly on the kitchen line without occupying extra floor space
• Flush-to-wall installation is possible thanks to front and side dual-fan ventilation, requiring only 150mm side and front clearance
• R290 refrigerant is ozone-friendly and can cut energy running costs by up to 28% compared to conventional refrigerants
• Operates reliably in ambient temperatures up to 43°C, making it suitable for hot commercial kitchen environments
• Carel iJF controller with Bluetooth and NFC allows remote temperature monitoring and fault alerts via the Controlla app
• 1/1 GN compatible adjustable wire shelving with centre-shelf connectors prevents loose items from falling through
• Pre-installed castor wheels allow the unit to be repositioned quickly for cleaning or kitchen reconfiguration
• Self-closing stainless steel doors with recessed handles maintain food-safe temperatures and withstand heavy daily use
• 24-month parts and labour warranty provides confidence and minimises unplanned downtime

Key Features

• Three stainless steel self-closing doors with recessed handles
• Stainless steel body and worktop surface
• 417 litre total capacity
• 2 adjustable wire shelves per door section, 1/1 GN compatible
• Centre-shelf connectors prevent items falling between shelf sections
• CUBIGEL NUM55CA compressor
• Carel iJF digital temperature controller with NFC and Bluetooth connectivity
• Controlla mobile application compatibility for remote monitoring and fault alerts
• Fault alarm warnings and operational log recording via Carel iJF controller
• Frameless flat-design controller panel with a clean, modern aesthetic
• Redesigned X-series dual-fan system with fans located at the front and side of the unit
• Rear-ventilation-free design allows flush installation against a back wall
• Minimum 150mm clearance required at side and front for ventilation only
• Rated for ambient operating temperatures up to 43°C
• R290 natural refrigerant, non-toxic, ozone-depleting-substance free
• Pre-installed castor wheels for easy repositioning
• 700mm depth configuration suitable for underbench and worktop use
• 24-month parts and labour warranty

Specifications

• Weight (kg): 612
