Williams JH6R Jarrah remote

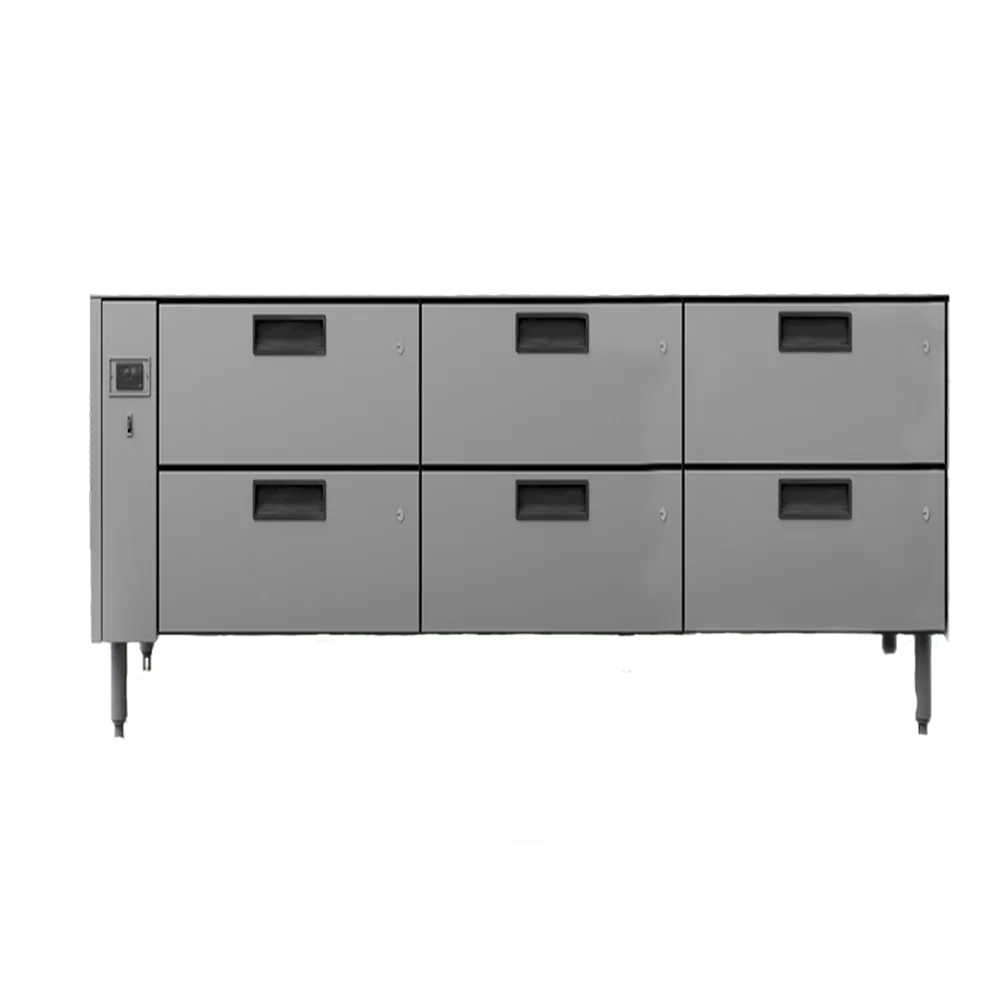

Williams JH6R Jarrah 6 Drawer Remote Lowline Underbench Fridge

The Williams JH6R Jarrah is a six-drawer remote lowline refrigerated counter built in Australia and engineered specifically to sit beneath chargrills and griddles in high-demand commercial kitchens. Its low-profile worktop-height design maximises usable bench space while keeping ingredients cold and accessible directly on the cooking line, with the compressor located remotely to reduce heat load in the kitchen.

Rated for operation in ambient environments up to 43°C, the JH6R uses a forced-air refrigeration system with R448a refrigerant and runs on 240V single phase. Each unit ships with GN 1/1 x 150 mm deep pans included, heavy-duty reinforced nylon and stainless-bush drawer runners, and a full suite of factory-fitted components including evaporator, TX valve, electronic controller, fitted plug and condensate drain, making installation straightforward.

Key Benefits

• Low-profile height allows the unit to sit directly beneath chargrills and griddles, reclaiming valuable bench space on the cooking line.
• Remote compressor configuration removes heat and noise from the kitchen environment, reducing the burden on air conditioning.
• Designed for up to 43°C ambient conditions, ensuring consistent temperature performance even in the hottest commercial kitchen environments.
• Forced-air refrigeration delivers even, consistent cooling across all six drawers during busy service periods.
• Heavy-duty drawer runners with reinforced nylon and stainless bushes stand up to the repeated, high-frequency use typical in professional kitchens.
• Mounted on castors for easy repositioning and cleaning, with legs also supplied if a fixed installation is preferred.
• GN 1/1 x 150 mm deep pans are included in the box, allowing the unit to be put straight into service without additional pan purchases.
• Adjustable electronic controller with digital temperature display gives kitchen staff clear, at-a-glance temperature monitoring and precise adjustment.
• Manufactured in Australia, backed by the Williams commercial refrigeration range for parts availability and local support.

Key Features

• Six-drawer underbench configuration in a lowline, worktop-height format
• Remote compressor location with bottom or rear exiting pipe options as standard on JH models
• Rated for 43°C ambient operating environment
• Forced-air refrigeration system for even temperature distribution
• R448a refrigerant
• 240V single phase, 10A power supply
• Factory-fitted evaporator, TX valve, and electronic controller
• Adjustable electronic controller with digital temperature display
• Supplied with fitted plug and condensate drain
• Accommodates GN 1/1 x 150 mm deep pans; GN 1/1 x 150 mm deep pans included
• A GN 2/1 x 100 mm deep pan can also be used (not supplied)
• FC sheet incorporated into the top surface
• Heavy-duty drawer runners with reinforced nylon and stainless-steel bushes
• Coved internal floor for easier cleaning
• Supplied on castors for mobility; legs also included for fixed installation
• Capacity: 6
• Dimensions: 1675 mm wide x 650 mm deep x 750 mm high
• Country of origin: Australia
• Warranty: 12 months parts only (remote)

Specifications

• Width (mm): 1675
• Depth (mm): 650
• Height (mm): 750
• Weight (kg): 180
• Capacity (Litres): 6
• Amps (A): 10
• Voltage (V): 240V single phase
• Warranty (months): 12 months parts only (remote)
• Country of Origin: Australia
• Refrigerant: R448a
• Compressor Location: Remote
