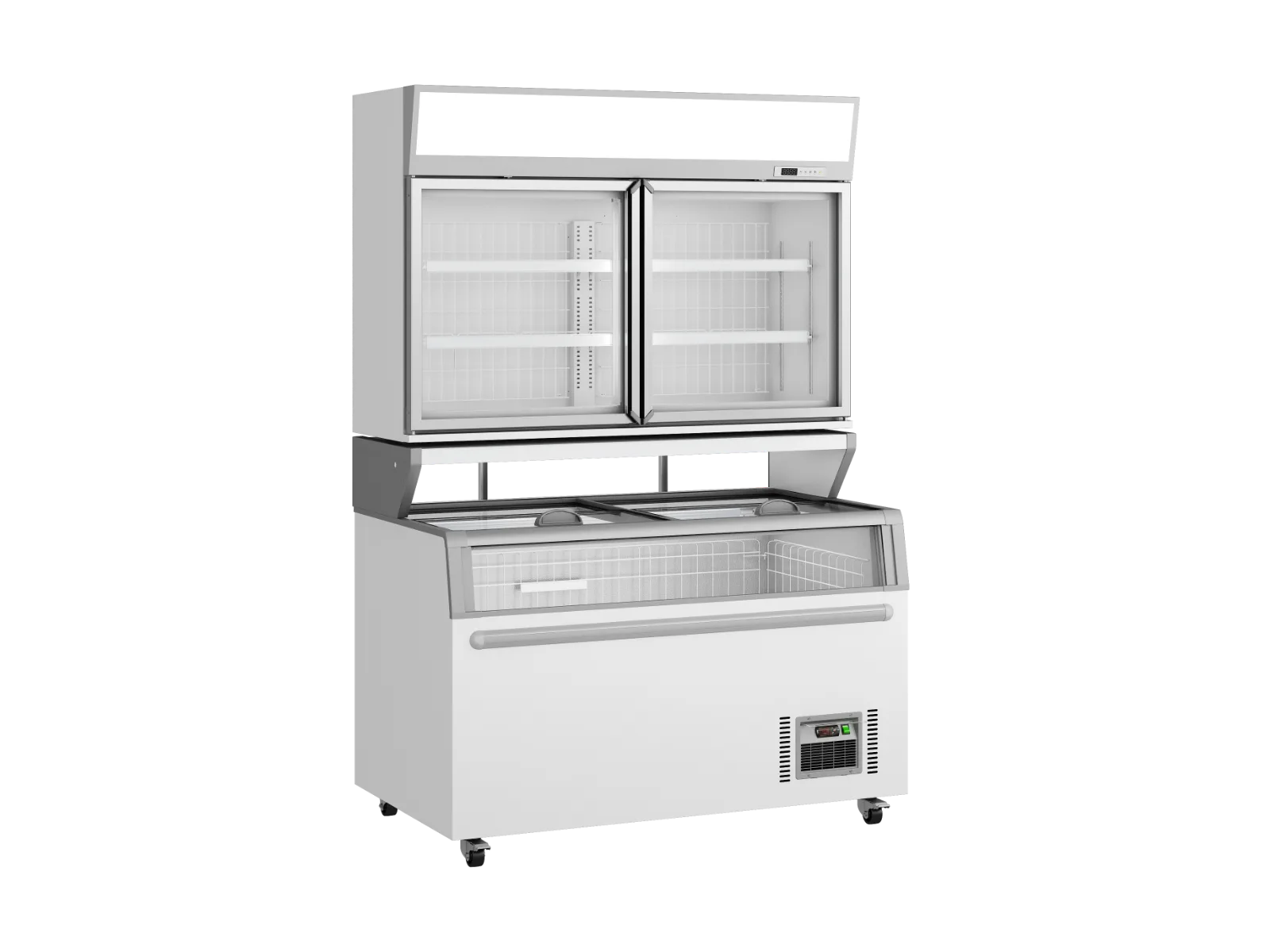

Thermaster ZCDTD145 Supermarket Combined Freezer

Thermaster ZCDTD145 Supermarket Combined Freezer

The Thermaster ZCDTD145 is a supermarket combined freezer designed to maximise product visibility and drive sales in retail and food service environments. Its sleek, modern aesthetic draws customers in, while practical features including LED lighting, an illuminated top canopy, and electronic digital temperature control ensure your products are displayed at their best and kept at safe temperatures around the clock.

Built with a space-saving footprint and split into two functional freezer zones, the ZCDTD145 handles a wide range of frozen product requirements in a single unit. The top freezer uses fan cooling with a triple-glazed self-closing glass door, while the bottom freezer offers sliding Low-E tempered glass doors with flexible storage options including mesh or full baskets. R290 natural refrigerant supports environmentally responsible operation, and auto-defrost keeps maintenance demands low.

Key Benefits

• Two-zone freezer configuration handles diverse frozen product ranges simultaneously, reducing the need for multiple separate units and saving valuable floor space.
• Illuminated top canopy and LED lighting boost in-store advertising and product presentation, helping to attract customer attention and increase impulse purchases.
• Electronic digital temperature control and display allows staff to monitor and adjust settings quickly and accurately, supporting food safety compliance.
• Auto-defrost function on both zones minimises manual maintenance tasks and helps keep the unit operating efficiently during busy trading periods.
• Triple-glazed self-closing glass doors on the top freezer reduce cold air loss and energy consumption, while the heat film prevents condensation obscuring product visibility.
• Bottom freezer sliding doors provide easy customer and staff access without requiring clear swing space, making the unit practical in tighter retail layouts.
• Adjustable feet allow the unit to sit level on uneven floors, ensuring stable, safe operation in real-world retail and commercial environments.
• R290 natural refrigerant has a low global warming potential, supporting sustainability goals and compliance with evolving refrigerant regulations.
• Optional manual defrost models are available on request, with the bottom freezer section particularly suited to ice cream storage requirements.

Key Features

• Two-zone combined freezer: dedicated top freezer section and bottom freezer section in a single unit
• R290 natural refrigerant for environmentally responsible operation
• Electronic digital temperature control and display for precise, easy-to-read temperature management
• Auto-defrost function; optional manual defrost models available on request
• Top freezer: fan cooling system
• Top freezer: triple-glazed self-closing glass door with heat film to prevent condensation
• Top freezer: hinged self-closing doors for energy efficiency
• Top freezer: stainless steel inner bottom for durability and ease of cleaning
• Top freezer: illuminated top canopy for in-store product advertising
• Top freezer power: 240V, 650W / 10A
• Bottom freezer: static cooling system with auto defrost
• Bottom freezer: Low-E tempered glass doors
• Bottom freezer: sliding doors for space-efficient access
• Bottom freezer: equipped with storage mesh or full baskets
• Bottom freezer power: 240V, 420W / 10A
• Adjustable feet for levelling on uneven surfaces
• Colorbond body construction
• LED lighting throughout for enhanced product visibility
• Compact, space-saving footprint designed to reduce floor space requirements
• Fixed installation on legs; mobility not included
• Supplied in two separate packages; installation and assembly not included
• 4 doors with hinged door configuration
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice

Specifications

• Width (mm): 1454
• Depth (mm): 850
• Height (mm): 2110
• Weight (kg): 293.5
• Packed Width (mm): 1584
• Packed Depth (mm): 994
• Packed Height (mm): 2360
• No. of Doors: 4
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Cooling Type: Static
• Power Delivery: Top (240V, 650W/10A) Bottom (240V, 420W/10A)
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
