Thermaster CBR1-3 Flexdrawer counter

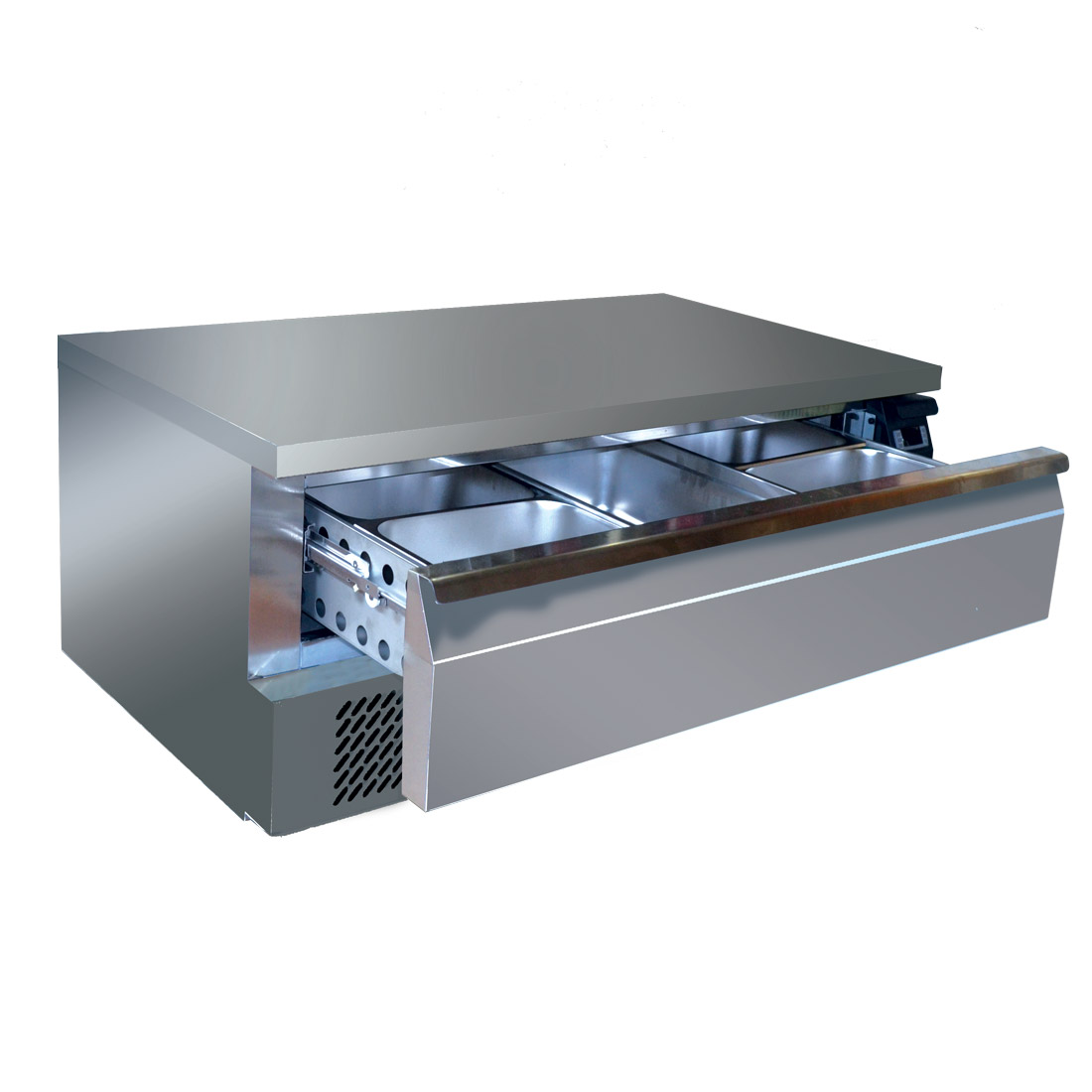

Thermaster CBR1-3 Flexdrawer Refrigerated Drawer Counter

The Thermaster CBR1-3 Flexdrawer is a under-counter refrigerated drawer unit built for the demands of professional commercial kitchens, cafes, restaurants, bars, hotels and catering operations. Its standout feature is the ability to switch each drawer independently between fridge mode (+2°C to +8°C) and freezer mode (-22°C to -18°C) at the touch of a button, giving kitchen teams unmatched flexibility to adapt cold storage to the menu and service demands of any shift.

Constructed from stainless steel with fan-forced cooling, high-density insulation and an automatic hot gas defrost system, the CBR1-3 delivers consistent, energy-efficient temperature control across a gross volume of 116 litres. The unit accommodates GN1/1 pans 150mm deep, runs on environmentally friendly R290 natural refrigerant, and rides on 90mm heavy-duty castors for easy repositioning on the kitchen floor.

Key Benefits

• Switchable fridge-to-freezer mode per drawer lets staff adapt cold storage on the fly without moving product or reorganising the kitchen layout.
• Fan-forced cooling circulates air evenly throughout the drawer cavity, maintaining precise, consistent temperatures even during heavy service periods.
• Automatic energy-saving hot gas defrost reduces manual maintenance tasks and keeps the unit running efficiently without interrupting service.
• GN1/1 150mm deep pan compatibility maximises usable storage capacity and integrates seamlessly with standard commercial kitchen gastronorm equipment.
• R290 natural refrigerant is CFC-free and low global-warming-potential, supporting sustainable kitchen operations and meeting modern environmental standards.
• Magnetic gaskets can be replaced without any tools, minimising downtime and reducing the cost and complexity of routine maintenance.
• 90mm heavy-duty castors with front wheel locks make repositioning simple while keeping the unit securely in place during operation.
• Digital controller with LED temperature display gives clear, at-a-glance readings and straightforward operation for all kitchen staff.
• Rated for ambient conditions up to 40°C at 40% RH, making it well suited to the hot, demanding environment of a busy commercial kitchen.

Key Features

• Gross volume: 116L; net volume: 77L
• Temperature range: -22°C to -18°C (freezer mode) and +2°C to +8°C (fridge mode), switchable per drawer
• Maximum ambient operating temperature: 40°C at 40% RH
• Climate Class 4 rated (30°C / 55% RH)
• R290 natural refrigerant, CFC-free refrigerant and foam insulation
• Fan-forced cooling system for even, consistent temperature distribution
• Digital controller with LED temperature display
• Each drawer independently switchable between fridge and freezer mode at the touch of a button
• Automatic energy-saving hot gas defrost system
• Magnetic door/drawer gaskets replaceable without tools
• Accommodates GN1/1 pans 150mm deep; takes 3 full-size GN pans
• Stainless steel construction throughout for durability and hygiene
• High-density insulation for energy-efficient performance
• 90mm heavy-duty castors with front wheel locks for mobility and stability
• Power: 240V, 270W
• Dimensions: 1230mm (W) x 700mm (D) x 605mm (H)
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice

Specifications

• Width (mm): 1230
• Depth (mm): 700
• Height (mm): 605
• Weight (kg): 173
• Packed Width (mm): 1300
• Packed Depth (mm): 760
• Packed Height (mm): 700
• Shipping Weight: 173
• No. of Doors: 1
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Power Delivery: 230V; 270W
• Power (kW): 230
• Voltage (V): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 116
