Tecnodom TDST90-CA-187BD Tecondom Stromboli Supermarket Remote Display with Door

Tecnodom TDST90-CA-187BD Stromboli Supermarket Remote Display Fridge with Doors

The Tecnodom TDST90-CA-187BD Stromboli is a large-format remote refrigerated display unit designed for supermarkets and high-volume retail environments. Built using Italian technology, design and production, it combines a compact footprint with an impressive 4.34 m² display area and 3.58 m³ net volume, making it ideal for showcasing chilled product at scale. The unit operates on a remote condensing system, keeping compressor noise and heat out of the retail floor while maintaining a precise temperature range of 0°C to +2°C.

Constructed with a Colorbond body and mounted on four legs for easy cleaning underneath, the Stromboli features tempered double-glazed glass doors (30 mm thick), transparent glass side walls and LED lighting at both the ceiling top and every shelf level to maximise product visibility from all angles. An electronic control panel, fan-forced cooling, electric defrost with a heating element and a night blind round out a specification engineered for energy efficiency and straightforward day-to-day operation in demanding retail settings.

Key Benefits

• Remote condensing configuration removes heat and noise from the sales floor, creating a more comfortable shopping environment.
• A 4.34 m² display area and 3.58 m³ net volume deliver exceptional merchandising capacity within a relatively compact unit footprint.
• LED lighting at the ceiling top and along every shelf ensures uniform, attractive illumination that highlights chilled products and encourages purchase.
• Tempered 30 mm double-glazed doors and transparent glass side walls give shoppers clear sightlines to stock from multiple angles, reducing door-open time and energy loss.
• Precise 0°C to +2°C operating range keeps perishables such as dairy, deli and meat at optimal food-safe temperatures throughout trading hours.
• A night blind allows the cabinet to be closed off after hours, reducing energy consumption and environmental impact without switching the unit off.
• The CFC-free belly construction and low-energy design support sustainability goals and compliance with modern refrigerant standards.
• Four legs elevate the unit off the floor, simplifying cleaning underneath and around the cabinet during daily sanitation routines.
• Easy installation and an electronic control panel minimise setup time and allow staff to monitor and adjust operation without specialist knowledge.

Key Features

• Remote condensing model - condensing unit located separately from the display cabinet
• Night blind included for after-hours energy saving
• Italian technology, design and production
• Three hinged doors with tempered double-glazing (30 mm thickness)
• Transparent glass side walls to maximise product visibility from all angles

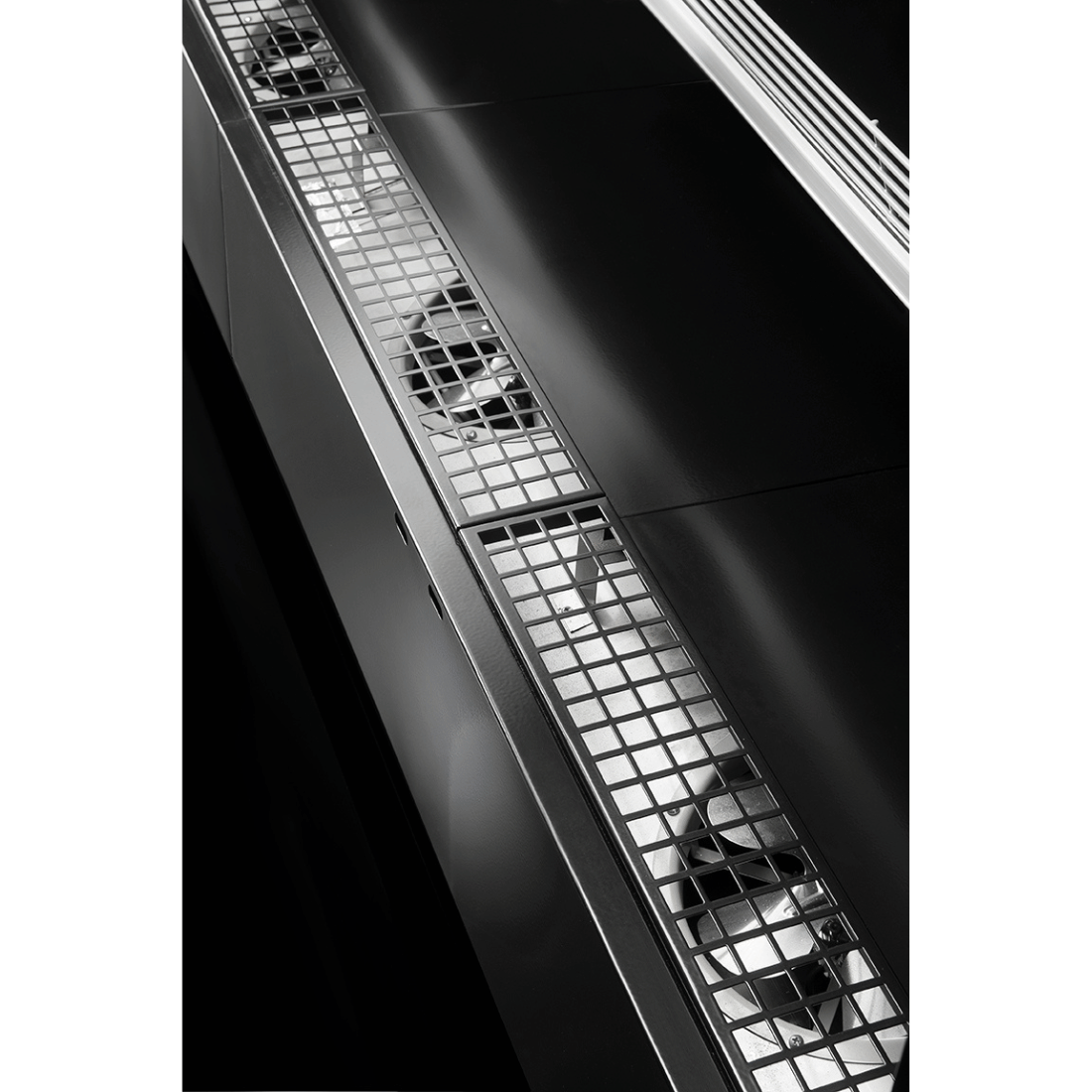

• Fan-forced air circulation for even, consistent temperature distribution
• Electric defrost with heating element
• Temperature range: 0°C to +2°C
• Ambient operating conditions: 30°C / 55% RH
• Net internal volume: 3.58 m³
• Total display area: 4.34 m²
• Shelves 434 mm deep with 279 mm gap between each shelf level
• LED lights at ceiling top and at every shelf for uniform product illumination
• Electronic control panel for monitoring and adjustment
• CFC-free belly construction
• Optimised cleaning system for simplified maintenance
• Colorbond body construction
• Mounted on four legs - fixed installation
• Low energy consumption and low environmental impact
• Suitable for large retail and supermarket outlets
• Power supply: 240 V, 1.12 kW / 10 A
• Dimensions: 1975 mm (W) x 900 mm (D) x 2115 mm (H)
• Weight: 310 kg
• Packed dimensions: 1000 mm (W) x 2090 mm (D) x 2210 mm (H)
• Warranty: 1 year parts and labour plus 1 year parts only when registered within 14 days of invoice

Specifications

• Width (mm): 1975
• Depth (mm): 900
• Height (mm): 2115
• Weight (kg): 310
• Packed Width (mm): 1000
• Packed Depth (mm): 2090
• Packed Height (mm): 2210
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Cooling Type: Fan Forced
• Power Delivery: 240V, 1.12kW/10A
• Power (kW): 240
• Warranty (months): 1 Year Parts & Labour Plus 1 Year Parts Only Warranty When Products Registered Within 14D Of Invoice
