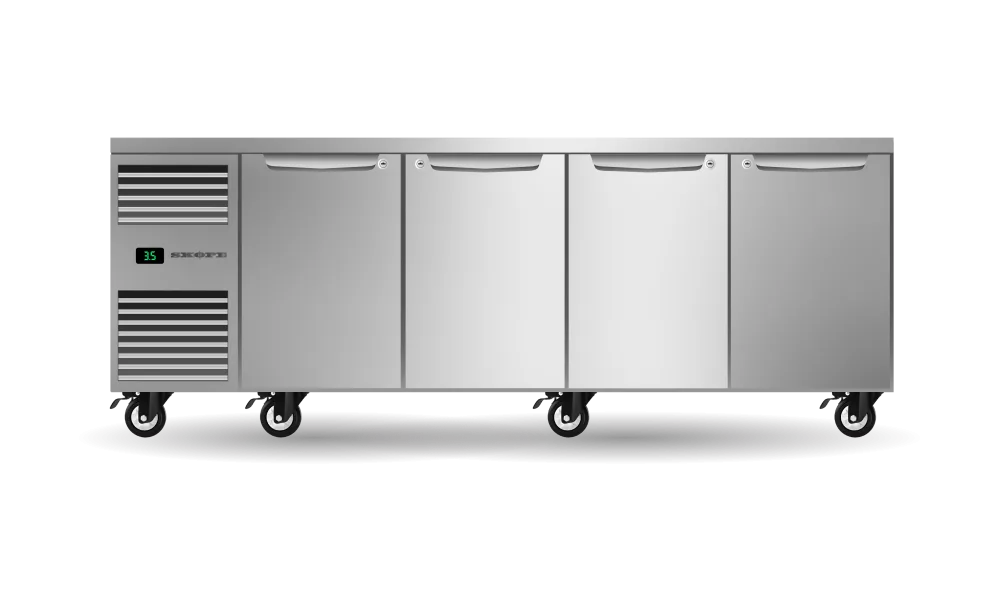

Skope PG11.UBR.4.SD Four Solid Door Underbench GN 1/1 Fridge

Skope ProSpec PG11.UBR.4.SD Four Solid Door Underbench GN 1/1 Fridge

The Skope ProSpec PG11.UBR.4.SD is a four-bay, solid door underbench refrigerator designed to the exacting demands of commercial kitchens. Built in New Zealand from 304 AISI stainless steel, it delivers 609 litres of GN 1/1 compatible storage within a compact underbench footprint, operating reliably in ambient temperatures up to 40°C. The unit uses natural R290 refrigerant and carries a Climate Class 4 (Tropical) rating, making it well suited to the heat and humidity of busy Australian kitchens.

What sets the ProSpec series apart is its genuine configurability. With over 484 possible configurations, operators can mix and match doors and drawers, choose left or right-hand compressor placement, and combine multiple cabinets to create continuous runs of up to eight usable bays. Integrated SKOPE-connect technology enables remote temperature monitoring, adjustable temperature range, food safety data collection, and a Hush Mode that reduces operating noise, giving kitchen teams precise, connected control over food safety without disrupting the pass.

Key Benefits

• Modular design with over 484 configurations lets you tailor the unit to your exact kitchen layout, combining doors and drawers and running up to eight bays side by side.
• SKOPE-connect compatibility allows remote temperature adjustment from -2°C to +15°C, food safety data logging, and Hush Mode noise reduction, all managed digitally.
• R290 natural refrigerant with a Climate Class 4 (Tropical) rating ensures consistent, efficient cooling even in high-ambient Australian kitchen environments up to 40°C.
• A GEMS Class 5M1 energy rating and a consumption of just 3.19 kWh per 24 hours keeps running costs low, estimated at approximately $349 per year at $0.30/kWh.
• Fan-assisted cooling with automatic defrost maintains even temperatures throughout the cabinet during busy service periods, protecting product quality.
• Self-closing, lockable solid swing doors with a 90-degree stay-open position keep contents secure while allowing hands-free access during high-traffic prep.
• The removable refrigeration cartridge simplifies servicing and reduces downtime, a practical advantage in high-volume operations where every hour of uptime counts.
• Eight 304 stainless steel wire shelves across four bays provide flexible, hygienic storage that is easy to reconfigure for different GN 1/1 containers and produce sizes.
• A choice of left or right-hand compressor placement and a standard 10-amp, single-phase connection make installation straightforward in virtually any commercial kitchen configuration.

Key Features

• ProSpec series modular underbench refrigerator with four bays and solid swing doors
• Over 484 possible configurations; mix and match doors and drawers to suit operational needs
• Combine multiple cabinets for continuous runs of up to eight usable bays
• Available with left-hand or right-hand compressor/services placement
• GN 1/1 compatible interior across all four bays
• 609-litre total gross capacity
• Body and interior constructed from 304 AISI stainless steel
• 8 x 304 stainless steel wire shelves included (2 per bay)
• Self-closing, lockable solid swing doors with stay-open position at 90 degrees
• Fan-assisted, self-contained refrigeration system
• Removable refrigeration cartridge for simplified servicing
• Automatic defrost
• R290 natural refrigerant, 95 g charge
• Climate Class 4 (Tropical); maximum ambient temperature 40°C
• Operating temperature range 1°C to 4°C; adjustable from -2°C to +15°C via SKOPE-connect
• SCS Connect controller, fully SKOPE-connect compatible
• SKOPE-connect features: remote temperature adjustment, integrated food safety data collection, Hush Mode noise reduction
• Operating noise 65 dB; reducible to 63 dB with SKOPE-connect Hush Mode
• LED interior lighting
• GEMS Class 5M1 energy rating
• Energy consumption 3.19 kWh per 24 hours
• Estimated annual running cost approximately $349 (at $0.30/kWh)
• Power draw 0.48 kW / 2.0 amps
• 220-240 V AC, 50 Hz, single-phase power supply
• 2-metre power cord with 3-pin, 10-amp plug
• Dimensions: 2210 mm W x 700 mm D x 850 mm H
• Total floor area 1.55 m²
• Unit weight 65 kg
• Manufactured in New Zealand
• Sleek, clean stainless steel aesthetic designed to complement modern commercial kitchen fitouts

Specifications

• Width (mm): 2210
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 65
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 609
• No. of Doors: 4
• Door Type: Self-closing, lockable, solid swing door with stay open position at 90°C
• Shelf Configuration: 8 x 304 stainless steel wire shelves
• Body Material: 304 AISI stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 2
• Power (kW): 48
• Amps (A): 2
• Power Cord: 2 m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40
• Temperature Range: 1 to 4 (adjustable from -2 to 15 with SKOPE-connect)
• Refrigerant: R290 / 95g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 65 (adjustable to 63 with SKOPE-connect Hush Mode)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Interior Lighting: LED
• GEMS Class: 5M1
• GEMS Energy Consumption: 3.19 kWh/24 h
• GEMS Annual Running Cost: $349 (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
