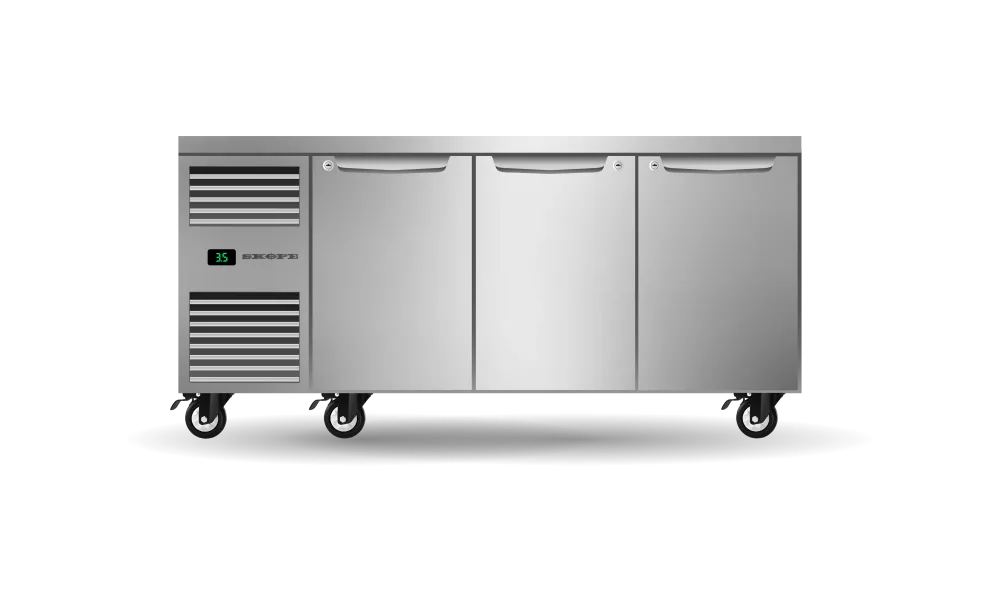

Skope PG11.UBR.3.SD Three Solid Door Underbench GN 1/1 Fridge

Skope ProSpec PG11.UBR.3.SD Three Solid Door Underbench GN 1/1 Fridge

The Skope ProSpec PG11.UBR.3.SD is a three-bay, three solid door underbench refrigerator designed for the rigours of busy commercial kitchens in restaurants, clubs, pubs and cafés. The 447-litre cabinet is constructed entirely from food-safe 304 AISI stainless steel on all interior and exterior surfaces, holds a standard operating temperature of 1°C to 4°C, and is rated for ambient environments reaching up to 40°C, keeping food safe even in the most demanding conditions. The fully removable R290 natural refrigerant cartridge carries a 95 g charge and delivers low energy consumption, reduced heat discharge and quiet operation, with GEMS 5M1 certification confirming its efficiency credentials.

Built around a philosophy of complete configurability, the ProSpec range offers over 484 possible configurations, so each of the three door bays can be replaced with GN drawer banks to match evolving workflow needs. Integrated runs of up to eight usable bays are achievable by pairing cabinets with left-hand or right-hand refrigeration units. At 850 mm overall height, the unit fits beneath an existing bench on the supplied castors, sits on a plinth once the castors are removed, or rises to a 900 mm working height with optional legs. The slim left-hand service compartment, fully front-breathing layout and easily removable condenser filter eliminate the need for any side or rear clearance, and the refrigeration cartridge can be withdrawn safely in line with best practice for servicing flammable refrigerants.

Key Benefits

• Rated for ambient temperatures up to 40°C, ensuring safe food storage temperatures are maintained even in the hardest-working kitchen environments.
• SKOPE-connect smartphone app provides remote temperature adjustment across a range of -2°C to 15°C, plus energy monitoring and alert notifications, giving operators precise control without leaving the service area.
• Hush Mode via SKOPE-connect lowers noise output from 65 dB down to 63 dB, creating a more comfortable working environment during quieter periods.
• Fully front-breathing cabinet needs no side or rear clearance whatsoever, offering maximum installation flexibility in tight underbench spaces and compact kitchen layouts.
• Modular design spanning over 484 configurations across the ProSpec range allows doors to be exchanged for drawer banks, and cabinets to be linked together to form customised runs of up to eight bays.
• Removable self-contained refrigeration cartridge simplifies servicing and supports the safe handling of R290 natural refrigerant, minimising maintenance downtime.
• Door-activated LED interior lighting and individual barrel locks fitted to every door enhance food safety and stock security throughout busy service periods.
• GEMS 5M1 certified energy efficiency with a consumption of just 2.49 kWh per 24 hours delivers meaningful long-term savings on running costs.

Key Features

• Three self-closing solid swing doors, each fitted with ergonomic stainless steel handles of 3 mm gauge, individual barrel locks, and a stay-open position at 90°.
• Six 304 stainless steel GN 1/1 wire shelves (two per door bay) mounted on double-row runners, each rated to support an additional GN 1/1 pan.
• All interior and exterior surfaces fabricated from 304 AISI stainless steel, fully compliant with food-safe construction requirements.
• Fully welded and integrated worktop, 700 mm deep.
• Overall cabinet height of 850 mm; suitable for underbench installation on the included castors, plinth mounting with the castors removed, or elevation to a 900 mm finished working height using optional legs.
• Fully removable self-contained refrigeration cartridge using R290 natural refrigerant (95 g charge) for low energy use, reduced heat discharge and quiet operation.
• Slim left-hand service compartment housing an easily removable and cleanable condenser filter; right-hand service compartment available as an alternative configuration.
• Fully front-breathing design requiring no side or rear clearance.
• SCS Connect smart controller, SKOPE-connect compatible, enabling temperature setting, temperature and energy monitoring, and alert management via free smartphone app.
• Standard product temperature range of 1°C to 4°C; adjustable between -2°C and 15°C via SKOPE-connect.
• GEMS 5M1 certified; energy consumption of 2.49 kWh per 24 hours.
• Door-activated LED interior lighting.
• Supplied with castors; optional legs and plinth available.
• Power supply via a 2-metre cord terminated with a 3-pin 10-amp plug, compliant with Australian and New Zealand refrigeration and electrical safety standards.

Specifications

• Width (mm): 1750
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 65
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 447
• No. of Doors: 3
• Door Type: Self-closing, lockable, solid swing door with stay open position at 90°C
• Shelf Configuration: 6 x 304 stainless steel wire shelves
• Body Material: 304 AISI stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 6
• Power (kW): 48
• Amps (A): 2
• Power Cord: 2 m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40
• Temperature Range: 1 to 4 (adjustable from -2 to 15 with SKOPE-connect)
• Refrigerant: R290 / 95g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 65 (adjustable to 63 with SKOPE-connect Hush Mode)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Interior Lighting: LED
• GEMS Class: 5M1
• GEMS Energy Consumption: 2.49 kWh/24 h
• GEMS Annual Running Cost: $273 (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
