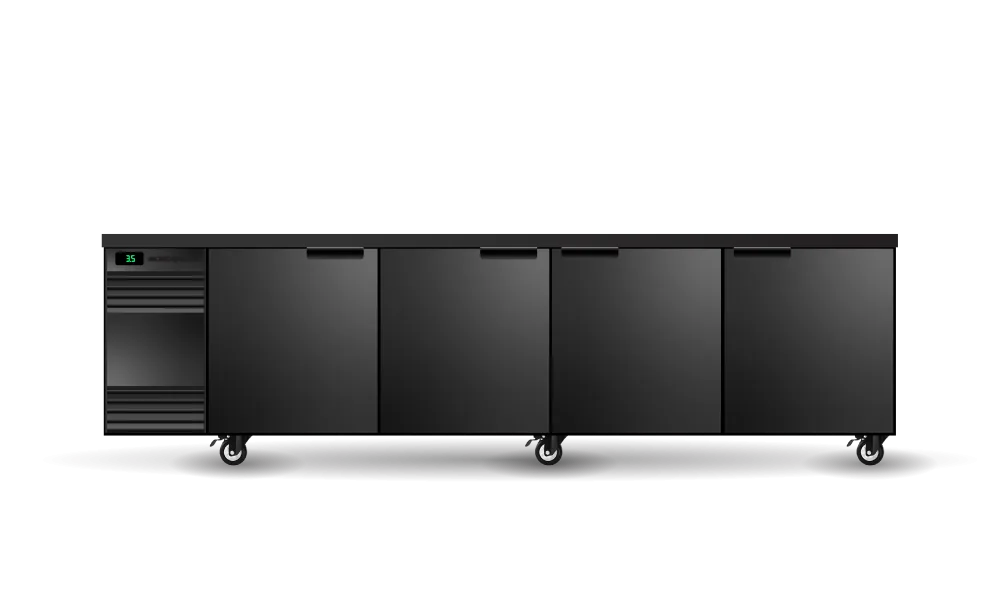

Skope CL.4.SSW BackBar 4 Solid Swing Door CounterLine Fridge

Skope CL.4.SSW CounterLine BackBar 4 Solid Swing Door Fridge

The Skope CL.4.SSW is a premium four-door solid swing door bar fridge from the CounterLine range, purpose-built for under-bar and back-bar installations in busy hospitality environments. At 2805 mm wide with a low-profile 830 mm height, it fits neatly beneath standard bar counters while delivering a generous 721-litre gross capacity across four independently accessible compartments.

Powered by eco-friendly R290 natural refrigerant and featuring a self-contained, removable cartridge refrigeration system, the CL.4.SSW is engineered for reliable performance in ambient temperatures up to 40°C (Climate Class 4 Tropical). SKOPE-connect compatibility via Bluetooth gives operators precise remote control over temperature, lighting and Hush Mode, making it as intelligent as it is robust.

Key Benefits

• Four separate solid swing doors allow staff to access individual sections independently, minimising cold air loss during busy service periods.
• Low-profile counter height design fits directly under the bar, keeping chilled product at the point of service for faster, more efficient beverage operations.
• R290 natural refrigerant reduces environmental impact without sacrificing cooling performance, supporting sustainable kitchen practices.
• SKOPE-connect Bluetooth connectivity enables remote temperature monitoring and adjustment, dimmable LED lighting control, and activation of Hush Mode to reduce operational noise below 62 dB during quieter periods.
• Automatic defrost cycle and fan-assisted cooling maintain consistent temperatures between 1°C and 4°C even under heavy load, with a wider 0°C to 15°C range available via SKOPE-connect.
• Removable cartridge refrigeration system simplifies servicing and reduces equipment downtime in a commercial setting.
• Eight powder-coated wire shelves with adjustable height accommodate a wide variety of bottle sizes and can sizes, maximising storage flexibility.
• Dimmable cool white LED strip lighting (5500-6500K) enhances product visibility and can be tuned to suit ambient lighting conditions behind the bar.
• Lockable doors protect stock and provide security during non-service hours.

Key Features

• Four solid swing doors with lockable mechanism for stock security.
• Self-contained, removable cartridge refrigeration unit for straightforward servicing.
• R290 natural refrigerant (81 g charge), eco-friendly and highly efficient.
• Climate Class 4 (Tropical) rated, operating in ambient temperatures up to 40°C.
• Temperature range of 1°C to 4°C standard; adjustable from 0°C to 15°C via SKOPE-connect.
• Automatic defrost with fan-assisted cooling for consistent cabinet temperature.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth.
• Hush Mode available via SKOPE-connect, reducing noise output to below 62 dB (standard operation below 66 dB).
• 2 x 16W dimmable cool white (5500-6500K) LED strip lights mounted on the cabinet ceiling.
• Eight adjustable-height powder-coated wire shelves: 4 inner shelves (547W x 530L mm) and 4 outer shelves (605W x 530L mm).
• Cabinet body in powdercoat galvanised steel or 304 stainless steel exterior.
• Low counter height profile designed to fit under standard bar counters.
• Castors allow height adjustment between approximately 820 mm and 835 mm; plinth mount option lowers height to approximately 725 mm.
• Total floor area of 1.49 m².
• Power supply: 220-240V AC, 50 Hz, single phase; 4.0 A current draw.
• 1.9 m power cord with 3-pin 10 A plug included.
• GEMS rated for energy efficiency.

Specifications

• Width (mm): 2805
• Depth (mm): 680
• Height (mm): 830
• Weight (kg): 267
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 721
• No. of Doors: 4
• Door Type: Solid
• Shelf Configuration: Eight adjustable height, powder-coated wire shelves, 4 × inner shelf (547W × 530L), 4 × outer shelf (605W × 530L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 8
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​Standard <66 Hush Mode (via SKOPE-connect) <62​
• Interior Lighting: 2 × 16W, cool white (5500-6500K) LED strips on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 5M1
• GEMS Energy Consumption: 3.67
• GEMS Annual Running Cost: $402 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
