Skope CL.3.SSW BackBar 3 Solid Swing Door CounterLine Fridge

Skope CL.3.SSW BackBar 3 Solid Swing Door CounterLine Fridge

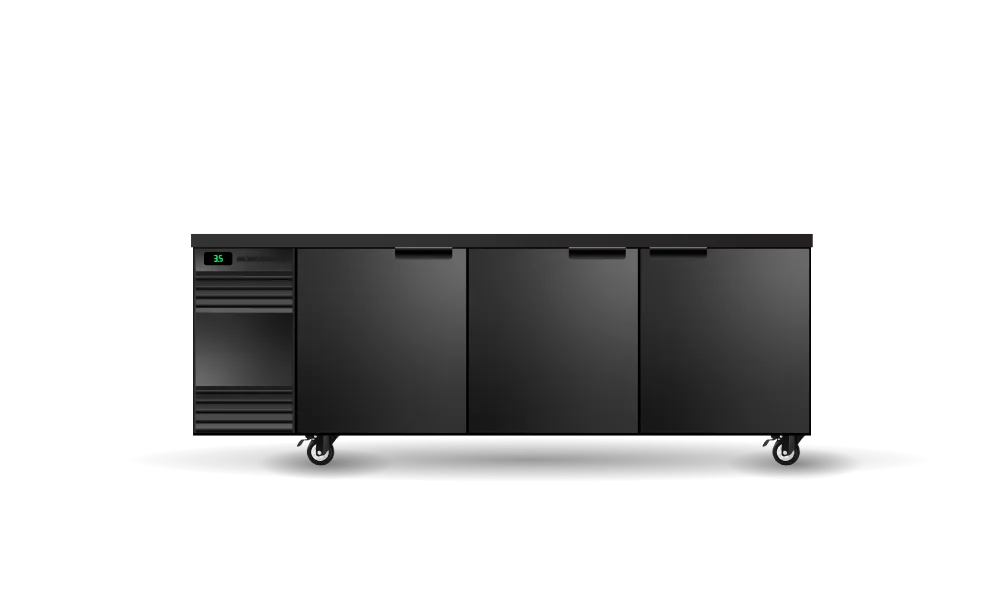

The Skope CL.3.SSW CounterLine is a low-profile, three solid swing door back bar fridge purpose-built to fit under or behind the bar in busy hospitality environments. With a 533-litre gross capacity across a 2195 mm wide footprint, it handles high-volume beverage storage including wine, beer bottles, PET bottles and canned drinks, while its compact 830 mm height keeps service fast and stock within easy reach.

Powered by the eco-friendly R290 natural refrigerant and controlled via the SKOPE-connect™ compatible SCS Connect system, the CL.3.SSW delivers unrivalled energy efficiency alongside practical features such as dimmable full-height LED lighting, self-closing lockable doors, a built-in hush mode for quieter operation, and a fully front-breathing modular cartridge for easier servicing. Climate Class 4 (Tropical) rated, it maintains a 1°C to 4°C temperature range even in ambient conditions up to 40°C.

Key Benefits

• Under-bar height keeps drinks cold right at the point of service, reducing staff travel time and speeding up drink orders during peak service.
• Each door section accommodates one row of standard 750 ml wine or Riesling bottles, two rows of 355 ml beer bottles, two rows of 600 ml PET bottles, or four rows of standard beer cans, maximising storage flexibility.
• R290 natural refrigerant technology delivers up to 63% reduction in energy consumption compared to conventional refrigerants, with potential annual power bill savings of up to $750.
• Dimmable full-height LED strip lighting lets operators adjust brightness to suit ambient lighting conditions, improving product appeal without unnecessary energy use.
• Built-in hush mode (accessible via SKOPE-connect) reduces operating noise from under 66 dB to under 62 dB, keeping front-of-house environments comfortable for guests.
• Self-closing swing doors with integrated locking tabs on every door maintain consistent temperatures and provide security for valuable stock.
• Fully front-breathing interchangeable modular cartridge design allows quicker, safer servicing without requiring access from the rear, ideal for tight under-bar installations.
• SKOPE-connect compatibility provides remote temperature monitoring and adjustable range of 0°C to 15°C, giving operators precise control from a smart device.
• Automatic defrost and fan-assisted cooling ensure fast temperature recovery after door openings, keeping up with the demands of continuous busy service.

Key Features

• Three solid swing doors with self-closing mechanism and built-in locking tabs on every door.
• 533-litre gross capacity across a 2195 mm wide, low-profile cabinet designed to fit under the bar.
• Height adjustable via castors (820 to 835 mm) or reduced to 725 mm with plinth mount option.
• Total floor area of 1.49 m².
• Six adjustable-height, powder-coated wire shelves: 2 inner shelves (547W × 530L mm) and 4 outer shelves (605W × 530L mm).
• Body constructed from powder-coated galvanised steel or stainless steel; exterior finish in 304 stainless steel.
• R290 natural refrigerant (81 g charge) for eco-friendly, low global warming potential operation.
• Self-contained refrigeration system, Climate Class 4 (Tropical), rated to a 40°C maximum ambient temperature.
• Temperature range of 1°C to 4°C standard; adjustable from 0°C to 15°C via SKOPE-connect.
• Automatic defrost with fan-assisted cooling for consistent temperature distribution.
• SCS Connect controller with full SKOPE-connect™ compatibility for remote monitoring and adjustment.
• 1 × 24W cool white (5500-6500K) dimmable LED strip light mounted on the cabinet ceiling.
• Hush mode available via SKOPE-connect: standard noise level under 66 dB, hush mode under 62 dB.
• GEMS Class 5M1 energy rating; GEMS energy consumption of 2.17 kWh/24h.
• Power draw of 0.62 kW at 2.6 amps; supplied with a 1.9 m power cord fitted with a 3-pin 10-amp plug.
• Operates on 220-240 V AC, 50 Hz single-phase supply.
• Fully front-breathing interchangeable modular cartridge for faster and safer on-site servicing.
• Benchtop not included; optional benchtop available separately.
• Suited to restaurants, cafes, clubs, pubs, bars, and quick service restaurants.

Specifications

• Width (mm): 2195
• Depth (mm): 680
• Height (mm): 830
• Weight (kg): 232
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 533
• No. of Doors: 3
• Door Type: Solid
• Shelf Configuration: Six adjustable height, powder-coated wire shelves, 2 × inner shelf (547W × 530L), 4 × outer shelf (605W × 530L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 6
• Power (kW): 0.62
• Amps (A): 2.6
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​​Standard <66 Hush Mode (via SKOPE-connect) <62​
• Interior Lighting: 1 × 24W, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 5M1
• GEMS Energy Consumption: 2.17
• GEMS Annual Running Cost: $238 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
