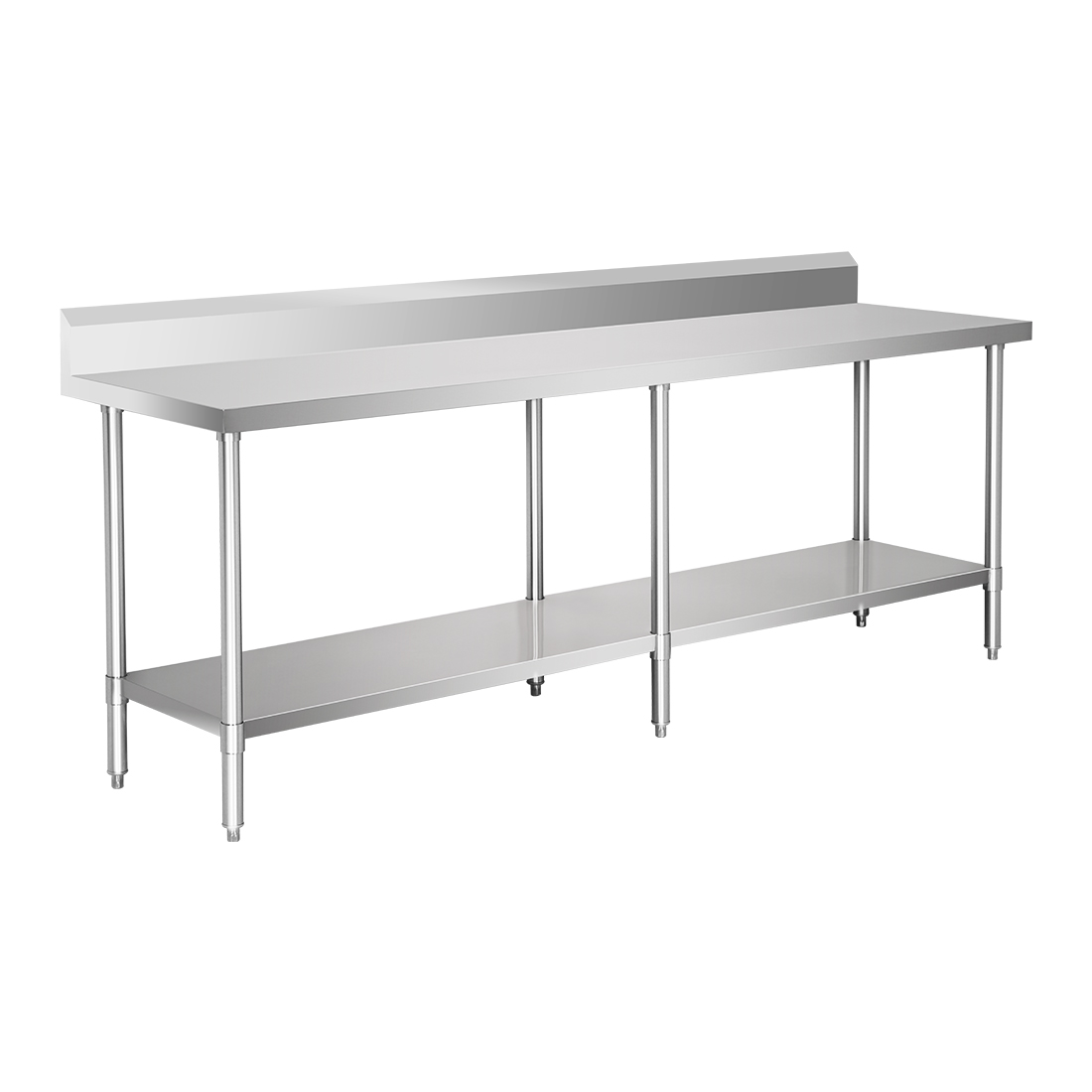

Modular Systems WBB7-2400/A Workbench with Splashback

Modular Systems WBB7-2400/A Stainless Steel Workbench with Splashback – 2400mm Wide

The Modular Systems WBB7-2400/A is a heavy-duty, all-stainless steel workbench purpose-built for demanding commercial kitchen, hospitality, and food service environments. At 2400mm wide, the bench features a SUS304 (18/8) stainless steel benchtop lined with 20mm XPS board for rigidity and hygiene, a 150mm high bevelled splashback, a solid adjustable undershelf, and six sturdy legs to support the extended span. The rated load capacity for the 2400mm configuration is 480kg, making it well suited to heavy preparation tasks.

Supplied flat-packed with all required assembly tools and an instruction manual, the WBB7-2400/A is designed for quick and straightforward on-site setup. Fully adjustable polished stainless steel disc feet allow precise levelling on uneven floors, while optional lockable castor kits, locking drawers, and a free leg brace alternative to the solid undershelf give operators flexibility to configure the bench to their specific workflow. A 2-year parts-only warranty is included.

Key Benefits

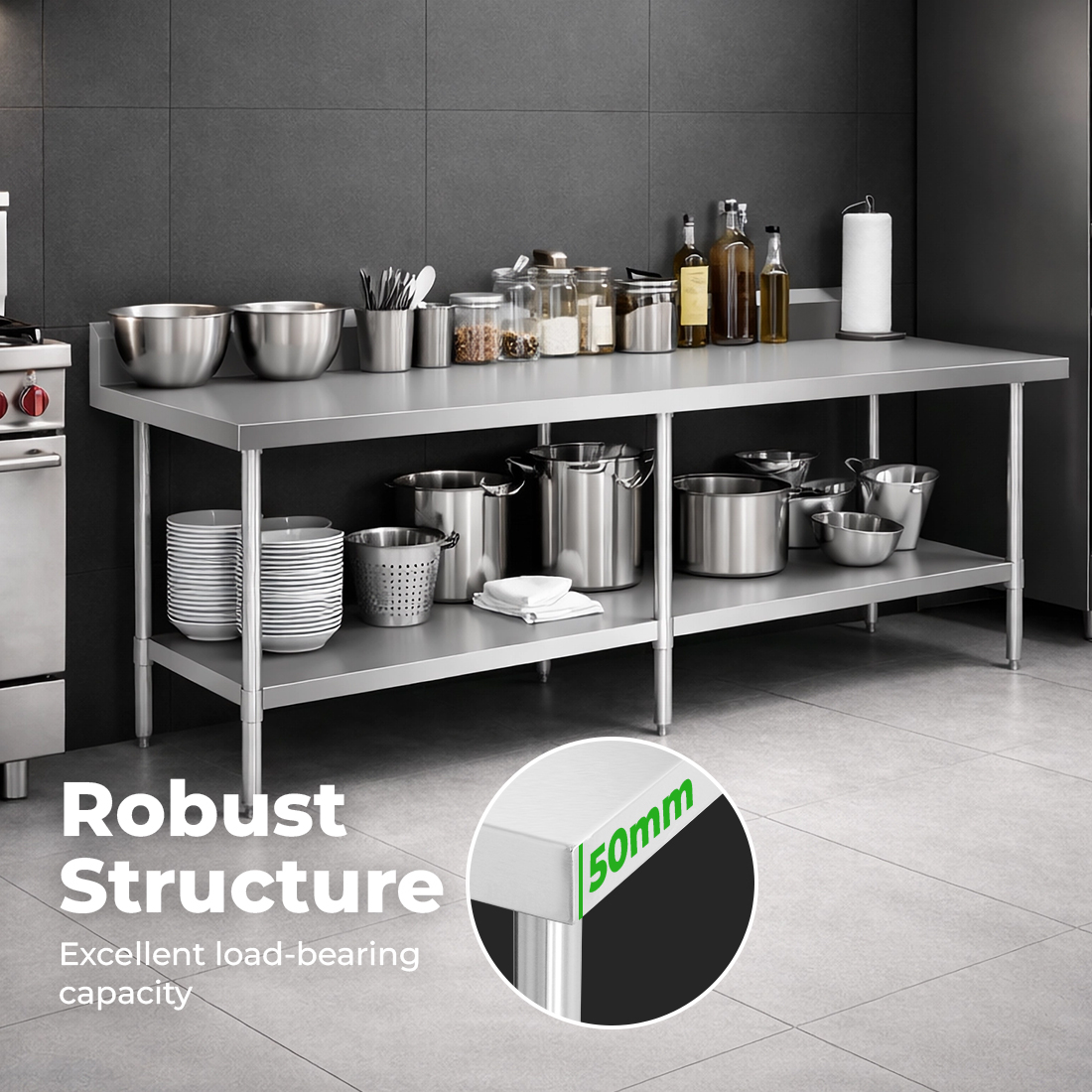

• 480kg load rating on the 2400mm-wide configuration handles the heaviest commercial preparation tasks with confidence.
• SUS304 (18/8) stainless steel construction throughout resists corrosion and meets commercial food hygiene standards for easy cleaning and long service life.
• XPS board lining under the benchtop adds structural rigidity and a thermal barrier, reducing surface flex during intensive use.
• Six-leg configuration on the 2400mm bench distributes load evenly and eliminates centre sag, providing a consistently stable work surface.
• Fully adjustable polished disc feet compensate for uneven floors, keeping the bench level and compliant with kitchen sanitation requirements.
• Flat-pack delivery with included tools and instruction manual reduces freight costs and allows a single operator to assemble the bench on-site without specialist trades.
• Optional lockable drawers and lockable castor kits let operators add secure storage and bench mobility without replacing the unit.
• Height-adjustable undershelf and the option to add an extra shelf maximise under-bench storage to suit evolving kitchen layouts.
• Free optional leg brace in place of the solid undershelf provides an open under-bench space ideal for storing bulkier items or connecting equipment.

Key Features

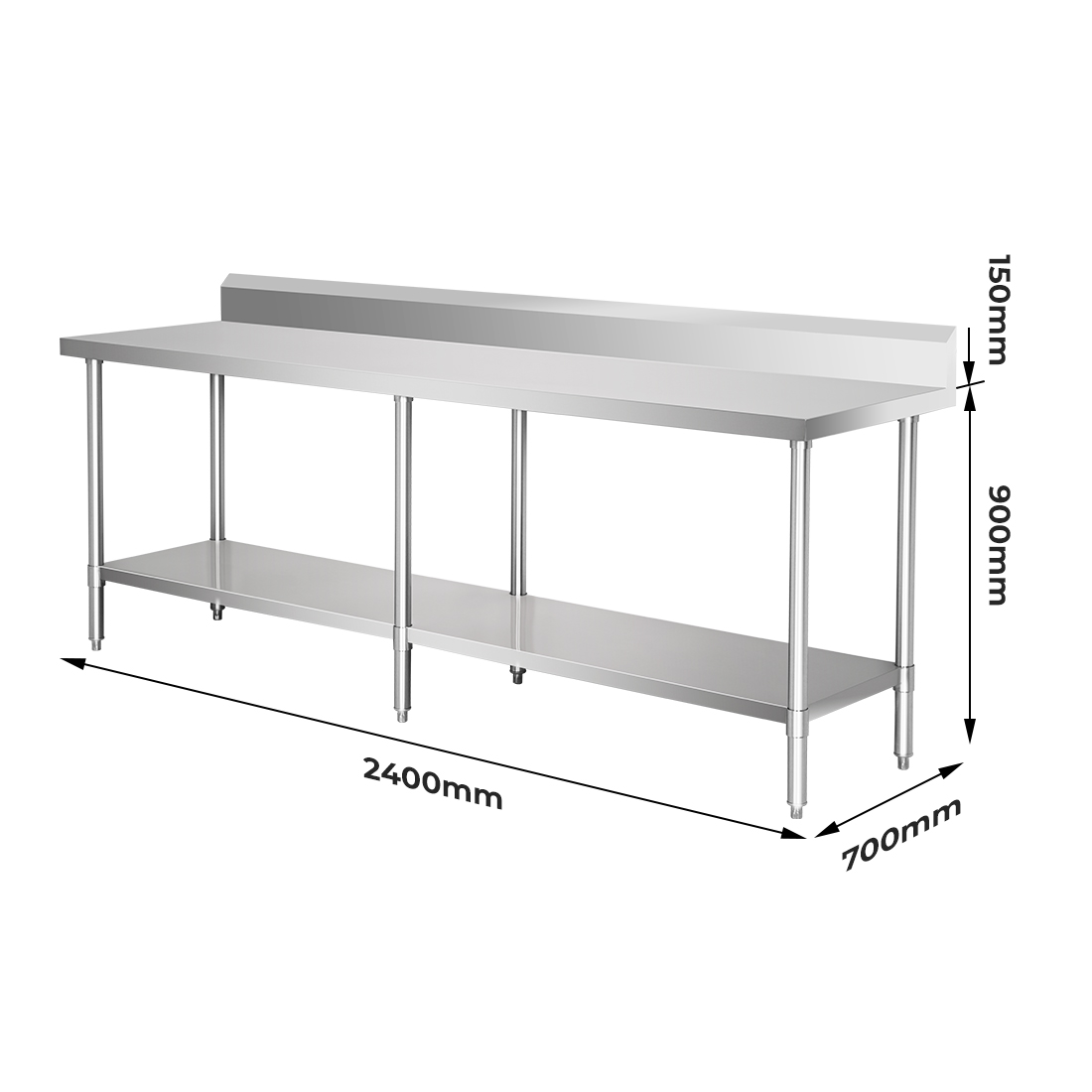

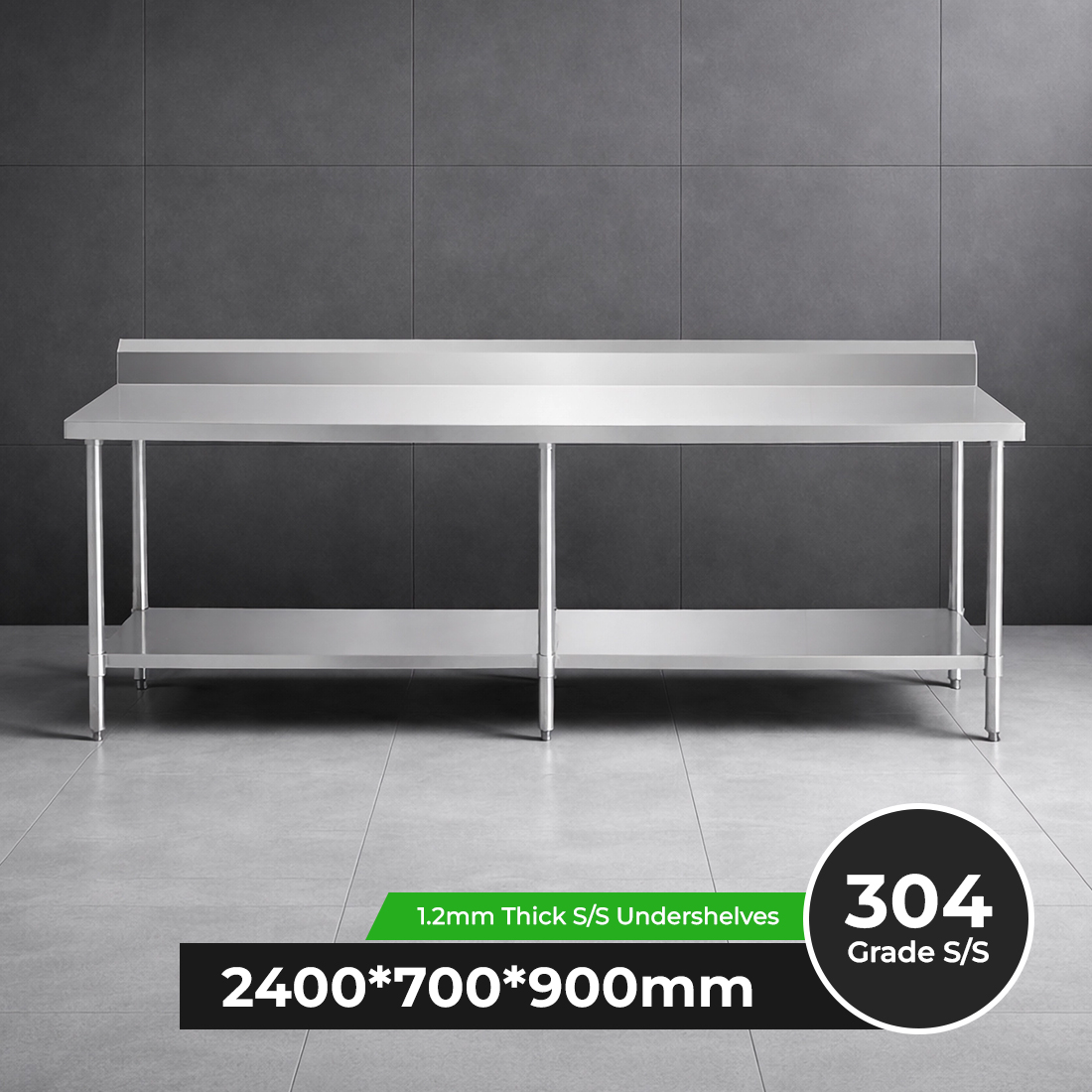

• Overall dimensions: 2400mm wide x 700mm deep x 900mm high.

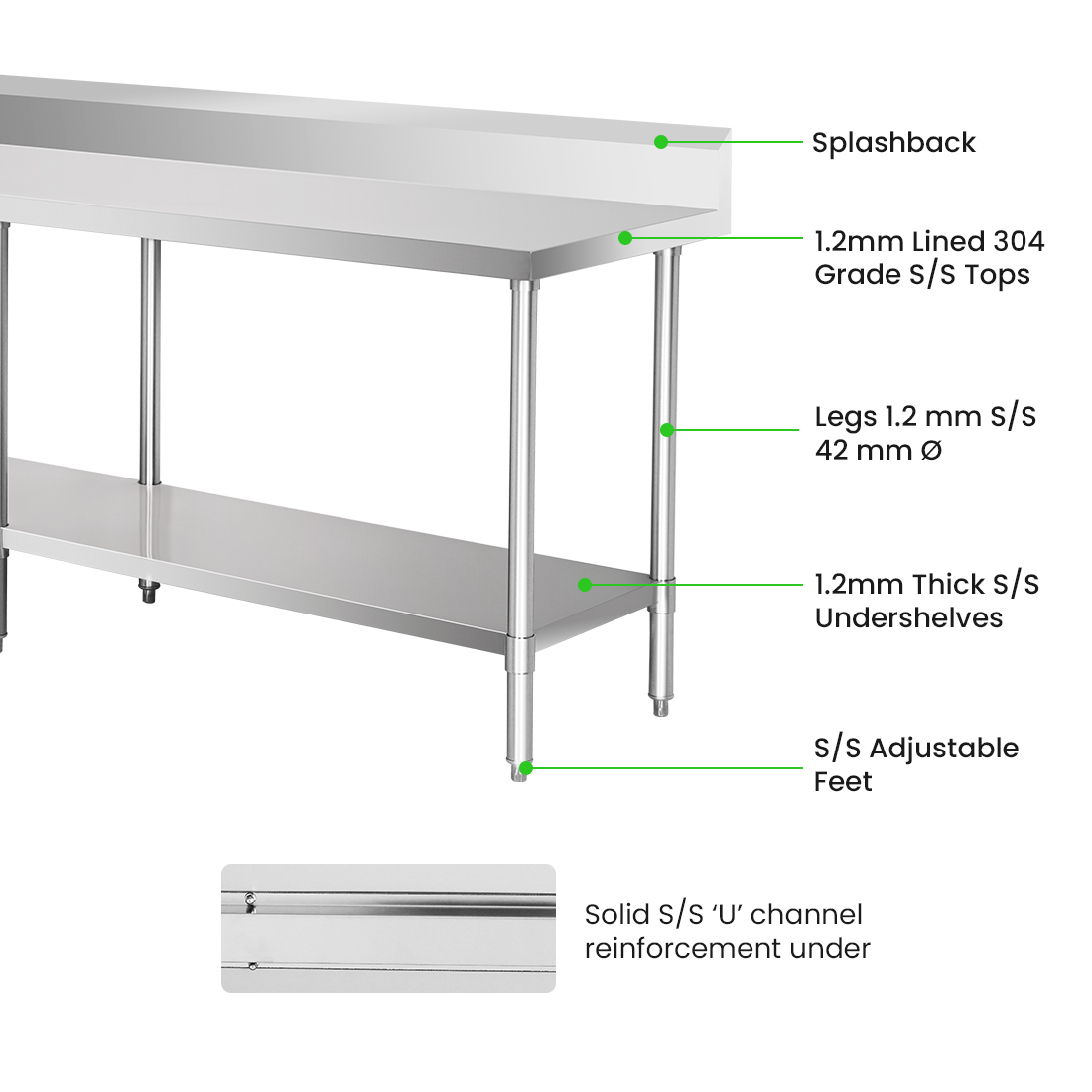

• All-stainless steel construction; fully enclosed and folded under the top with no galvanised or open raw edges.

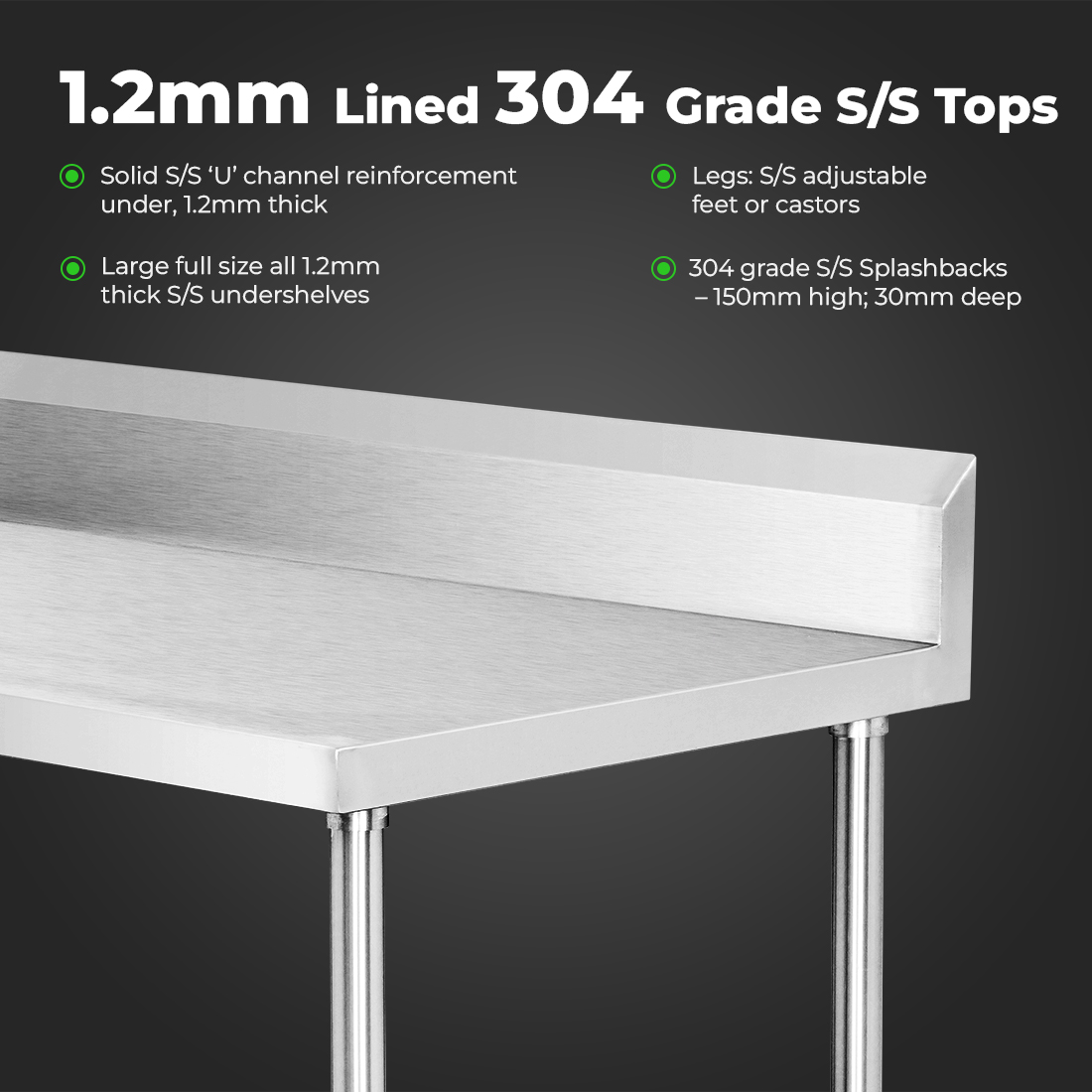

• Benchtop material: 1.2mm SUS304 (18/8) stainless steel, lined with 20mm thick XPS board and a stainless steel panel for rigidity and hygiene.
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width to maintain structural integrity.
• Six legs on this 2400mm-wide bench for enhanced stability; legs are 1.2mm stainless steel, 42mm diameter.
• Fully adjustable polished stainless steel disc feet that complement the leg finish; bolt-down disc feet option also available.
• Splashback: stainless steel backed, fully stainless steel lined and bevelled, 150mm high and 30mm thick.

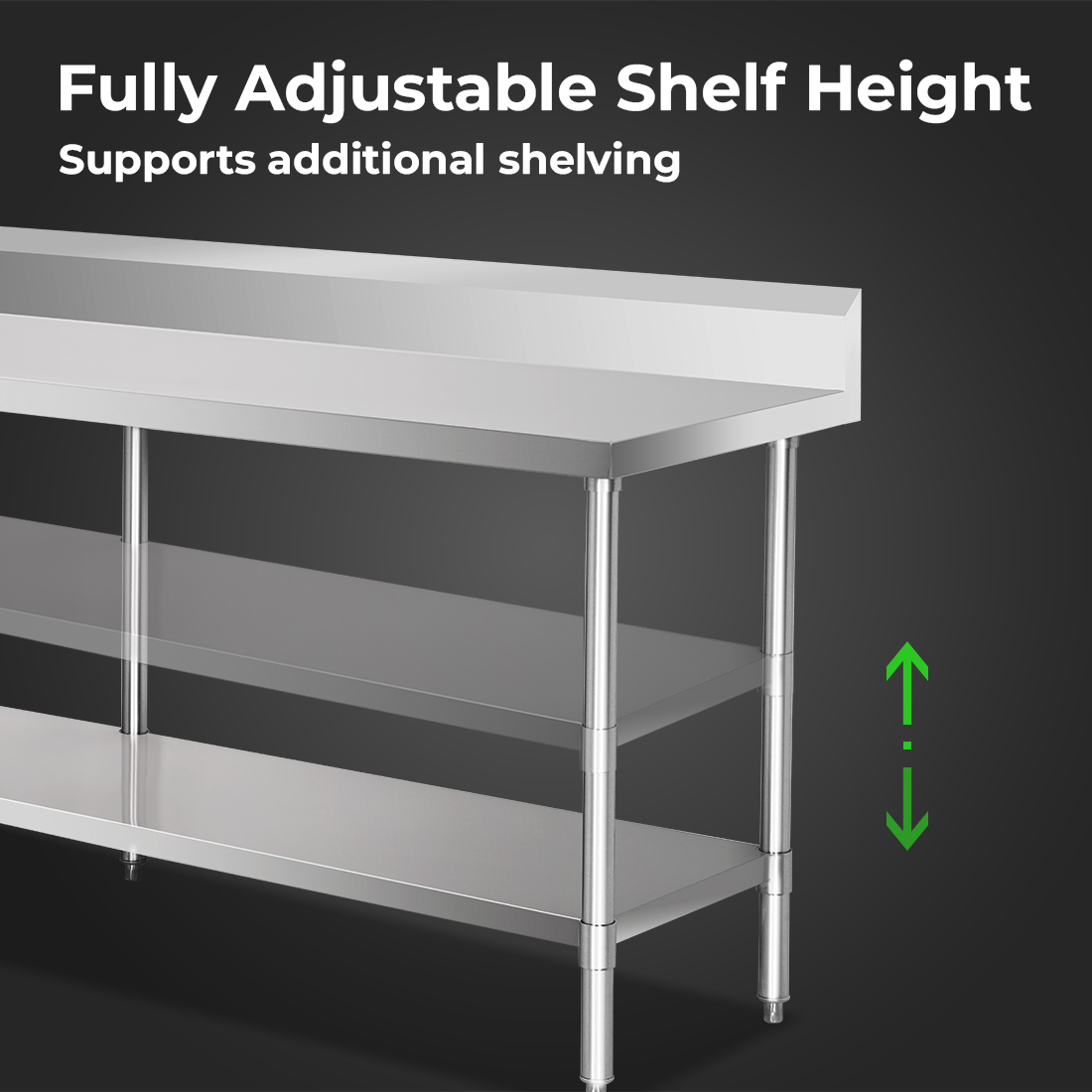

• Solid stainless steel undershelf; height is fully adjustable and an additional shelf can be added.
• Undershelf constructed from 1.2mm stainless steel with 'U' channel reinforcements scaled to bench width.
• Free optional leg brace available as a substitute for the solid undershelf; must be specified on the purchase order.
• Optional locking drawers available; refer to Stainless Steel Accessories range.
• Optional lockable castor kits available for bench mobility.
• Rated load capacity: 480kg for the 2400mm-wide configuration.
• Supplied flat-packed for economical transport; includes assembly tools and instruction manual.
• 2-year parts-only warranty.
• Weight: 84.4kg.

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 84.4
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 275
• Shipping Weight: 130.75
• Warranty (months): 2 Years Parts Only
• Splash Back: 150mm high and 30mm thick stainless steel splashguard
