Modular Systems WBB7-1000/A Workbench with Splashback

Modular Systems WBB7-1000/A Stainless Steel Workbench with Splashback and Solid Undershelf

The Modular Systems WBB7-1000/A is a 1000mm wide all-stainless steel workbench built for the demands of busy commercial kitchens, restaurants, and catering operations. It arrives flat-packed with an instruction manual and tools included, allowing for quick and straightforward assembly without specialist trades. The bench features a solid undershelf for storing pots, pans, and additional equipment, plus an integrated splashback to contain mess and keep the workspace tidy. A free optional leg brace can be substituted for the solid shelf if preferred, and optional locking drawers are also available as an accessory.

Every component is constructed from 1.2mm SUS304 (18/8) stainless steel, offering excellent corrosion resistance and food-safe hygiene in wet, high-traffic kitchen environments. The benchtop is lined with a 20mm XPS board and stainless steel panel, then reinforced underneath with stainless steel U-channel bracing for structural rigidity. The undershelf is height-adjustable and equally reinforced, while the splashback stands 150mm high and 30mm deep, fully S/S lined, bevelled, and enclosed and folded under the top. Legs are 42mm diameter, 1.2mm stainless steel with fully adjustable polished disc feet, and castor kits are available separately for benches that need to be relocated.

Key Benefits

• SUS304 (18/8) stainless steel construction throughout resists corrosion and is straightforward to sanitise, supporting food safety compliance in commercial kitchen environments.
• Integrated 150mm splashback contains splatter and spills at the wall edge, reducing cleaning time and protecting surrounding surfaces.
• Solid undershelf provides immediately accessible storage for pots, pans, and bulk items, helping to keep the main work surface clear and organised during service.
• Height-adjustable undershelf and adjustable polished disc feet allow the bench to be levelled precisely on uneven floors and configured to suit different storage needs.
• Flat-packed delivery with all tools and an instruction manual included means the bench can be assembled on-site quickly without specialist equipment or additional cost.
• Optional leg brace configuration (in place of the solid shelf) and optional locking drawers give operators flexibility to tailor the bench to their specific workflow.
• Lockable castor kits are available separately, making it practical to reposition the bench for thorough cleaning or kitchen reconfiguration.

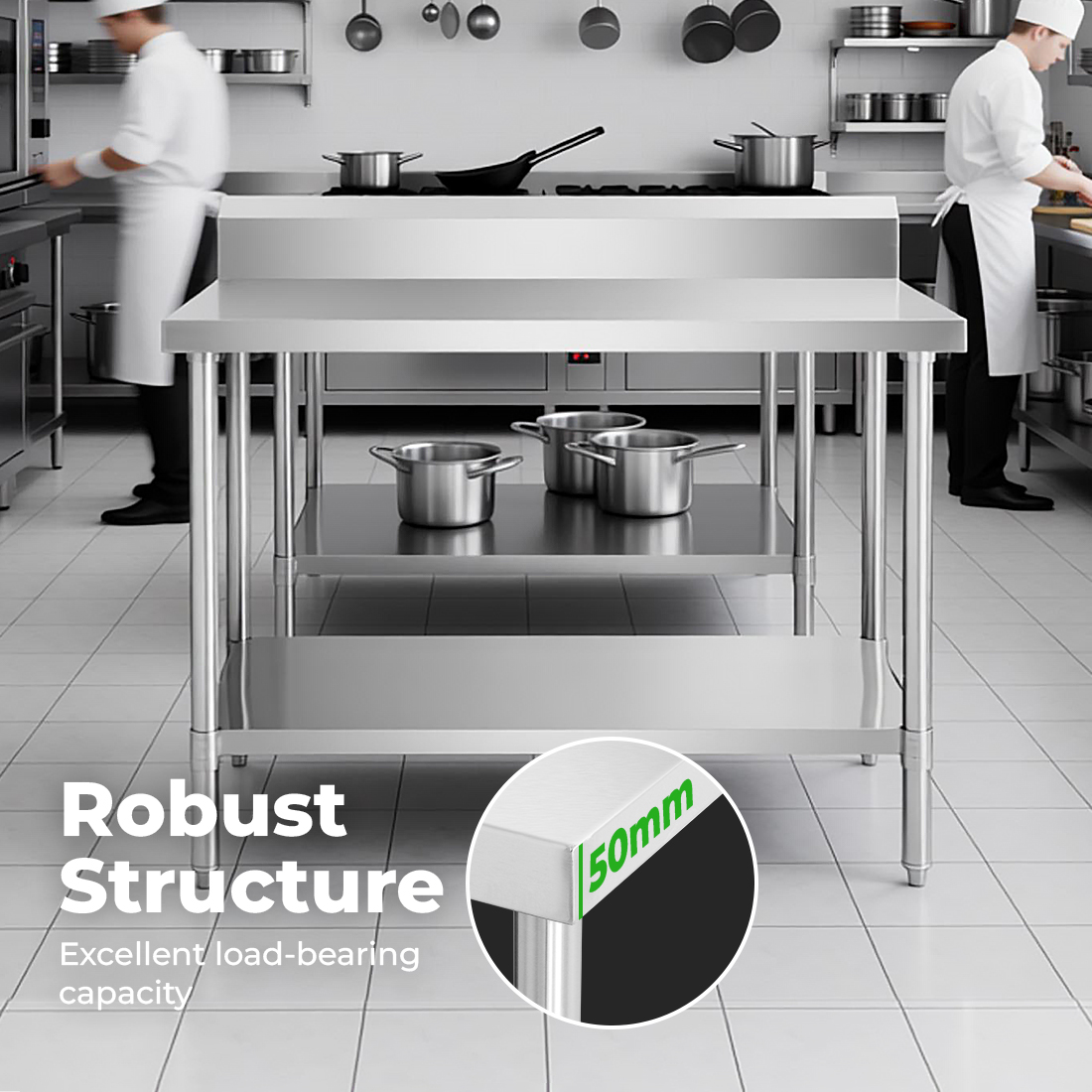

• U-channel reinforcements beneath both the benchtop and undershelf increase load-bearing rigidity, allowing the bench to handle heavy equipment and stock without flexing.
• Backed by a 2-year parts-only warranty, providing confidence in long-term reliability for a high-use commercial kitchen asset.

Key Features

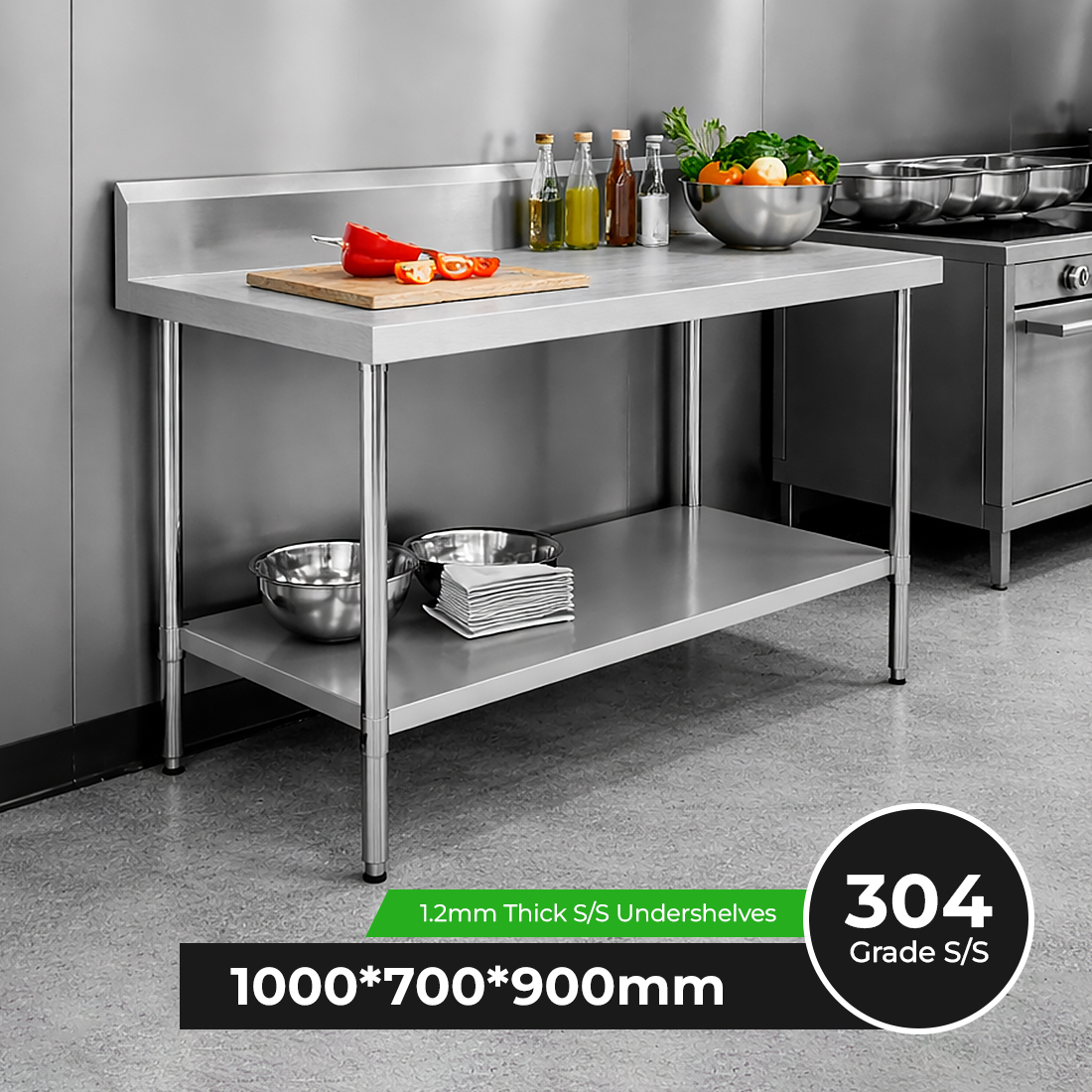

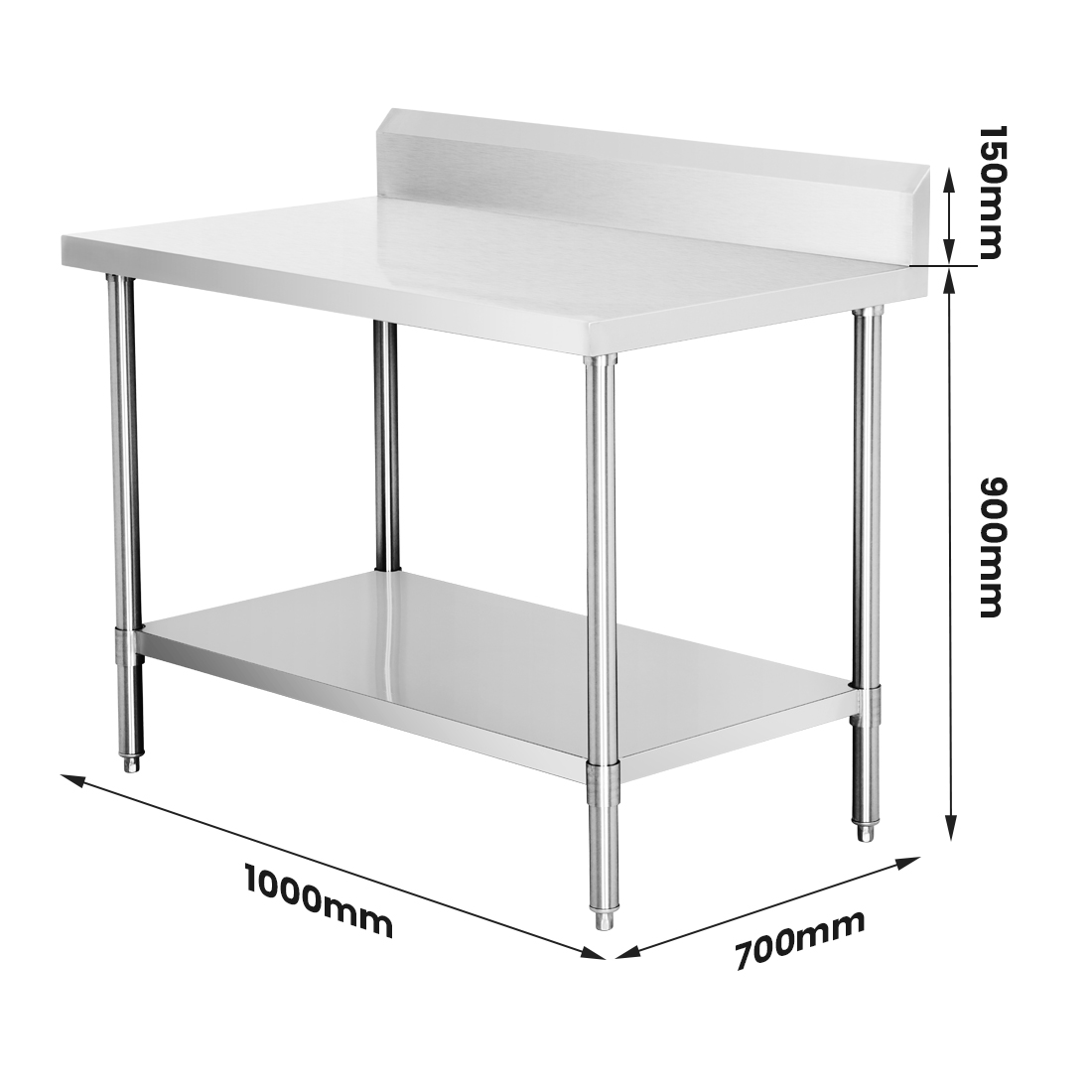

• Overall dimensions: 1000mm wide x 700mm deep x 900mm high

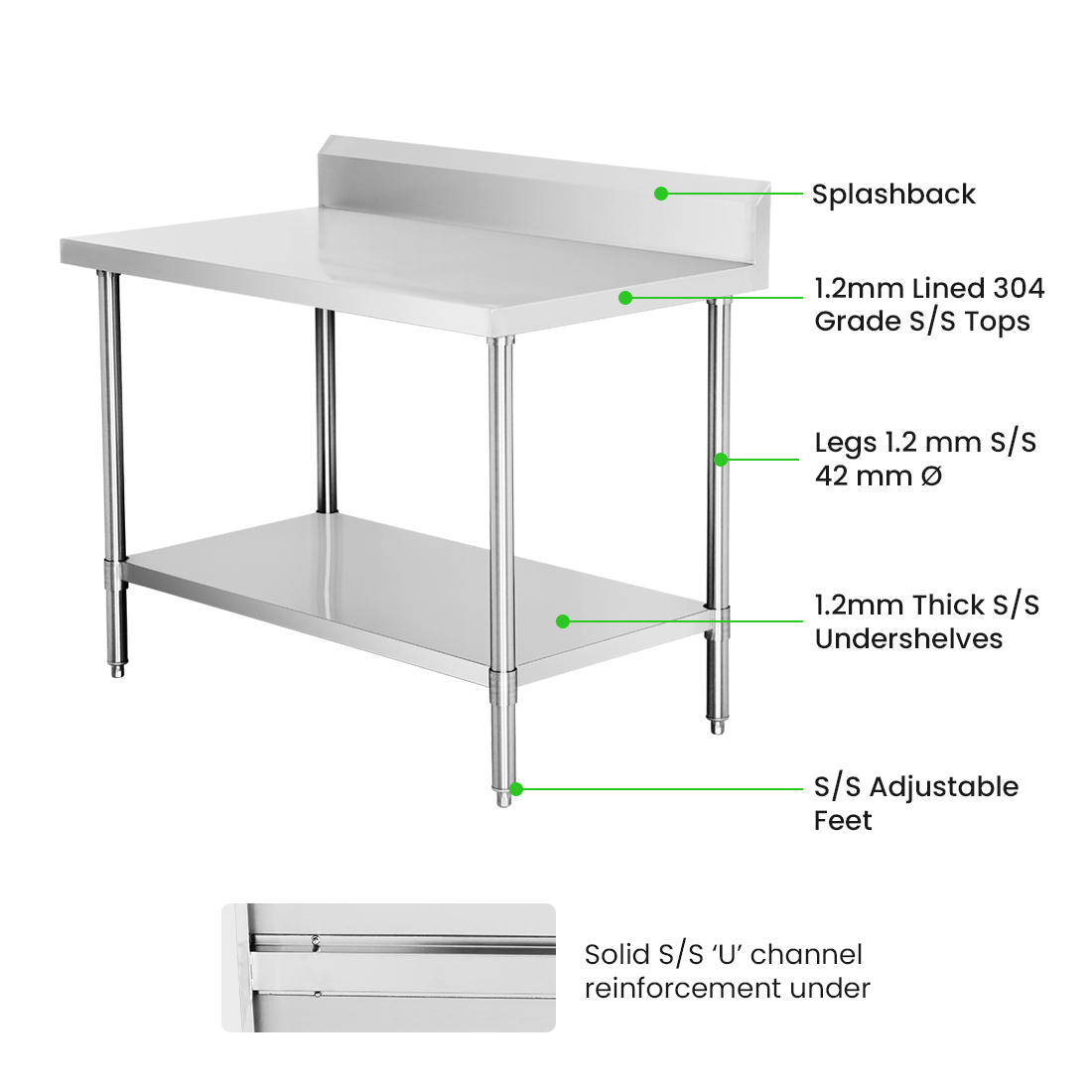

• All components manufactured from 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 20mm XPS board and stainless steel panel for a solid, non-hollow work surface
• Stainless steel U-channel reinforcements under the benchtop; number of channels increases with bench width

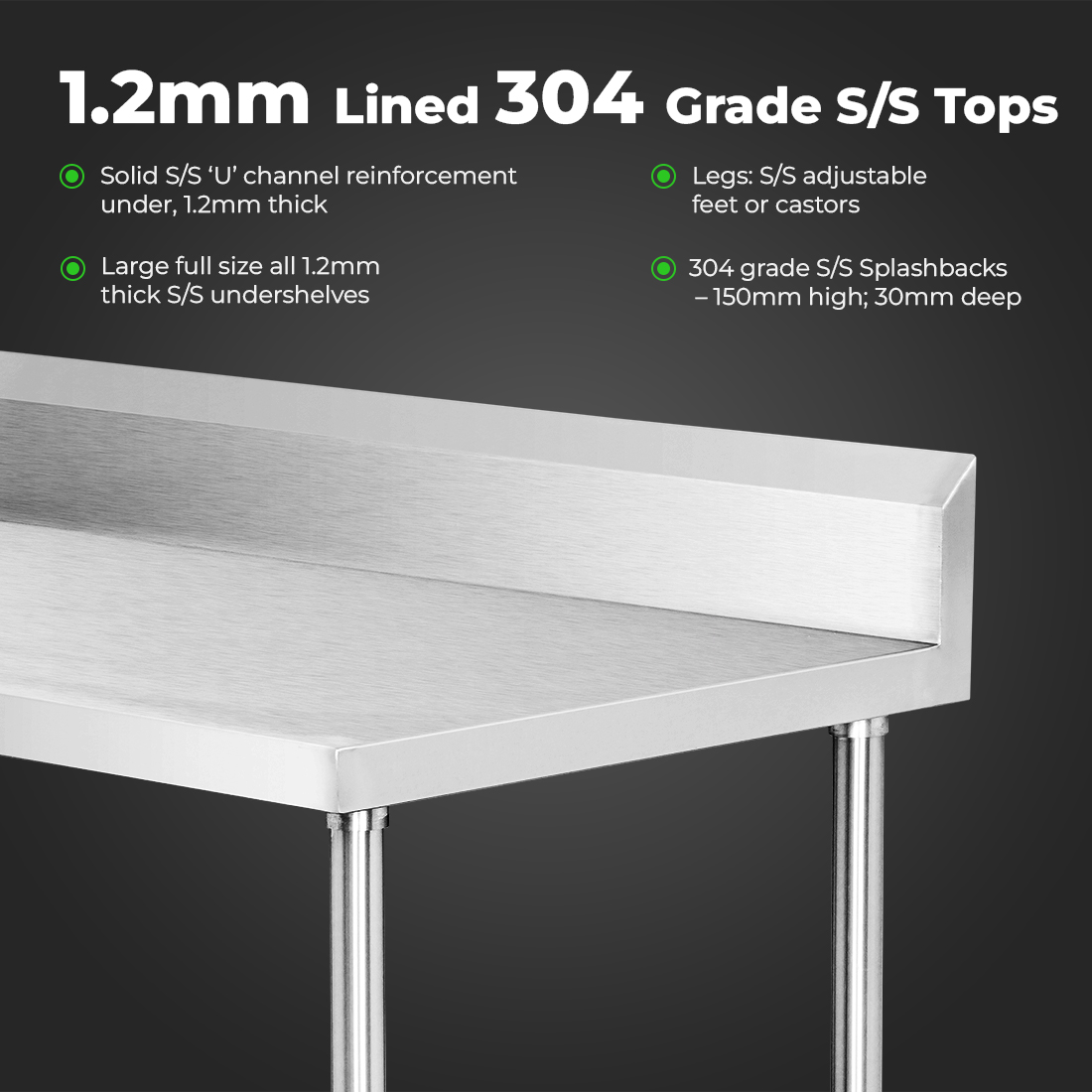

• Splashback: 150mm high, 30mm thick, all S/S lined and bevelled, fully enclosed and folded under the top (not galvanised or open-backed)

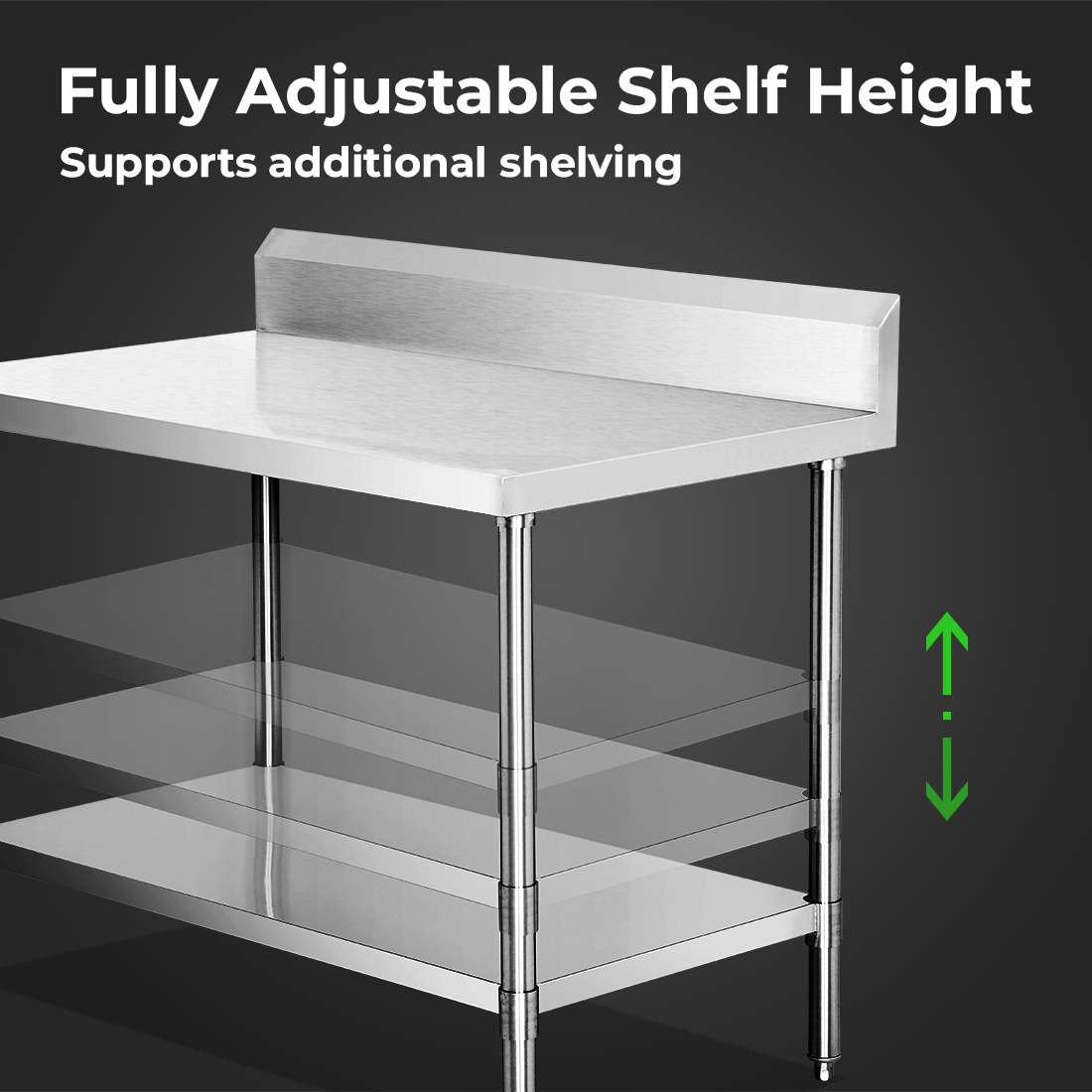

• Solid stainless steel undershelf with height-adjustable positioning; an additional shelf can be added
• Undershelf reinforced with S/S U-channel bracing sized to suit bench type and width
• Legs: 42mm diameter, 1.2mm stainless steel tube, with fully adjustable polished stainless steel disc feet
• 4 legs standard on this bench width
• Lockable castor kits available as an optional accessory
• Free optional leg brace available as a substitute for the solid undershelf; must be specified on the purchase order
• Optional locking drawers available; refer to Stainless Steel Accessories range
• Supplied flat-packed for ease of transport and logistics
• Includes instruction manual and all tools required for assembly
• Designed for quick and simple self-assembly
• Weight: 38.6kg
• Packed dimensions: 770mm wide x 870mm deep x 275mm high
• 2-year parts-only warranty

Specifications

• Width (mm): 1000
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 38.6
• Packed Width (mm): 770
• Packed Depth (mm): 870
• Packed Height (mm): 275
• Shipping Weight: 32
• Warranty (months): 2 Years Parts Only
