Modular Systems WBB7-0450/A Workbench Infill with Splashback

Modular Systems WBB7-0450/A Stainless Steel Workbench Infill with Splashback and Solid Undershelf – 450mm Wide

The Modular Systems WBB7-0450/A is a 450mm wide all-stainless-steel workbench infill designed for integration into modular bench runs in commercial kitchens, cafés, restaurants, and catering facilities. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it features a benchtop lined with 20mm XPS board and a stainless steel panel for added rigidity, 'U' channel reinforcements beneath the surface, a solid adjustable undershelf, and a 150mm high stainless steel splashback to protect walls from splatter and spills.

Supplied flat-packed with an instruction manual and all necessary tools, this bench is engineered for quick and straightforward assembly, making it practical to transport and install without specialist labour. Adjustable polished stainless steel disc feet allow precise levelling on uneven floors, while optional lockable castor kits and locking drawers provide further flexibility to suit varying kitchen layouts and workflow requirements. A two-year parts-only warranty backs the unit for reliable long-term use.

Key Benefits

• Flat-pack delivery with included tools and instruction manual makes transport easy and assembly fast, minimising kitchen downtime during installation.
• SUS304 (18/8) stainless steel construction throughout resists corrosion and withstands the rigours of high-volume food service environments, reducing long-term maintenance needs.
• XPS board and stainless steel panel lining the benchtop, combined with 'U' channel reinforcements beneath, deliver a rigid, heavy-duty work surface that resists flex under load.
• Integrated 150mm high stainless steel splashback shields walls from moisture and food splatter, supporting hygienic kitchen standards.
• Fully adjustable solid undershelf with its own 'U' channel reinforcements maximises under-bench storage and can be repositioned or supplemented with an additional shelf as needs change.
• Fully adjustable polished stainless steel disc feet enable precise levelling on uneven surfaces, keeping the bench stable and compliant with food safety requirements.
• Optional lockable castor kits allow the bench to be relocated easily for cleaning or reconfiguration of the kitchen layout.
• Optional locking drawers and a free optional leg brace (in lieu of solid shelf) offer customisation to suit specific operational needs; simply specify on the purchase order.
• Modular design integrates seamlessly into wider bench configurations, with leg quantities scaling appropriately for 2100mm and 2400mm wide runs.

Key Features

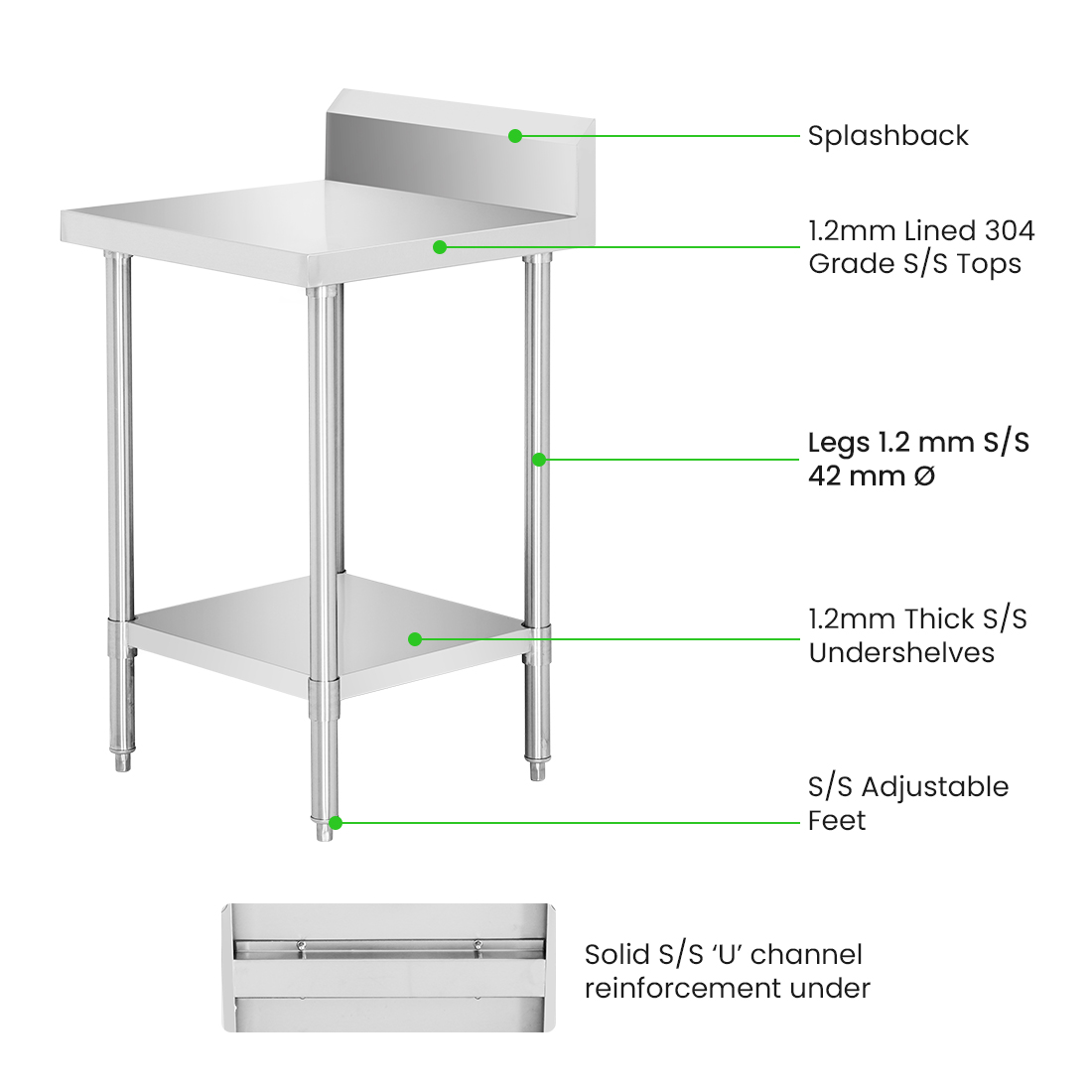

• Dimensions: 450mm wide x 700mm deep x 900mm high.

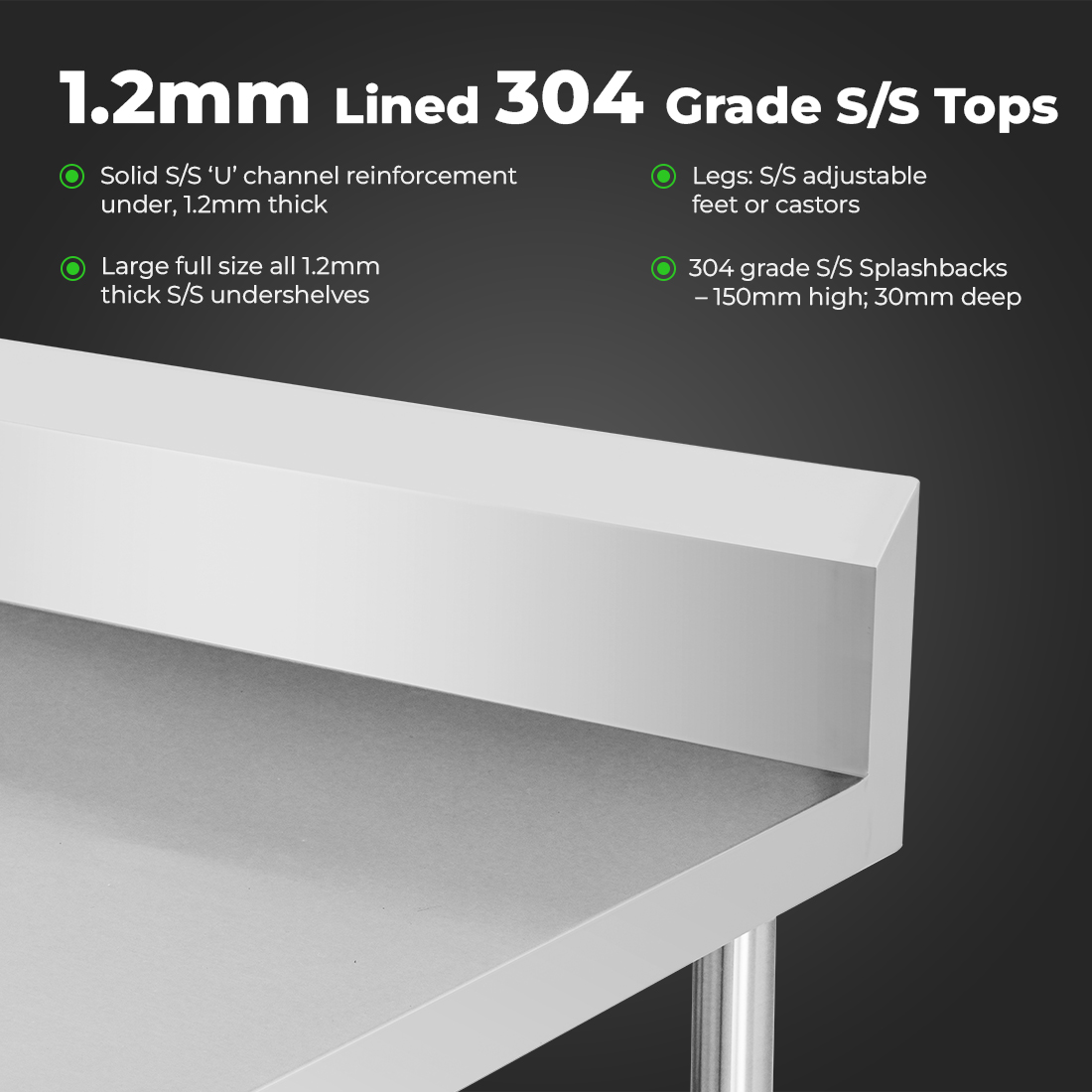

• All-stainless-steel construction using 1.2mm SUS304 (18/8) material throughout benchtop, undershelf, legs, and splashback.
• Benchtop lined with 20mm thick XPS board and a stainless steel panel for strength and insulation.
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width.
• Solid undershelf in 1.2mm stainless steel with 'U' channel reinforcements sized to bench type; channel width increases with bench size.

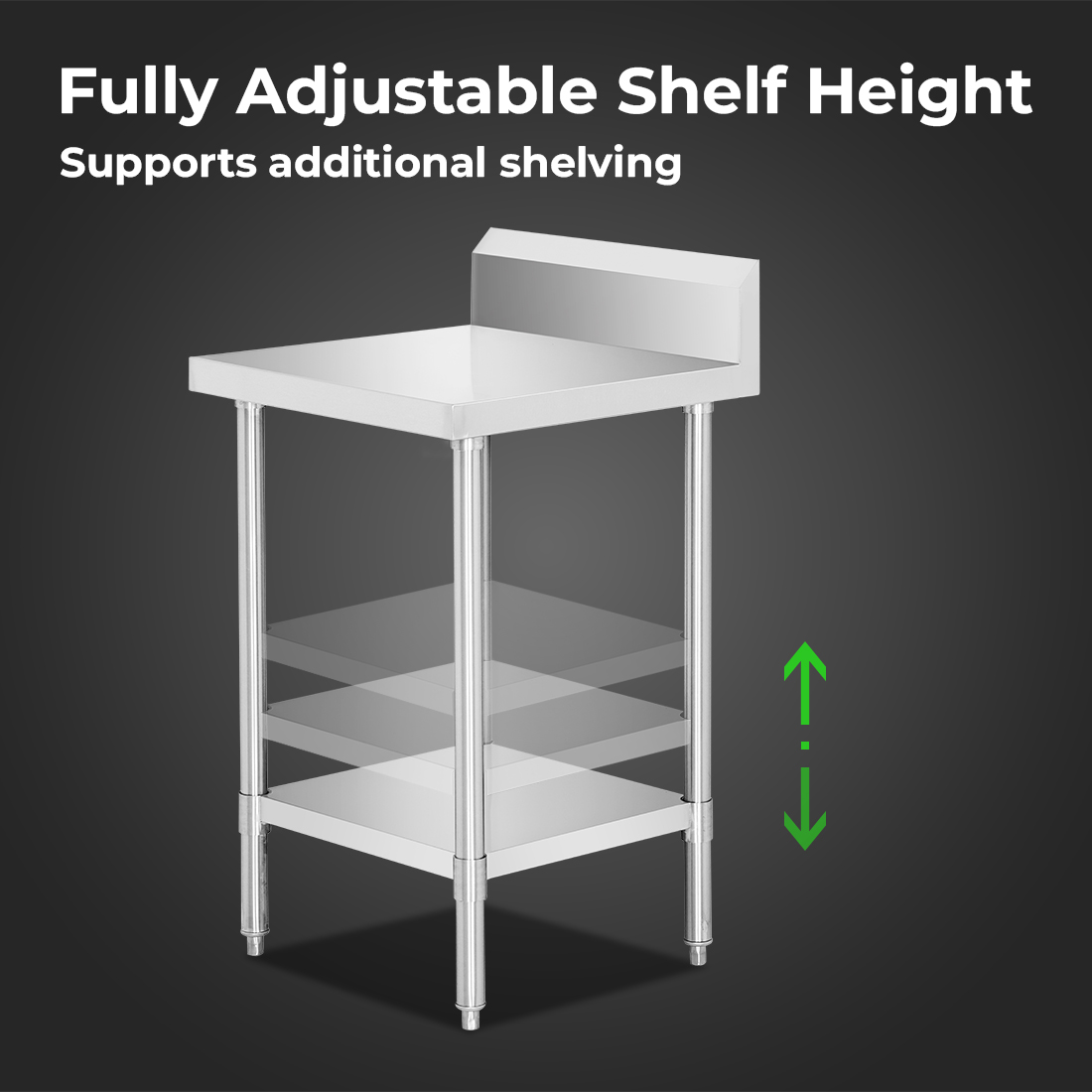

• Undershelf height is fully adjustable; an additional shelf can be added for extra storage.
• Splashback: stainless steel backed, fully stainless-steel lined and bevelled, 150mm high and 30mm thick.
• Legs: 1.2mm stainless steel, 42mm diameter.
• Four legs per bench; benches in 2100mm and 2400mm widths include six legs.
• Fully adjustable polished stainless steel disc feet that complement the leg finish.
• Benchtop fully enclosed and folded under top construction (not galvanised or open).
• Supplied flat-packed for ease of transport; includes instruction manual and all required assembly tools.
• Optional lockable castor kits available for mobility.
• Optional locking drawers available as an accessory.
• Free optional leg brace available as an alternative to the solid undershelf; must be specified on purchase order.
• 2-year parts-only warranty.
• Weight: 23.5kg.
• Packed dimensions: 770mm wide x 930mm deep x 275mm high.

Specifications

• Width (mm): 450
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 23.5
• Packed Width (mm): 770
• Packed Depth (mm): 930
• Packed Height (mm): 275
• Shipping Weight: 23.5
• Warranty (months): 2 Years Parts Only
