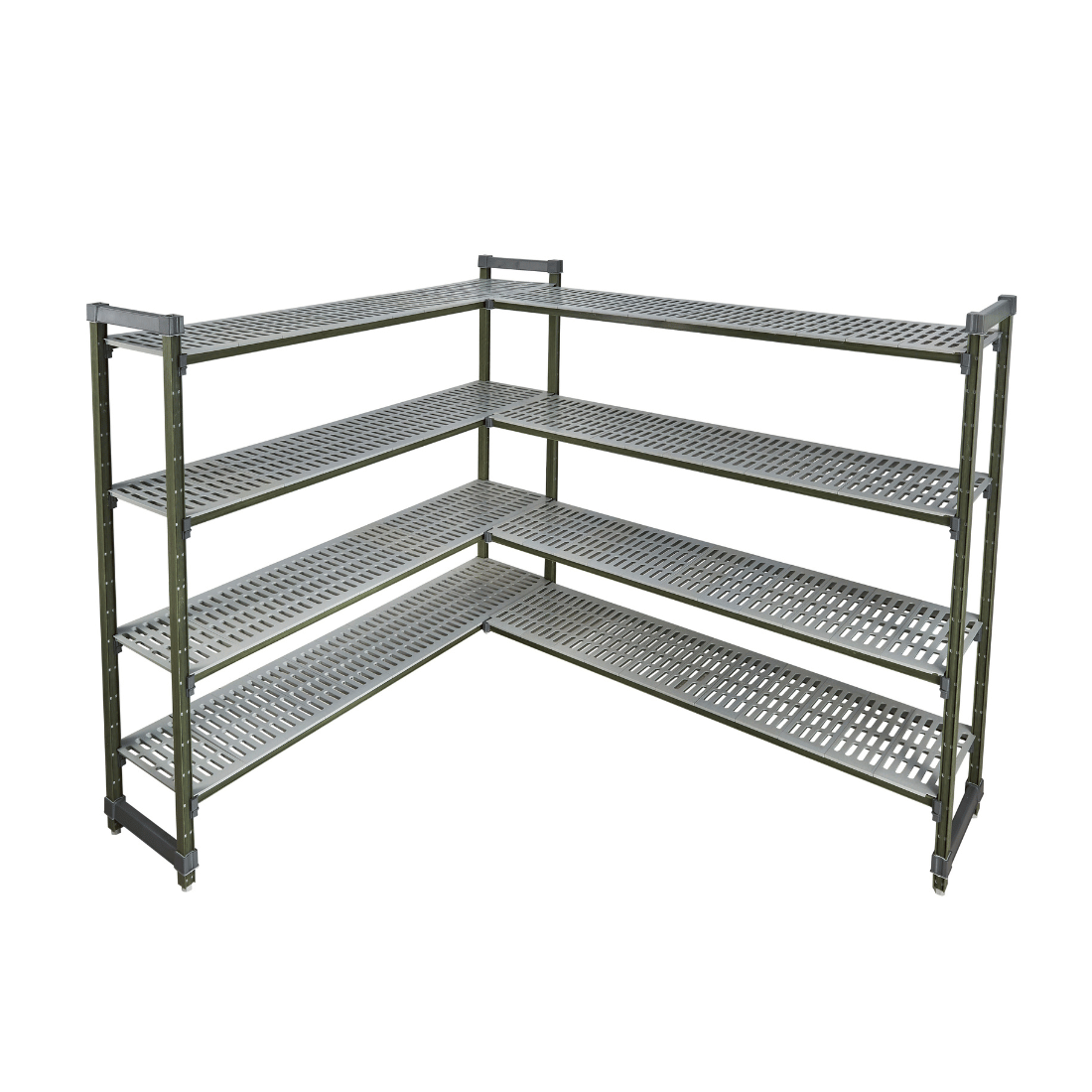

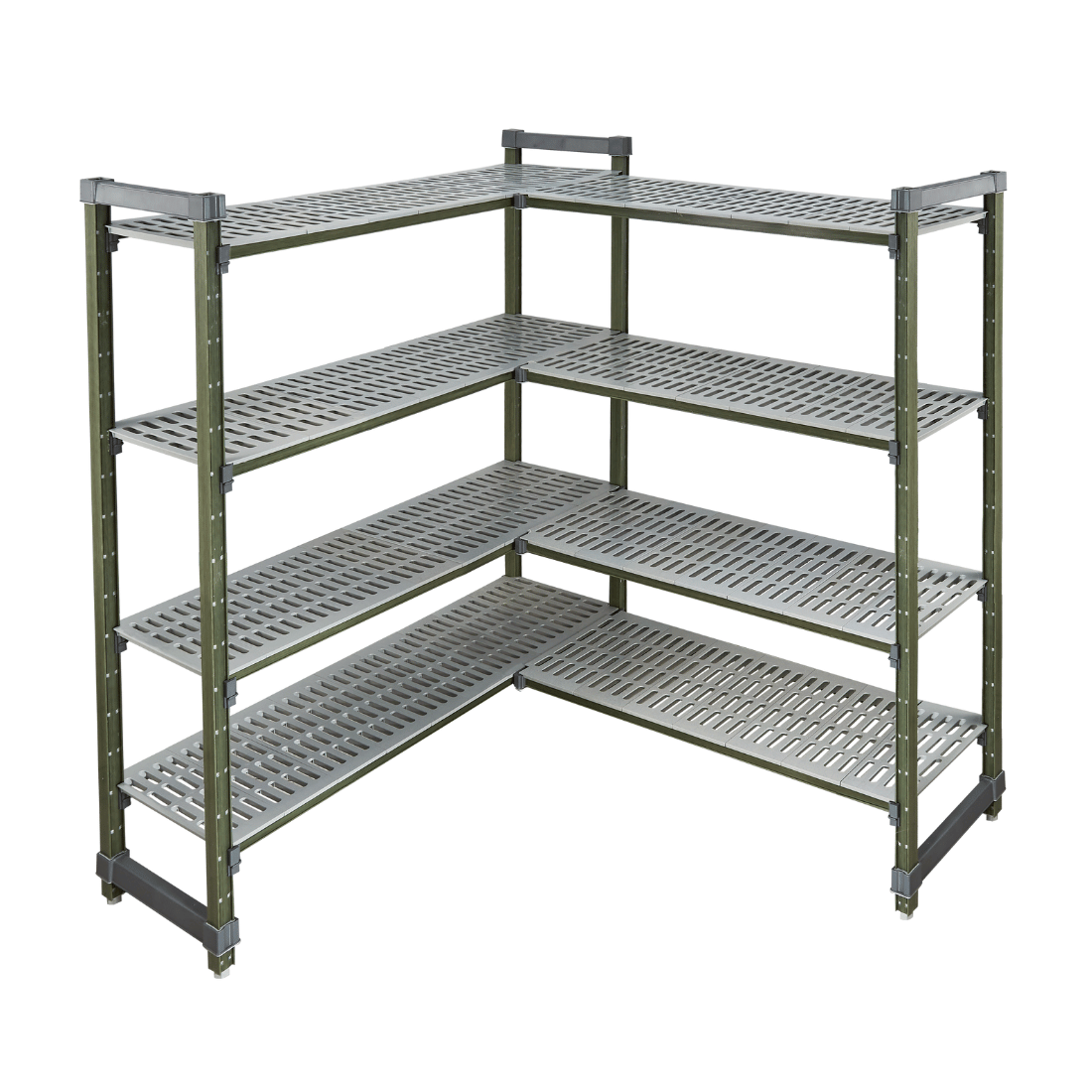

Modular Systems PCU24/72 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU24/72 Modular System Poly Coolroom Shelving Starter Kit

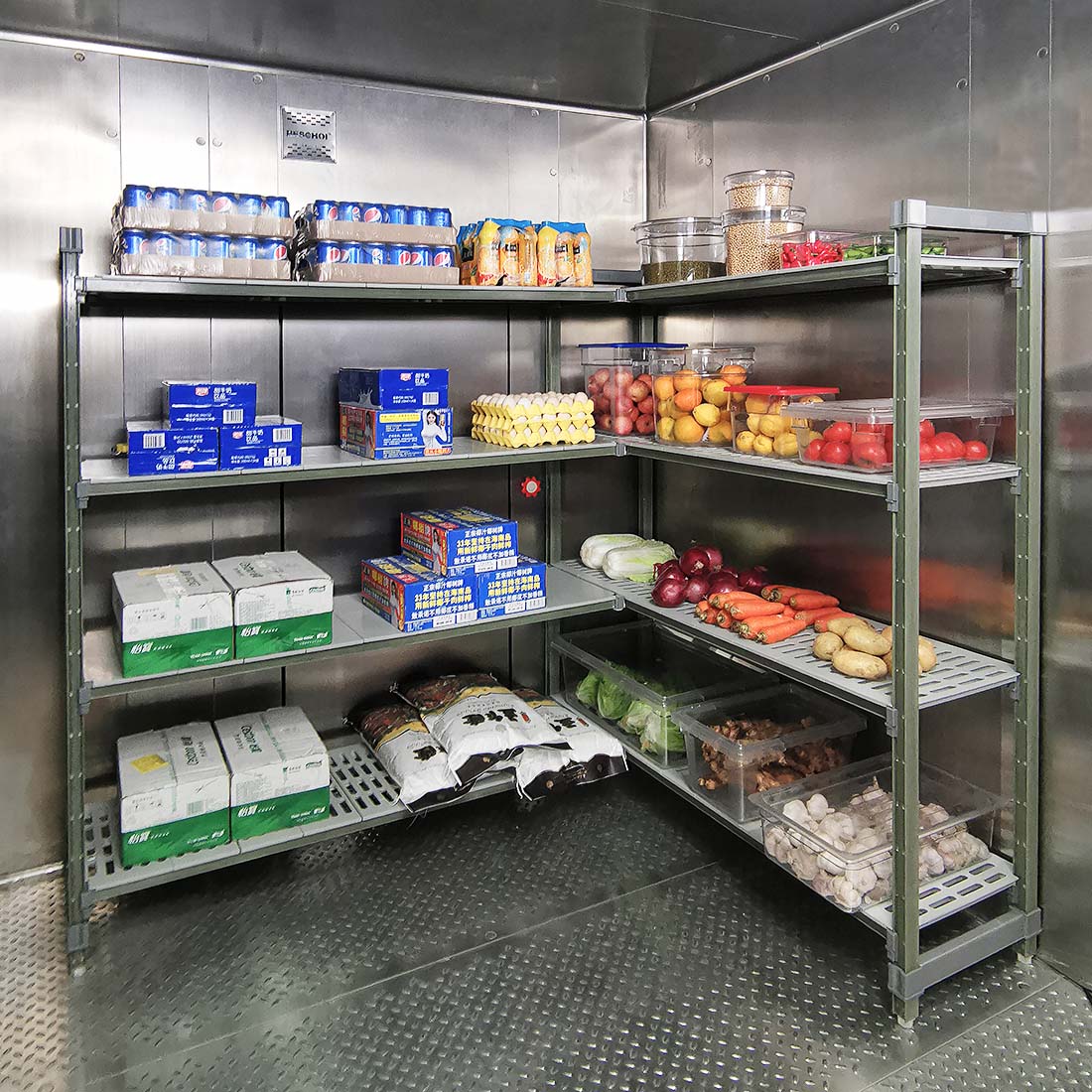

The Modular Systems PCU24/72 is a heavy-duty poly coolroom shelving starter kit engineered for commercial kitchens, coolrooms, freezers and foodservice operations. Built from poly-coated steel with vented shelf plates, it is designed to perform reliably across a wide temperature range of -30°C to 80°C, making it equally suited to freezer rooms, coolrooms and general wet kitchen environments.

The PCU24/72 is part of a modular, expandable shelving system that can be configured in multiple combinations and extended with compatible add-on bays or corner units. Each shelf plate is treated with an antibacterial agent, features a smooth easy-to-clean surface and is dishwasher safe, ensuring this starter kit meets the hygiene demands of professional food storage.

Key Benefits

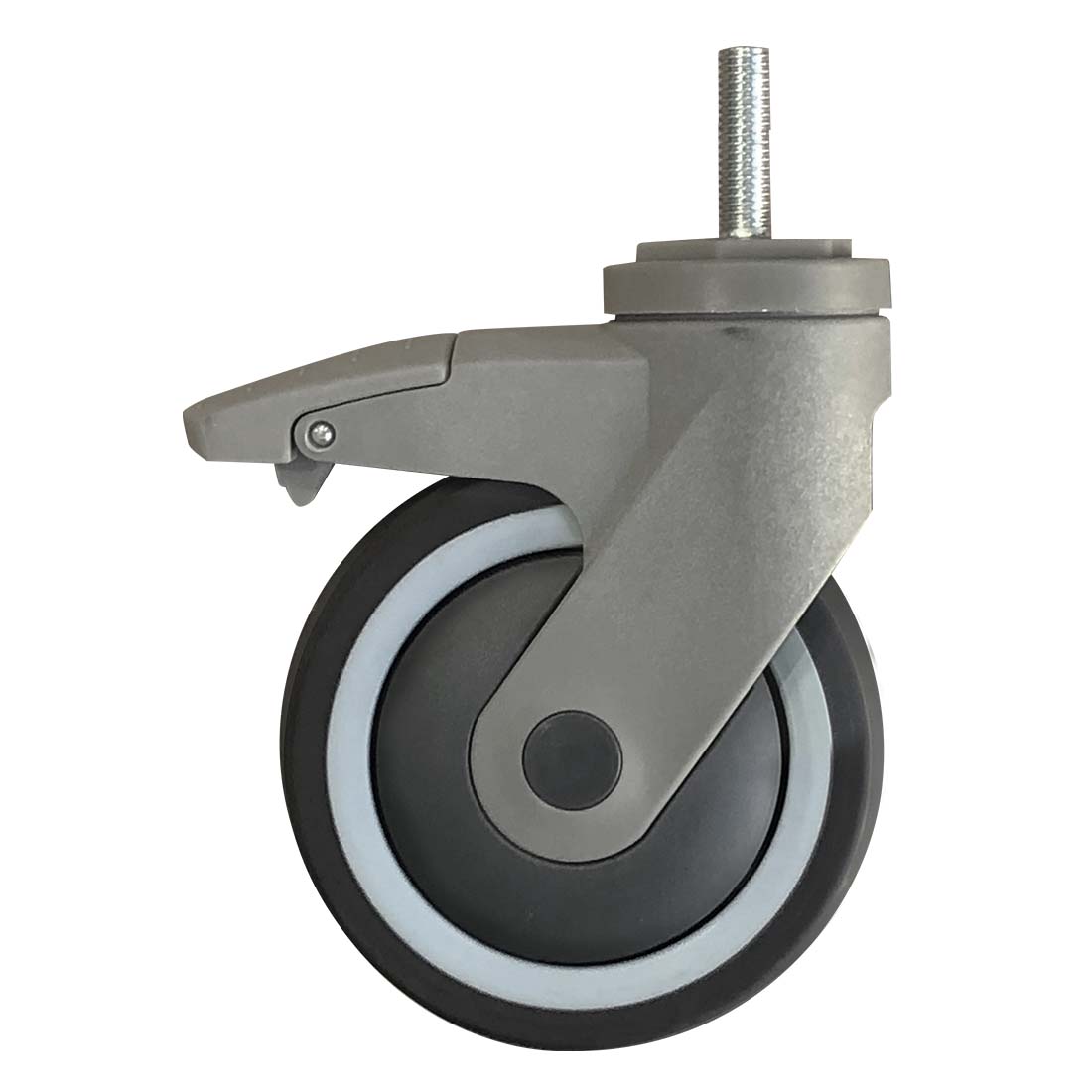

• Handles demanding load requirements with a per-shelf capacity of 250 kg (200 kg for corner units) and a total mobile unit capacity of 300 kg, supporting heavy commercial stock.
• Temperature-rated from -30°C to 80°C, making it a reliable choice for both freezer rooms and coolrooms without risk of warping or structural failure.
• Vented shelf plates promote free airflow around stored product, helping maintain consistent temperatures and minimising condensation in refrigerated environments.
• Antibacterial-treated shelf plates and a smooth, non-porous surface reduce microbial growth and make cleaning fast and straightforward.
• Dishwasher-safe shelves simplify the sanitation process, saving time and labour during routine cleaning cycles.
• Buckle-fit design allows tool-free installation, height adjustment and reconfiguration without specialist equipment or technical knowledge.
• Notch-embedded posts and adjustable feet provide a stable, level setup on uneven coolroom floors.
• Mould-proof, fungus-proof and rust-proof construction ensures long service life in wet, humid refrigerated environments.
• Modular and expandable design means the starter kit can grow with your operation by connecting additional bays or corner units as storage needs change.

Key Features

• Poly-coated steel construction with vented shelf plates for airflow and corrosion resistance
• Shelf plates treated with an antibacterial agent for enhanced food safety and hygiene
• Per-shelf load capacity of 250 kg (200 kg for corner units); total mobile unit capacity of 300 kg
• Operating temperature range of -30°C to 80°C, suitable for freezer rooms, coolrooms and wet kitchens
• Dishwasher-safe shelf plates for easy, thorough sanitation
• Smooth, easy-to-clean shelf surface minimises food residue build-up

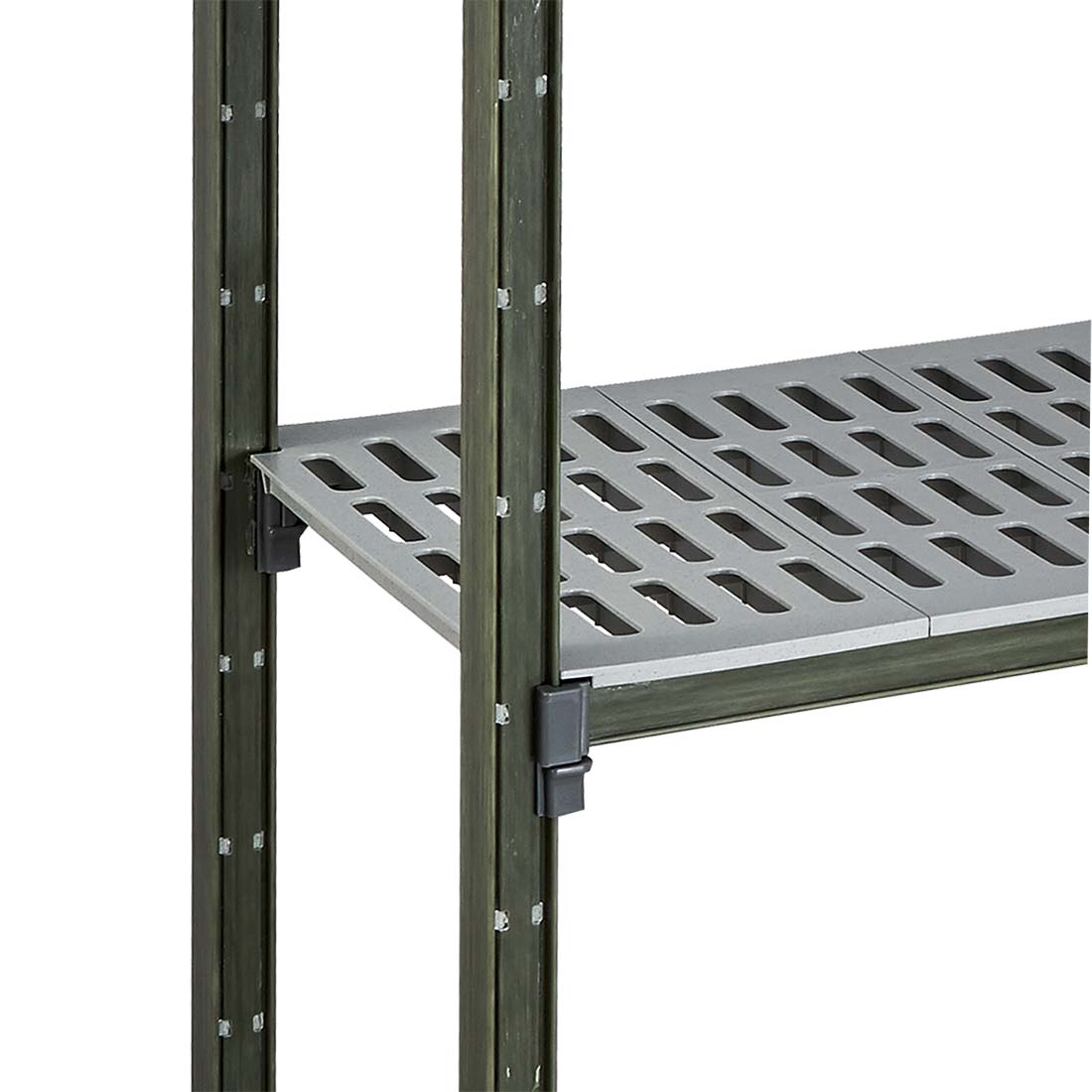

• Notch-embedded posts allow precise, tool-free shelf height adjustment

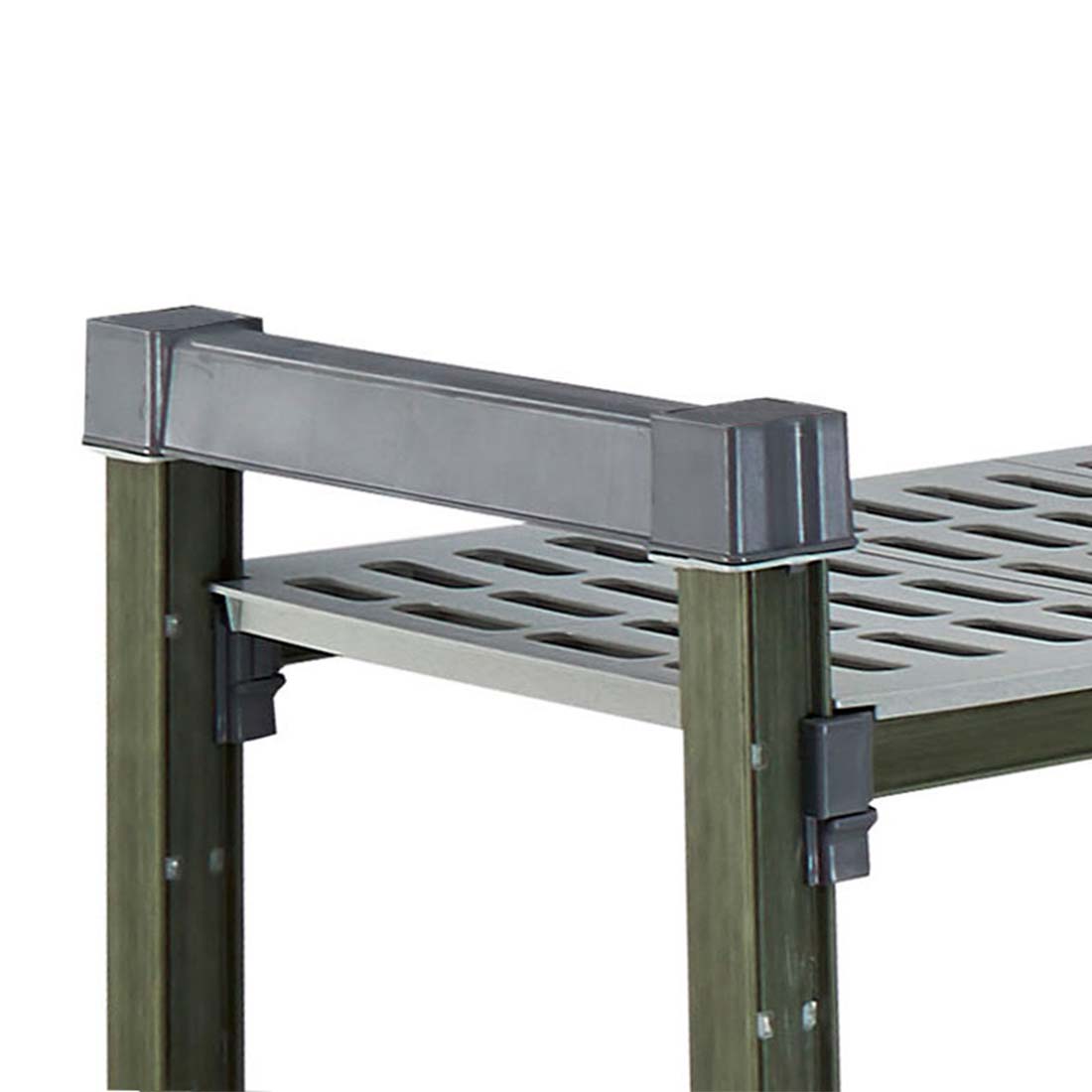

• Buckle design enables simple installation, reconfiguration and expansion
• Adjustable feet for stable placement on uneven surfaces
• Mould-proof, fungus-proof and rust-proof materials suited to humid, wet environments
• Modular system compatible with multiple configurations, add-on bays and corner units for scalable storage
• Environmentally friendly materials and construction
• Dimensions: 1825 mm (W) x 610 mm (D) x 1800 mm (H); weight 45.41 kg
• 24-month parts-only warranty

Specifications

• Width (mm): 1825
• Depth (mm): 610
• Height (mm): 1800
• Weight (kg): 45.41
• Packed Width (mm): 700
• Packed Depth (mm): 1900
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
