Modular Systems PCU24/48 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU24/48 Modular System Poly Coolroom Shelving Starter Kit

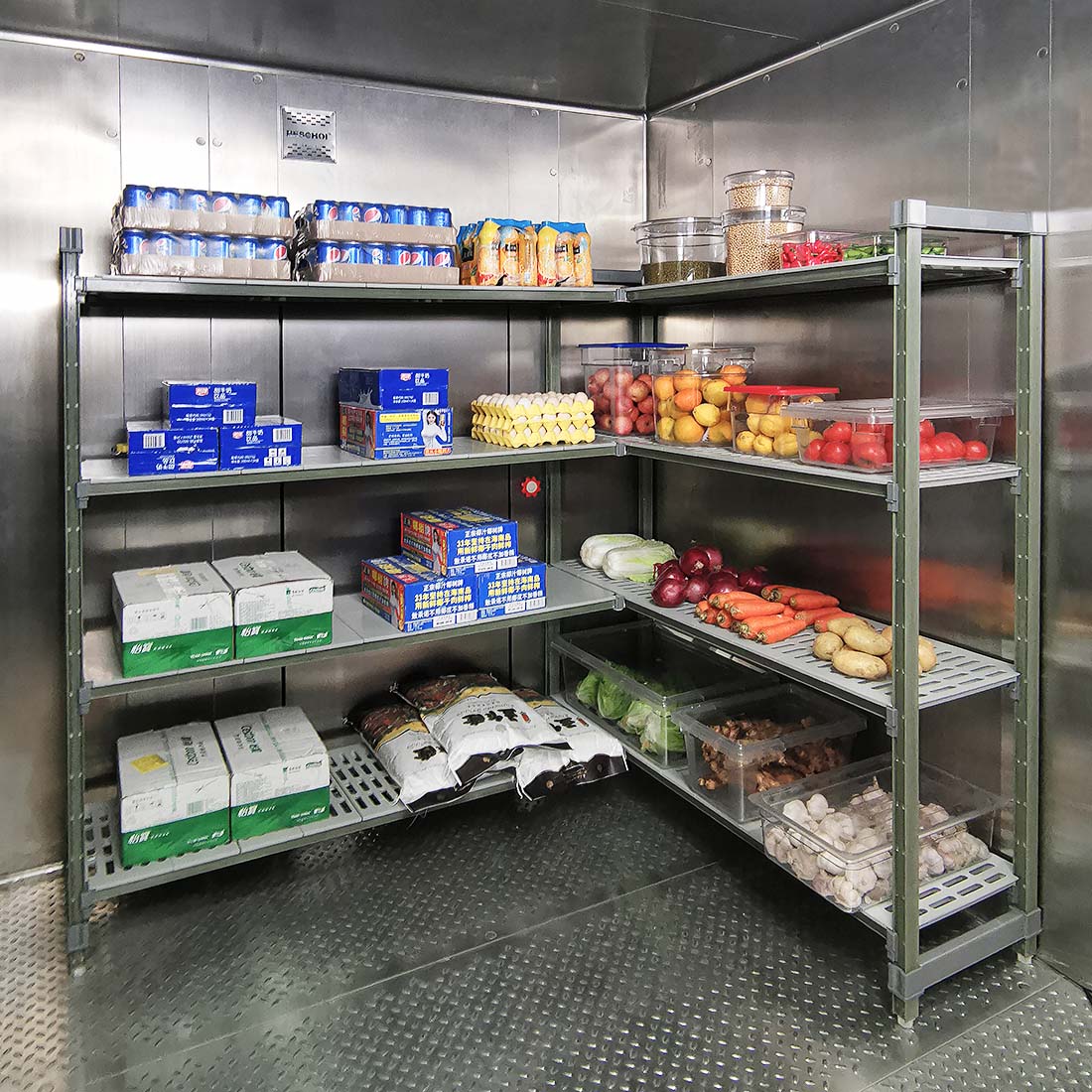

The Modular Systems PCU24/48 is a poly-coated steel coolroom shelving starter kit engineered for demanding commercial refrigeration environments. Built with vented shelf plates treated with an antibacterial agent and supported by notch-embedded posts, this system delivers reliable hygienic storage across coolrooms, freezers and wet kitchen applications, with a rated operating temperature range of -30°C to 80°C.

Designed for flexibility and ease of use, the PCU24/48 features a buckle-based assembly system that allows tool-free installation and straightforward shelf height adjustment without specialist tools. Its modular format is compatible with add-on kits and corner units, so the system can be expanded or reconfigured as storage demands change, making it a practical long-term investment for restaurants, cafés, butchers, supermarkets and catering operations.

Key Benefits

• Antibacterial shelf plates and mould-proof, fungus-proof, rust-proof construction maintain strict hygiene standards in wet and refrigerated environments.
• Vented shelf panels promote consistent airflow throughout the coolroom, helping maintain even temperatures and reducing condensation around stored produce.
• Each shelf supports up to 250 kg (200 kg for corner units), and the complete mobile unit set carries up to 300 kg, providing substantial capacity for heavy commercial loads.
• Buckle-based snap-fit design allows fast, tool-free assembly and easy shelf height adjustment, minimising downtime during setup or reconfiguration.
• Temperature tolerance from -30°C to 80°C makes the system equally suitable for freezer rooms, coolrooms and ambient food storage areas.
• Smooth, easy-to-clean surfaces combined with dishwasher-safe shelf plates simplify routine sanitation and reduce labour time.
• Adjustable feet compensate for uneven flooring, keeping the unit level and stable on varied coolroom surfaces.

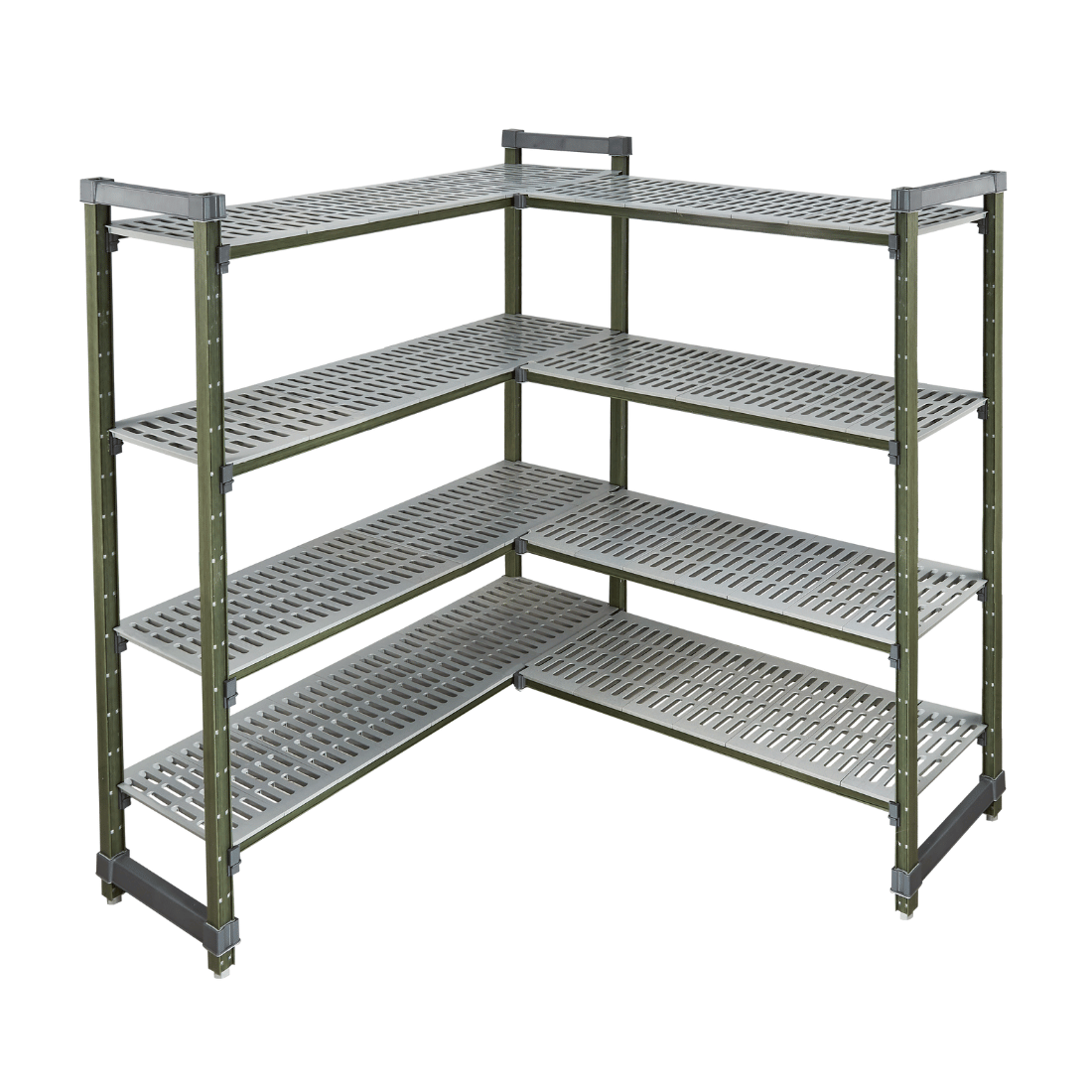

• Modular architecture is compatible with add-on kits and corner connectors, enabling a fully customised storage layout that scales with business growth.

Key Features

• Poly-coated steel frame construction with vented shelf plates for durability and airflow.
• Shelf plates incorporate an antibacterial agent for enhanced food safety compliance.

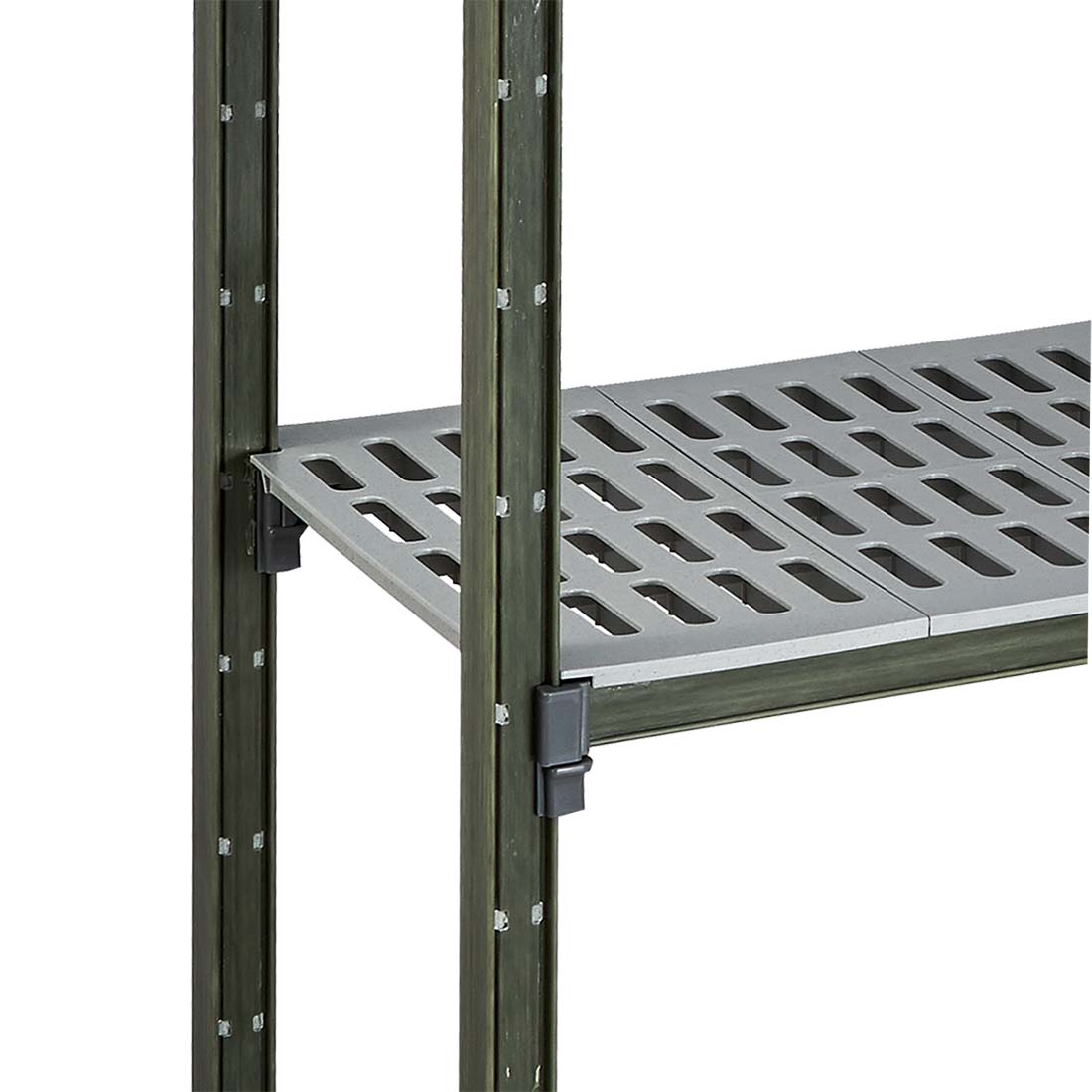

• Notch-embedded posts allow precise, incremental shelf height adjustment.

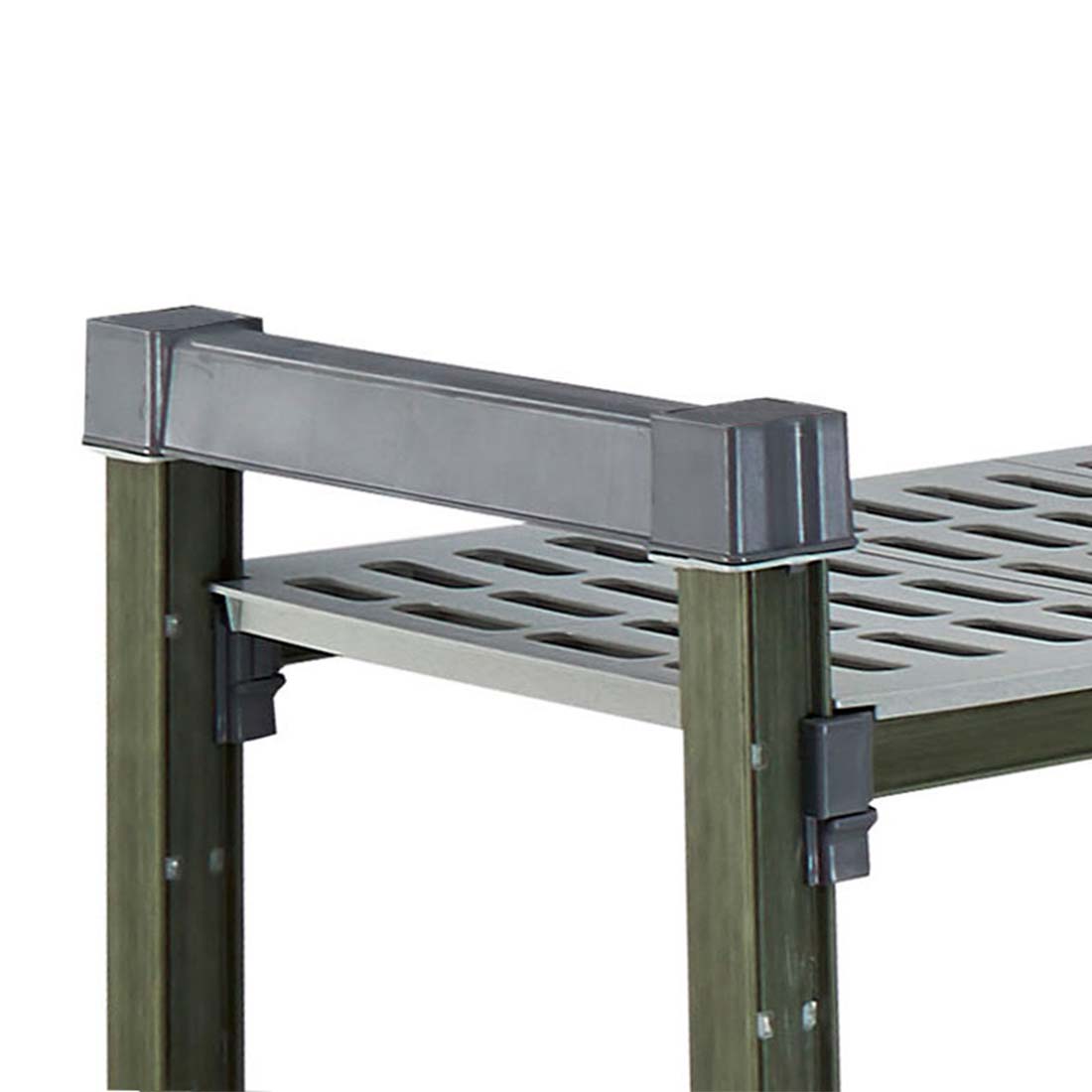

• Buckle-fit assembly system requires no tools for installation or reconfiguration.
• Operating temperature range of -30°C to 80°C, suitable for freezer and coolroom use.

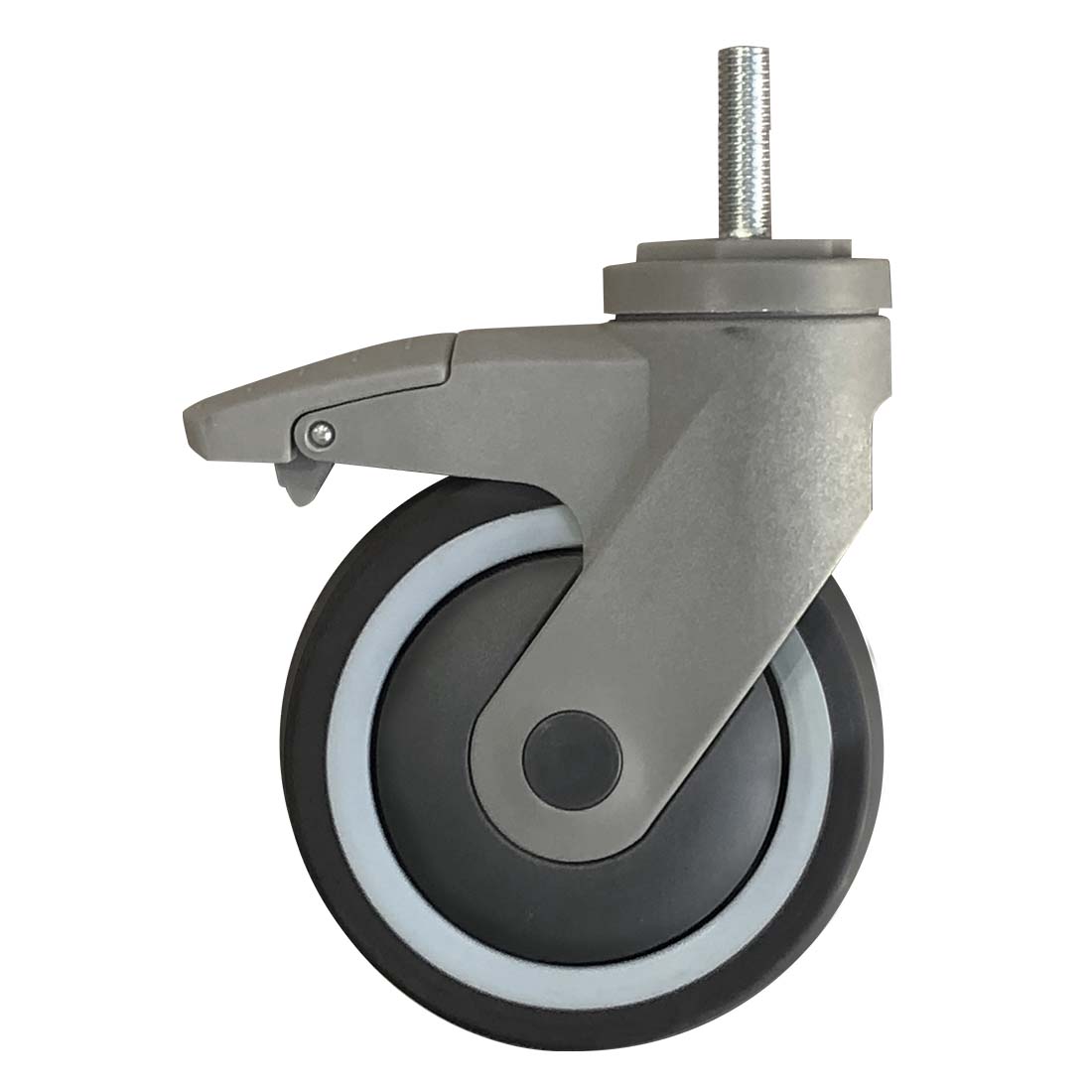

• Per-shelf load capacity of 250 kg (200 kg on corner unit shelves); total mobile unit capacity of 300 kg.
• Mould-proof, fungus-proof and rust-proof materials rated for wet kitchen environments.
• Dishwasher-safe shelf plates for straightforward deep cleaning.
• Adjustable feet to accommodate uneven floors.

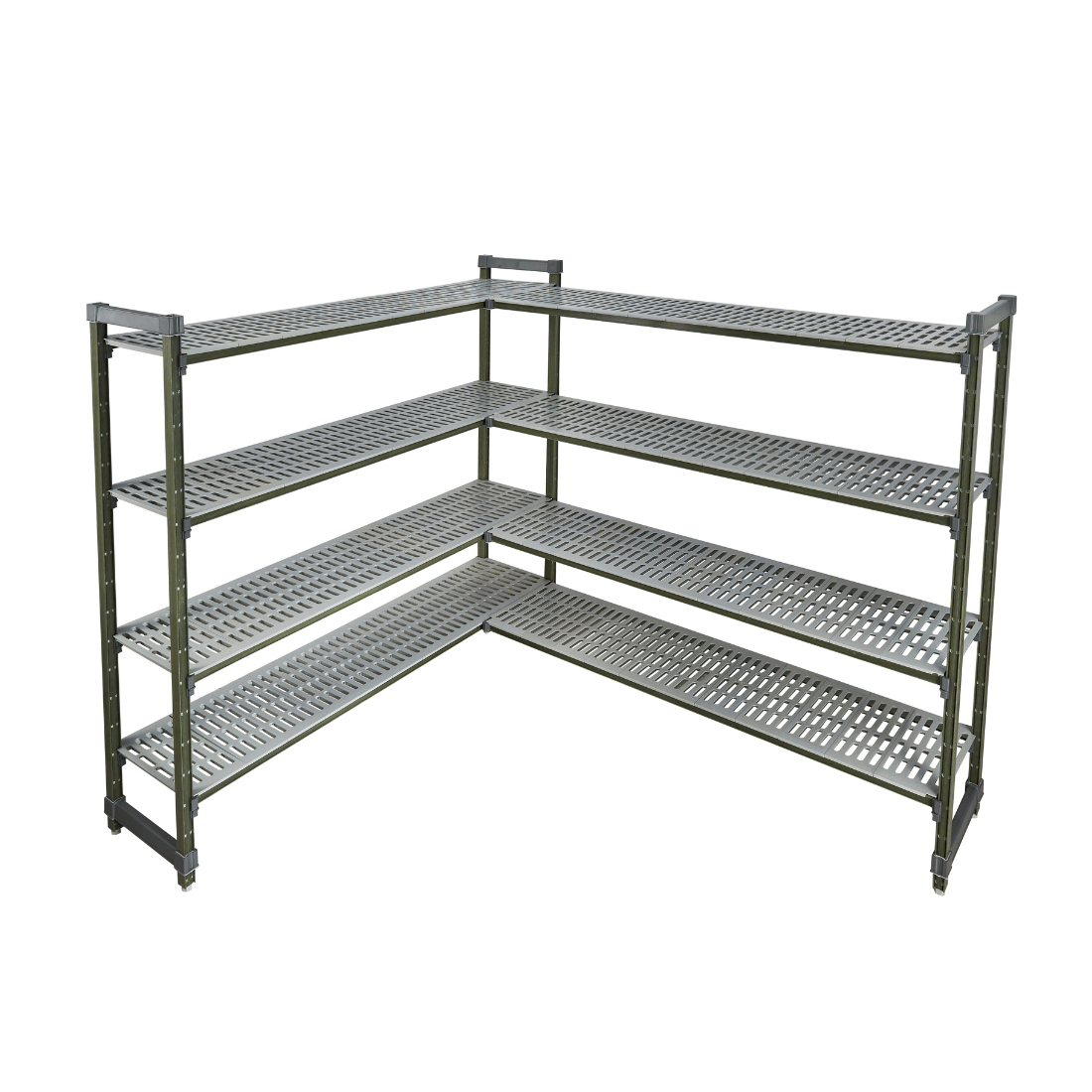

• Designed for multiple combinations and compatible with add-on and corner kits for modular expansion.
• Environmentally friendly materials used throughout construction.
• 24-month parts-only warranty.
• Dimensions: 1220 mm wide x 610 mm deep x 1800 mm high; unit weight 37.67 kg.

Specifications

• Width (mm): 1220
• Depth (mm): 610
• Height (mm): 1800
• Weight (kg): 37.67
• Packed Width (mm): 700
• Packed Depth (mm): 1300
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
