Modular Systems PCU24/36 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU24/36 Modular System Poly Coolroom Shelving Starter Kit

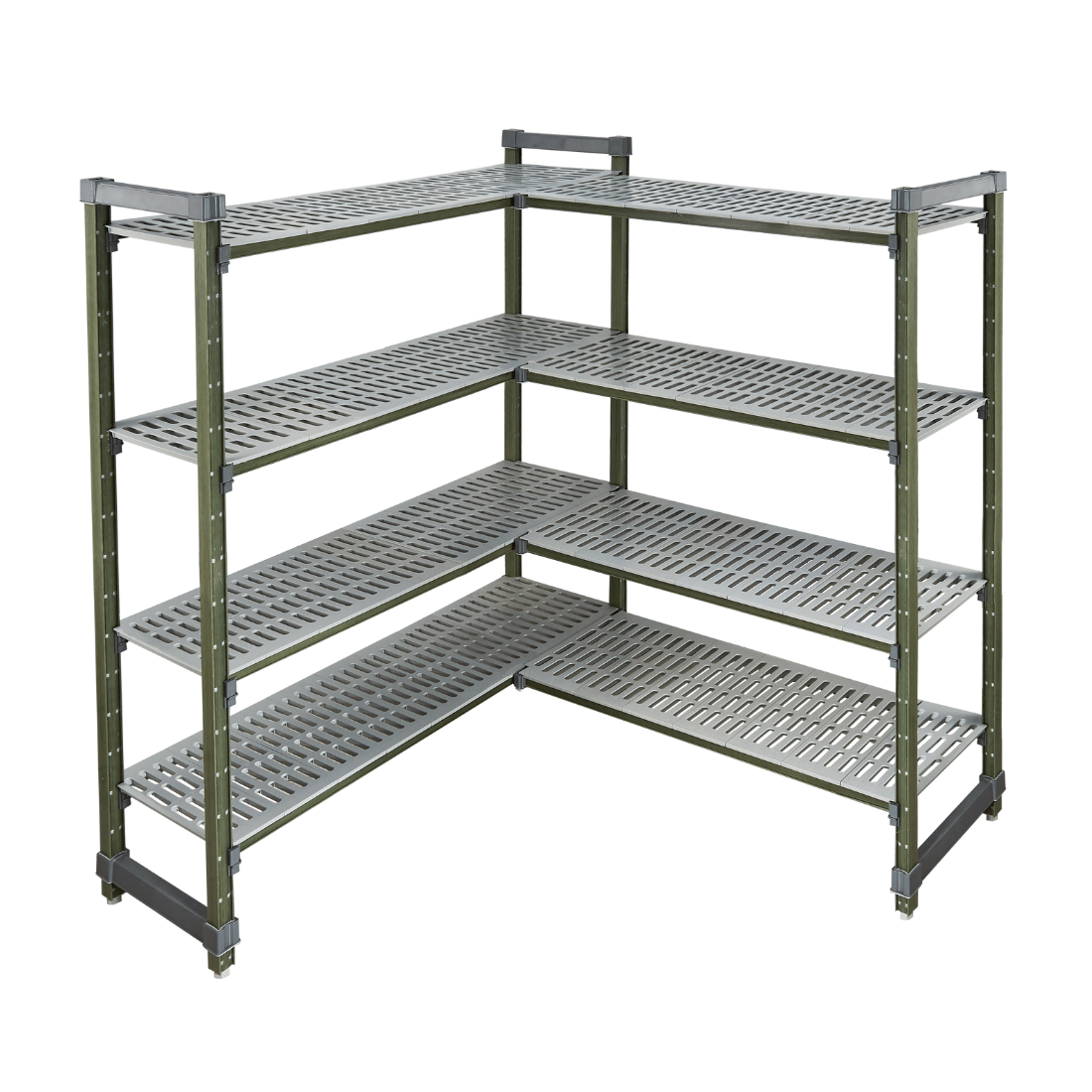

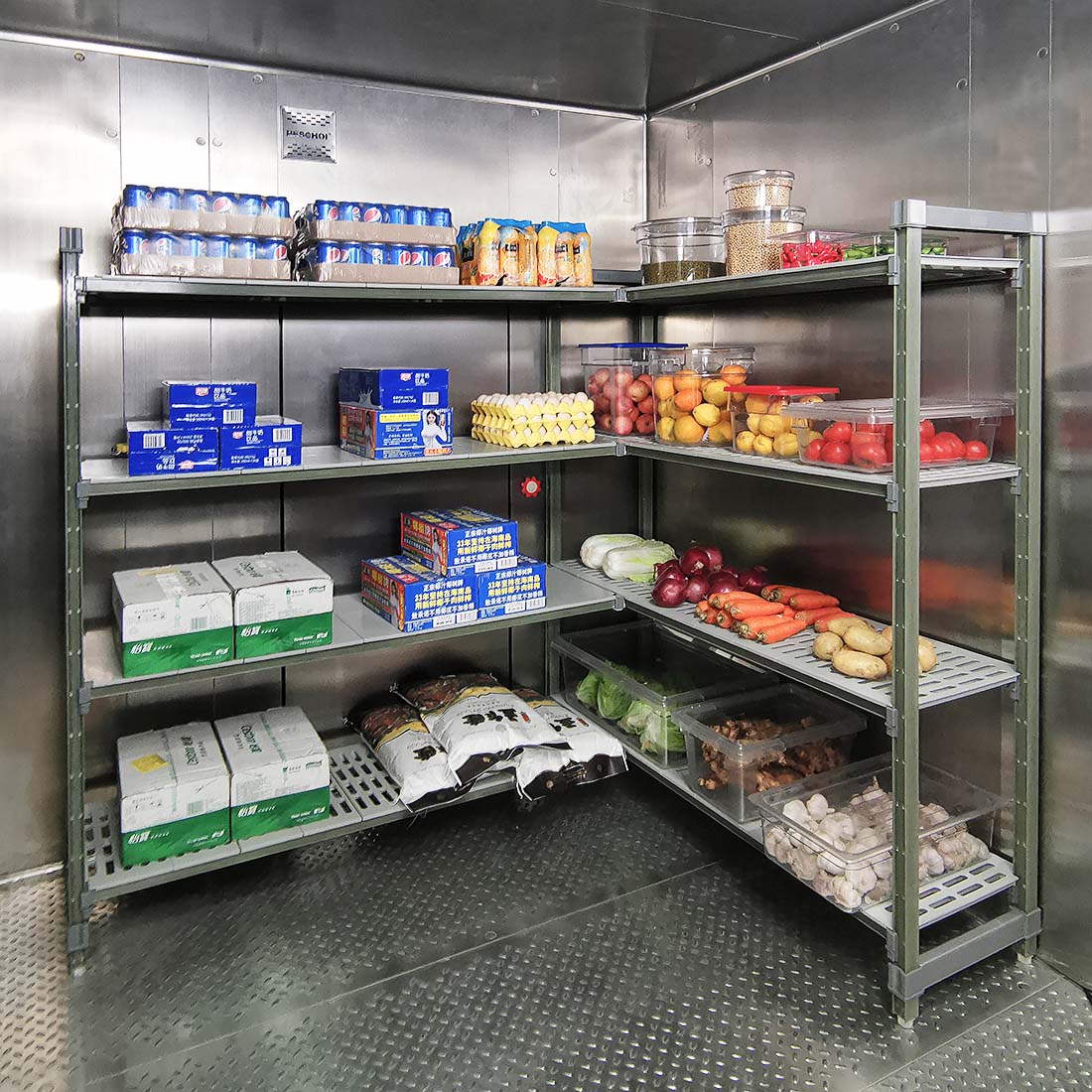

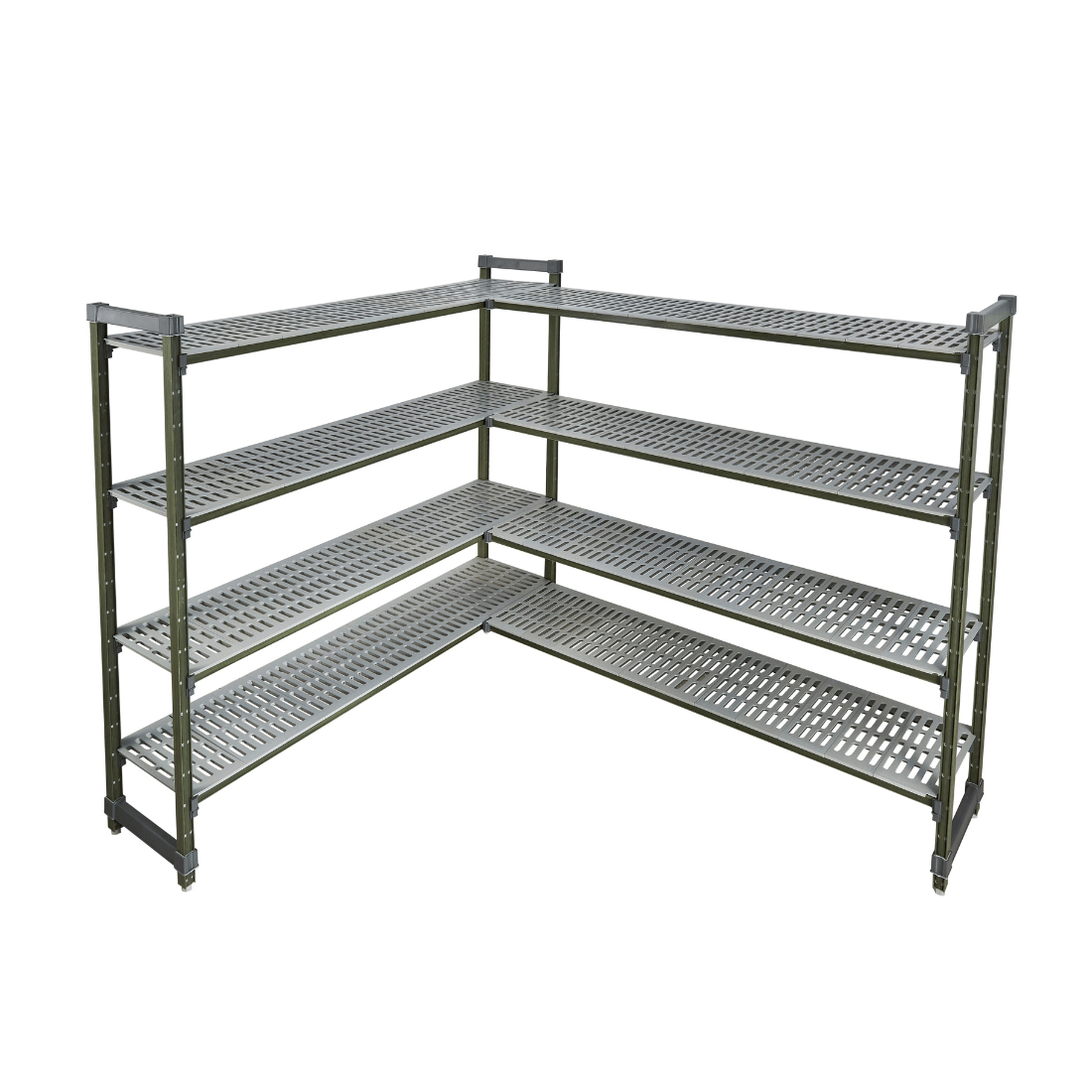

The Modular Systems PCU24/36 is a poly-coated steel coolroom shelving starter kit engineered for demanding commercial refrigeration environments. Built from innovative polymer-coated materials with vented shelf panels, it delivers reliable hygienic storage across coolrooms, freezers and wet kitchen areas, operating in temperatures ranging from -30°C to 80°C.

Designed for flexibility and ease of use, the PCU24/36 features a notch-embedded post system and buckle-fit connectors that allow tool-free installation and straightforward shelf height adjustment. Its modular configuration supports expansion with add-on and corner kits, making it a scalable solution for restaurants, cafés, butchers, supermarkets and other commercial food service operations.

Key Benefits

• Operates reliably in temperatures from -30°C to 80°C, making it suitable for both freezer and coolroom environments as well as heated storage areas.
• Each shelf supports up to 250 kg (200 kg for corner units), with a total mobile unit capacity of 300 kg, providing robust load-bearing performance for high-volume storage.
• Mould-proof, fungus-proof and corrosion-resistant construction ensures long-term hygiene and durability in wet and humid commercial kitchen conditions.
• Antibacterial agent incorporated into the shelf plates actively supports food safety standards in cold and wet storage environments.
• Vented shelf panels promote airflow and help maintain consistent temperature distribution throughout the unit, protecting stored food and ingredients.
• Dishwasher-safe shelf plates simplify cleaning and reduce labour time during kitchen sanitation routines.
• Buckle-fit and notch-embedded post design allows fast, tool-free assembly as well as simple shelf height reconfiguration to suit changing storage needs.
• Modular system is expandable with add-on kits and corner connectors, enabling a fully customised and adaptable storage layout.
• Adjustable feet provide stability on uneven coolroom floors and assist with levelling across different installation surfaces.

Key Features

• Poly-coated steel frame construction with vented shelf panels for airflow and temperature consistency.
• Shelf plates incorporate an antibacterial agent for enhanced hygiene in food storage applications.

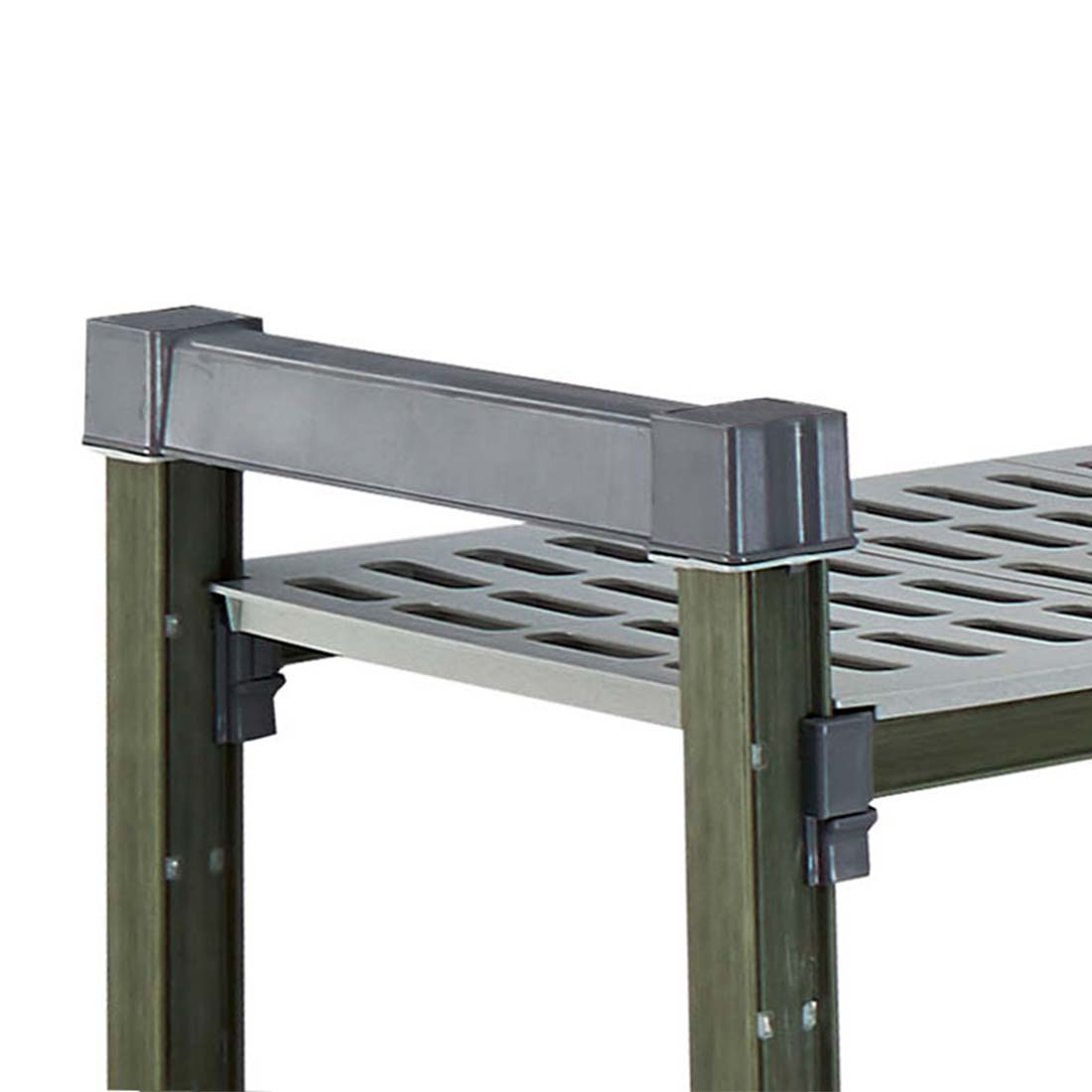

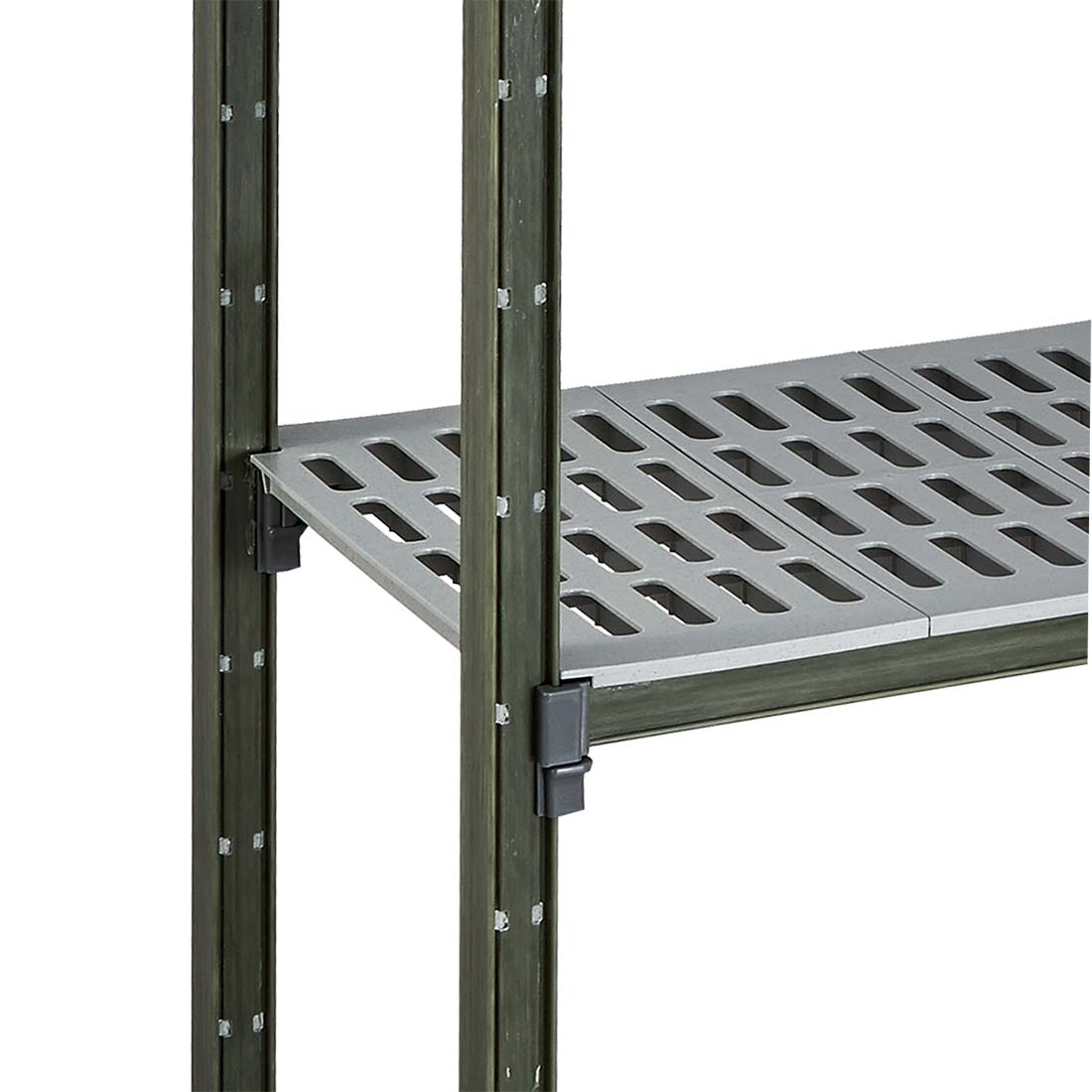

• Notch-embedded post system and buckle design enable tool-free installation and straightforward height adjustment of shelves.
• Temperature operating range of -30°C to 80°C, suitable for freezer, coolroom and ambient storage environments.
• Individual shelf load capacity of 250 kg (200 kg for corner unit configurations).
• Total mobile unit load capacity of 300 kg.
• Shelf plates are dishwasher safe for easy and thorough cleaning.
• Mould-proof, fungus-proof and corrosion-resistant materials suited to wet kitchen and high-humidity environments.
• Adjustable feet for levelling on uneven surfaces.
• Designed for multiple configurations and compatible with add-on and corner kits for modular expansion.
• Environmentally friendly materials construction.
• Dimensions: 910 mm wide x 610 mm deep x 1800 mm tall; weight 31.3 kg.
• 24-month parts only warranty.

Specifications

• Width (mm): 910
• Depth (mm): 610
• Height (mm): 1800
• Weight (kg): 31.3
• Packed Width (mm): 700
• Packed Depth (mm): 1000
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
