Modular Systems PCU24/30 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU24/30 Modular System Poly Coolroom Shelving Starter Kit

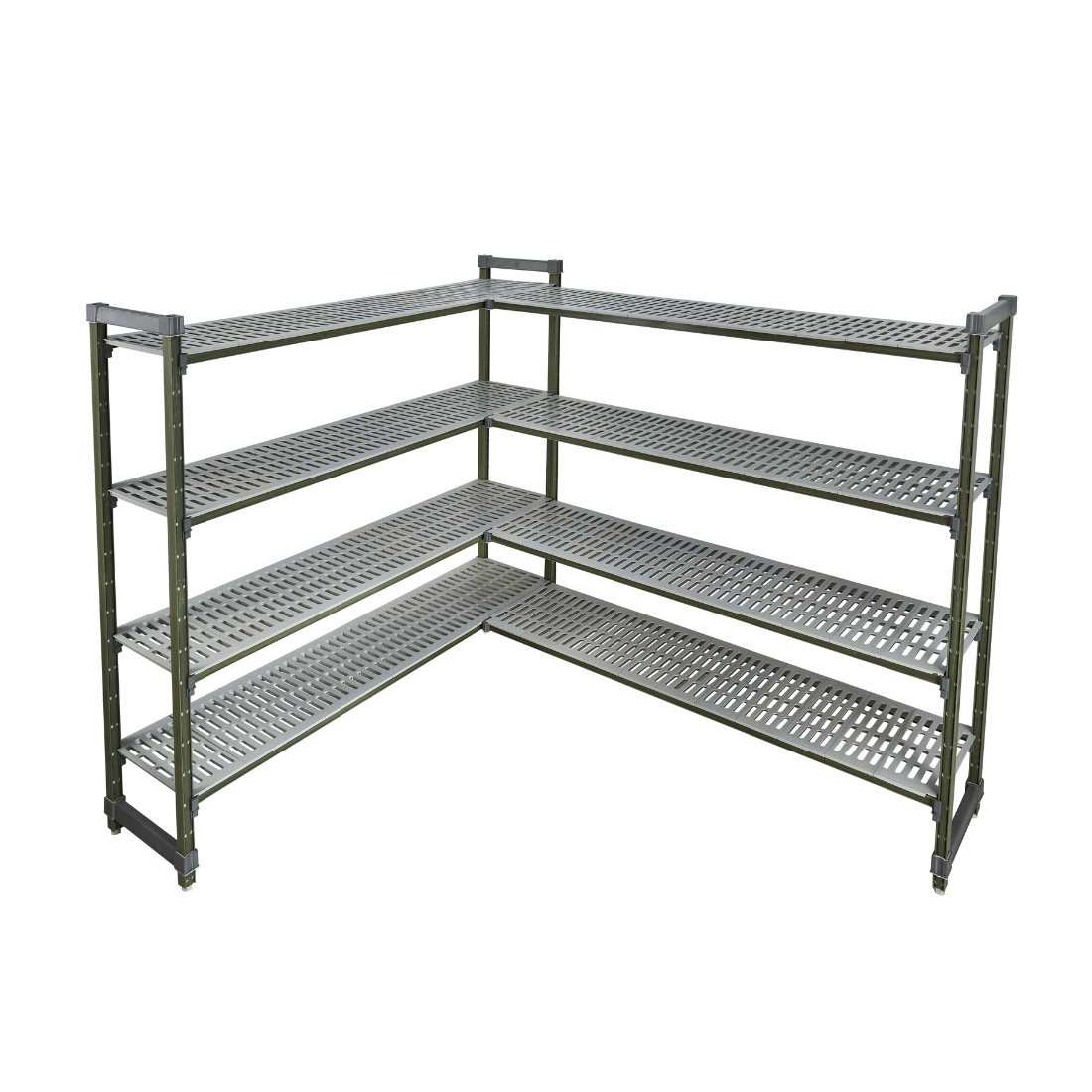

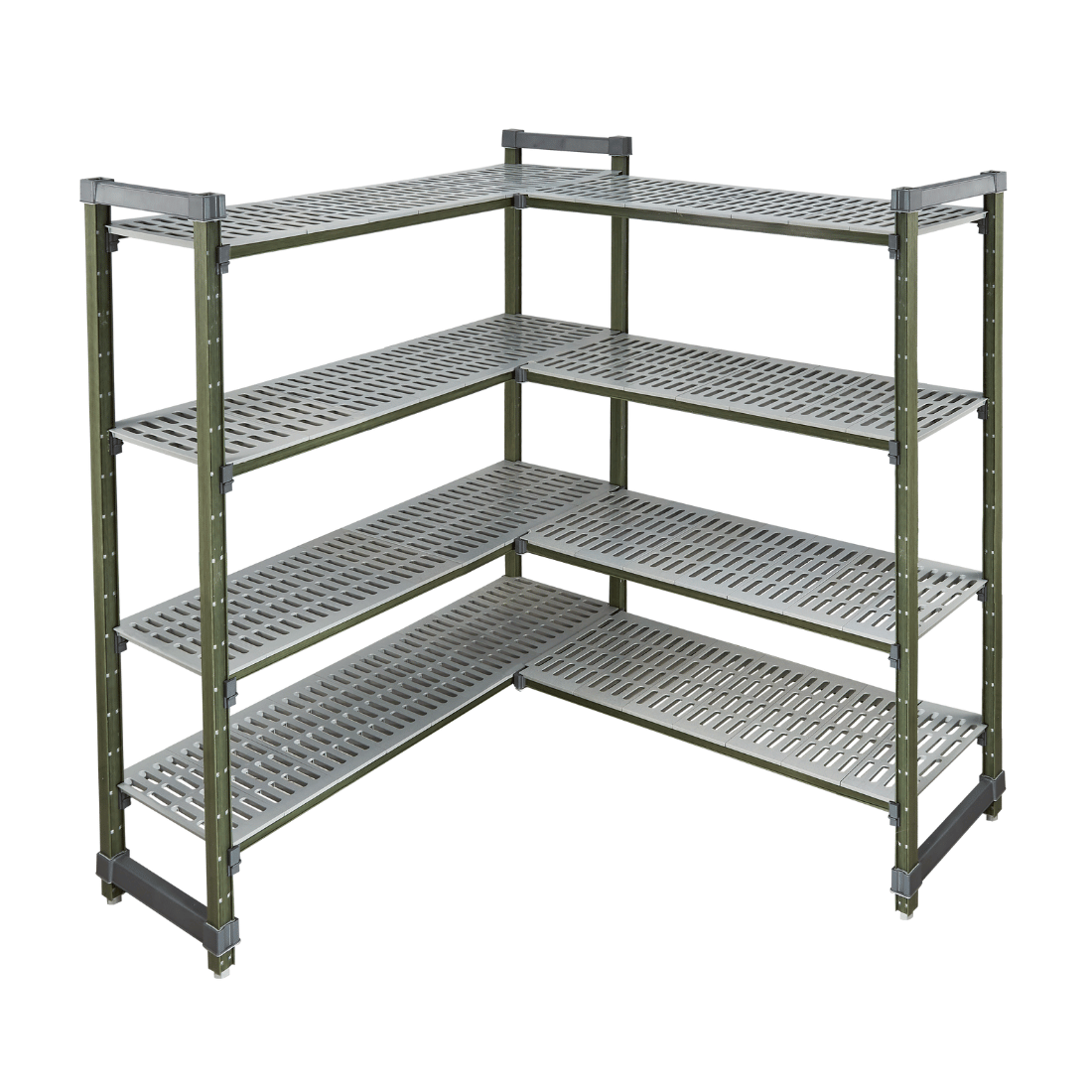

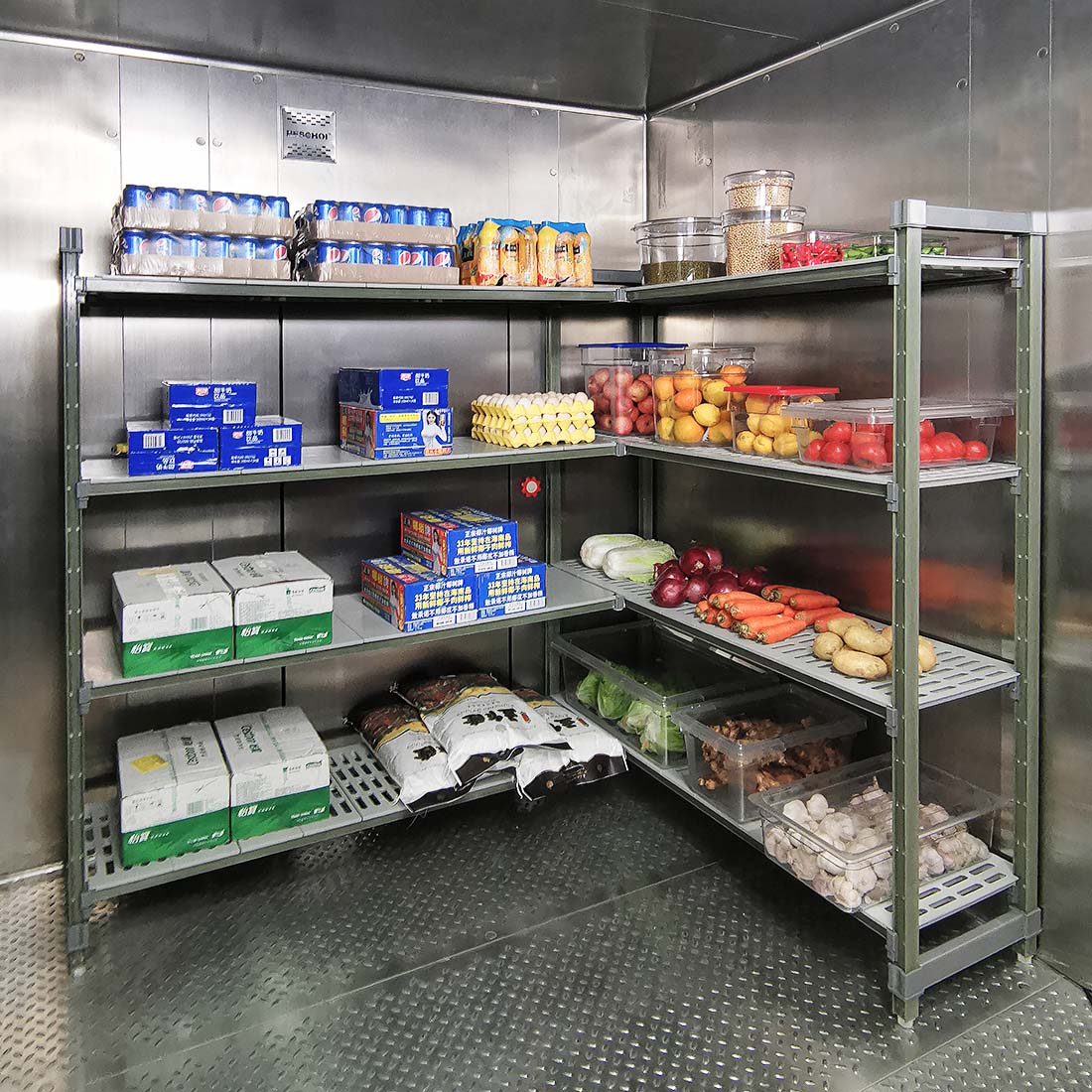

The Modular Systems PCU24/30 is a poly-coated steel coolroom shelving starter kit engineered for commercial kitchens, coolrooms, and food storage environments. Built from innovative food-grade polymer shelf plates combined with a robust frame, it delivers a hygienic, corrosion-resistant, and structurally sound storage solution that performs reliably across a wide temperature range of -30°C to 80°C, making it equally suitable for freezer rooms and heated or wet kitchen areas.

Designed for flexibility and ease of use, the PCU24/30 features a buckle-based snap-fit system that allows tool-free assembly, straightforward height adjustment, and quick reconfiguration without specialist equipment. The modular format is expandable with compatible add-on kits and corner connectors, making it a practical long-term investment for restaurants, cafés, butchers, supermarkets, and catering facilities that need adaptable, hygienic shelving to meet changing storage demands.

Key Benefits

• Withstands temperatures from -30°C to 80°C, making it suitable for freezer rooms, coolrooms, and ambient or wet kitchen areas.
• Each shelf supports up to 250 kg (200 kg for corner units) and the entire mobile unit set has a total capacity of 300 kg, providing exceptional load-bearing strength for heavy commercial use.
• Mould-proof, fungus-proof, and rust-proof construction keeps the unit hygienic and structurally sound in persistently cold and humid environments.
• Antibacterial agent incorporated into the shelf plates actively inhibits bacterial growth, supporting food safety compliance.
• Vented shelf design promotes airflow around stored products, helping maintain consistent temperatures and reduce condensation in coolroom settings.
• Tool-free buckle assembly and notch-embedded posts allow fast installation and simple shelf-height adjustment without any tools or specialist skills.
• Dishwasher-safe shelf plates make routine cleaning quick and thorough, reducing labour time and maintaining hygiene standards.
• Modular and expandable design is compatible with add-on kits and corner connectors, allowing the system to grow and adapt as storage requirements change.
• Adjustable feet compensate for uneven floors, keeping the unit stable and level across a variety of coolroom and kitchen surfaces.

Key Features

• Poly-coated steel frame with vented food-grade polymer shelf plates
• Antibacterial agent embedded in shelf plates to inhibit microbial growth

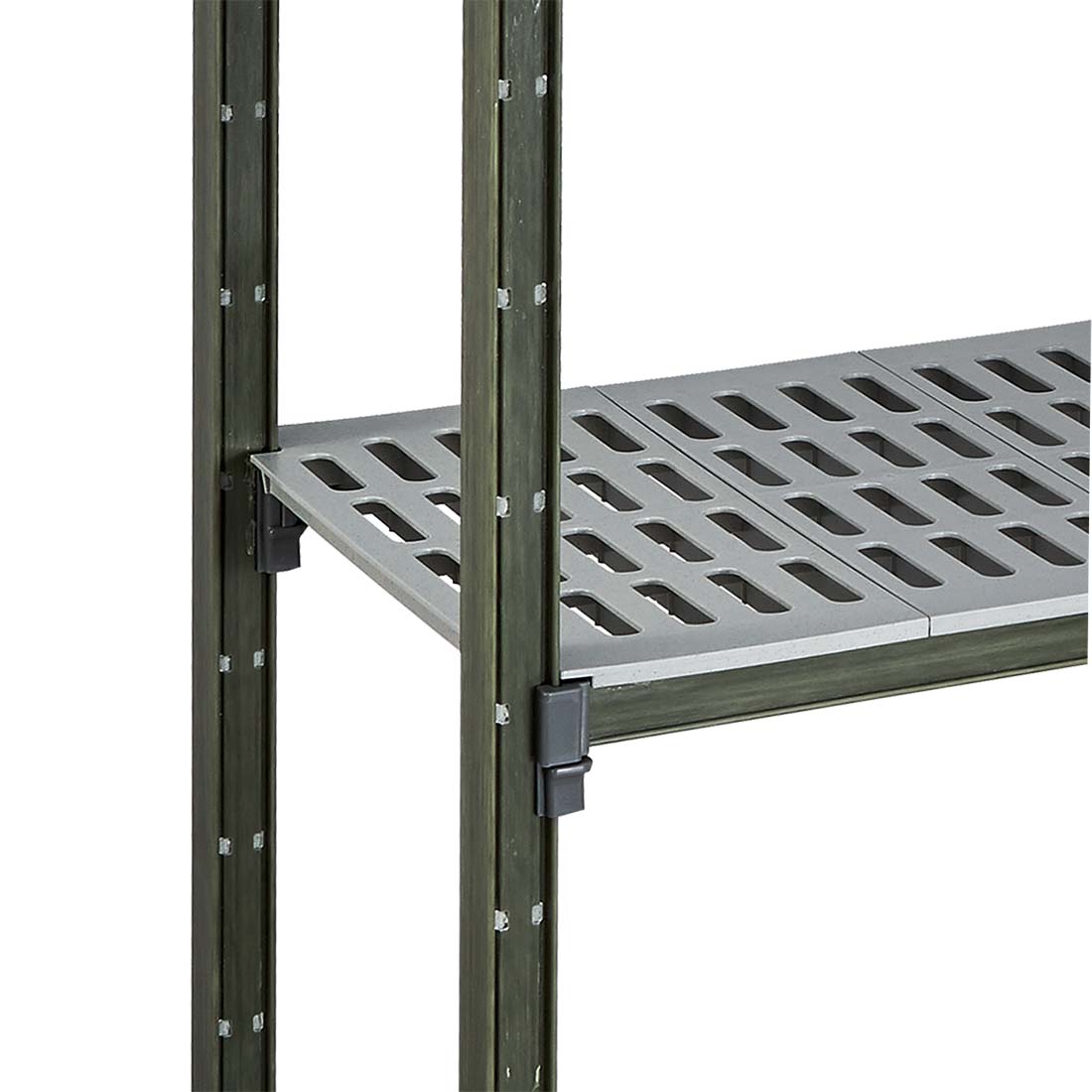

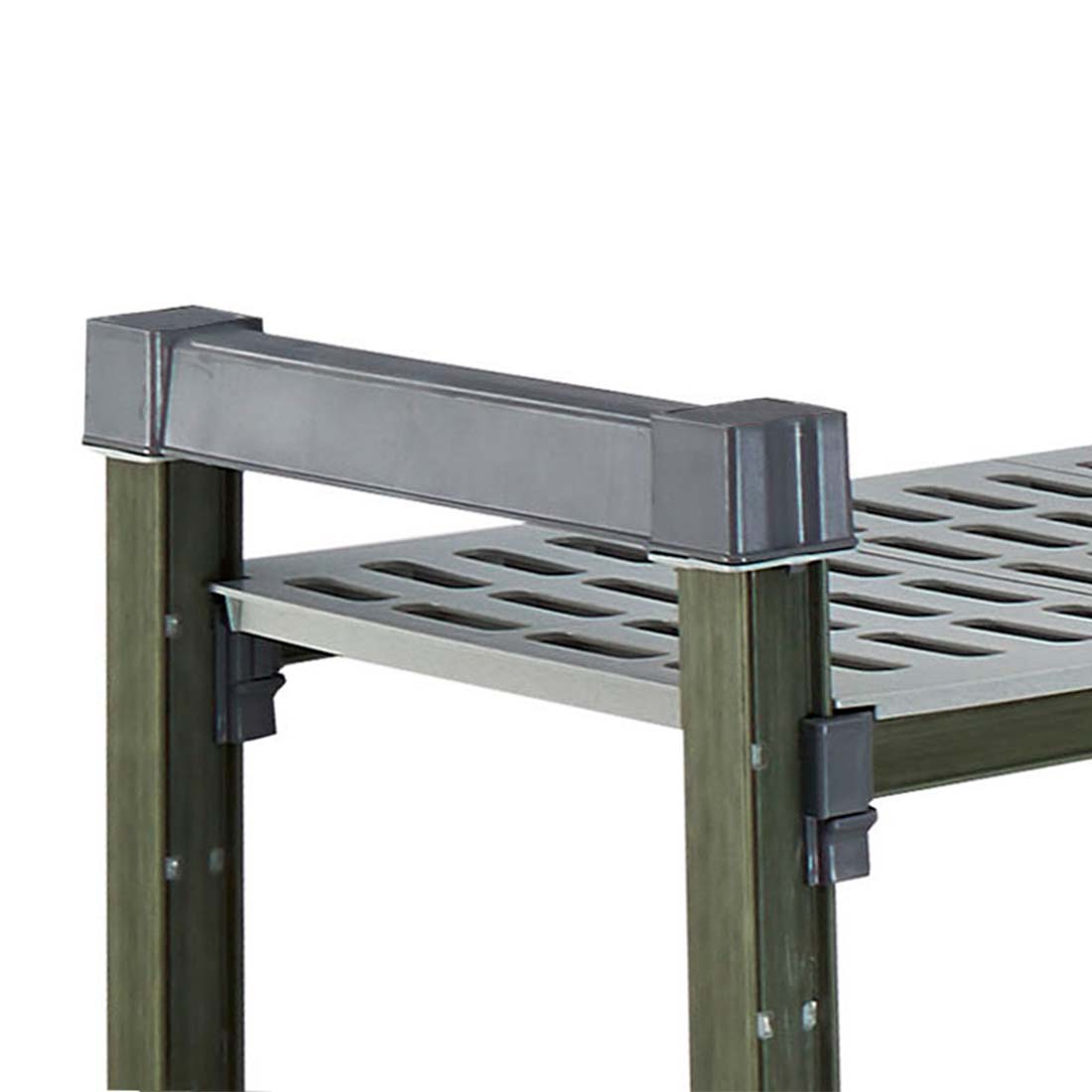

• Notch-embedded posts with buckle-lock system for tool-free assembly and height adjustment
• 4-tier adjustable shelf configuration for flexible product storage
• Per-shelf load capacity of 250 kg (200 kg for corner units); total mobile unit set capacity of 300 kg
• Operating temperature range: -30°C to 80°C
• Mould-proof, fungus-proof, and rust-proof materials throughout
• Smooth, easy-to-clean shelf surface; shelf plates are dishwasher safe
• Suitable for wet kitchen and high-humidity environments
• Adjustable feet for levelling on uneven surfaces
• Expandable modular format compatible with add-on kits and corner connector units
• Environmentally friendly materials and construction
• Starter kit dimensions: 760 mm wide x 610 mm deep x 1800 mm tall; weight 32.5 kg
• 24-month parts-only warranty

Specifications

• Width (mm): 760
• Depth (mm): 610
• Height (mm): 1800
• Weight (kg): 32.5
• Packed Width (mm): 700
• Packed Depth (mm): 900
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
