Modular Systems PCU18/72 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU18/72 Modular System Poly Coolroom Shelving Starter Kit

The Modular Systems PCU18/72 is a poly-coated steel coolroom shelving starter kit engineered for demanding commercial refrigeration environments. Built from innovative polymer-coated materials with vented shelf plates treated with an antibacterial agent, it delivers reliable hygiene and structural performance across a temperature range of -30°C to 80°C, making it equally at home in blast freezers, coolrooms and wet kitchen areas.

Designed for flexibility and ease of use, the PCU18/72 features a notch-embedded post system and buckle-fit connectors that allow tool-free installation, shelf height adjustment and straightforward reconfiguration without specialist tools. Its modular architecture supports expansion with add-on bays and corner units, giving restaurants, butchers, supermarkets, cafés and catering facilities a scalable long-term storage solution.

Key Benefits

• Handles extreme temperatures from -30°C to 80°C, making it suitable for freezers, coolrooms and general cold storage without material degradation.
• Each shelf carries up to 250 kg (200 kg for corner units) with a total mobile unit capacity of 300 kg, providing heavy-duty support for dense food stocks.
• Antibacterial agent incorporated into the shelf plates actively inhibits microbial growth, supporting food safety compliance in wet and humid kitchen conditions.
• Vented shelf panels promote consistent airflow around stored product, helping maintain even temperature distribution and reducing condensation build-up.
• Buckle-and-notch assembly system enables quick, tool-free installation and straightforward height adjustment as storage needs change.
• Mould-proof, fungus-proof and rust-proof construction ensures long service life in the moist, corrosive conditions typical of commercial coolrooms.
• Shelf plates are dishwasher-safe, significantly reducing cleaning time and labour during routine kitchen hygiene procedures.
• Adjustable feet compensate for uneven coolroom floors, keeping the unit stable and level without shimming.
• Modular design is compatible with add-on bays and corner connectors, allowing the system to grow alongside expanding storage requirements.

Key Features

• Poly-coated steel frame with vented polymer shelf plates
• Antibacterial agent integrated into shelf plate material
• Temperature rated for use from -30°C to 80°C
• Individual shelf load capacity: 250 kg (200 kg for corner unit configurations)
• Total mobile unit load capacity: 300 kg

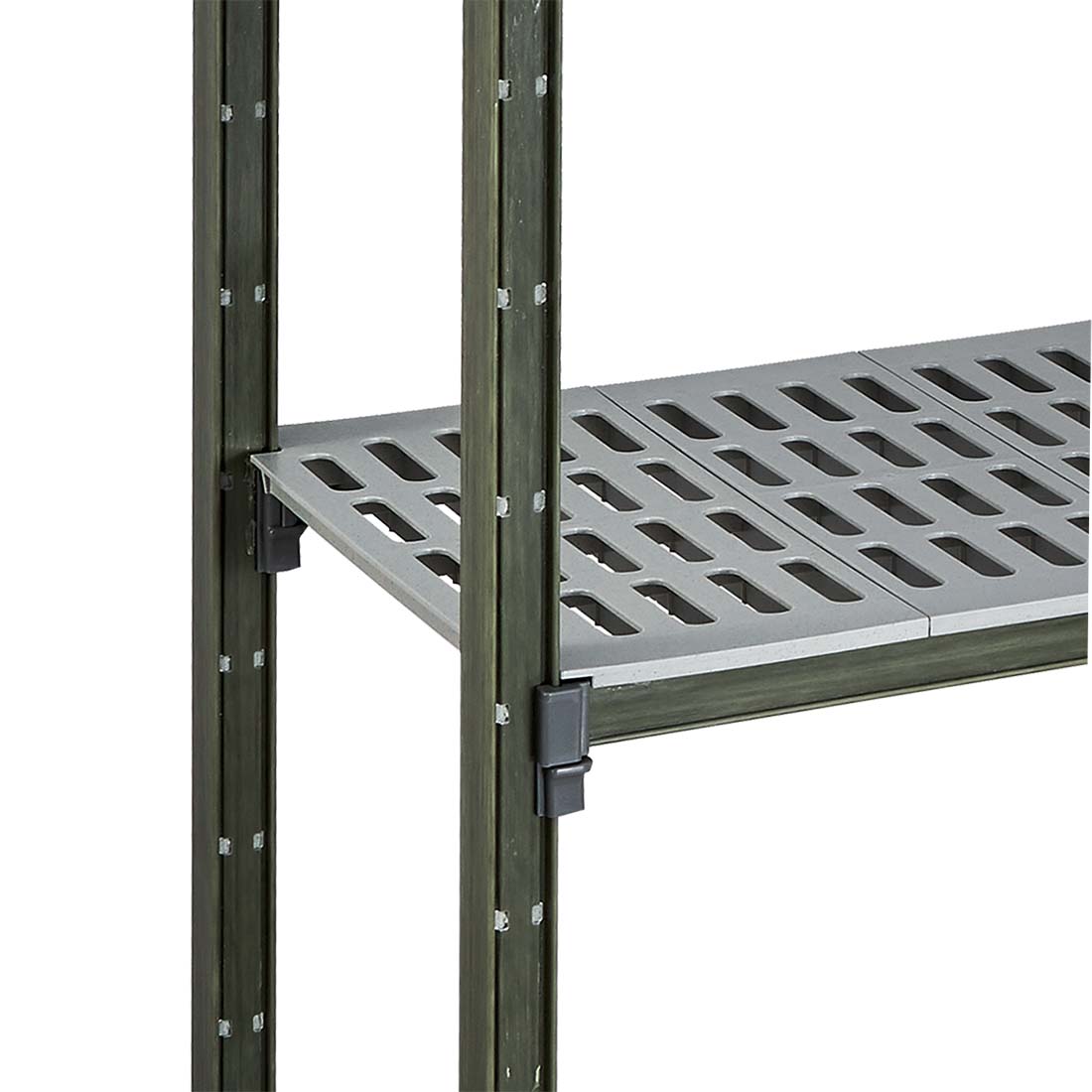

• Notch-embedded post system for secure, adjustable shelf positioning

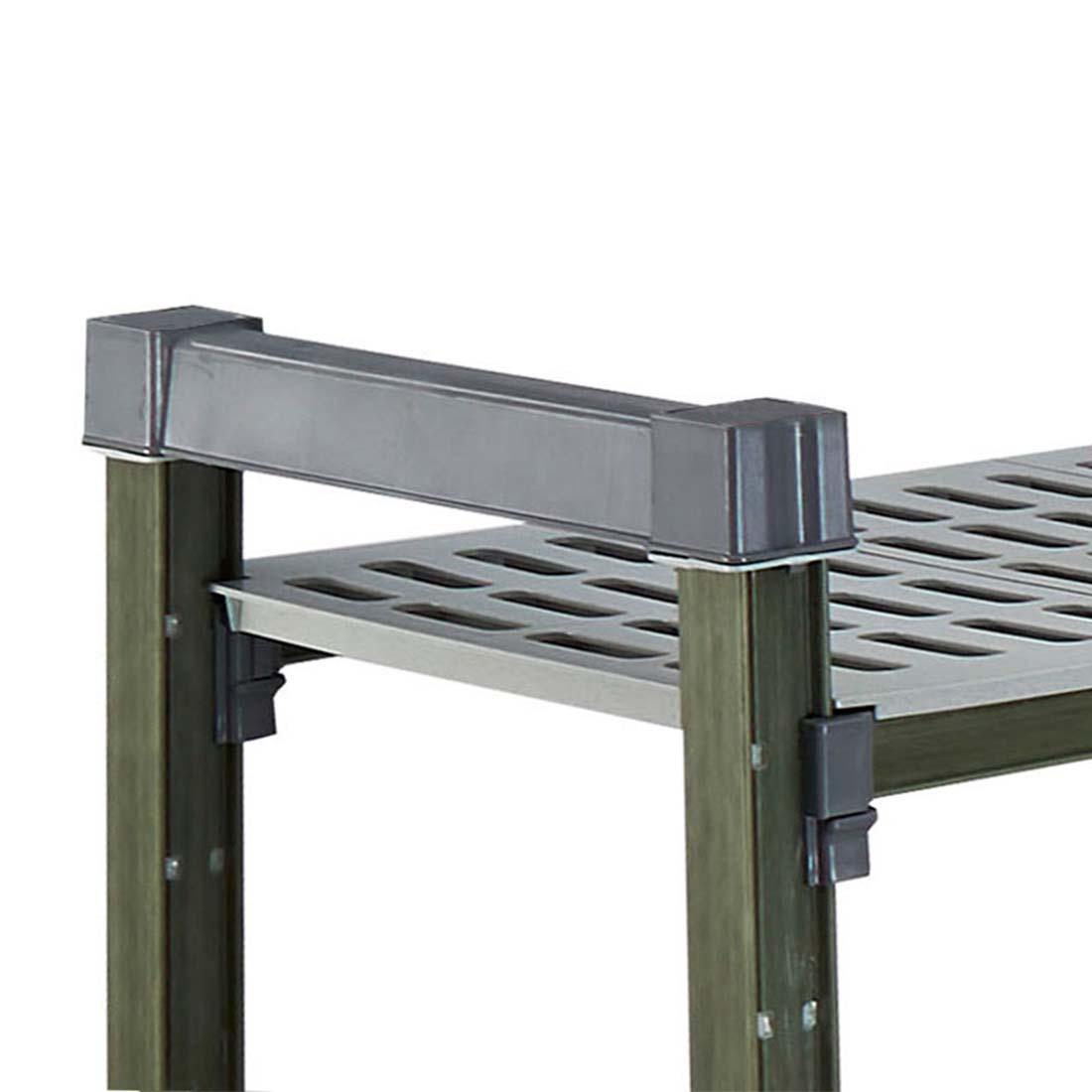

• Buckle-fit connectors for tool-free assembly and reconfiguration
• Dishwasher-safe shelf plates for easy cleaning
• Mould-proof, fungus-proof and rust-proof materials
• Suitable for wet kitchen and high-humidity environments
• Adjustable feet for levelling on uneven surfaces
• Modular configuration supports multiple combinations and expansion with add-on or corner kits
• Environmentally friendly materials
• Dimensions: 1825 mm (W) x 455 mm (D) x 1800 mm (H)
• Weight: 40.89 kg
• Packed dimensions: 500 mm (W) x 1900 mm (D) x 1900 mm (H)
• 24-month parts-only warranty

Specifications

• Width (mm): 1825
• Depth (mm): 455
• Height (mm): 1800
• Weight (kg): 40.89
• Packed Width (mm): 500
• Packed Depth (mm): 1900
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
