Modular Systems PCU18/60 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU18/60 Modular System Poly Coolroom Shelving Starter Kit

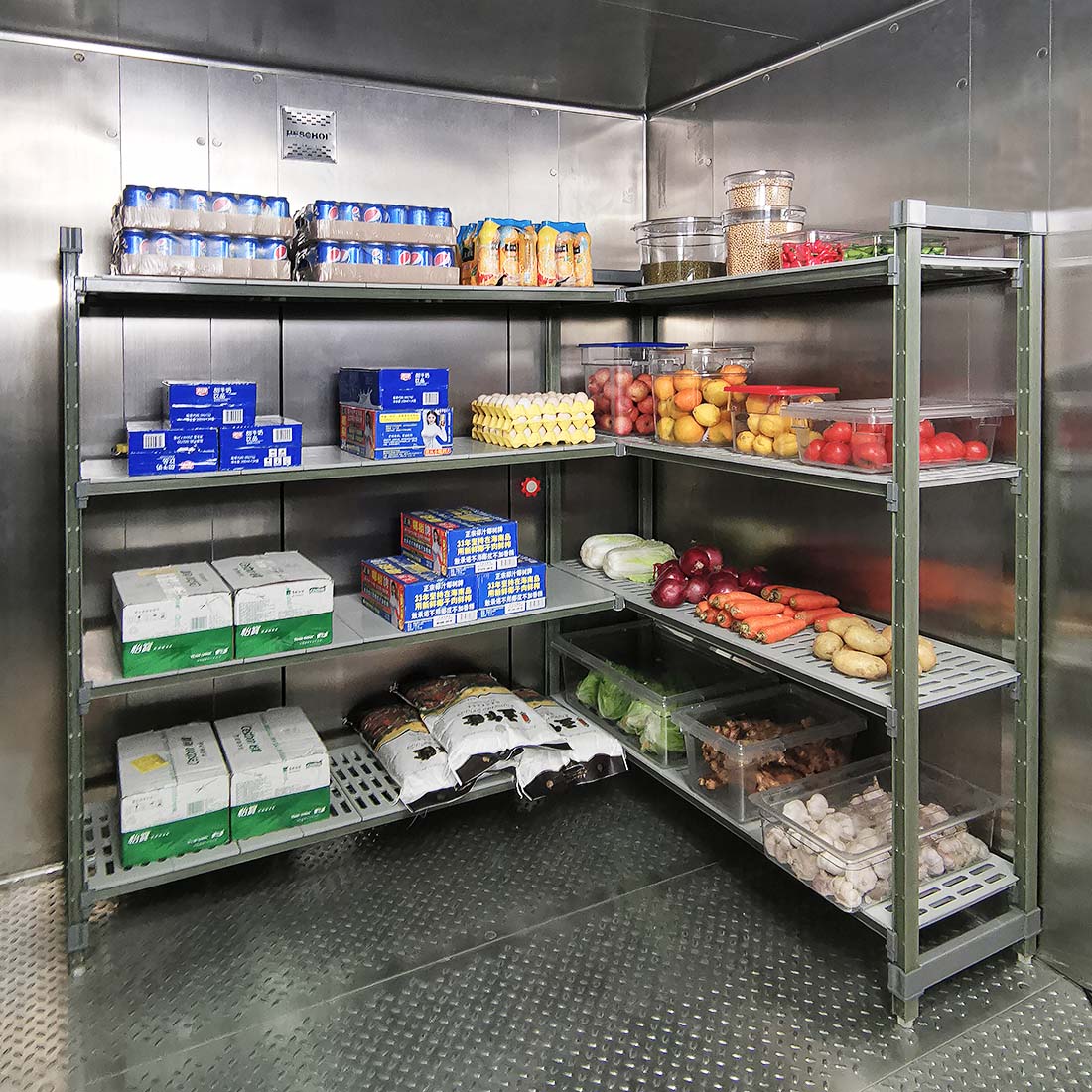

The Modular Systems PCU18/60 is a poly coolroom shelving starter kit built for professional commercial kitchen and cold storage environments. Constructed from poly-coated steel with vented shelf plates, it is engineered to withstand temperatures ranging from -30°C to 80°C, making it equally suited to freezer rooms, coolrooms, and wet kitchen areas. The antibacterial-treated shelf surfaces, combined with mould-proof, fungus-proof and rust-proof materials, deliver a hygienic and long-lasting storage solution that meets the rigorous demands of hospitality and food service operations.

Designed for flexible configuration, the PCU18/60 features notch-embedded posts and a buckle system that allows tool-free installation, adjustment and reconfiguration without specialist knowledge. Each shelf supports up to 250 kg (200 kg for corner units), with the full mobile unit set rated to 300 kg total capacity. The modular format is compatible with add-on and corner kits for future expansion, while adjustable feet ensure stability on uneven surfaces. Dishwasher-safe shelf plates and smooth, easy-to-clean surfaces keep maintenance straightforward in busy commercial settings.

Key Benefits

• Operates across an extreme temperature range of -30°C to 80°C, making it suitable for both freezer and coolroom environments as well as ambient storage areas.
• Each shelf plate carries up to 250 kg (200 kg on corner units), providing generous load capacity for heavy food service stock.
• Antibacterial-treated, mould-proof, fungus-proof and rust-proof construction maintains hygiene standards and extends the working life of the shelving in wet or humid conditions.
• Buckle and notch-embedded post design enables tool-free assembly and quick shelf height adjustments to accommodate different product sizes.
• Vented shelf panels promote consistent airflow throughout stored goods, helping maintain even temperatures and reducing moisture build-up in coolrooms.
• Dishwasher-safe shelf plates simplify routine cleaning and reduce labour time in busy kitchens.
• Modular design is compatible with add-on kits and corner connectors, allowing the system to be expanded or reconfigured as storage needs change.
• Adjustable feet provide stable levelling on uneven floor surfaces commonly found in coolrooms and service areas.
• Environmentally friendly materials and innovative poly-coated steel construction support sustainable kitchen operations without sacrificing durability.

Key Features

• Poly-coated steel frame with vented shelf plates for strength and airflow.
• Shelf plates treated with an antibacterial agent to inhibit bacterial growth on contact surfaces.
• Mould-proof, fungus-proof and rust-proof materials suited to wet and humid kitchen environments.
• Operating temperature range of -30°C to 80°C, compatible with freezer, coolroom and ambient use.
• Each shelf rated to 250 kg load capacity; corner unit rated to 200 kg; full mobile unit set rated to 300 kg.

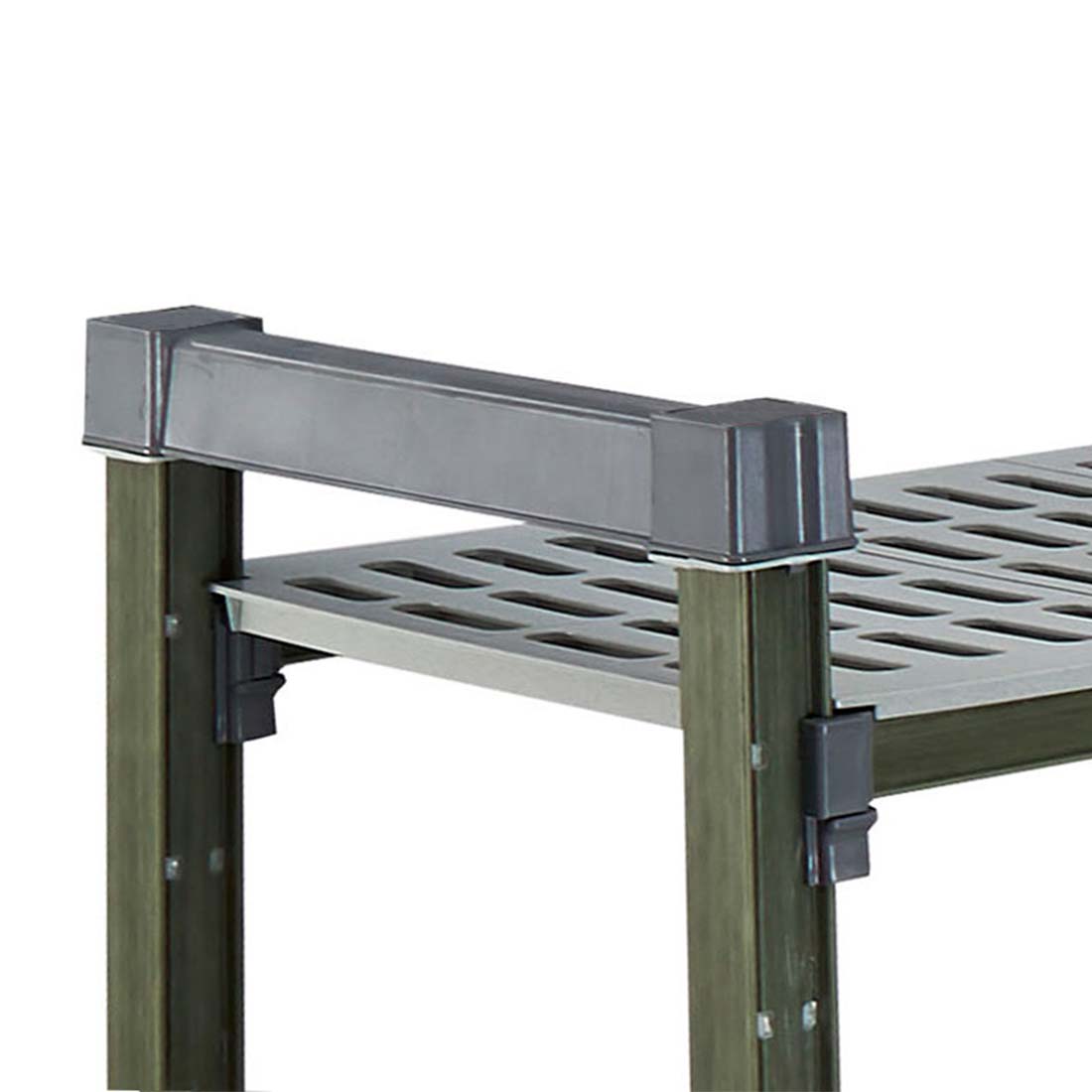

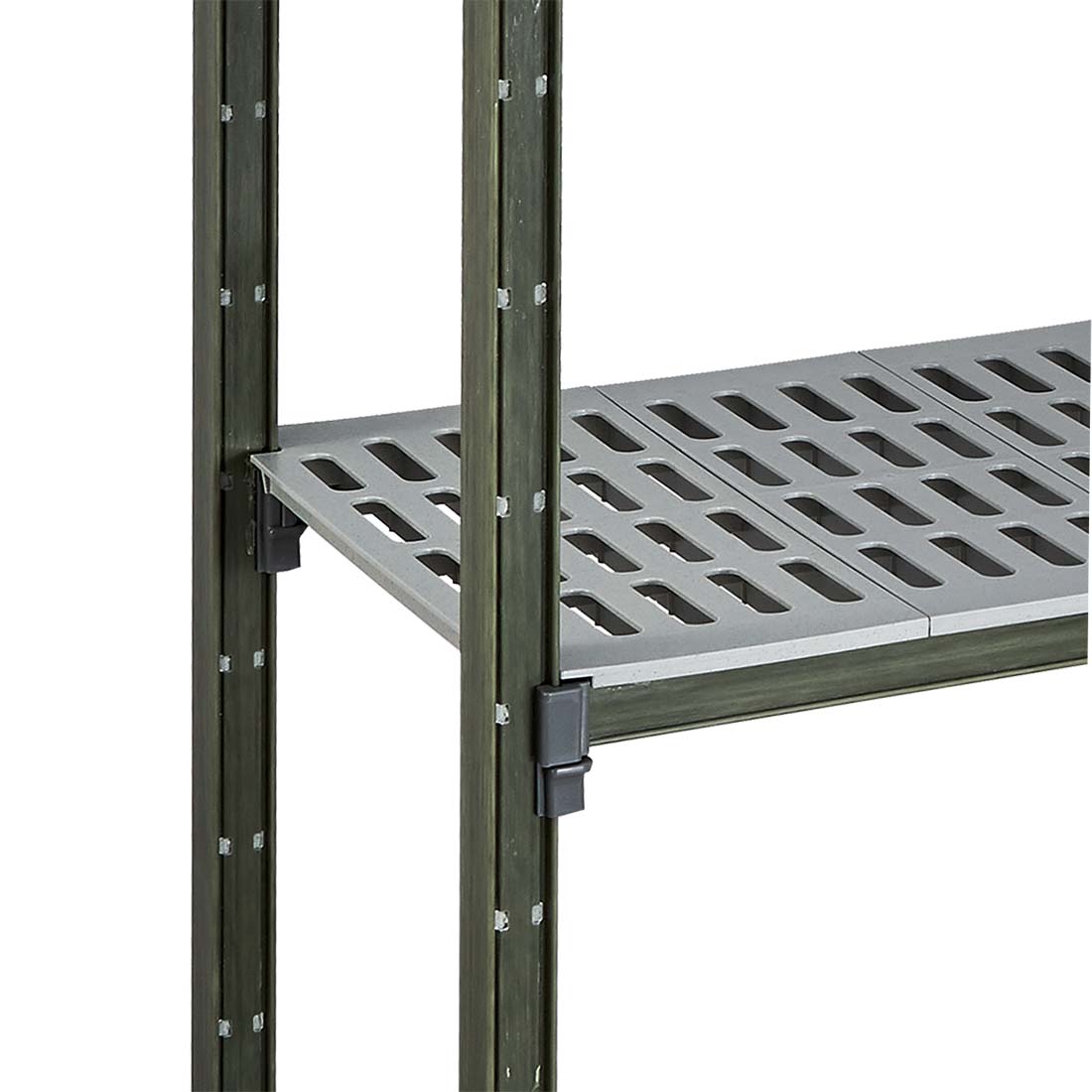

• Notch-embedded posts and buckle system for tool-free, snap-fit installation and height adjustment.
• Adjustable feet for stable placement on uneven surfaces.
• Shelf plates are dishwasher-safe for easy, thorough cleaning.
• Smooth shelf surface design minimises food and liquid trapping.

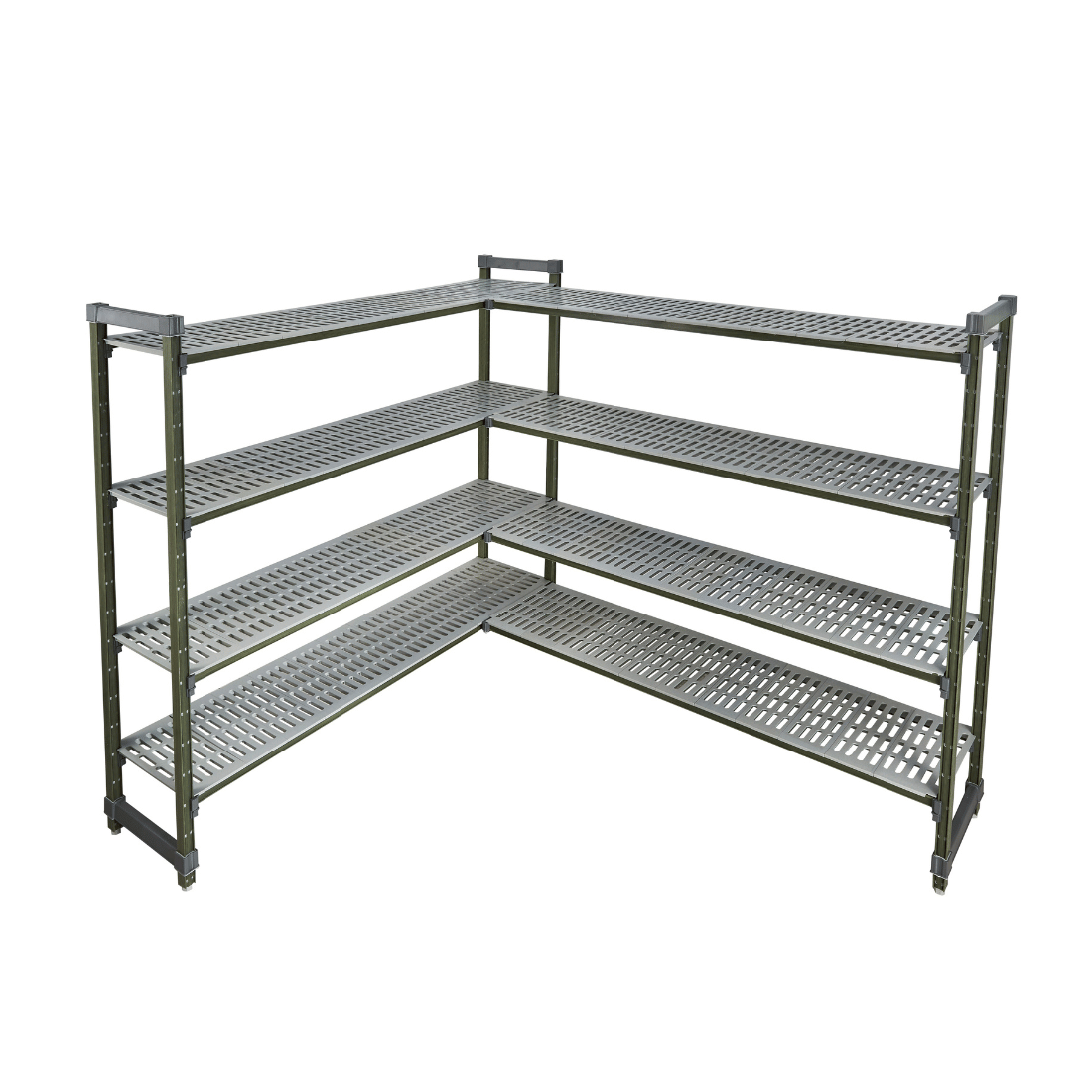

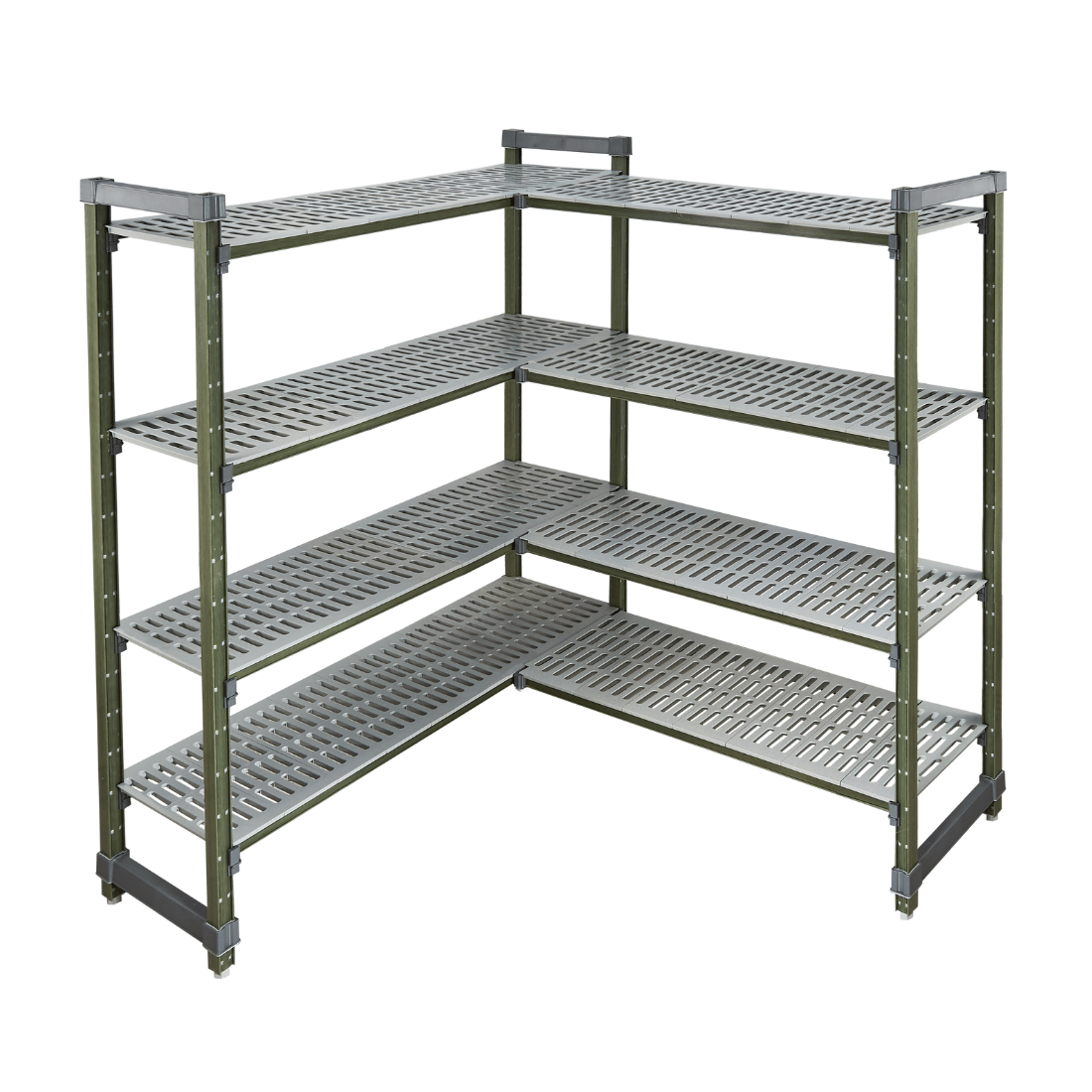

• Modular configuration supports multiple layout combinations and is expandable with compatible add-on and corner kits.
• Dimensions: 1525 mm wide x 455 mm deep x 1800 mm high; weight 35.95 kg.
• 24 months parts only warranty.

Specifications

• Width (mm): 1525
• Depth (mm): 455
• Height (mm): 1800
• Weight (kg): 35.95
• Packed Width (mm): 500
• Packed Depth (mm): 1650
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
