Modular Systems PCU18/54 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU18/54 Modular System Poly Coolroom Shelving Starter Kit

The Modular Systems PCU18/54 is a poly-coated steel coolroom shelving starter kit engineered for demanding commercial refrigeration environments. Built with vented shelf panels and a notch-embedded post system, it delivers reliable, hygienic storage across coolrooms, freezers and wet kitchen areas, performing reliably in temperatures ranging from -30°C to 80°C.

The starter kit is designed for easy expansion, allowing operators to add compatible bays or corner units as storage requirements grow. With antibacterial-treated shelf plates, buckle-fit assembly and adjustable feet, this system balances food safety compliance with practical, day-to-day operational convenience in restaurants, supermarkets, cafés, butchers and catering facilities.

Key Benefits

• Operates across an extreme temperature range of -30°C to 80°C, making it equally suited to freezer rooms, coolrooms and ambient storage areas.
• Each shelf plate is treated with an antibacterial agent, actively suppressing microbial growth and supporting food safety hygiene standards.
• Vented shelf panels encourage consistent airflow throughout the unit, helping to maintain even temperatures and reduce condensation around stored products.
• Buckle-based installation means shelves can be repositioned or adjusted without tools, saving time during setup and routine reconfiguration.
• Mould-proof, fungus-proof and rust-proof construction ensures long service life even in persistently wet or humid kitchen environments.
• Shelf plates are dishwasher-safe, significantly reducing the time and effort required for routine cleaning and sanitation.
• A generous load capacity of 250 kg per shelf (200 kg for corner units) and 300 kg for the entire mobile set supports heavy commercial stock loads.
• Adjustable feet allow the unit to sit level on uneven coolroom floors, preventing wobble and protecting stored goods.
• Modular design is compatible with add-on and corner kits, giving operators the flexibility to expand or reconfigure the system as storage needs evolve.

Key Features

• Poly-coated steel frame with vented polymer shelf panels for airflow and temperature consistency.

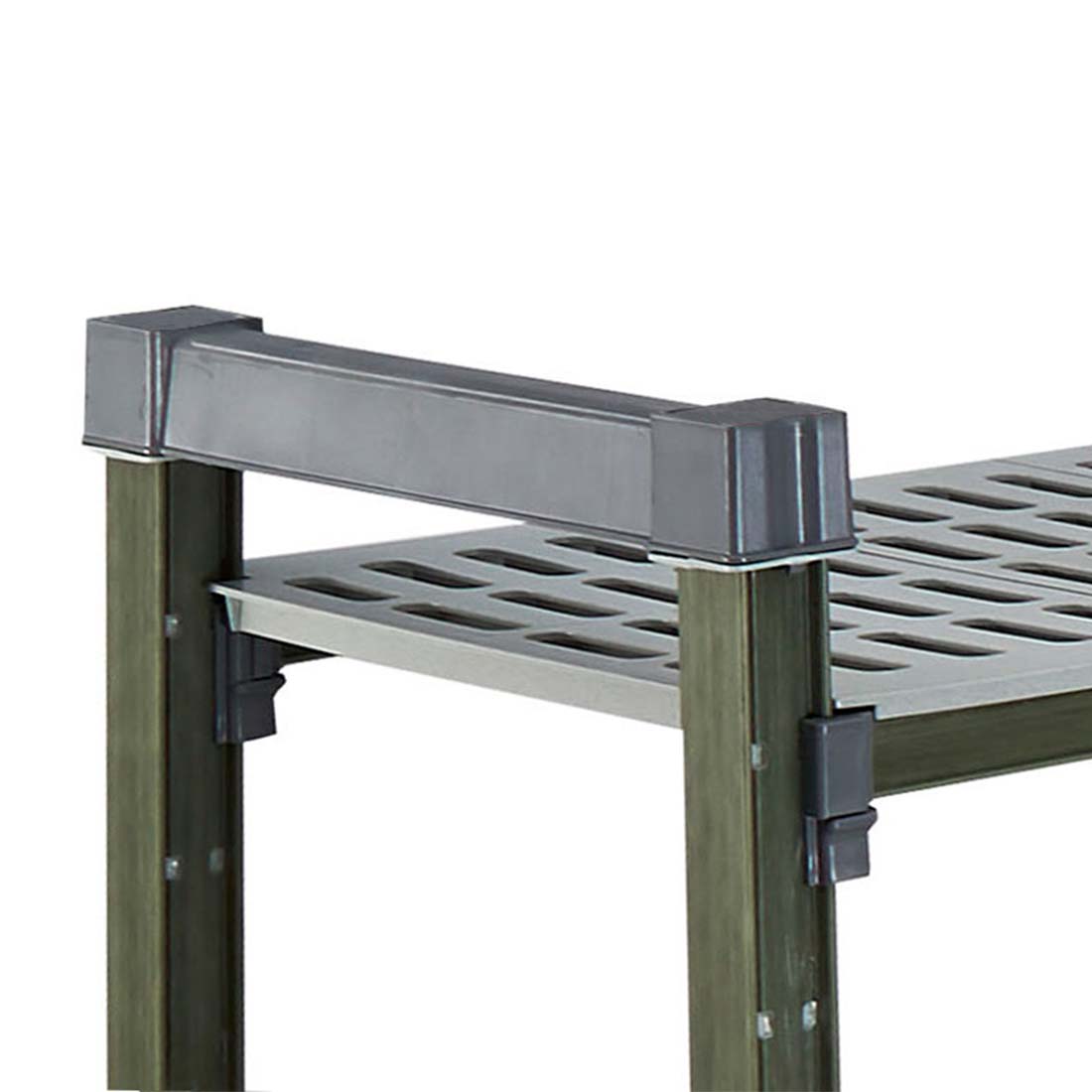

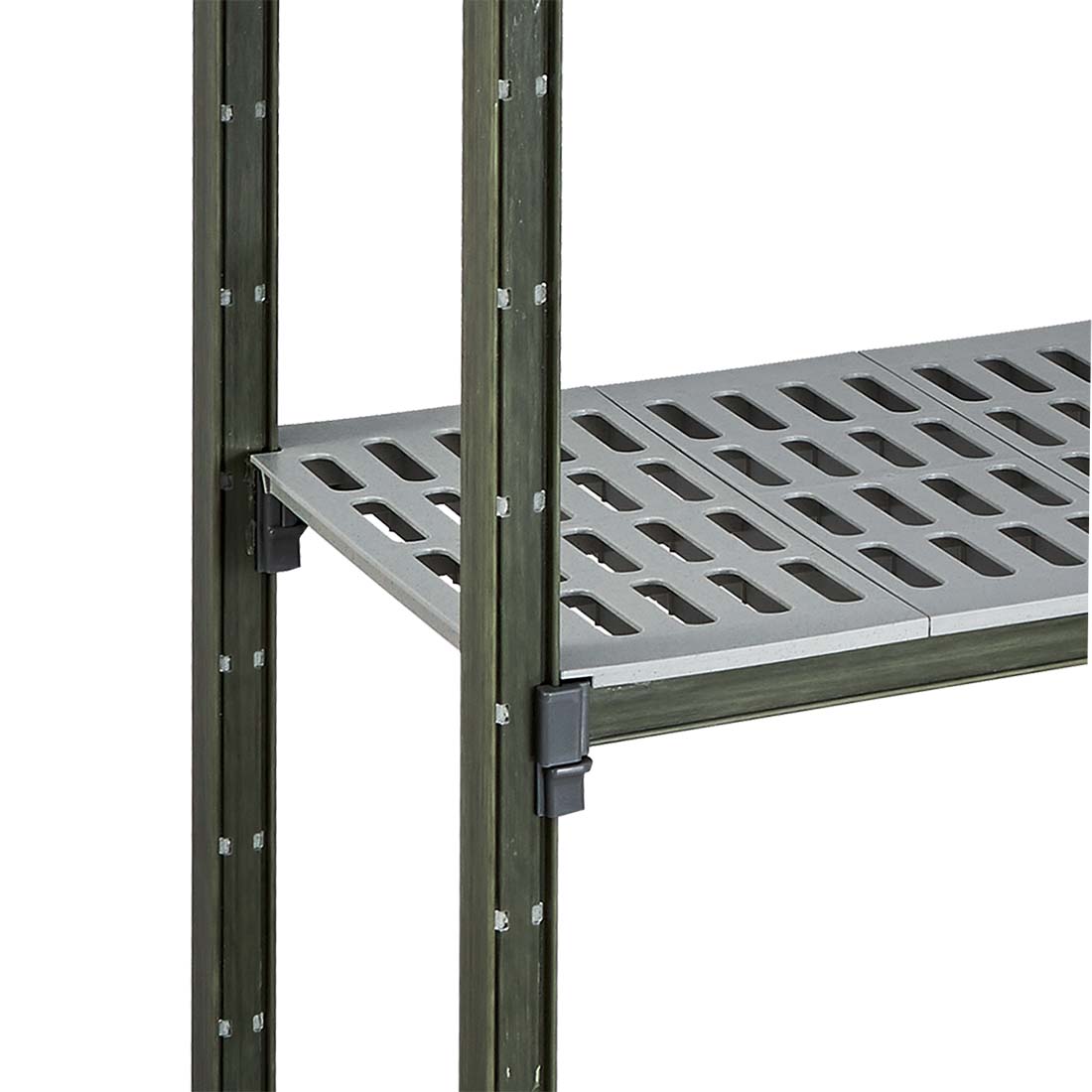

• Notch-embedded post system for secure, precise shelf positioning across multiple height configurations.
• Antibacterial agent integrated into each shelf plate to inhibit microbial growth.
• Buckle-fit assembly design allows tool-free installation, adjustment and reconfiguration.
• Temperature rated from -30°C to 80°C, suitable for freezer rooms, coolrooms and ambient environments.
• Mould-proof, fungus-proof and corrosion-resistant materials throughout.
• Shelf plates are dishwasher-safe for easy and thorough cleaning.
• Per-shelf load capacity of 250 kg (200 kg for corner units); total mobile unit capacity of 300 kg.
• Adjustable feet to compensate for uneven floor surfaces.
• Suitable for wet kitchen conditions including high-humidity and wash-down areas.
• Starter kit dimensions: 1370 mm wide x 455 mm deep x 1800 mm high; weight 37 kg.
• Designed for multiple configurations and compatible with add-on bays and corner connector units for modular expansion.
• Environmentally friendly materials used in construction.
• 24-month parts-only warranty.

Specifications

• Width (mm): 1370
• Depth (mm): 455
• Height (mm): 1800
• Weight (kg): 37
• Packed Width (mm): 500
• Packed Depth (mm): 1450
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
