Modular Systems PCU18/42 Modular System Poly Coolroom Shelving Starter Kit

Modular Systems PCU18/42 Poly Coolroom Shelving Starter Kit

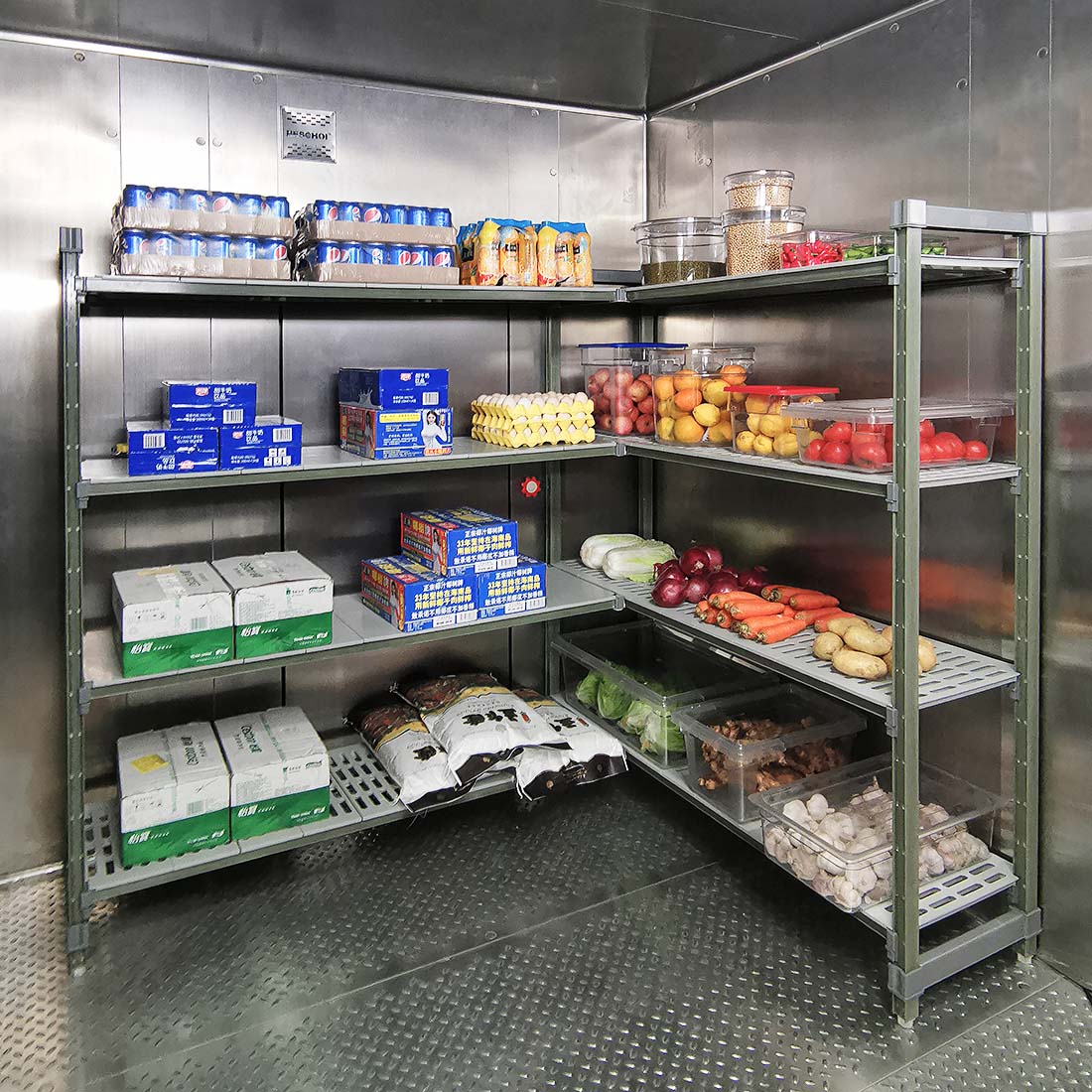

The Modular Systems PCU18/42 is a poly-coated steel coolroom shelving starter kit engineered for demanding commercial refrigeration environments. Built from innovative materials incorporating an antibacterial agent in the shelf plates, it operates reliably across a wide temperature range of -30°C to 80°C, making it equally at home in blast chillers, standard coolrooms, and wet kitchen applications.

Designed for flexible configuration and straightforward installation, the PCU18/42 features notch-embedded posts and a buckle system that allows shelves to be repositioned quickly without tools. Adjustable feet accommodate uneven flooring, while the smooth, vented shelf surfaces and dishwasher-safe plates make routine cleaning fast and hygienic in any high-throughput kitchen setting.

Key Benefits

• Antibacterial shelf plates actively inhibit microbial growth, supporting food safety compliance in coolroom storage.
• Rated for use from -30°C to 80°C, so the same shelving suits coolrooms, freezer rooms, and ambient prep areas.
• Each shelf supports up to 250 kg (200 kg for corner units) and the complete mobile unit set handles up to 300 kg, providing confident heavy-duty storage.
• Buckle-and-notch post design lets staff adjust or reconfigure shelf heights rapidly, reducing downtime during layout changes.
• Dishwasher-safe shelf plates simplify cleaning and help maintain hygiene standards with minimal labour.
• Mould-proof, fungus-proof, and rust-proof construction extends service life in the persistently cold, moist conditions of a coolroom.
• Adjustable feet compensate for uneven coolroom floors, keeping the unit level and stable under full load.
• Vented shelf design promotes consistent cold-air circulation around stored product, supporting even temperature distribution.
• Genuine Modular Systems accessory engineered to integrate seamlessly with compatible Modular Systems equipment.

Key Features

• Poly-coated steel construction with vented shelves for durability and airflow.
• Shelf plates manufactured with an embedded antibacterial agent.

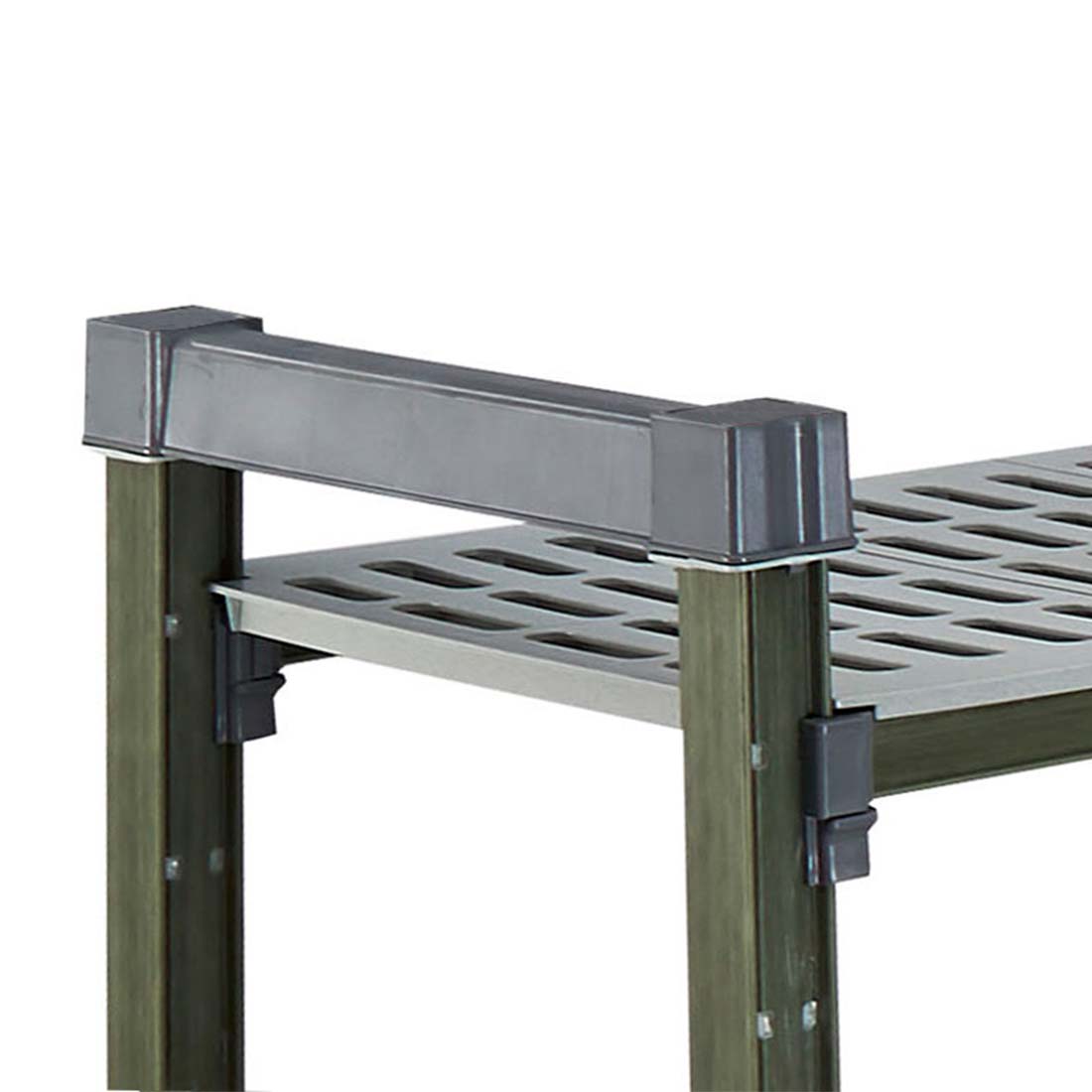

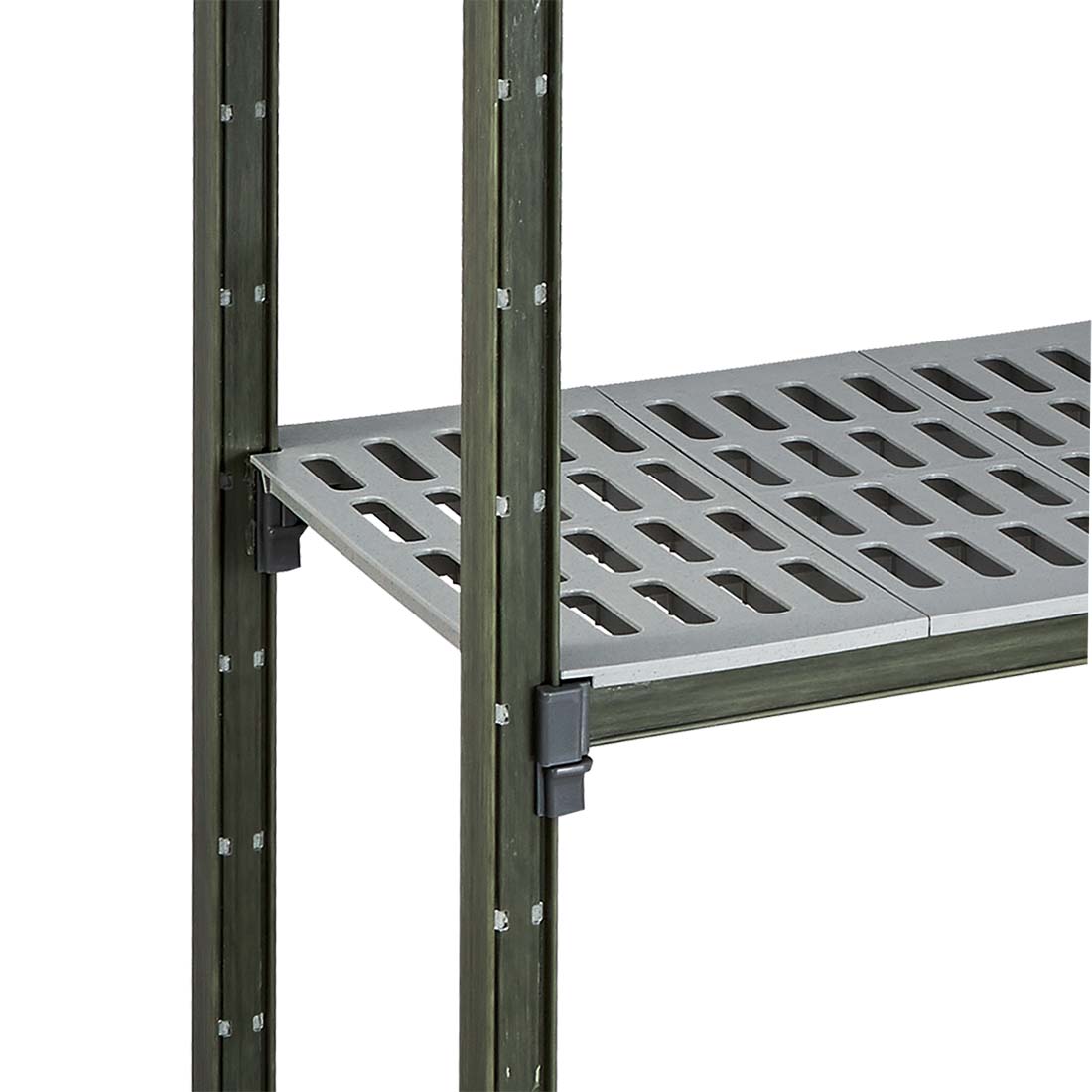

• Notch-embedded posts paired with a buckle design for tool-free height adjustment and quick assembly.
• Individual shelf load capacity: 250 kg (200 kg for corner shelf units).
• Whole mobile unit set load capacity: 300 kg.
• Operating temperature range: -30°C to 80°C.
• Shelf plates are dishwasher-safe for convenient sanitation.
• Smooth, easy-to-clean surface finish reduces food residue build-up.
• Mould-proof, fungus-proof, and rust-proof materials suited to wet kitchen and coolroom conditions.
• Adjustable feet for levelling on uneven surfaces.

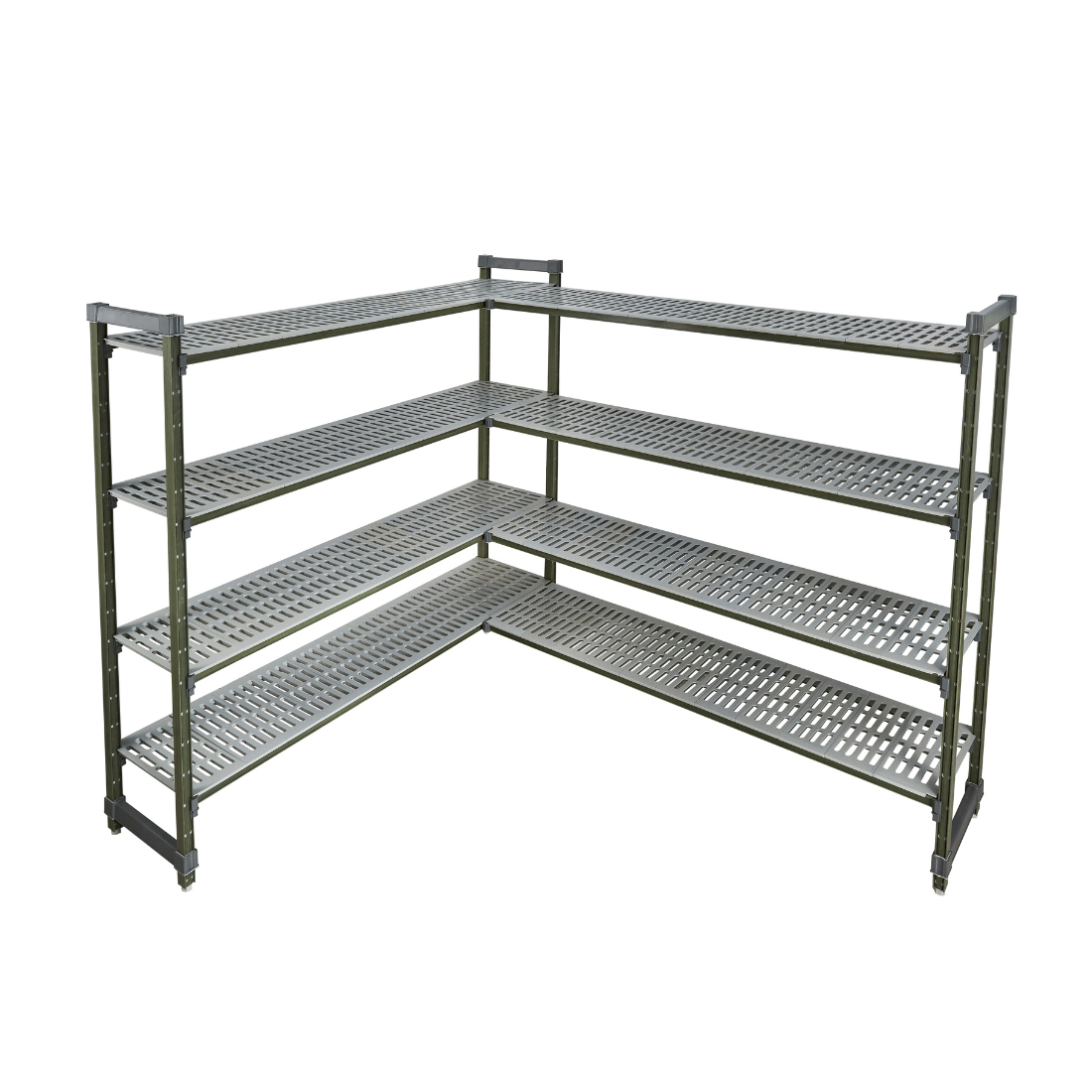

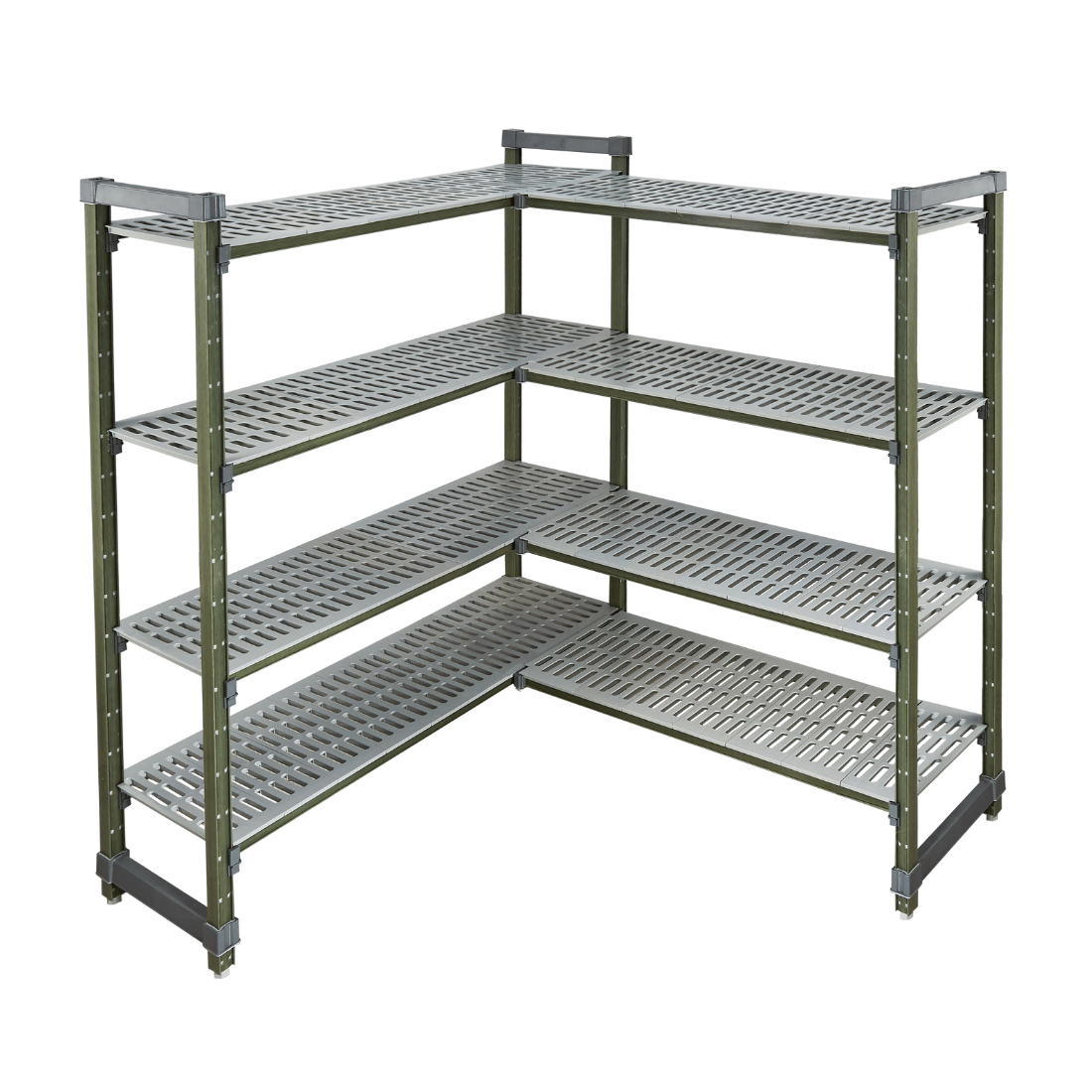

• Designed for multiple configuration combinations to suit varying coolroom layouts.
• Environmentally friendly materials.
• Starter kit dimensions: 1060 mm wide x 455 mm deep x 1800 mm high.
• Unit weight: 28.2 kg.
• Packed dimensions: 500 mm wide x 1100 mm deep x 1900 mm high.
• 24-month parts-only warranty.

Specifications

• Width (mm): 1060
• Depth (mm): 455
• Height (mm): 1800
• Weight (kg): 28.2
• Packed Width (mm): 500
• Packed Depth (mm): 1100
• Packed Height (mm): 1900
• Warranty (months): 24 Months Parts Only Warranty
