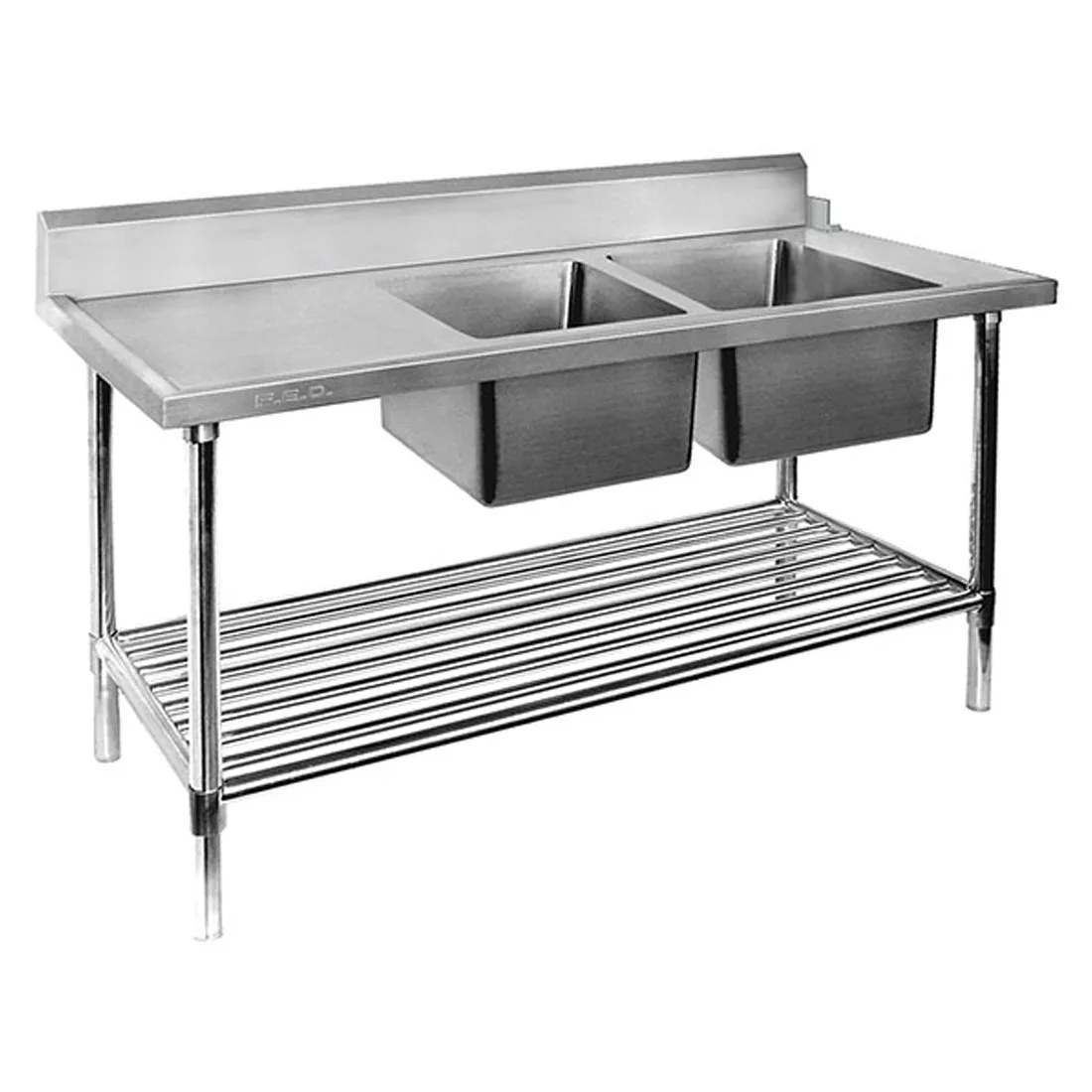

Modular Systems DSBD7-2400R/A Right Inlet Double Sink Dishwasher Bench

Modular Systems DSBD7-2400R/A Right Inlet Double Sink Dishwasher Bench 2400mm

The Modular Systems DSBD7-2400R/A is a 2400mm wide all-stainless-steel dishwasher bench purpose-built for high-volume commercial kitchens, cafes, restaurants, and catering operations. Configured with the dishwasher inlet and twin sinks on the right side when facing the bench, it integrates seamlessly into existing warewashing workflows and supports a logical, hygienic pass-through sequence.

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, this bench arrives flat-packed with an instruction manual and all required tools for quick, straightforward on-site assembly. The 2400mm width qualifies for the six-leg configuration, delivering exceptional stability and load-bearing capacity, while optional lockable castor kits allow the entire unit to be repositioned as kitchen layouts evolve.

Key Benefits

• Right-side inlet and sink configuration keeps the warewashing sequence logical and reduces cross-traffic during busy service periods.
• Flat-packed delivery with included tools and instruction manual minimises freight costs and gets the bench operational without specialist tradespeople.
• Fully welded, inside-and-out polished sink bowls eliminate crevices where bacteria can harbour, supporting HACCP-compliant hygiene standards.
• A 15mm wet edge around the benchtop controls water runoff and reduces spillage onto kitchen floors, improving slip safety for staff.
• XPS board lining combined with stainless steel U-channel reinforcements under the benchtop provide structural rigidity that holds up under the constant load of commercial warewashing.
• Fully adjustable polished stainless-steel disc feet compensate for uneven floors and keep the bench perfectly level without shimming.
• Optional lockable castor kits allow the bench to be relocated easily when reconfiguring the kitchen or undertaking deep cleaning.
• Six-leg support on the 2400mm model distributes weight more evenly than a four-leg arrangement, extending the working life of the bench in demanding environments.
• A two-year parts-only warranty provides confidence in long-term reliability for a commercial investment.

Key Features

• Right-side dishwasher inlet configuration: when facing the bench, the inlet and sinks are positioned on the right
• Available in left or right bowl positioning to suit different kitchen layouts
• Overall dimensions: 2400mm wide x 700mm deep x 900mm high
• Twin sink bowls: 450mm W x 450mm D x 300mm H each, with 90mm diameter drain holes
• All-over 1.2mm thick stainless steel construction
• Benchtop material: SUS304 (18/8) stainless steel, 1.2mm
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for insulation and rigidity
• Stainless steel U-channel reinforcements beneath the benchtop; number of channels increases with bench width
• 15mm wet edge on benchtop to contain water and minimise floor spillage
• Sink bowls fully welded and polished inside and out for hygiene and durability
• Splashback: stainless-steel backed, 180mm high, 30mm thick, bevelled, fully enclosed
• Six legs supplied for this 2400mm wide model (four legs on narrower bench sizes)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless-steel polished disc feet that complement the leg finish
• Optional lockable castor kits available for mobility
• Supplied flat-packed for ease of transport and reduced freight dimensions
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 74.2
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 530
• Shipping Weight: 75
• Warranty (months): 2 Years Parts Only
