Modular Systems DSB7-1500C/A Modular System Double Centre Sink Bench with Pot Undershelf

Modular Systems DSB7-1500C/A Double Centre Sink Bench with Pot Undershelf 1500mm

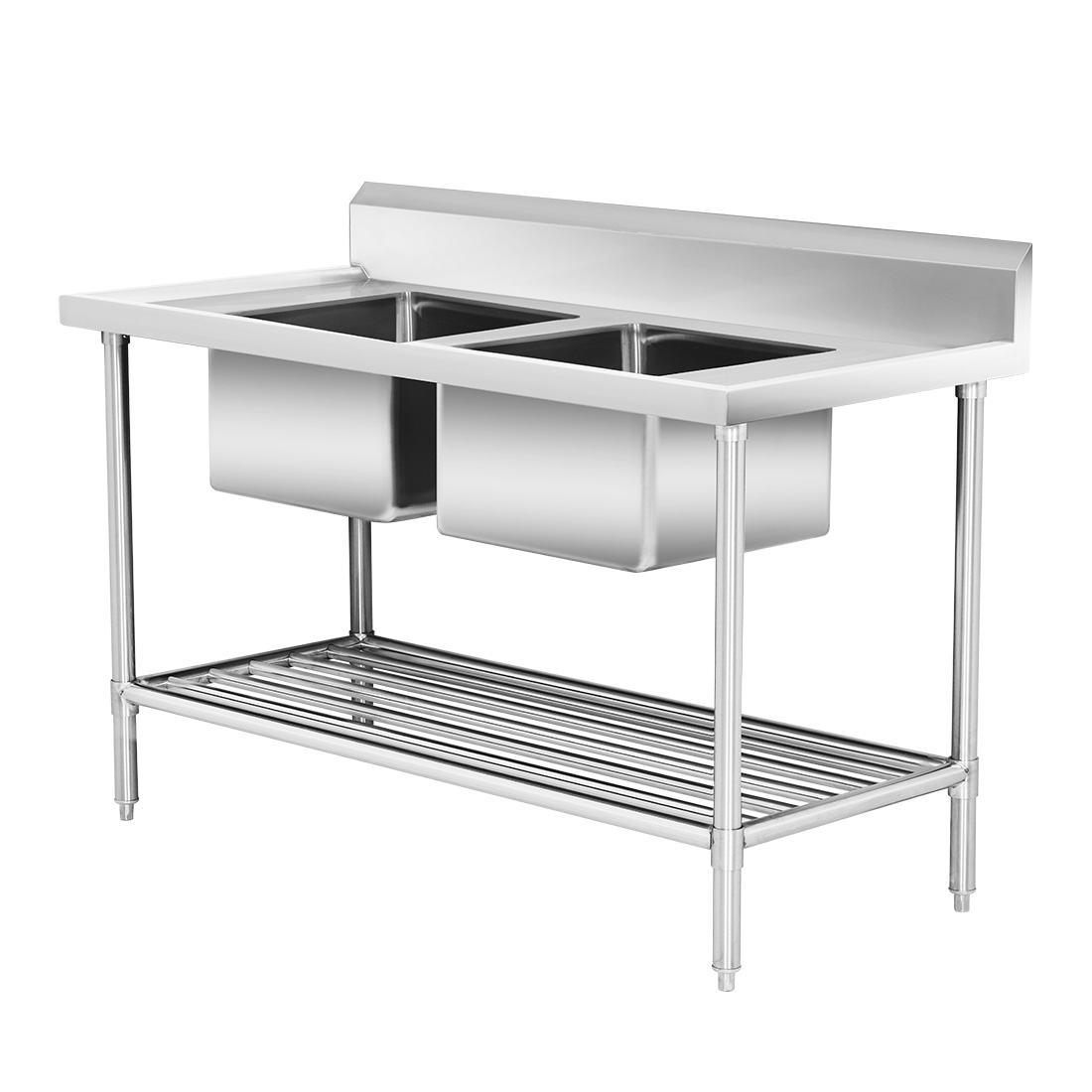

The Modular Systems DSB7-1500C/A is a 1500mm wide double centre sink bench constructed from 1.2mm SUS304 (18/8) stainless steel throughout, purpose-built for the rigorous demands of commercial kitchens, restaurants, cafés, and catering facilities. Featuring two centrally positioned, fully welded and polished bowls, a reinforced benchtop, integrated splashback, and a pot undershelf, this unit delivers a complete washing and preparation station in a single, hygienic package.

Supplied flat-packed with an instruction manual and all necessary tools, the DSB7-1500C/A is engineered for quick and straightforward on-site assembly. A free optional leg brace is available as an alternative to the pot undershelf and must be specified at the time of ordering, giving operators the flexibility to configure the bench to suit their kitchen layout and workflow requirements.

Key Benefits

• Fully welded and polished bowl interiors and exteriors eliminate hidden dirt traps, supporting superior hygiene standards and HACCP-compliant cleaning practices.
• The 15mm wet edge around the bowls contains water splashage and protects adjacent surfaces and equipment from moisture damage during heavy washing.
• Fully adjustable polished stainless steel disc feet accommodate uneven floor surfaces, ensuring a stable, level bench in any kitchen environment.
• XPS board insulation with a stainless steel panel lining and SS 'U' channel reinforcements beneath the benchtop provide exceptional structural rigidity that increases with bench width.
• Flat-packed delivery simplifies transport and reduces freight costs, while the included tools and instruction manual allow fast, straightforward assembly on site.
• Optional lockable castor kits enable the bench to be repositioned easily for cleaning or kitchen reconfiguration without compromising stability during service.
• The choice between a pot undershelf and a free leg brace alternative offers genuine versatility, allowing operators to match the bench configuration to their specific storage and workflow needs.
• A 2-year parts only warranty provides peace of mind and reflects the durability expected from a leading commercial stainless steel equipment manufacturer.

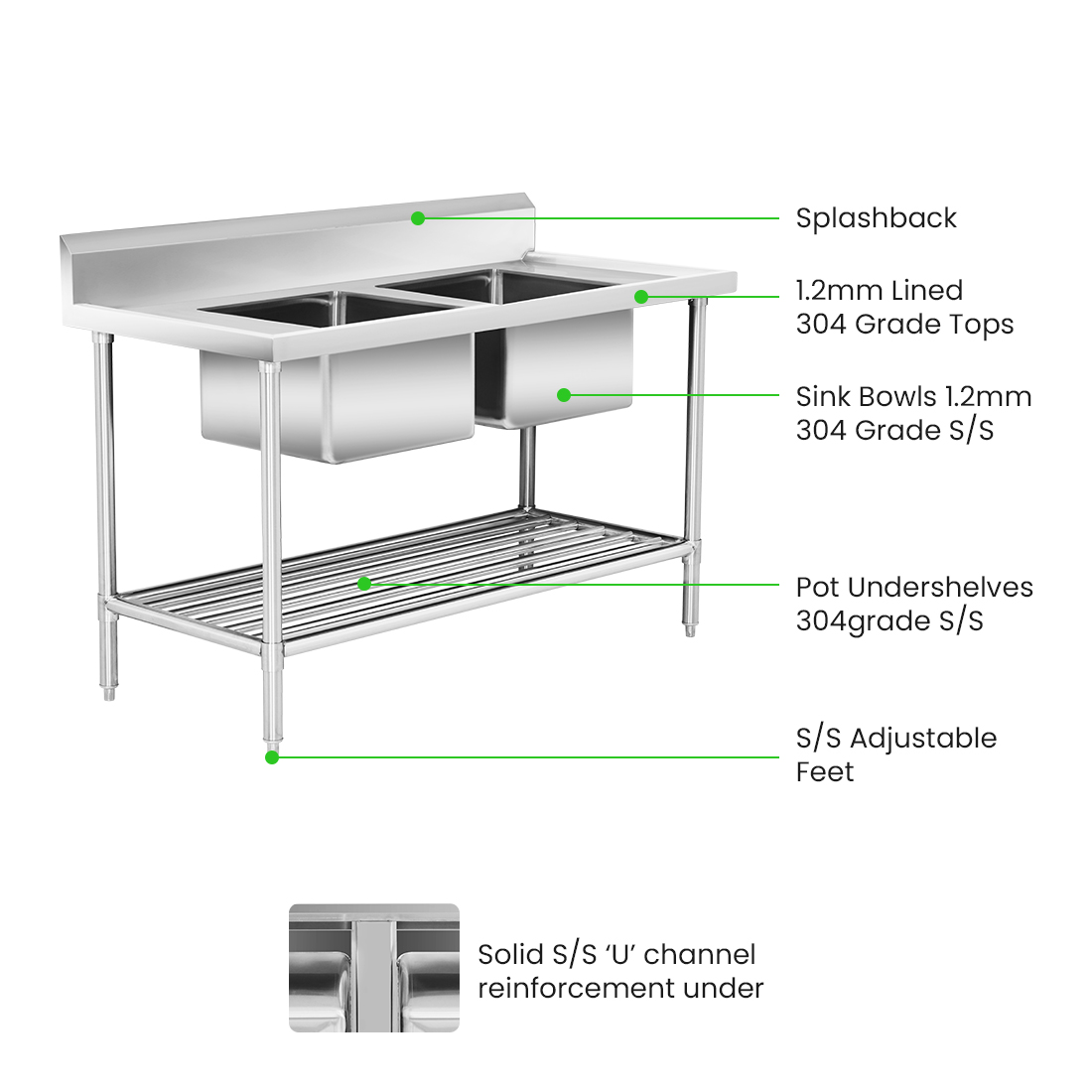

Key Features

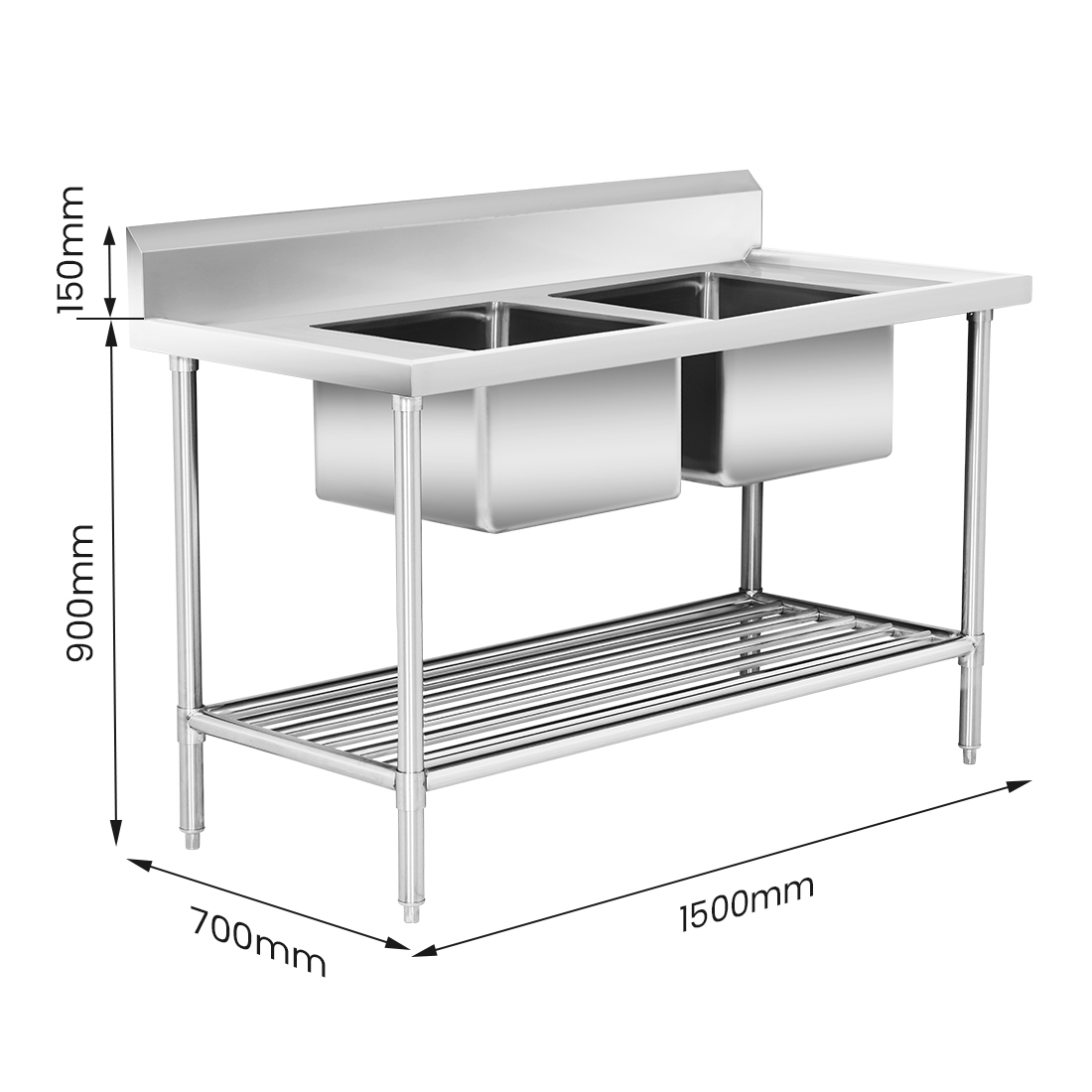

• Overall dimensions: 1500mm wide x 700mm deep x 900mm high
• 1.2mm SUS304 (18/8) stainless steel construction throughout
• Two centrally positioned bowls, each 450mm W x 450mm D x 300mm H
• 90mm diameter drain hole per bowl for efficient water drainage
• 15mm wet edge to contain water and protect surrounding surfaces
• Bowls are fully welded and polished inside and out for maximum hygiene
• Splashback: stainless steel backed, 150mm high, bevelled, fully enclosed
• Benchtop lined with 15mm XPS board and a stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Legs: 1.2mm stainless steel, 42mm diameter tube
• 4 legs per bench (2100mm and 2400mm wide benches in the range are fitted with 6 legs)
• Fully adjustable polished stainless steel disc feet that complement the leg finish
• Lockable castor kits available as an optional accessory

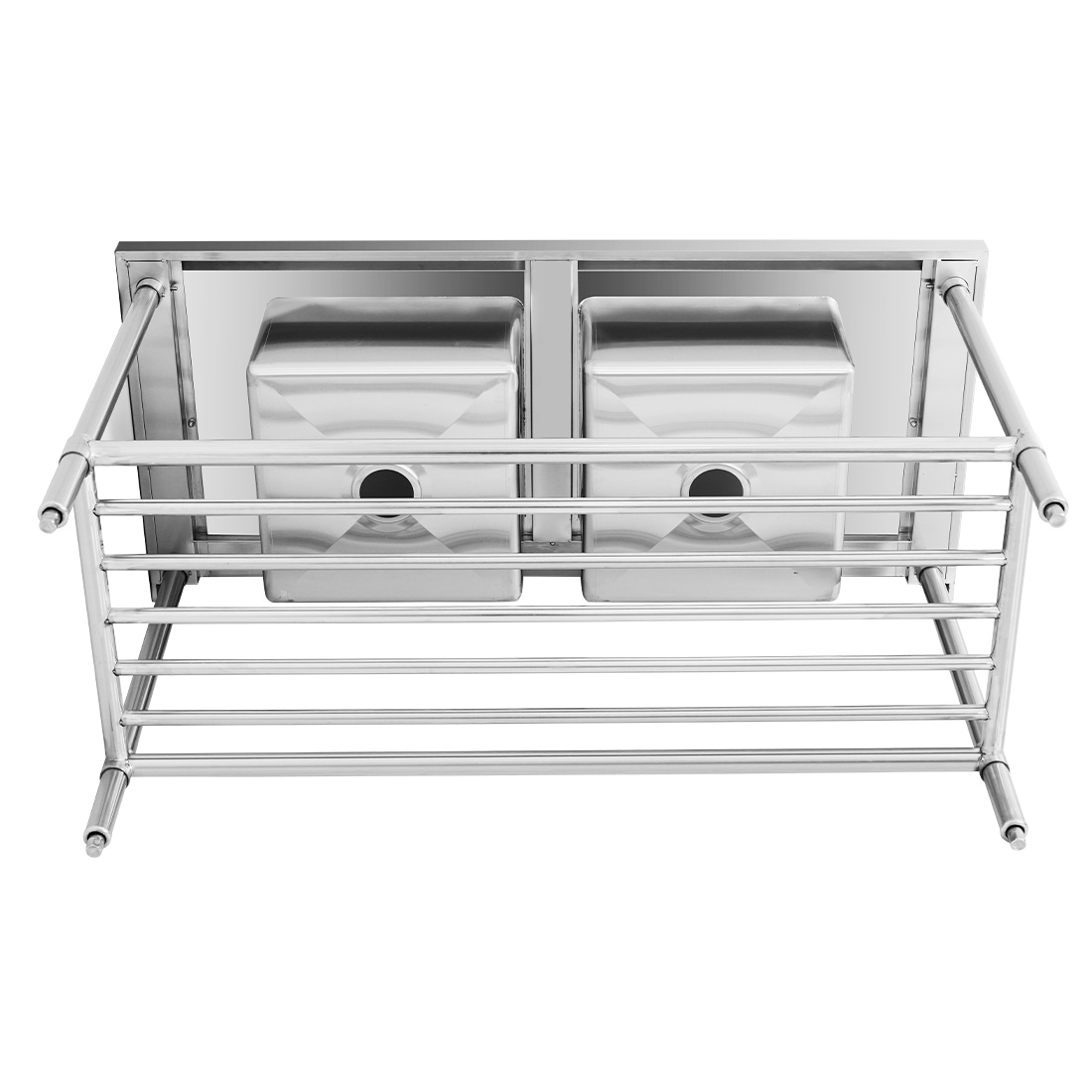

• Pot undershelf: 1.2mm stainless steel (18/8); outer frame 38mm diameter x 1.2mm tube; inner tubes 25mm diameter x 1mm tube with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Supplied flat-packed for ease of transport and handling
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• 2-year parts only warranty

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 45.6
• Packed Width (mm): 770
• Packed Depth (mm): 1570
• Packed Height (mm): 530
• Shipping Weight: 50
• Warranty (months): 2 Years Parts Only
